T300-260S
- Product details
- Data download
- Video and Documents

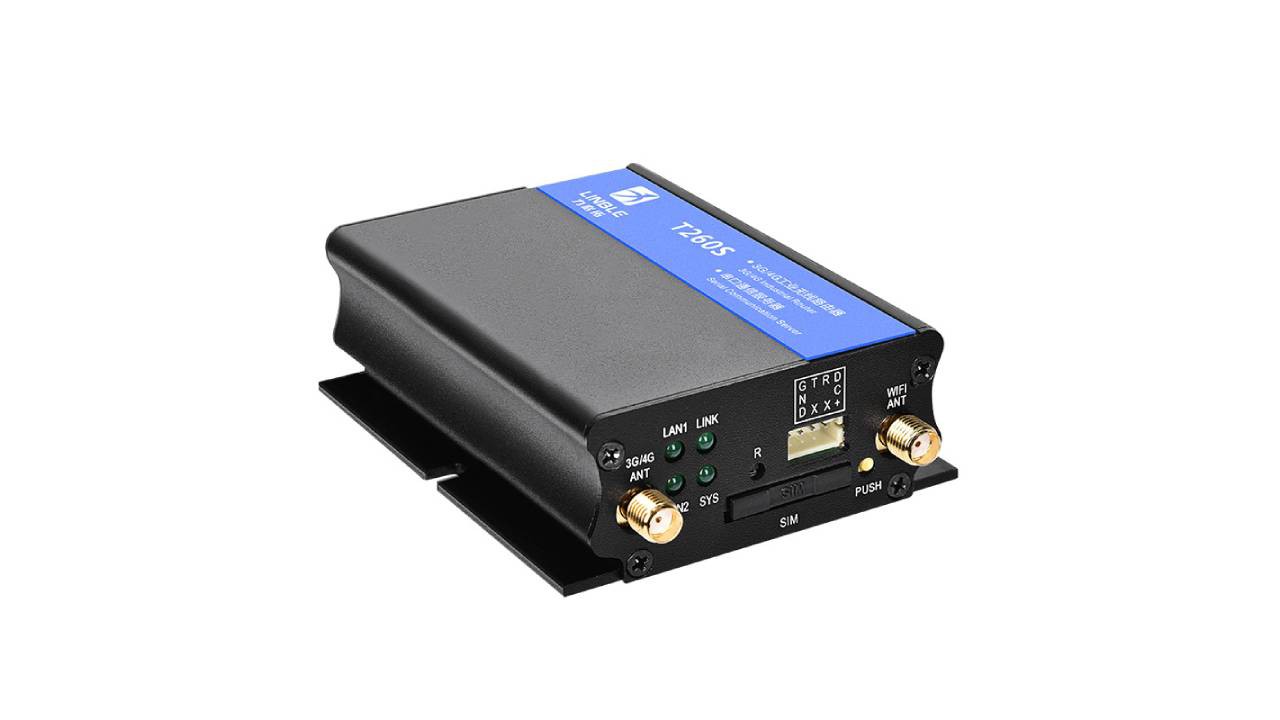

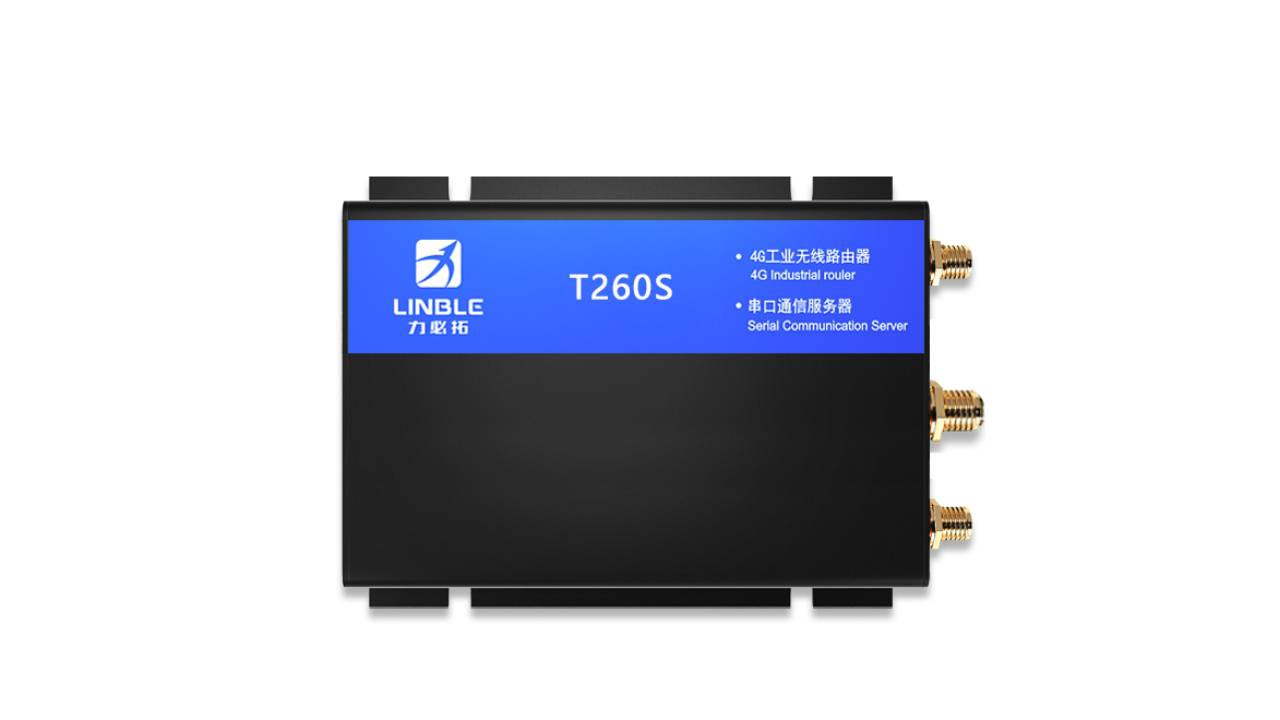

4G industrial router for remote monitoring / solar / vending
Rapid deployment of industrial communications networks
① Support 4G to wired, 4G to wifi, 4G to serial port
② Supports VPN (PPTP Client,L2TP Client) secure protocol transmission
③ Built-in guard dog protection, 24 hours no downtime, stable and high-speed operation of the equipment
④ Serial port power supply and network port lightning protection, surge protection, anti-reverse connection, anti-static, and overvoltage protection
More stable and complete product features
① Protection level: IP30
② DC power supply: 12-35V/1A
③ Working environment: 40°C ~ +80°C
④ Dimensions: 83*66*26mm
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: 260S-CN-4GA-W4-S1-RS485; Version 260S, China 4G domestic solution, single band WiFi4, single card, protocol RS485, no customization Note: Some versions do not allow customization of the above content. | |||||
Hardware Parameters
Product size | 83*66*26mm(L×W×H)(Excluding antenna interface) |
Power supply | Dc power supply: 12-35V / 1A |
External interface Protection grade | Reset button: 1 Indicator lights: 4 Antenna interface: 1-3 (optional) SIM card slot: 1 DC power supply interface: 1 (2.1mm round power connector) surge protection, reverse connection protection, overvoltage protection RS232/485 interface: 1 (customized) (2.0mm 4PIN connector) LAN port: 2 (LAN1 is WAN/LAN adaptive) Protection level: IP30 Built-in lightning protection for standard RJ45 (Ethernet) interface: 3KV |
Indicator light | LINK, SYS, WAN/LAN1 to LAN2 |
Antenna | SMA external rotating inner hole |
Storage memory | Storage :8MB, memory: 64MB |
Authentication | CE, FCC, CCC |
Power consumption (current) | less than 400 mA |
Operating temperature Humidity | Operating temperature: -20 to +70 ° C Storage temperature: -40 to +80 ° C Humidity: 5 to 95% (non-condensing) |
Feature Data
Basic Features | 4G Internet Protocol: 4G dial-up access / DHCP / Static IP / PPPoE. Number of users supported: Wired: 253 Network functions: NAT, DNAT, DMZ, port forwarding Soft and hardware watchdog design to prevent system from freezing. When the router loses connection, it will automatically power off and restart to ensure stable and reliable operation of the equipment. |
WLAN Security Consultative | OpenSystem, WPA-PSK, WPA2-PSK, WPAPSK/WPA2 PSK, WPA1 / WPA2 |
Operating frequency band | 2400-2483.5 MHz |
WiFi transmission Rate/Data | Transfer rate: 300Mbps(MAX) (theoretical maximum) WiFi data: 802.11n:-66 dBm at 300 Mbps/HT 40 MCS7:+1 3.5 dBm 802.11b:-86dBm at 11Mbps/CCK :+18 dBm 802. 11g:-73dBm at 54Mbps/OFDM: +1 3 .5 dBm |
System Services | Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 |
Product packaging size/weight
Product weight (g) | 153g |
Product dimensions (mm) | 83*66*26mm |
Packaging size (cm) | 25*16*7cm |
Product packaging weight (kg) | 0.5kg |
Outer box dimensions (cm) | 71.3*44.3*26.8cm |
Container weight estimate (kg) | 15kg |
Optional frequency bands
4G band | CN：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 EU：FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 AU:FDD-LTE B1/3/5/7/8/20/28 TDD-LTE B38/40/41 NA：FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41 SA：FDD-LTE B2/4/5/7/8/28 TDD-LTE B40 J：FDD-LTE B1/3/8/18/19/26 TDD-LTE 41 GL：FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |

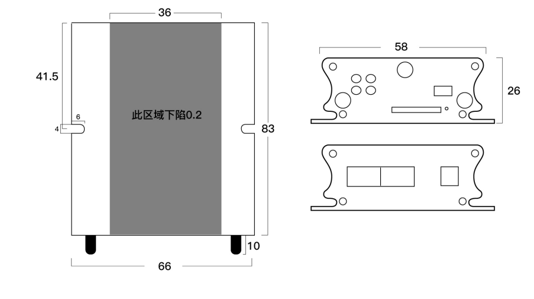

Housing positioning holes

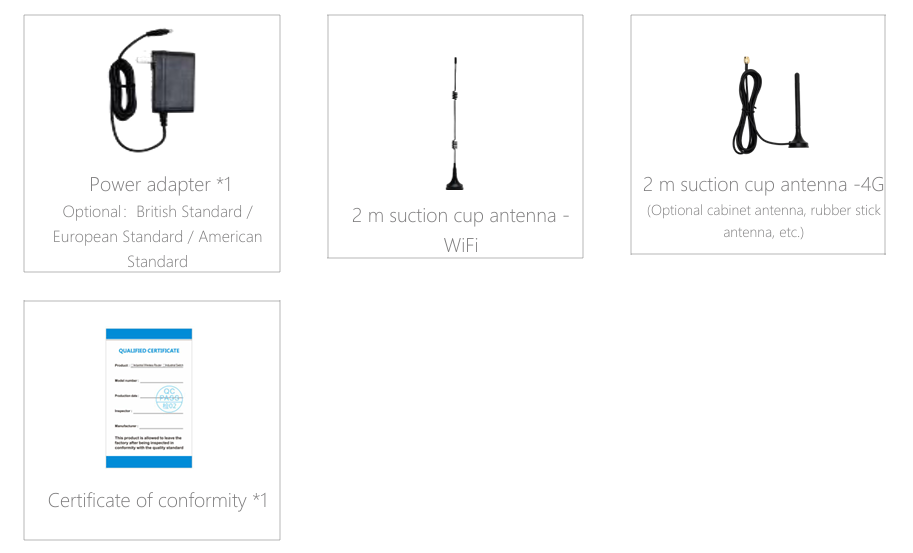

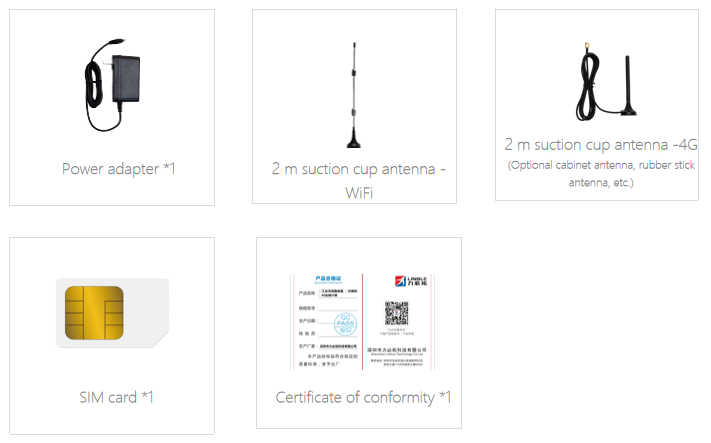

Standard accessories
