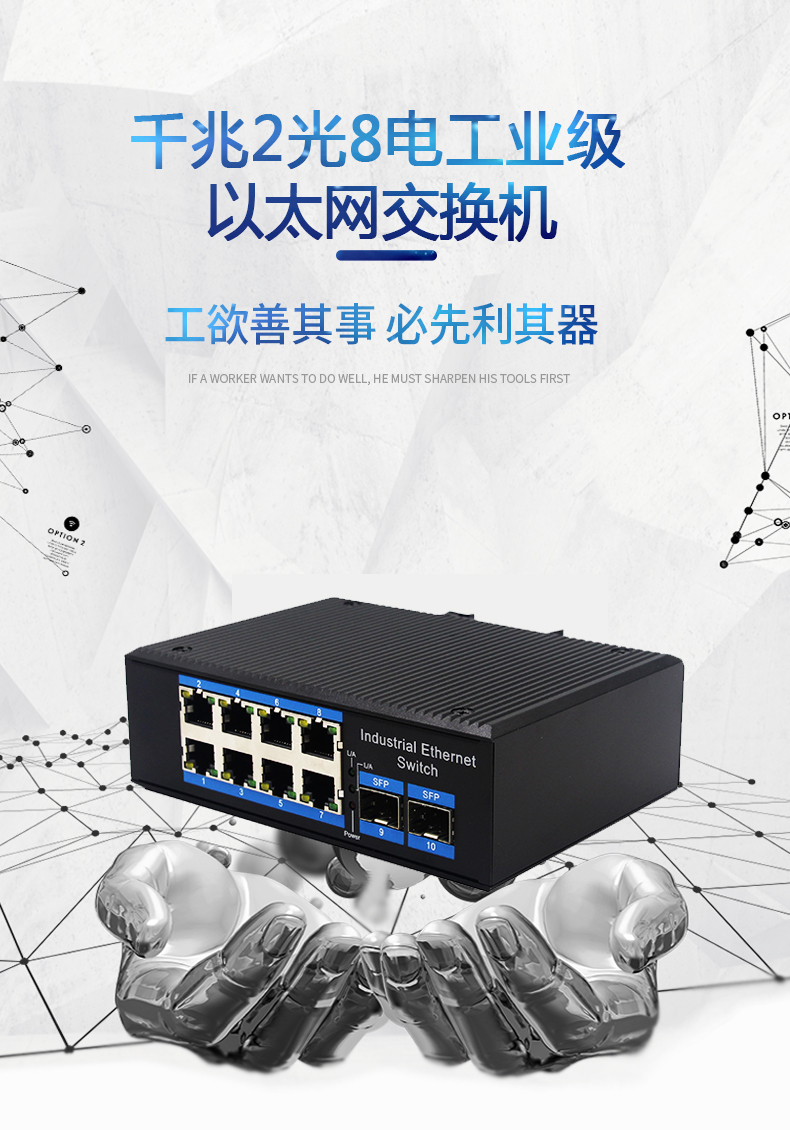

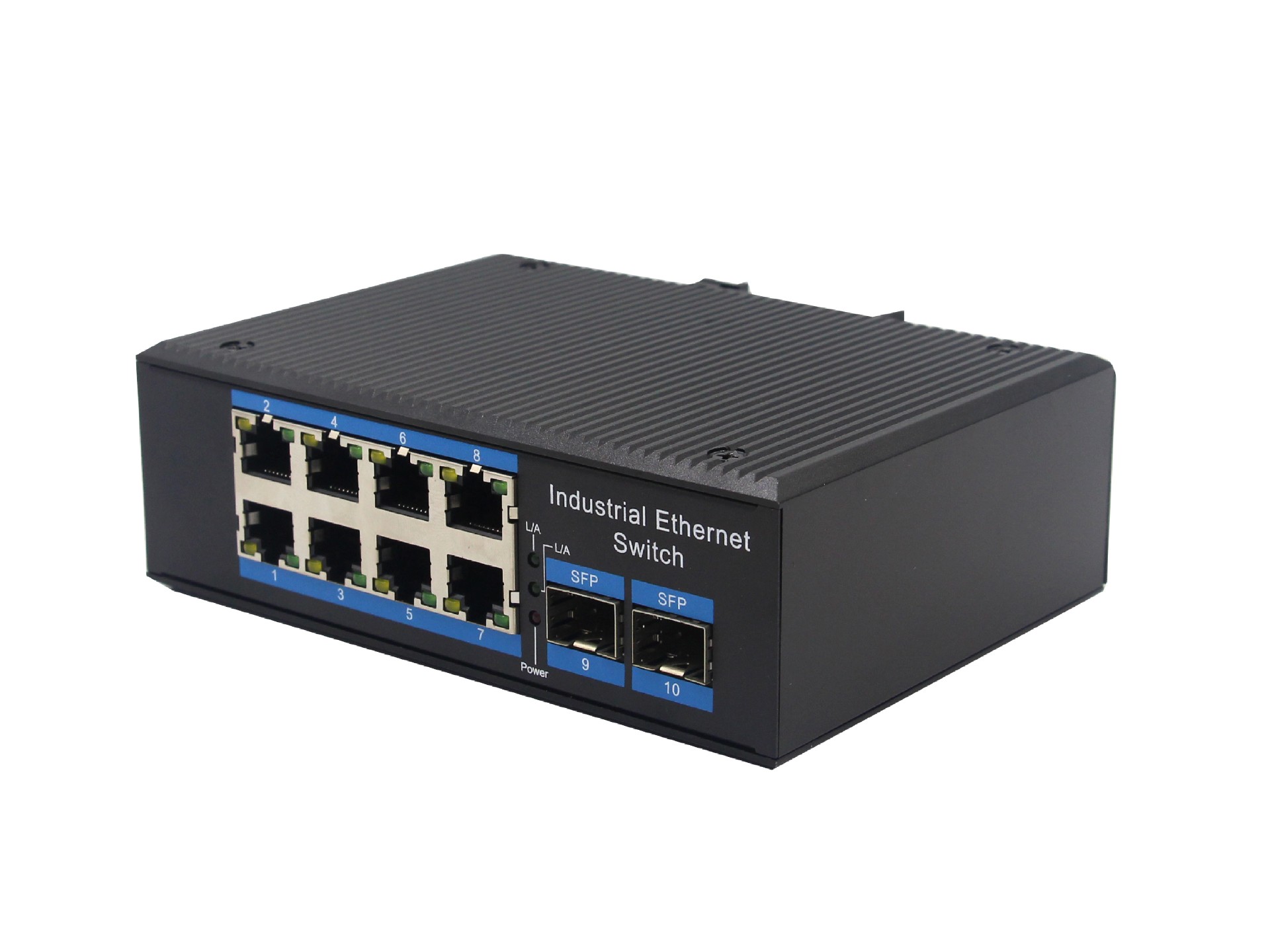

Gigabit 2 optical 8 electrical SFP
Product features
● The use of high quality photoelectric integration module to provide good optical and electrical characteristics
● Ensure reliable data transmission and long working life
● Support full duplex or half duplex mode, with automatic negotiation capability
● Network port support automatic cross identification
● Internal storage and forwarding mechanism, support a variety of protocols
● In line with industrial operating standards, the average trouble-free work in more than 300,000 hours
● Working power supply: DC 12-52V to provide reverse protection
● Lightning Surge Protection (Power): 5000A(8/20μs)

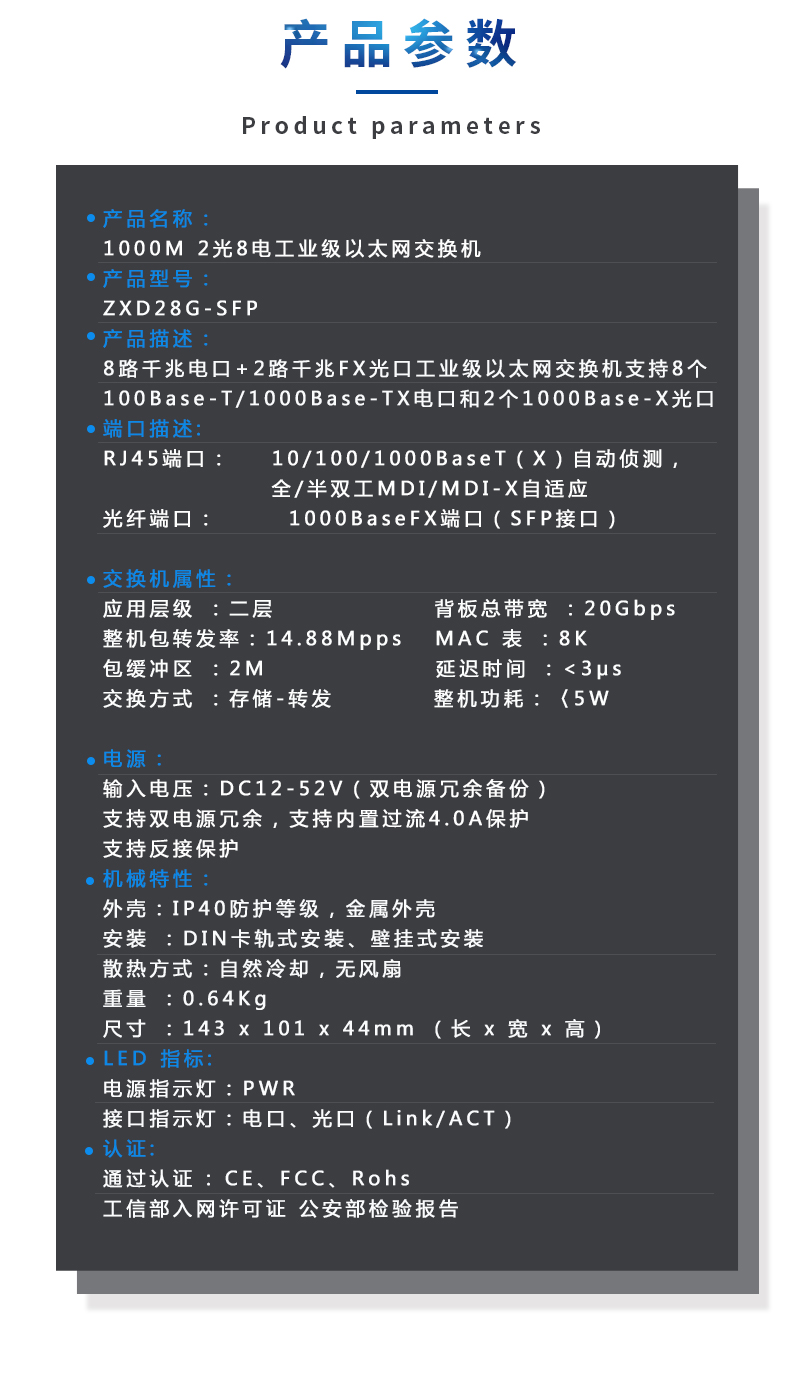

Specification
4.1 Standard:IEEE802.310BASE-TIEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab1000Base-T;IEEE802.3z1000Base-X;IEEE802.3x;IEEE802.3af, IEEE802.3at

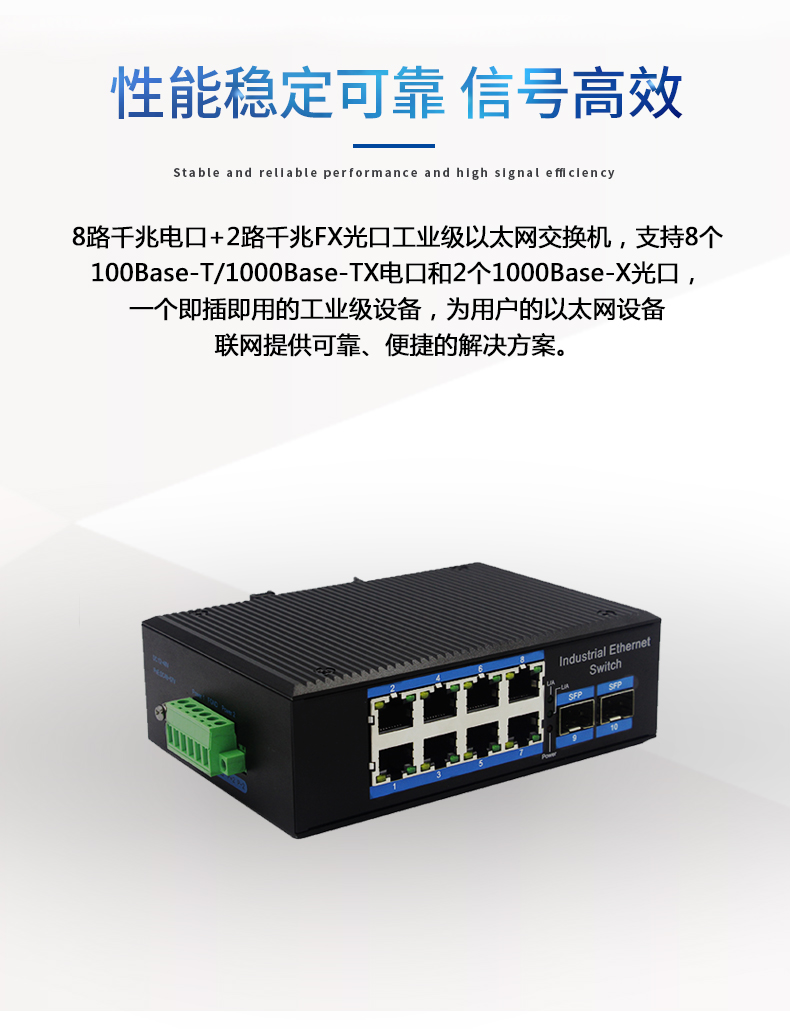

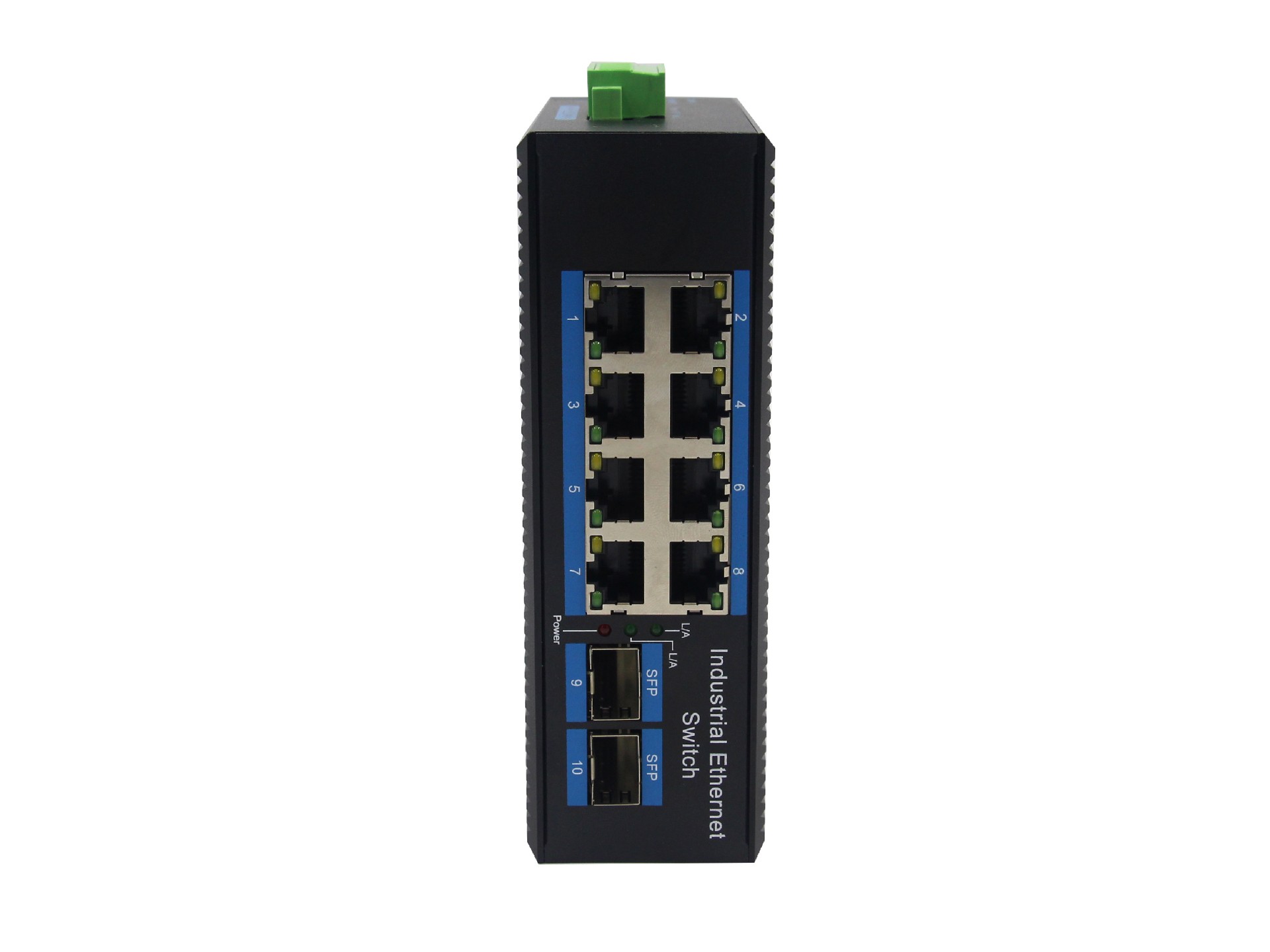

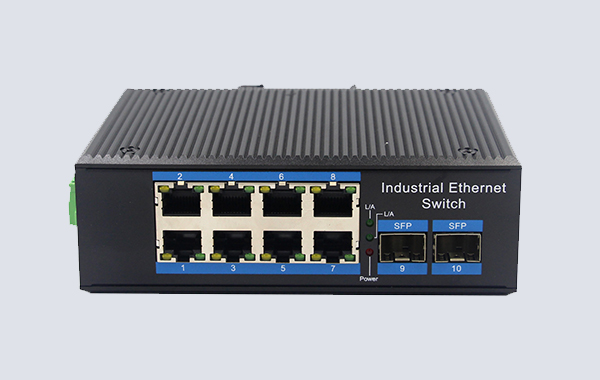

4.2 Interface: 8-Port 10/100/1000Mbps RJ45+2 Port 1000Mbps SFP Industrial Switch
4.3 Work environment: -40～80 °C
Storage: -40～80 °C（
4. 4 Switch:
Bandwidth: 20Gbps
Packet Buffer Memory:2Mbit
Packet Forwarding Rate:15Mpps
MAC Address Table: 8K

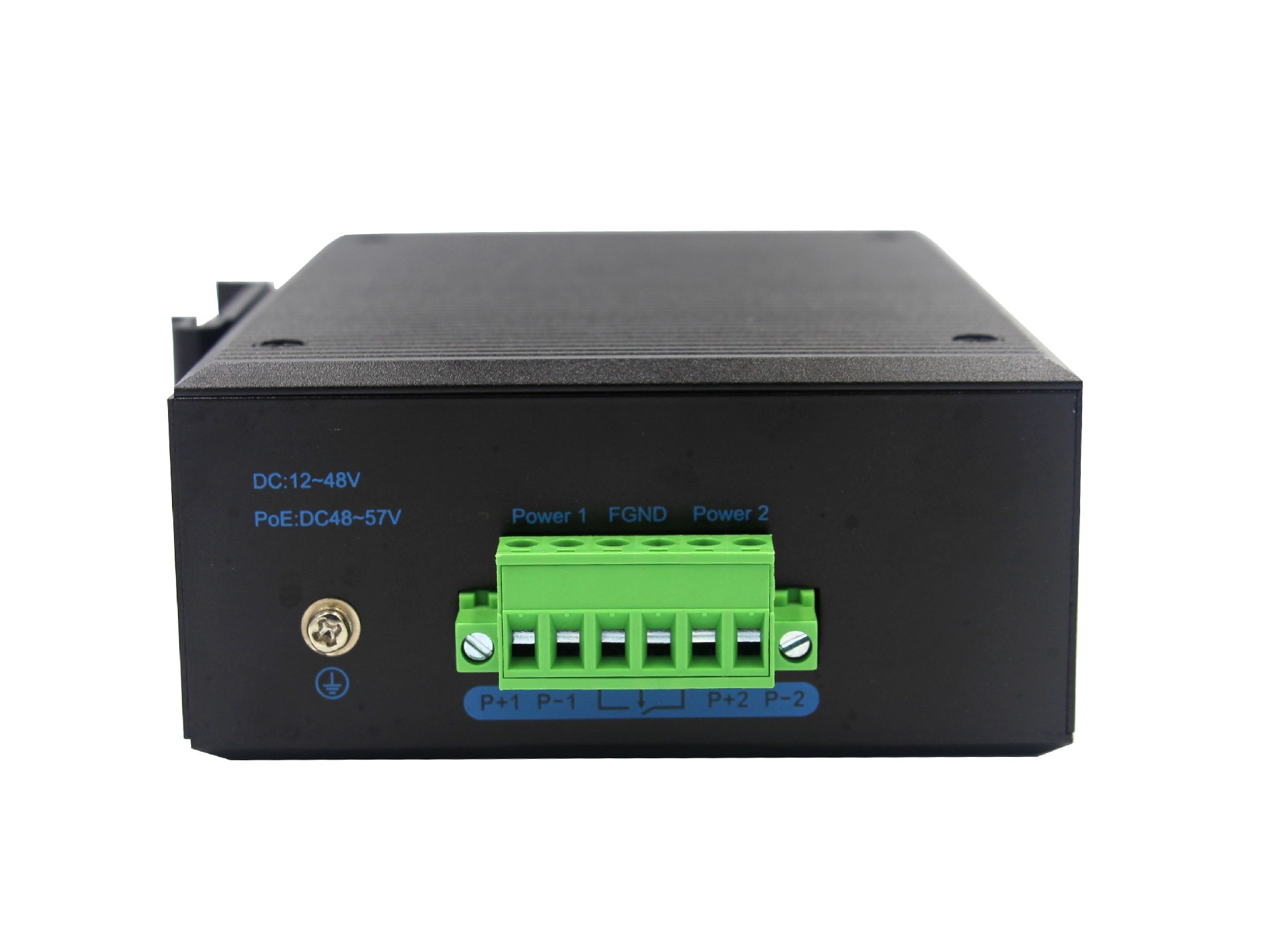

4.5 Power supply: input voltage: DC12-52V (two-way power redundancy backup); Access terminal: Phoenix terminal; Support dual power redundancy; Support built-in over current 4.0A protection;
Support reverse connection protection
Max Power consumption: 3W
4.6 Mechanical characteristic：
IP40 aluminum housing

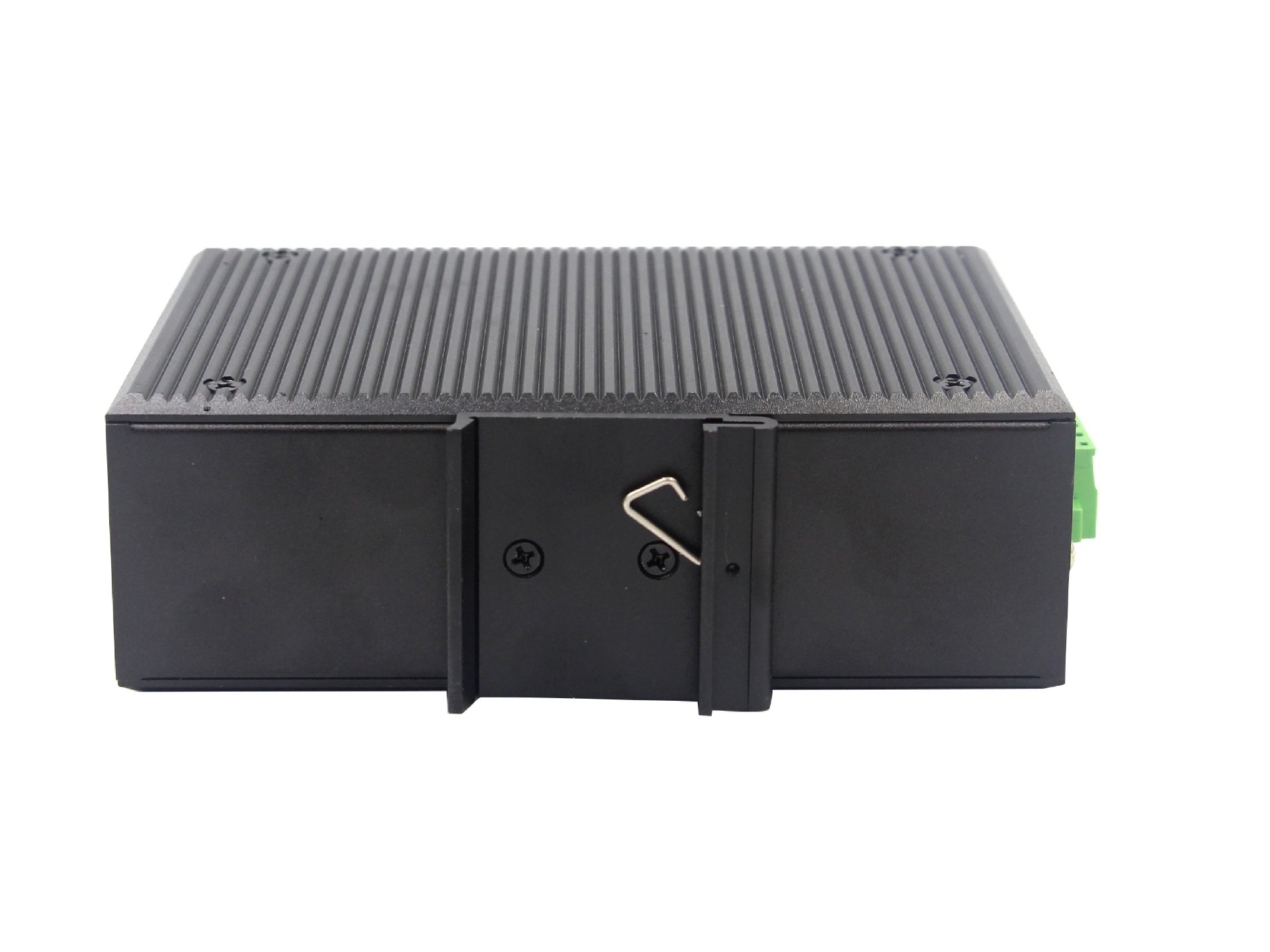

DIN rail install
Natural colling, no fan
Weight: 0.56Kgs

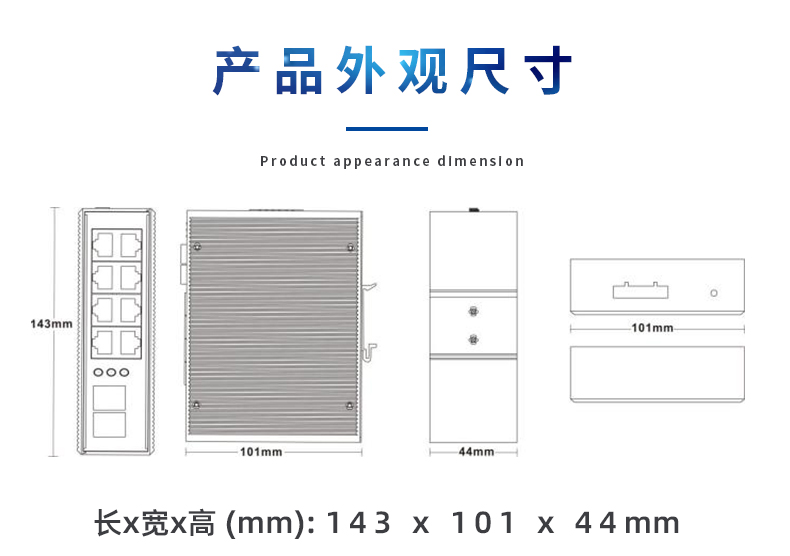

Measurement: 143.7 x 103 x 44 mm
4.7 Industrial standard:
FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)IEC61000-4-3 (RS): 10V/m (80~1000MHz)IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kVIEC61000-4-5 (Surge):Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVIEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Frequency range：150kHz-80MHz
Impact: IEC 60068-2-27Free Fall: IEC 60068-2-32Vibration: IEC 60068-2-6
