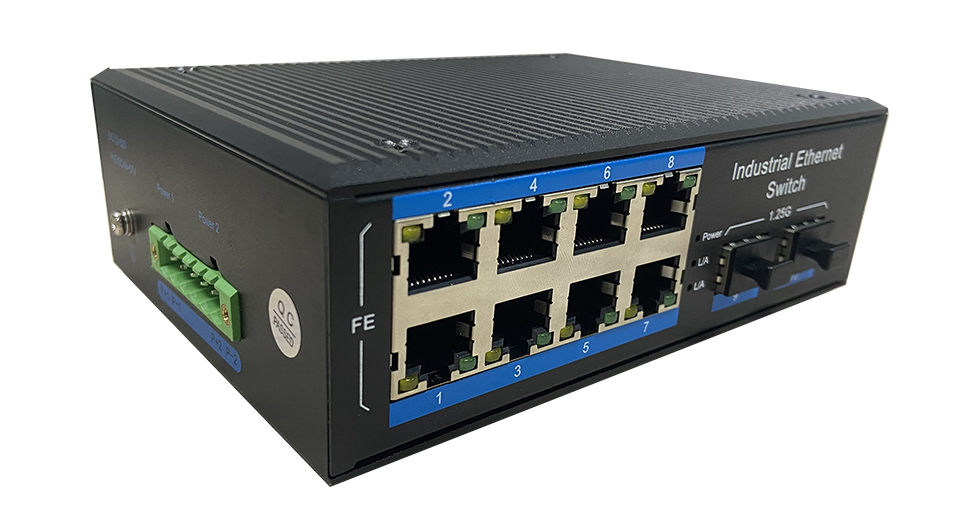

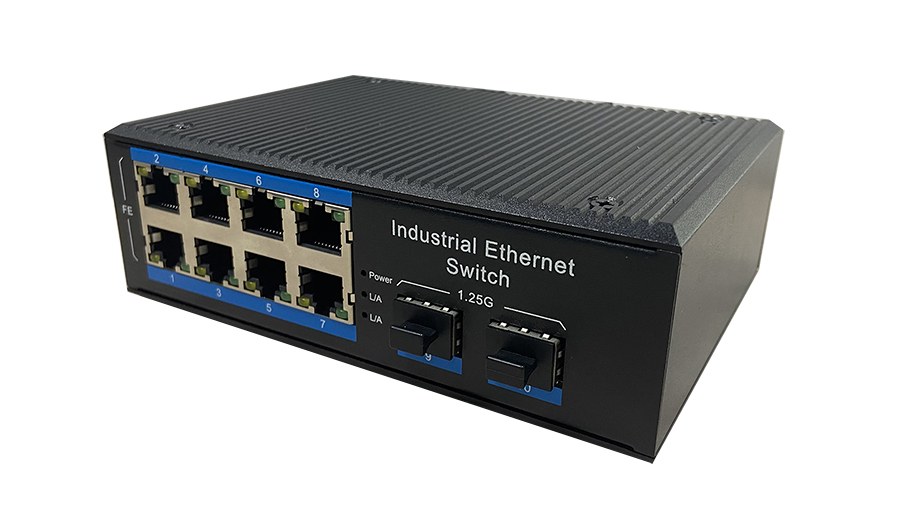

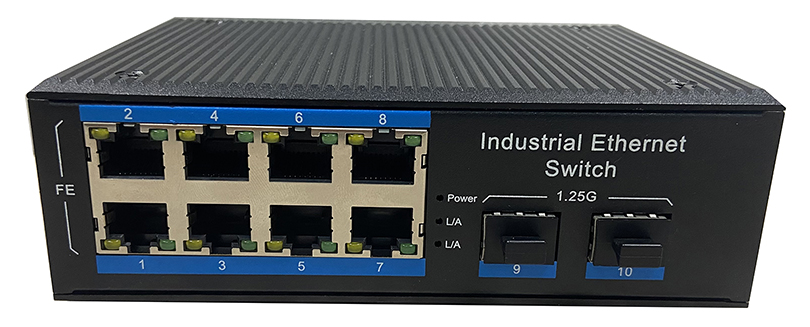

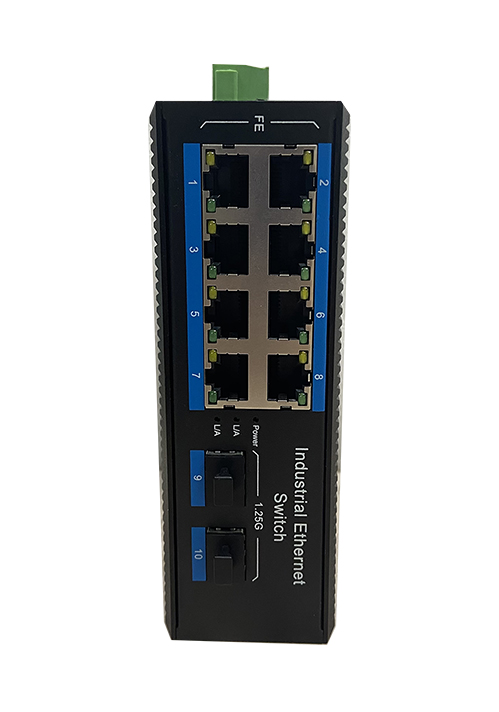

8-Port 10/100Base-TX +2-Port 1000Base-FX Industrial Ethernet Switch

LBT28GF-SFP is an hardened 10-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100BASE-TX RJ45 +2-port 1000Base-Fx  delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.

The LBT28GF-SFP is packaged in a compact IP40 case with Din Rail Installation. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Interface

•8-port 10/100Base-Tx RJ-45 with auto  negotiation and auto-MDI/ MDI-X  function

•2-port 1000Mbps SFP uplink

 Industrial conformance

•12V to 52V DC, redundant power input

•-40℃ to 80℃ operating temperature

•IP40 aluminum housing

•Supports 6KV DC Ethernet ESD protection

•Supports 6KV DC EFT protection for power line

•Free Fall, Shock and Vibration Stability

•DIN-rail hardware design
