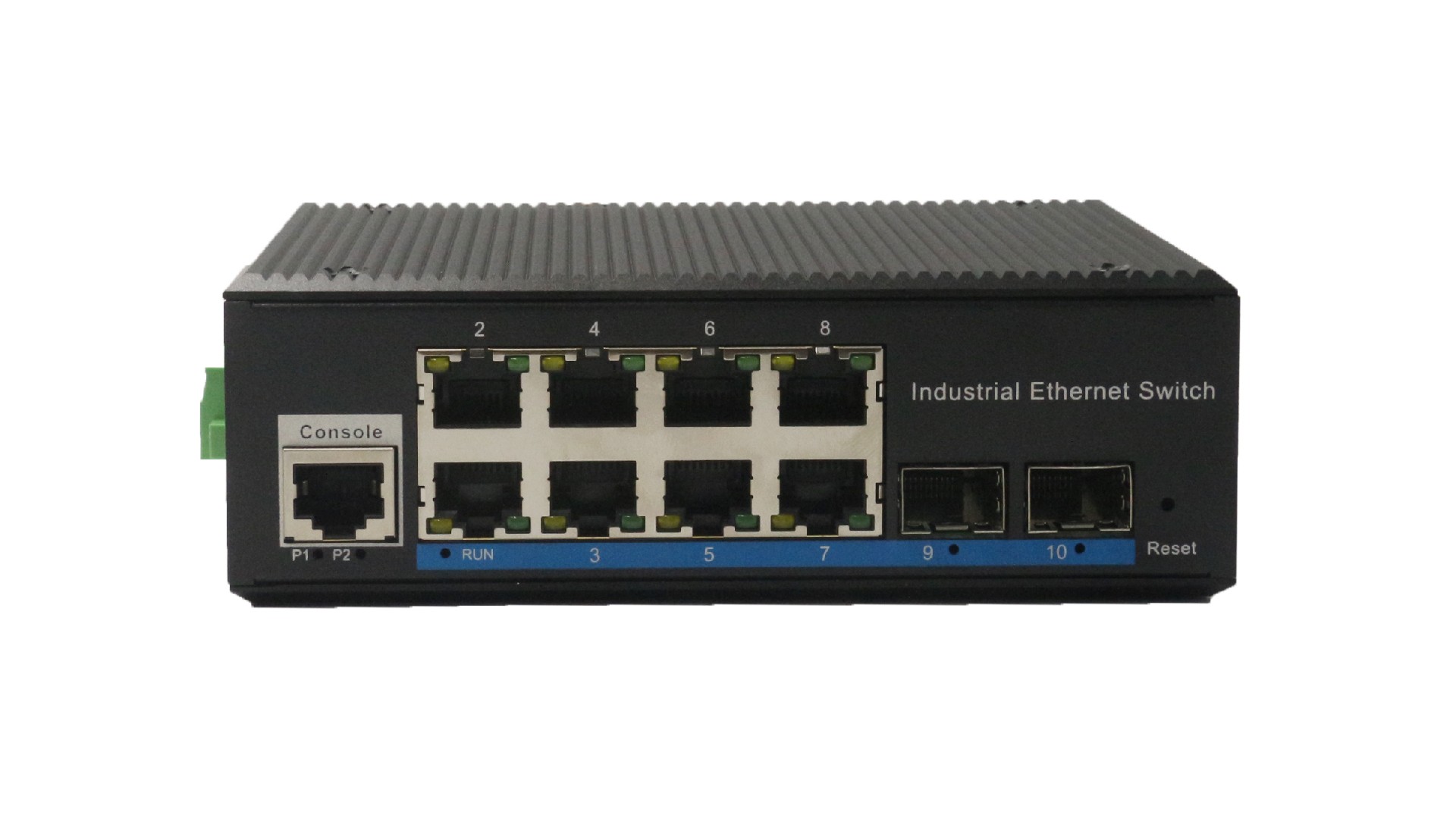

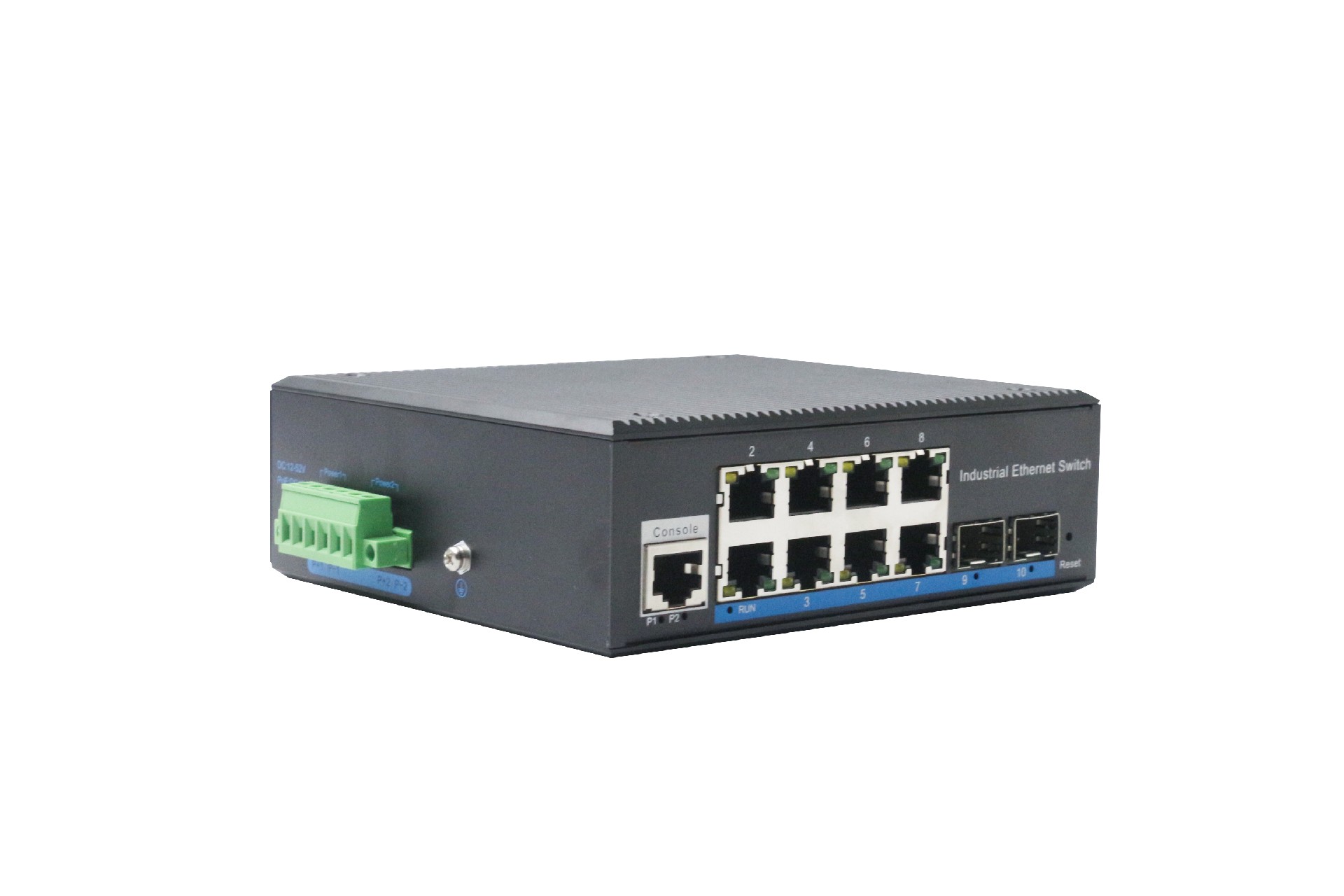

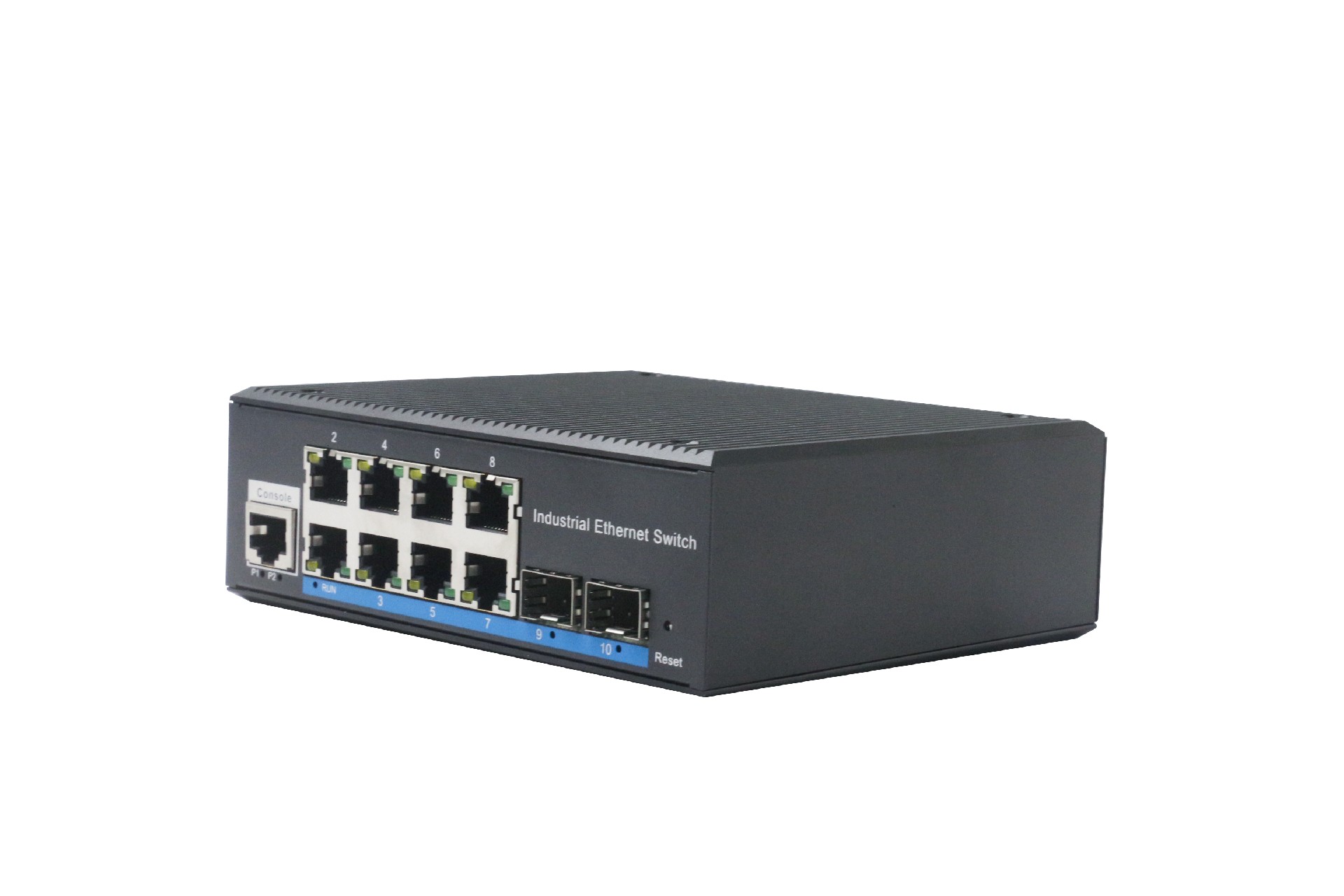

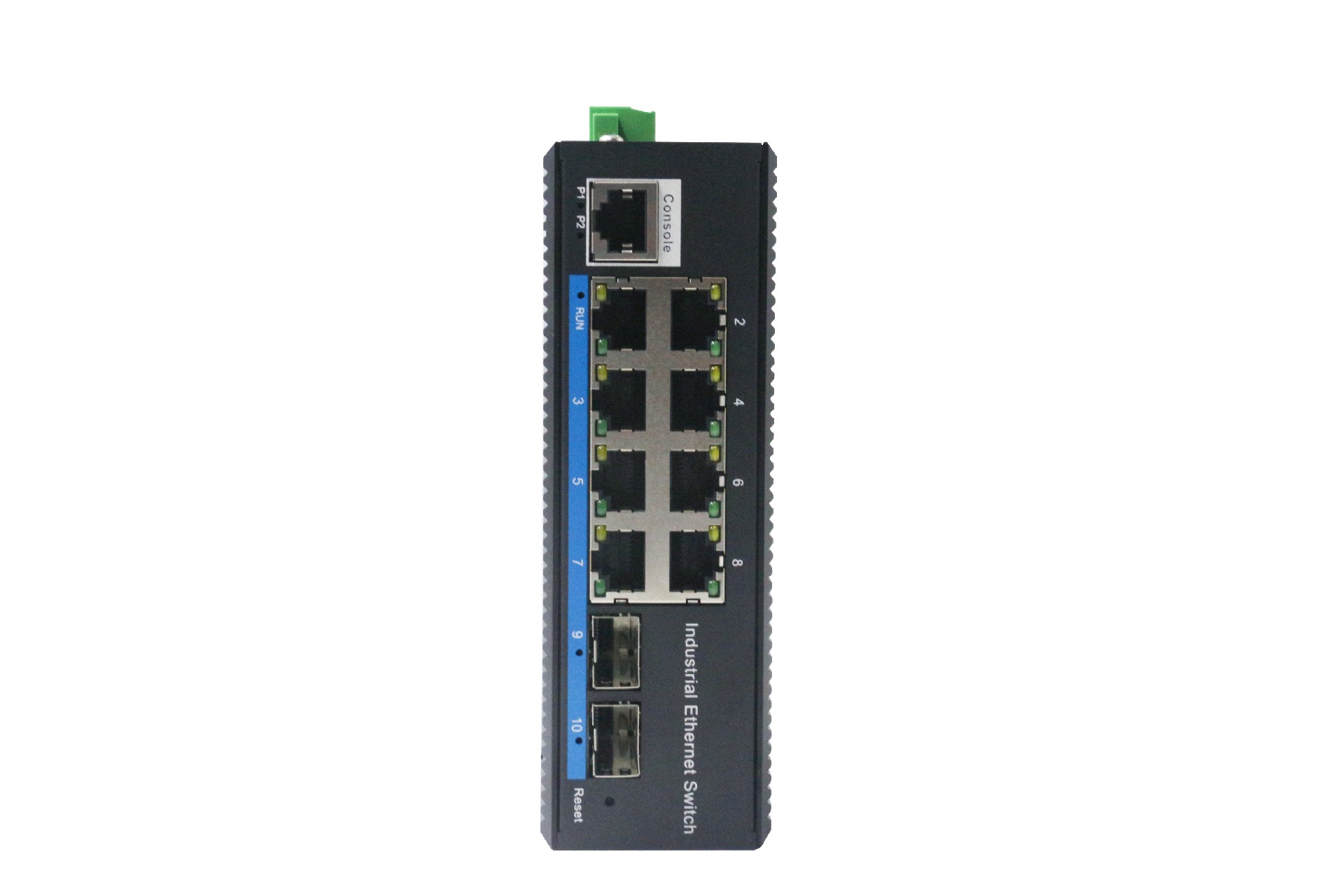

8-port 10//100/1000BASE-TX+2G SFP Managed Industrial Switch

LBT28GS-MS-SFP an hardened 10-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000BASE-TX RJ45 +2G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.

The LBT28GS-MS-SFP provides the flexibility to all kinds of 10/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.

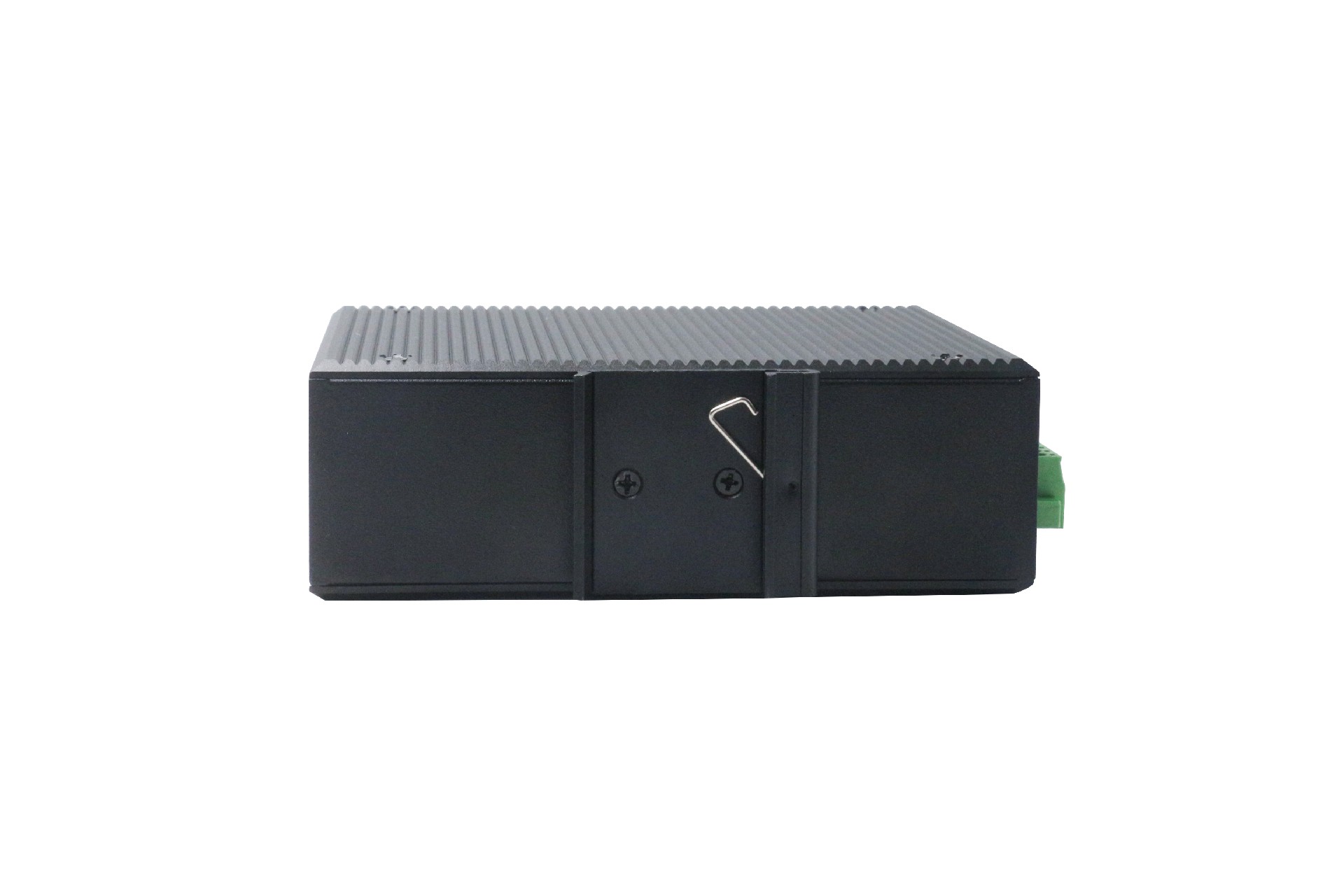

The LBT28GS-MS-SFP is packaged in a compact IP40 case with DIN-rai installation.It offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Interface

•8-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function

•2-port gigabit SFP

Industrial conformance

•12V to 52V DC, redundant power input

•-40℃ to 80℃ operating temperature

•IP40 aluminum housing

•Supports 6KV DC Ethernet ESD protection

•Supports 6KV DC EFT protection for power line

•Free Fall, Shock and Vibration Stability

•DIN-rail hardware design
