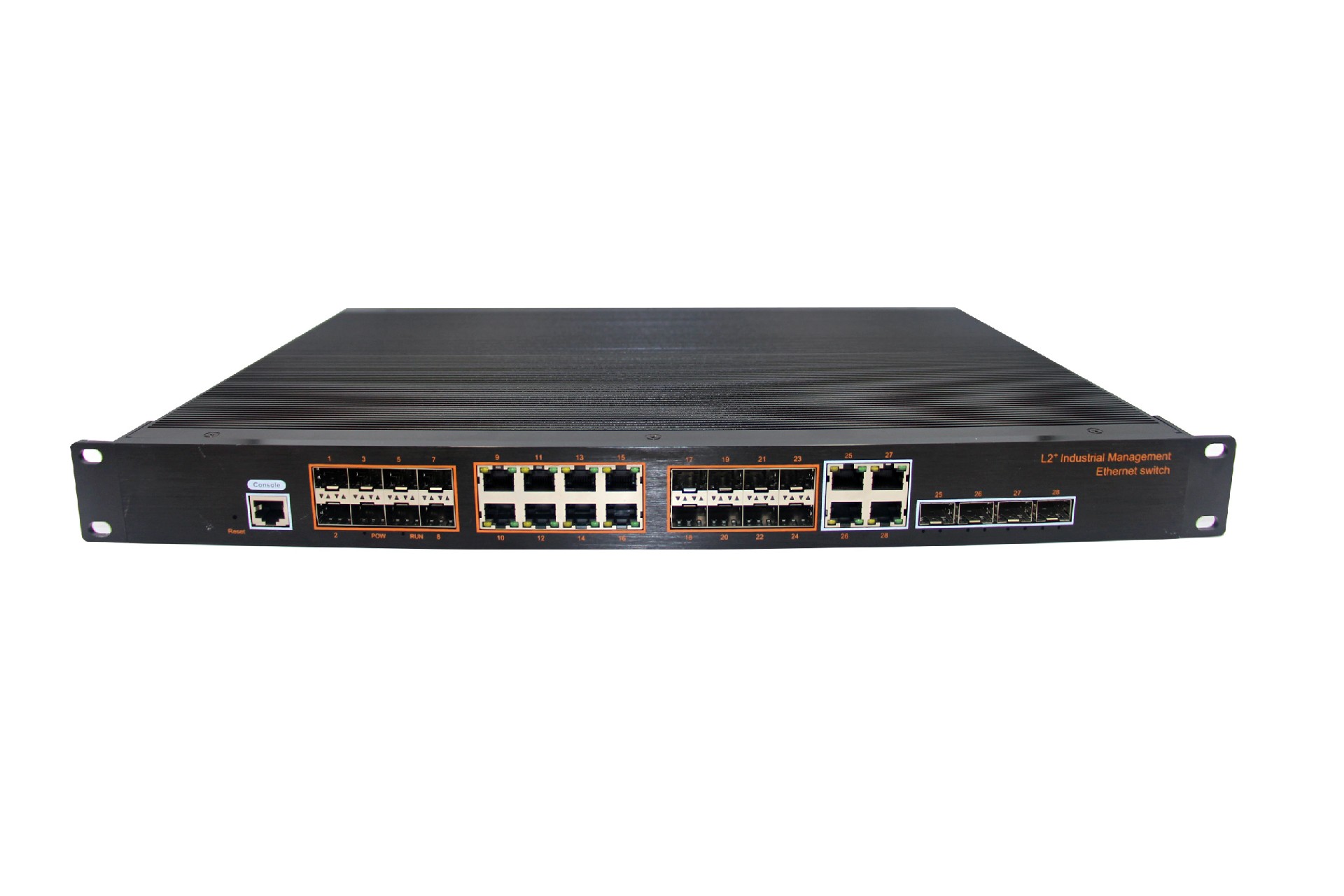

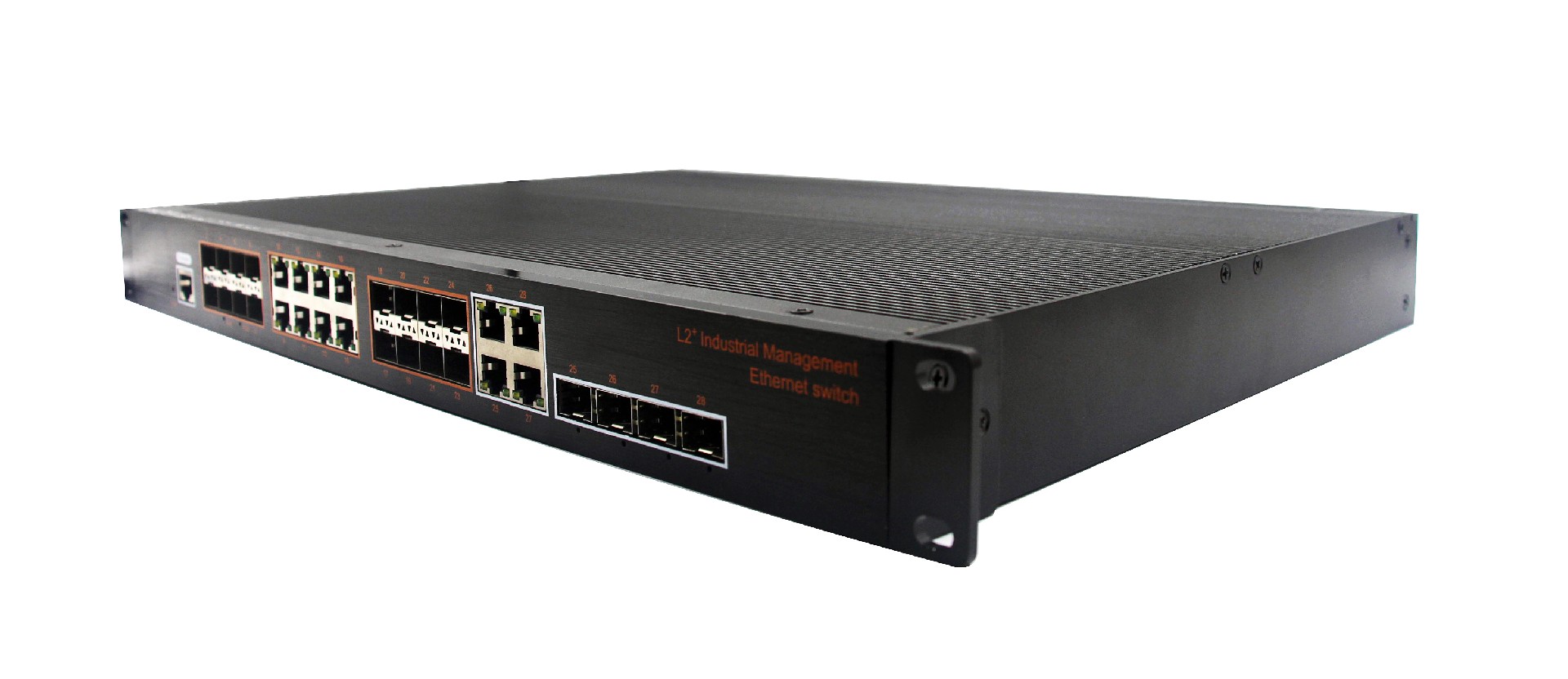

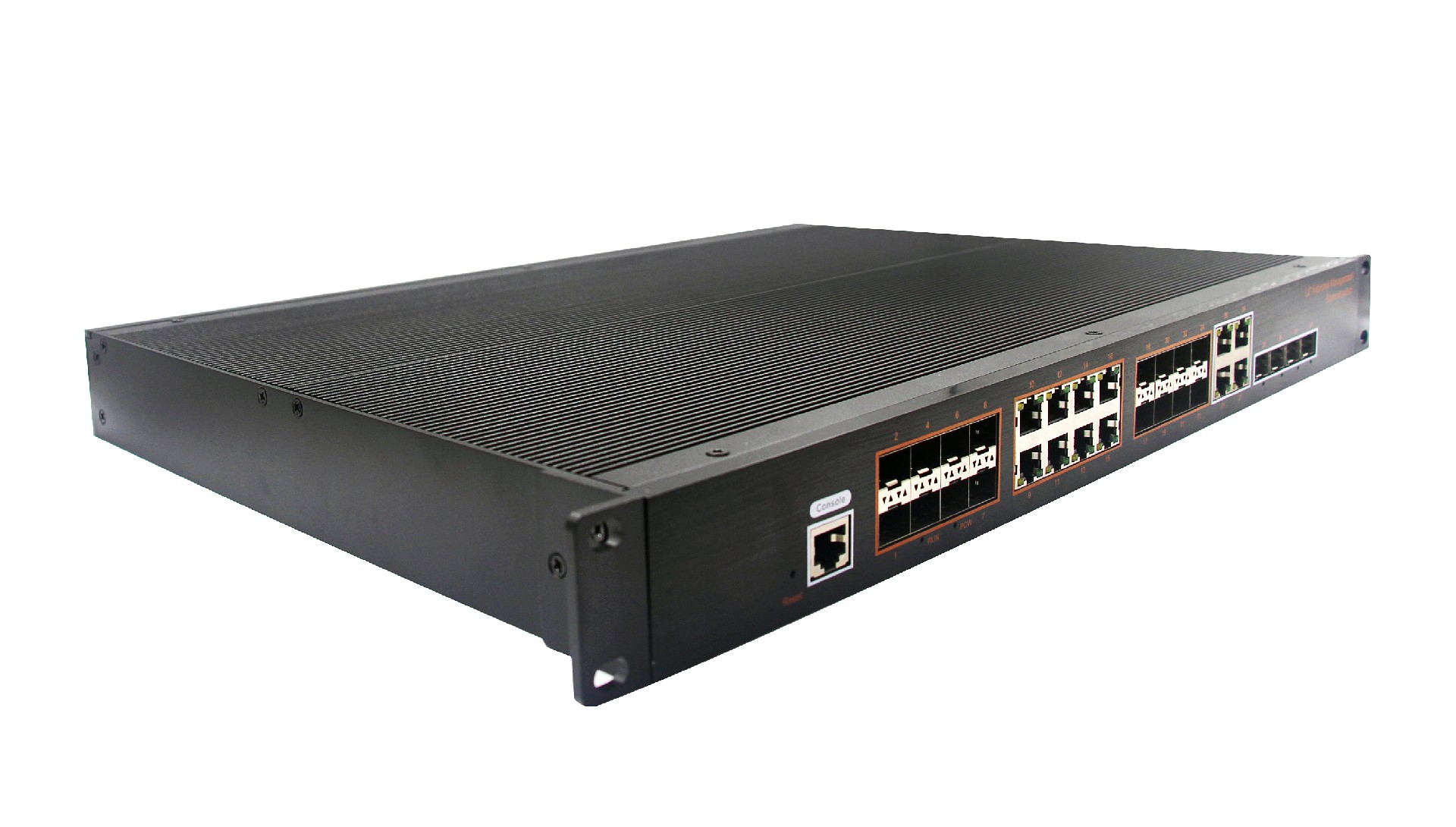

16-port 10//100/1000Mbps SFP+8-port RJ45+4G combo Managed Industrial Switch

LBT1612GS-M-SFP an hardened 32-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 16-port 10/100/1000Mbps SFP +8-Port RJ45+4G combo delivered in an IP50 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.

The LBT1612GS-M-SFP provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.

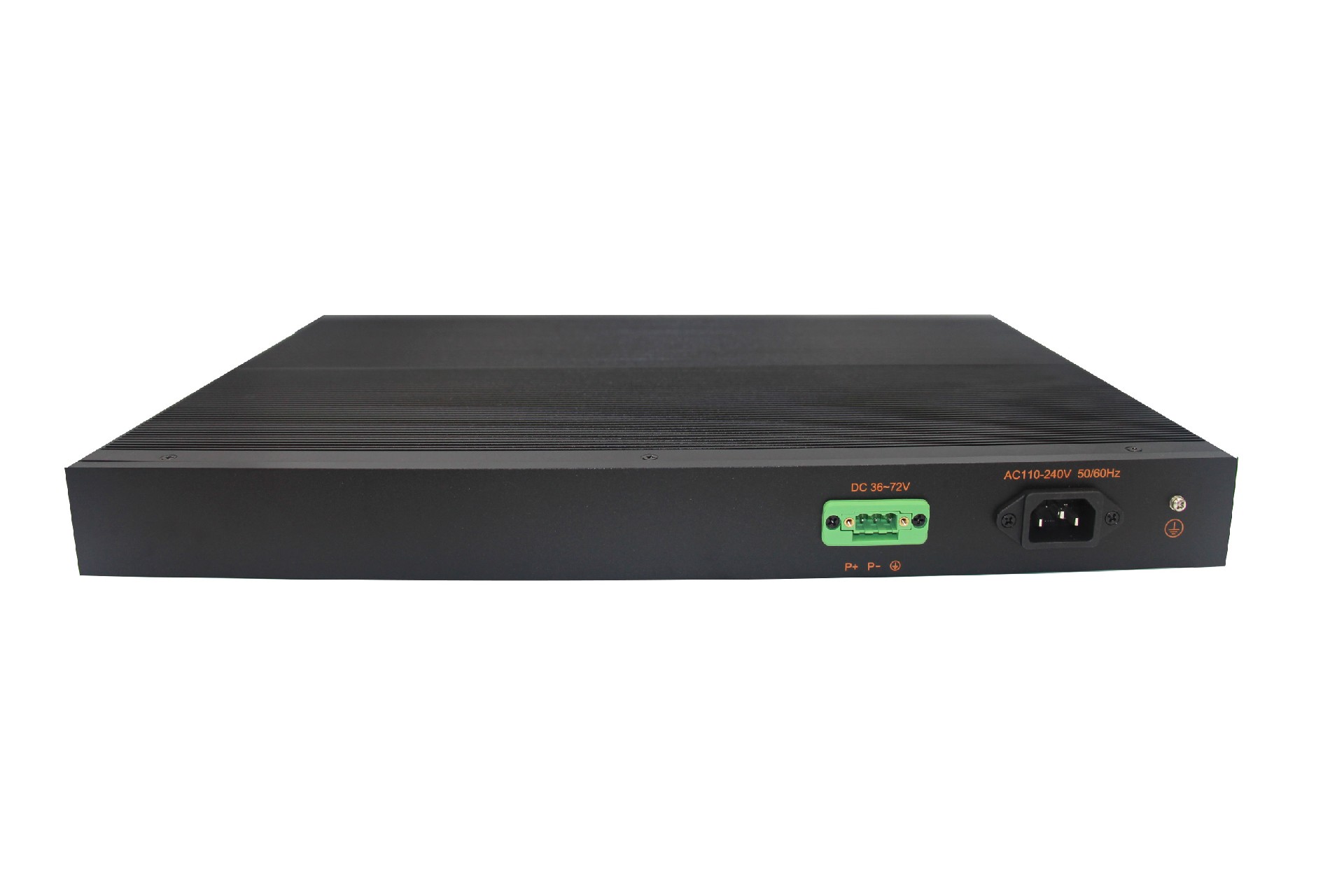

The LBT1612GS-M-SFP is packaged in a compact IP40 case that allows bracket mounting to cabinet . It supplies dual power supply: DC36~72V and AC110-240V

Interface

•16-port 10/100/1000Mbps SFP

•8-port 10/100/1000Mbps RJ45

•4G combo

Industrial conformance

•Dual power supply: DC36-72 and AC110-240V

•- 40℃ to 80℃ operating temperature

•Supports 6KV DC Ethernet ESD protection

•Supports 6KV DC EFT protection for power line

•Free Fall, Shock and Vibration Stability

•Bracket mounted
