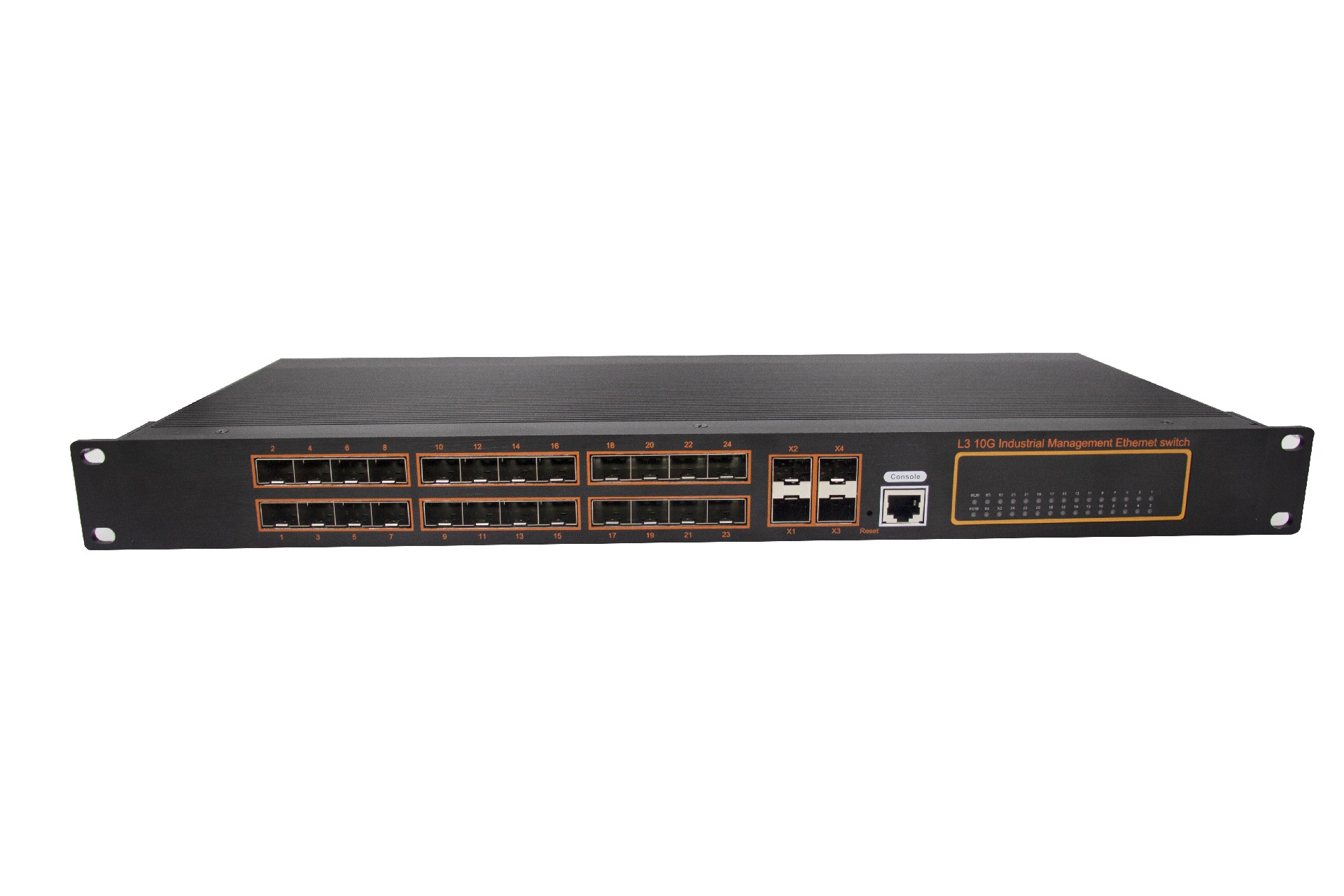

LBT24GST4-M-SFP

  • Product details
  • Data download
  • Video and Documents


Specifications:

Model No.LBT24GST4-M-SFP
Interface

24-Port 10/100/1000Mbps SFP

4-Port 10G SFP+

1-Port console


Performance Specification

Bandwidth(switch capacity): 1.2Tbps

Packet Buffer Memory:32Mbit

Packet Forwarding Rate: 406Mpps

MAC Address Table: 32K


InstallationBracket mounted
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP50 aluminum housing
LED Indicator

POWER: Red

Fiber: Link 2(Green)

Ethernet: Yellow

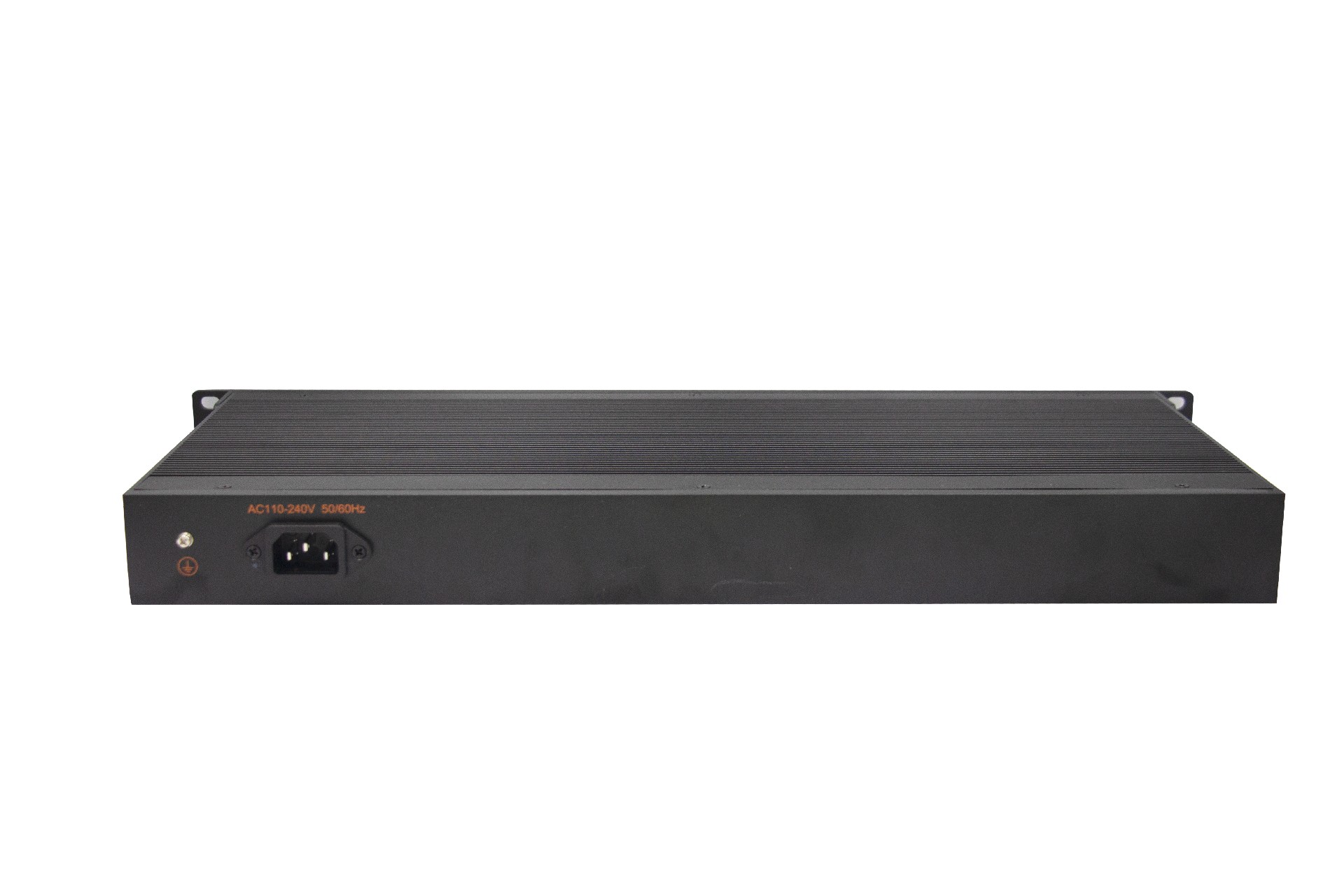

Dual Power InputAC or DC110～240V
Power Consumption< 35watts
Surge protection±4KV
Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;


Industry Standard

(EMC 4)

FCC CFR47 Part 15,EN55032 Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)


MTBF>300,000hours
Dimensions (W x D x H)442 x 195 x 44 mm
Weight

Product Weight: 4KGS

Packing Weight: 4.5KGS

Working Environment

Working temperature: -40～85℃ ;

Storage temperature: -40～85℃

Relative Humidity: 5%~95 %( no condensation)
