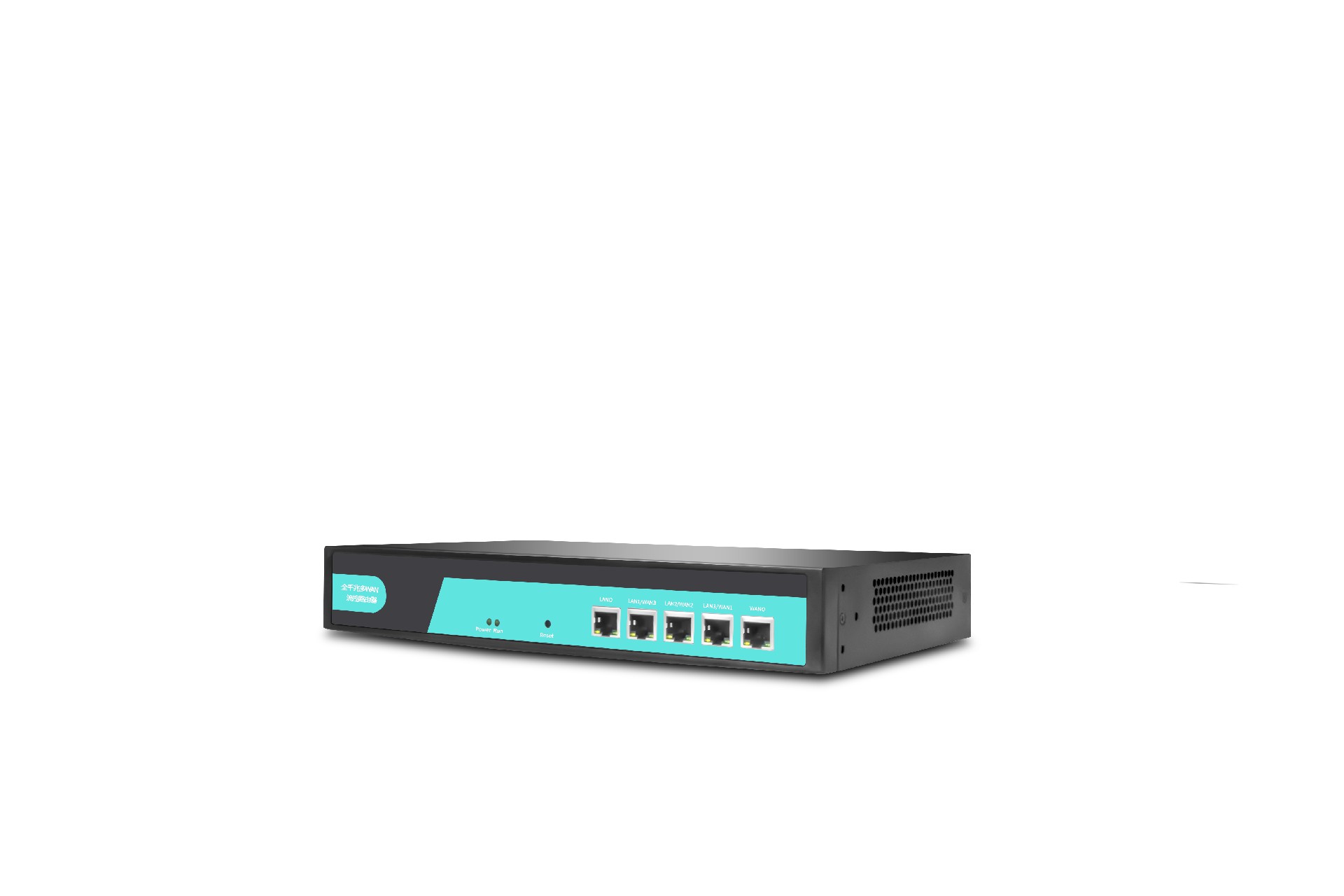

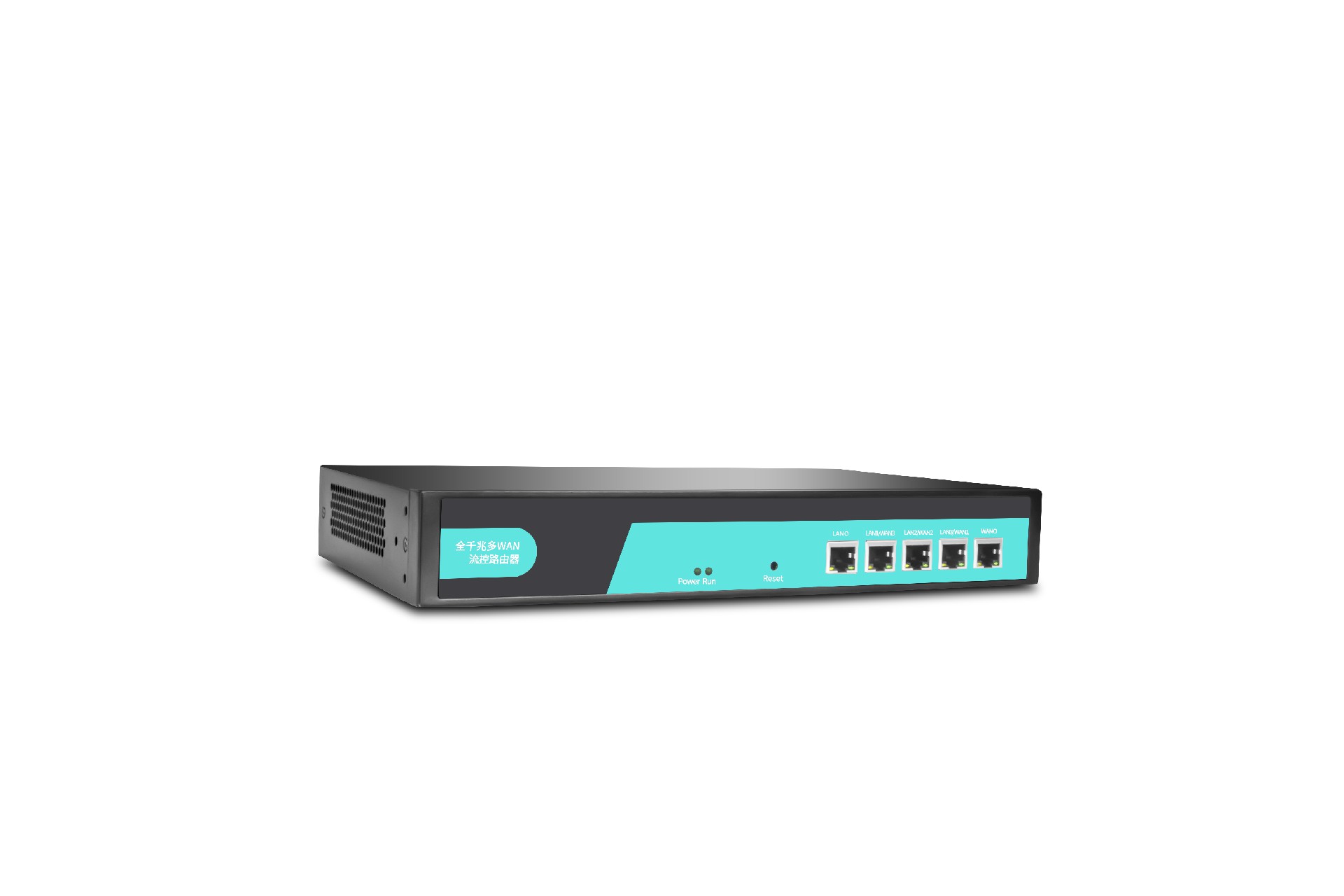

T300-ZW100

  • Product details
  • Data download
  • Video and Documents


ZW100 is an enterprise multi-functional wireless gateway that integrates AC management functions. It can manage up to 32 slim APs simultaneously and supports simultaneous internet access for up to 100 users. It features full gigabit network interfaces, supports WAN/LAN conversion, multi-WAN access, and can easily accommodate multiple broadband connections. It offers excellent policy bandwidth control and rich user behavior management functions to meet the personalized setting requirements of enterprise networks. It supports WeChat authentication, one-click authentication, password authentication, SMS authentication, and Web authentication. The built-in advertising marketing authentication function is an advertising magnet for merchants. With high cost-effectiveness, it is a must-have product for small and medium-sized WIFI network solutions in industries such as hotels, leisure and entertainment, catering, and department stores.


Hardware Parameters



Product size

232.5 *152.5 *44.5(L×W×H)

Power supply

AC 100-240V~50/60Hz

External interface / Protection level

Reset button: 1

Indicator lights: 7

WAN port: 1

LAN ports: 4 (up to 3 WAN ports can be configured)

Console: 1

USB 3.0: 1

Indicator light

Run、power、WAN/LAN*5

Storage memory

Storage: 16MB, Memory: 256MB

Power consumption (current)

<12W

Certification

 CE 、FCC 、CCC

Work environment


Operating temperature: -20 to +50°C

Storage temperature: -40 to +70°C

Humidity: 5 to 95% (no condensation)



Feature Data


Basic Features

Connection method: PPPoE/static IP/dynamic acquisition/PPTP

Maximum number of AP management: 32 devices, device capacity: less than 100 units

Device functions: Port isolation, port-based IP address segment configuration, DHCP server, IP group/static routing/port mapping/network diagnosis/multi-WAN load/static IP allocation

User authentication: Local authentication based on IP address segment, cloud-based authentication, local MAC address whitelist/IP address whitelist

Device status: System status/Interface status/Interface historical traffic/network analysis/DHCP list/Online users

Wireless Management

AP management / Radio status / WLAN configuration / Wireless users / Terminal anti-stuck prevention / Wireless optimization / Debugging function

System service

Time zone time configuration, login password modification, backup/restore system settings, local updates via web browser, online updates.

Application/Flow Control

Based on time group, IP group user behavior control / uncontrolled IP/MAC list, prohibited online IP/MAC list, control logs, online upgrade of behavior management rule library, shared upload based on IP address segment, shared download and single IP's single machine upload, single machine download bandwidth control




Product packaging size/weight



Product weight (kg)

1.2kg

Product dimensions (mm)

295 *180 *44mm

Packaging size (cm)

300*190*46mm

Product packaging weight (kg)

1.8kg

Outer box dimensions (cm)

71.3*44.3*26.8cm

Container weight estimate (kg)

22kg

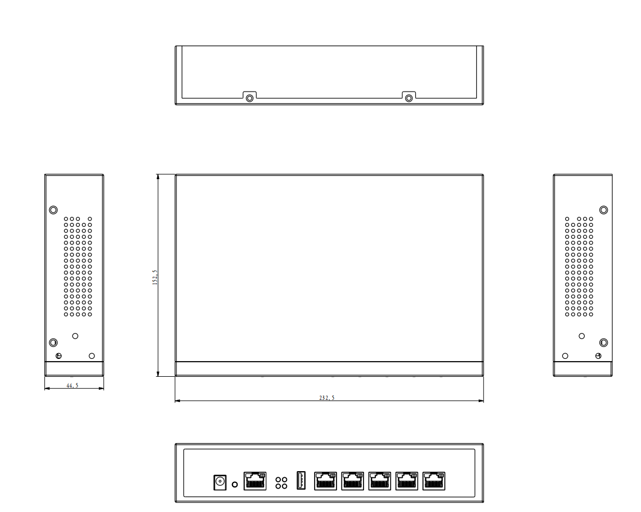

Product dimensions diagram

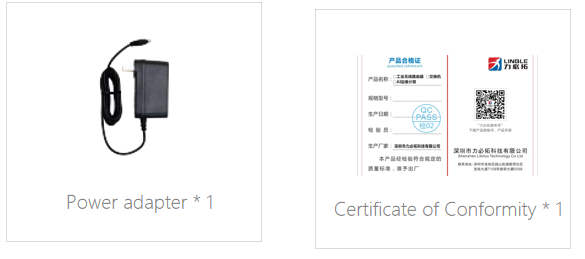

Standard accessories
