T300-EAC100

  • Product details
  • Data download
  • Video and Documents

EAC100 is a mid-to-large enterprise-level gateway based on the CAPWAP protocol.

 The product is equipped with one gigabit WAN port (multiple WAN ports can be configured) and features WAN port load balancing, multi-operator access, line backup, network overlay, and multi-WAN characteristics. It supports intelligent traffic control, internet behavior management, network firewall, VPN settings, remote access control management, etc. It can accommodate up to 128 terminal users and provides a high-speed network, effectively preventing network storms and ensuring the normal operation of the network. It can serve as the main router in the network or a bypass AC, and manage and configure 128 thin APs. Later, it can also be remotely managed and maintained. Even in different cities and different networks, administrators can monitor, manage, and configure the main page of EAC100 at any time. The product has the characteristics of high performance, easy installation, and easy maintenance, significantly reducing the manpower and material costs in network layout.

EAC100 can be used as an authentication gateway to connect to the cloud platform, enabling authentication methods such as advertising authentication, user authentication, and SMS authentication.

The product is widely applicable: such as small and medium-sized enterprises, urban villages, hotels, internet cafes, shopping malls, etc.

Hardware Parameters



Product size

232.5 *152.5 *44.5(L×W×H)

Power supply

 DC：12V/1A

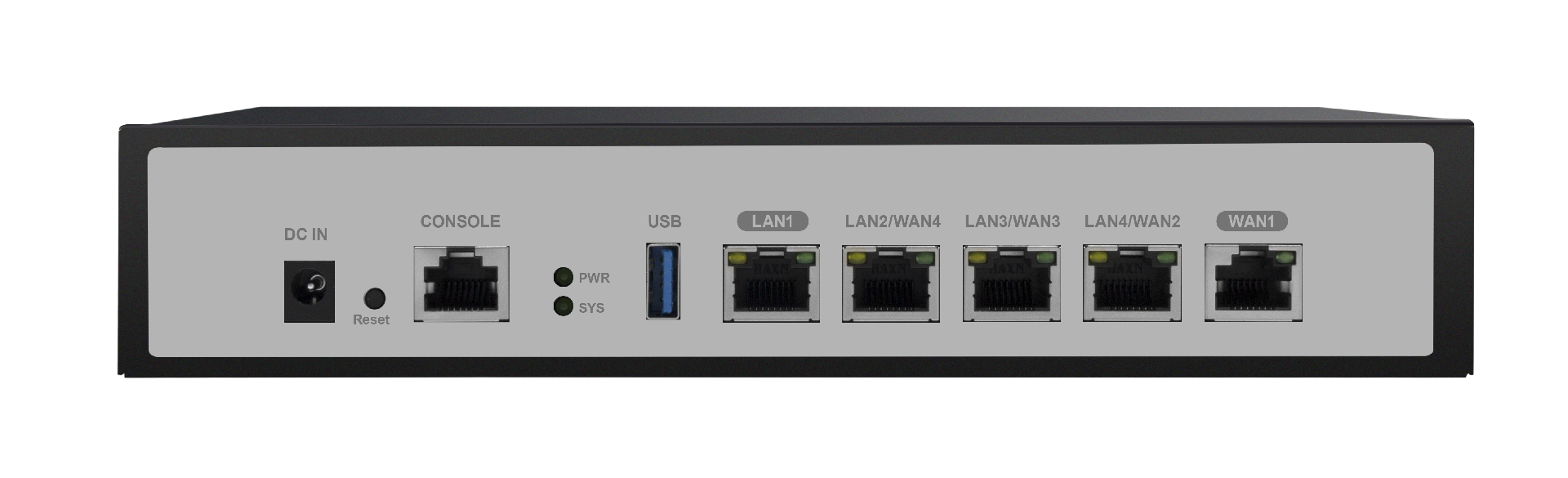

External interface / Protection level

Reset button: 1

Indicator lights: 2

DC power supply interface: 1 (2.1mm round power connector)

WAN port: 1

LAN ports: 4 (up to 3 WAN ports can be configured)

Console: 1

USB3.0: 1

Indicator light

PWR、POE*8、link*10；Link/Act LED

Storage memory

Storage: 16MB, Memory: 512MB

Power consumption (current)

<10W (without POE)

Certification

 CE 、FCC 、CCC

Work environment


Operating temperature: -20 to +55°C

Storage temperature: -40 to +75°C

Humidity: 5 to 95% (no condensation)



Feature Data


Basic Features

Connection method: Static address, DHCP, PPPoE, bypass mode, static routing function

Maximum number of APs for management: 128

Device functions: Centralized/remote management of AP configuration, one-click intelligent traffic control, multi-line diversion, self-adaptive priority

SMS authentication: Local authentication, remote authentication

Network protocols: DDNS, VPN management

Behavior management

Comprehensively block P2P software, P2P traffic control and bandwidth allocation, file transfer, URL filtering, and network behavior management.

Broadband control

IP-based broadband control, IP-based session control, bandwidth guarantee/limitation, time-based strategies

Load balancing

Multiple WANs, multiple operator access, intelligent load balancing, line backup, speed overlay, policy routing, protocol binding, online detection

System service


Backup configuration information, restore configuration information, restore factory settings, immediate restart, firmware upgrade, time management including system display time and time synchronization, system logs

Safety Center

IP filtering, MAC filtering, website filtering, URL/keyword filtering, port mapping, DMZ, RCP/UDP/ICMP flood defense, blocking TCP scanning, blocking PING WAN port



Product packaging size/weight

Product weight (g)

46g

Product dimensions (mm)

232.5 *152.5 *44.5mm

Packaging size (cm)

25*16*7cm

Product packaging weight (kg)

0.5kg

Outer box dimensions (cm)

71.3*44.3*26.8cm

Container weight estimate (kg)

22kg

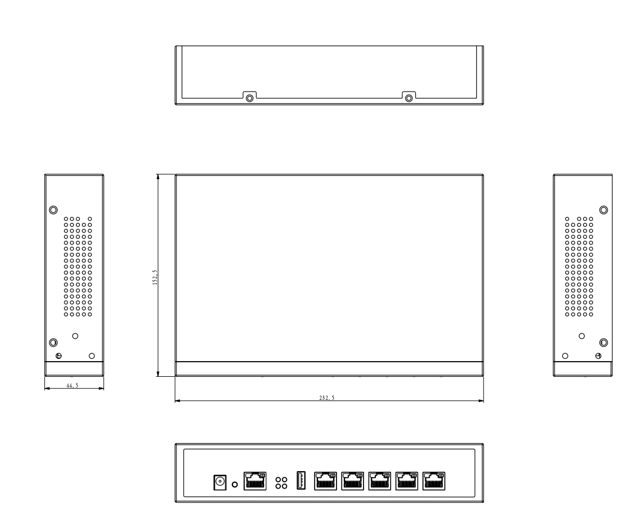

Product dimensions diagram

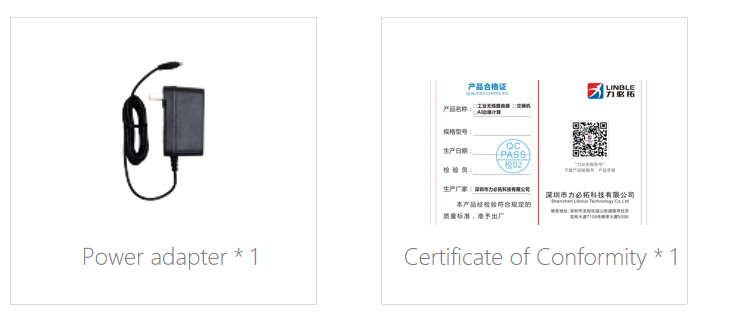

Standard accessories
