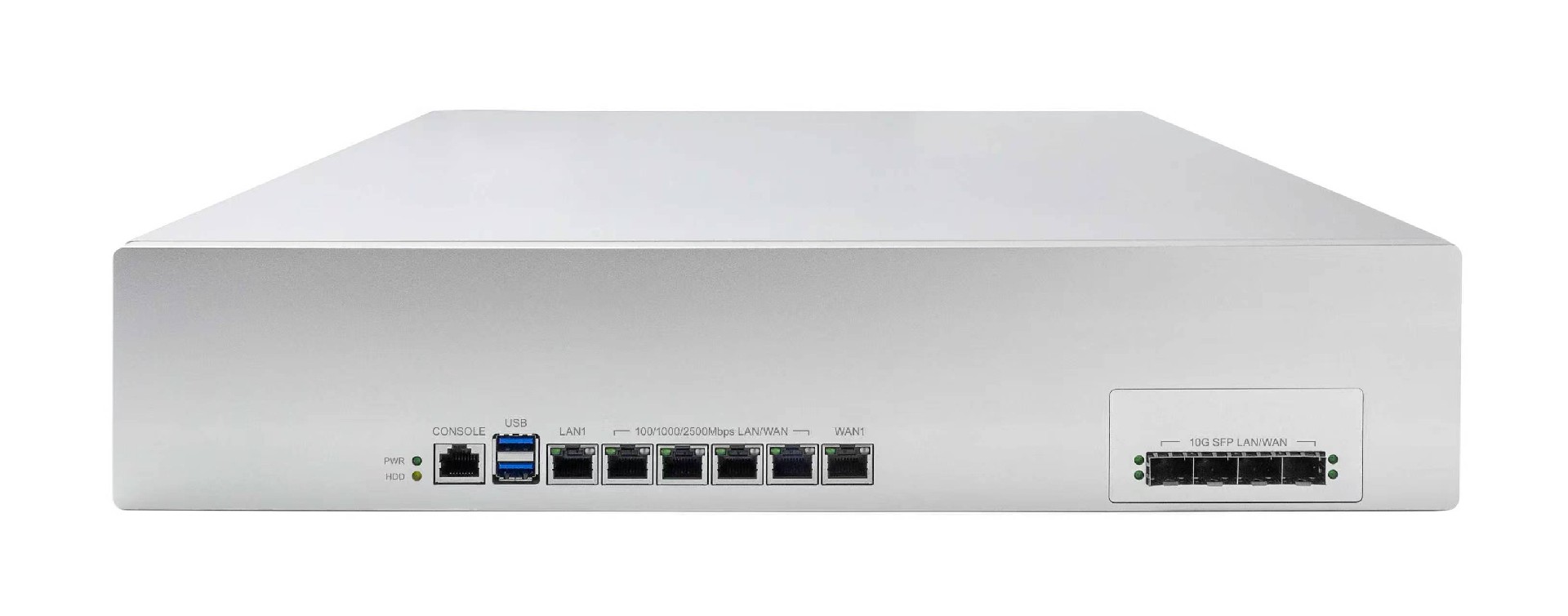

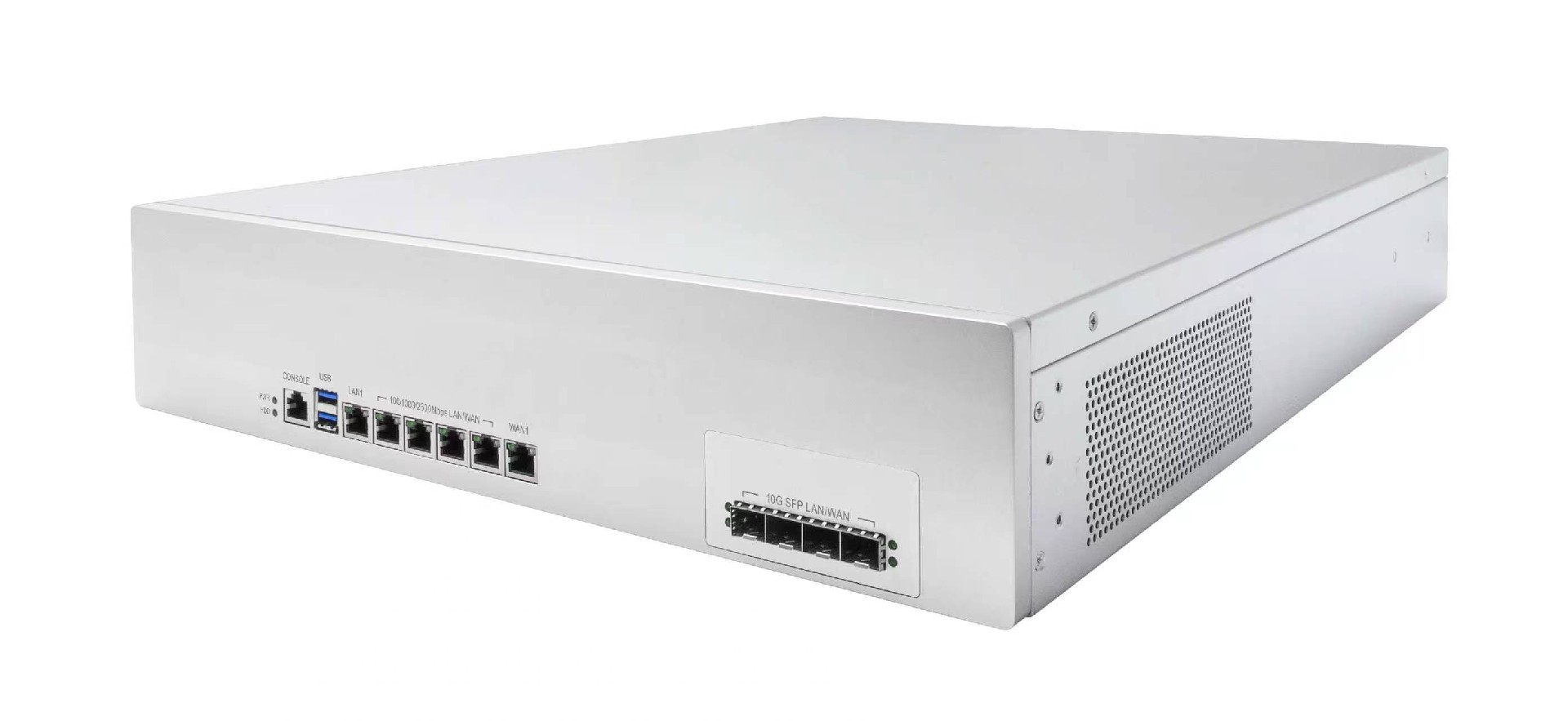

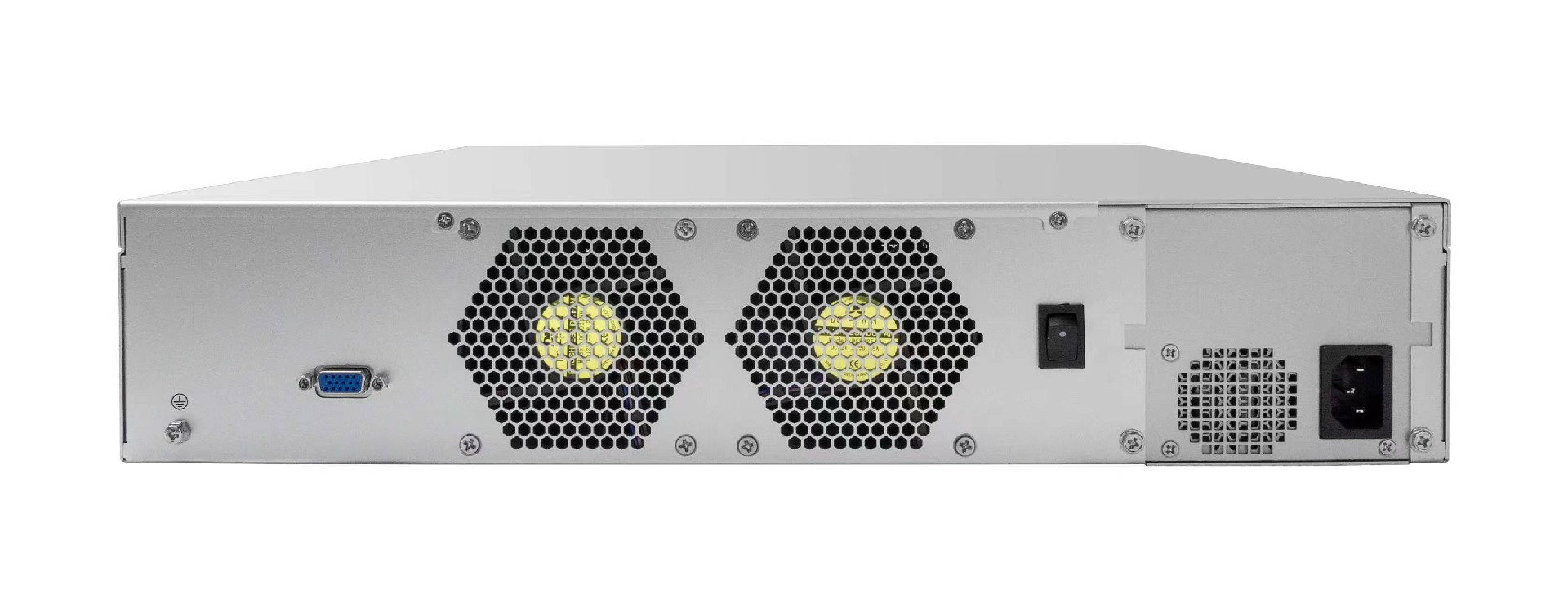

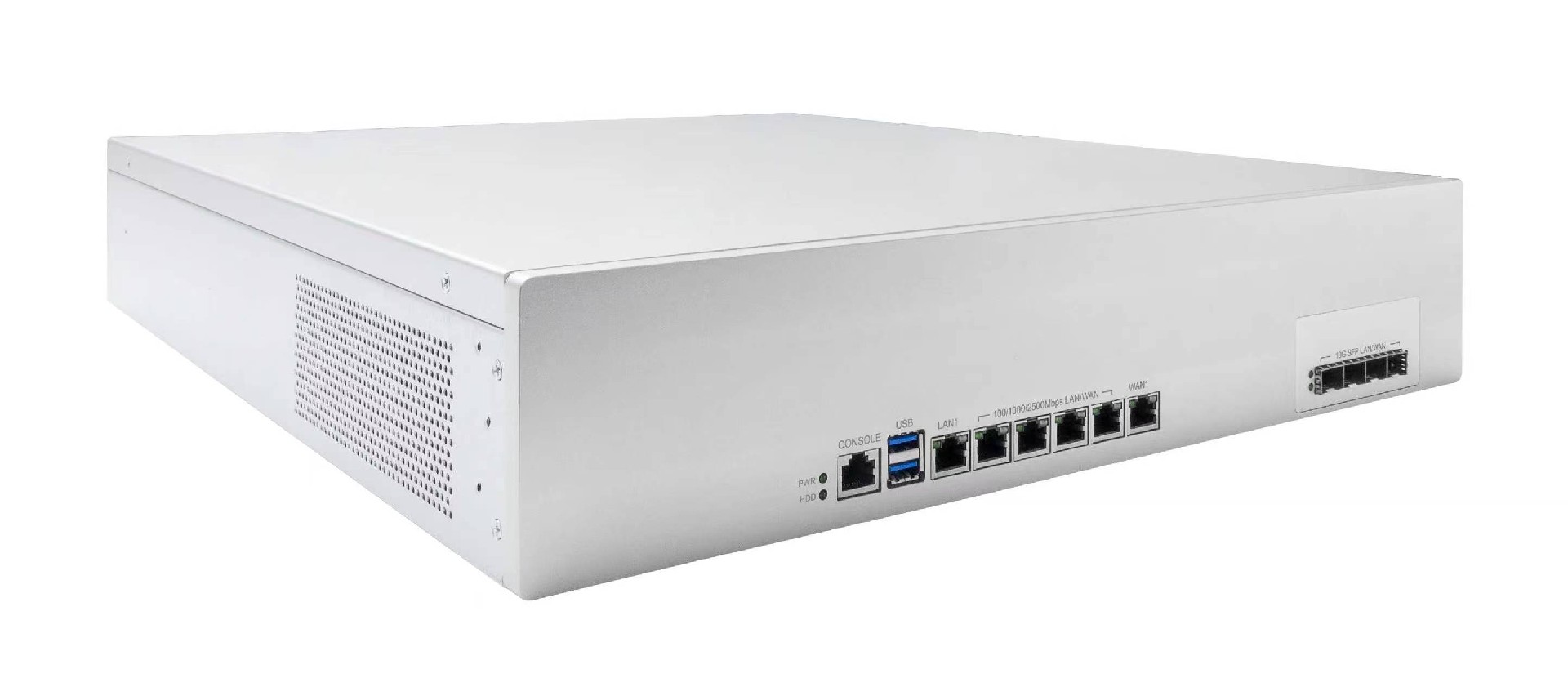

T300-EAC3000

  • Product details
  • Data download
  • Video and Documents

The EAC3000 is a mid-to-large enterprise-level gateway based on the CAPWAP protocol.

 The product is equipped with 6 2.5Gbps network ports, 4 10Gbps optical ports, WAN/LAN interchange, and can be configured with multiple WANs. It features WAN load balancing, multi-operator access, line backup, network stacking, and policy routing, among other multi-WAN features.

 It supports intelligent traffic control, internet behavior management, network firewall, VPN settings, remote access control management, and other functions.

 It can accommodate up to 3072 terminal users and provides a high-speed network. It maximally defends against network storms and ensures the normal operation of the network.

It can serve as the main router in the network or a bypass AC. It can manage and configure 3072 thin APs. Later, it can also be remotely managed and maintained. Even in different cities and different networks, administrators can monitor, manage, and configure the main page of EAC3000 at any time. The product has the characteristics of high performance, easy installation, and easy maintenance, significantly reducing the manpower and material costs in network layout.

    EAC3000 can be used as an authentication gateway to connect to the cloud platform, enabling authentication methods such as advertising authentication, user authentication, and SMS authentication.

The product is widely applicable: such as small and medium-sized enterprises, urban villages, hotels, internet cafes, shopping malls, and other places.


Hardware Parameters



Product size

500*440*88mm(L×W×H)

Power supply

250W、100~264V AC voltage input

External interface / Protection level

Reset button: 1

Indicator lights: 4

AC power interface, square head: 1

2.5GbE RJ45: 6

Console: 1

USB3.0: 2

10G SFP interface: 4

VAB display interface: 1

Indicator light

SFP、PWR、HDD、WAN/LAN

Memory

 3200MHz DDR4 SO-DIMM Capacity: 16GB

Storage

1 x mSATA，1×M.2 SSD、1 x 3.5" Hard disk, with a capacity of 1TB

Certification

 CE 、FCC 、CCC

Work environment


Operating temperature: -20 to +55°C

Storage temperature: -40 to +75°C

Humidity: 5 to 95% (no condensation)



Feature Data

Basic Features

Connection method: Static address, DHCP, PPPoE, bypass mode, static routing function

Maximum number of APs managed: 3072

Device functions: Centralized/remote management of AP configuration, one-click intelligent traffic control, multi-line diversion, self-adaptive priority

SMS authentication: Local authentication, remote authentication

Network protocols: DDNS, VPN management

Behavior management

Comprehensively block P2P software, P2P traffic control and bandwidth allocation, file transfer, URL filtering, and network behavior management.

Broadband control

IP-based broadband control, IP-based session control, bandwidth guarantee/limitation, time-based strategies

Load balancing

Multiple WANs, multiple operator access, intelligent load balancing, line backup, speed overlay, policy routing, protocol binding, online detection

System service


Backup configuration information, restore configuration information, restore factory settings, immediate restart, firmware upgrade, time management including system display time and time synchronization, system logs

Safety Center

IP filtering, MAC filtering, website filtering, URL/keyword filtering, port mapping, DMZ, RCP/UDP/ICMP flood defense, blocking TCP scanning, blocking PING WAN port


Product packaging size/weight


Product weight (kg)

17KG

Product dimensions (mm)

500*440*88mm

Packaging size (cm)

610x580x260mm

Product packaging weight (kg)

20KG

Outer box dimensions (cm)

620x590x290mm

Container weight estimate (kg)

22kg

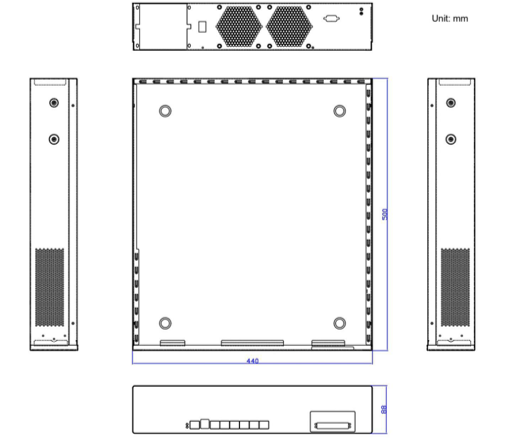

Product dimensions diagram

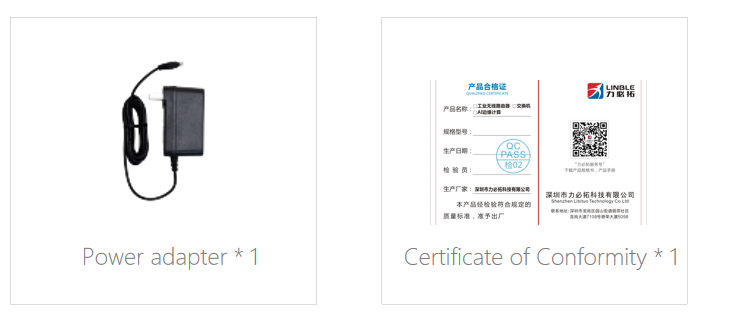

Standard accessories
