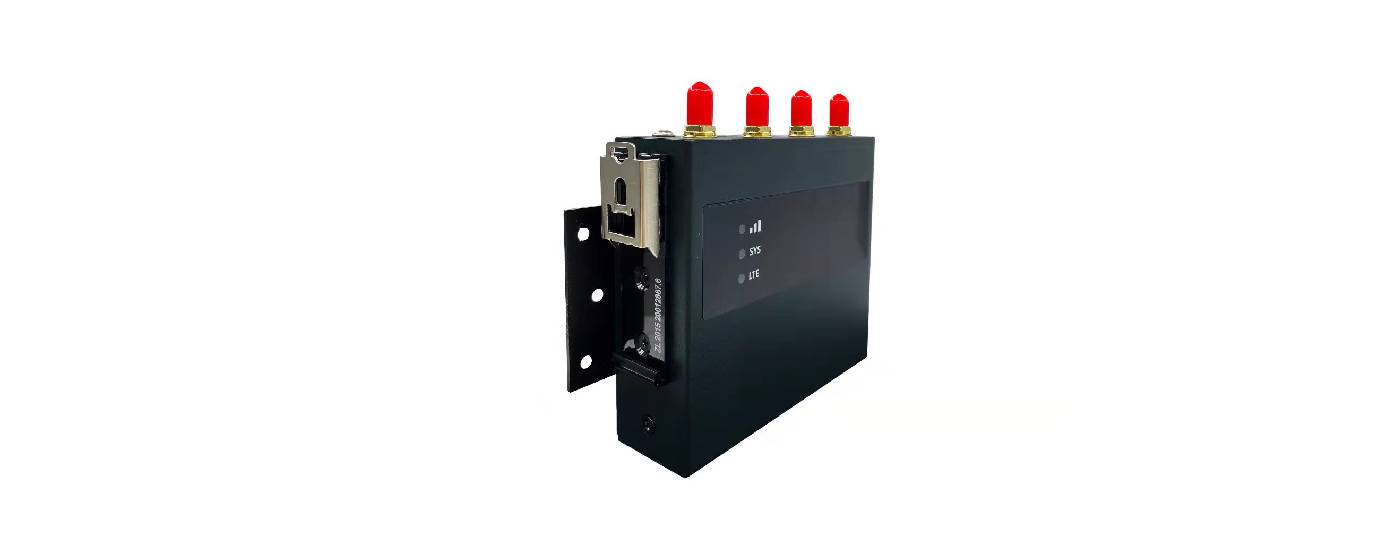

4G industrial router for remote monitoring / solar / vending

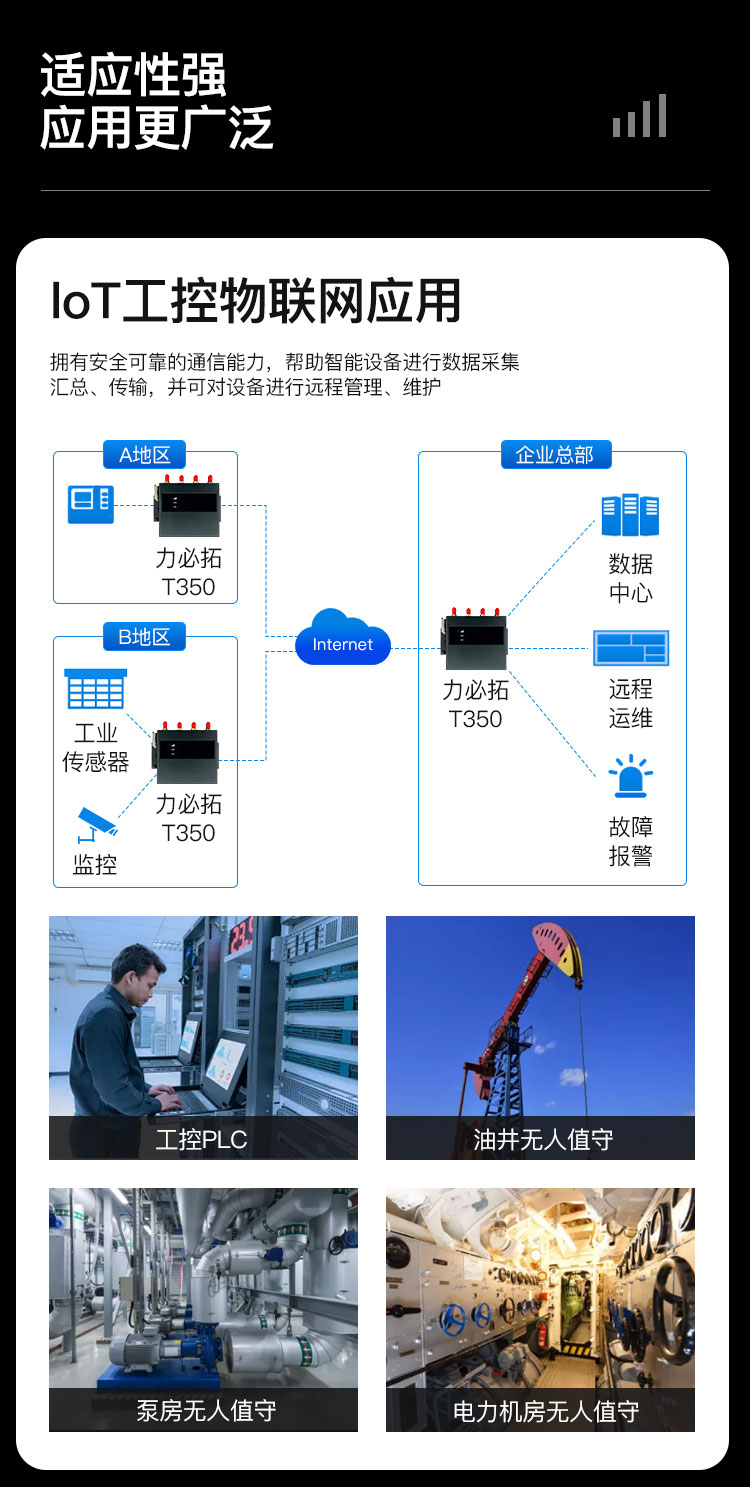

T300-350 Is a high-performance wireless industrial router developed for 4G network access, dual SIM card socket design, supports guide rail installation, IM. The product supports transparent data transmission, and is widely used in various scenarios such as business data transmission, image transmission, equipment status monitoring and WiFi coverage. The device adopts a high-performance 32-bit processor, which can deal with various network protocols and massive network data at a high speed. The product supports hot backup of internet, hardware watchdog and other practical features and wide voltage range power supply, people can get highspeed stable uninterrupted internet through our product. The product can work with a variety of industrial 4G modules to support different frequency bands, is applicable to power ,finance, public security,heat industry control.meteorological ,water conservancy, transportation, municipal and other industries
Multi-scenario&Round-the-clock service
The product is compatible with 2G/3G/4G, supports 4G to wired, 4G to WiFi, made to meet the scenarios that are hard . Through dedicated design of hardware and software, our product can provide the round-the-clock uninterrupted high quality service in various industrial scenarios.
● Built-in high performance industrial module, compatible with 2G/3G/4G
● Dedicated software/hardware watchdog design and VMM(Virtual Man Watch) mechanism
● Intelligent hot backup to ensure uninterrupted internet
● Failure detecting(auto reboot), reboot on schedule
● VPN client

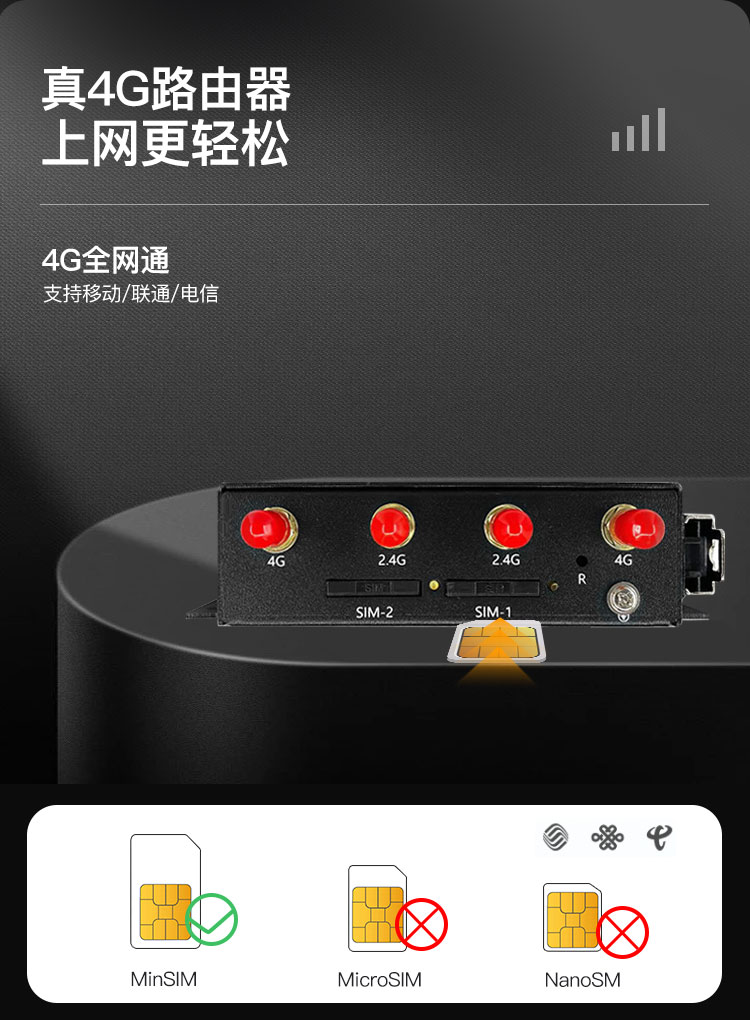

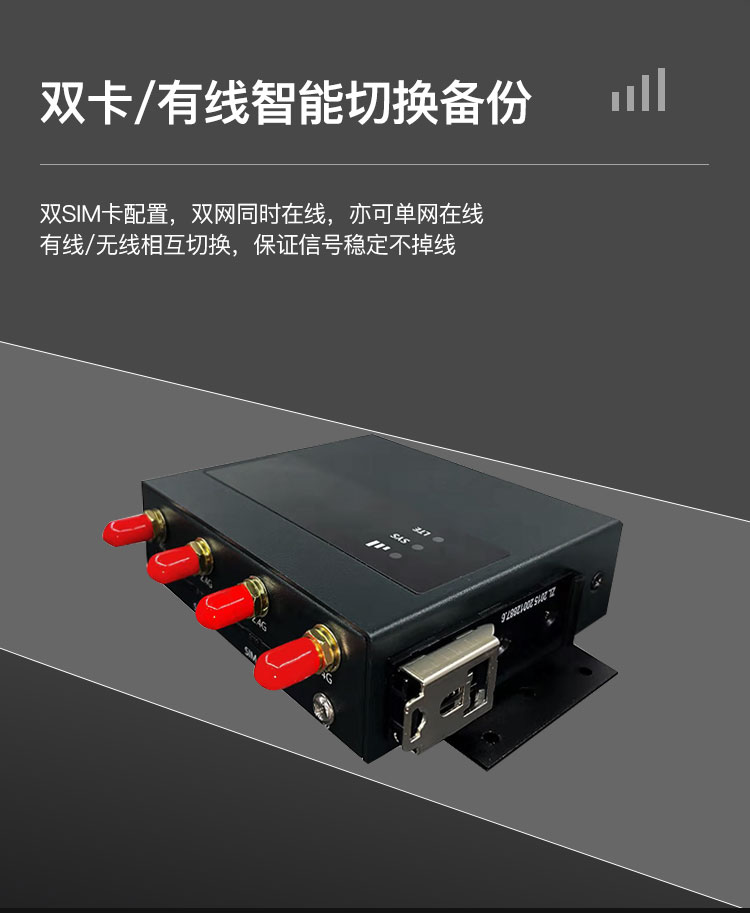

● Dual SIM card sockets(Auto switching in failure)

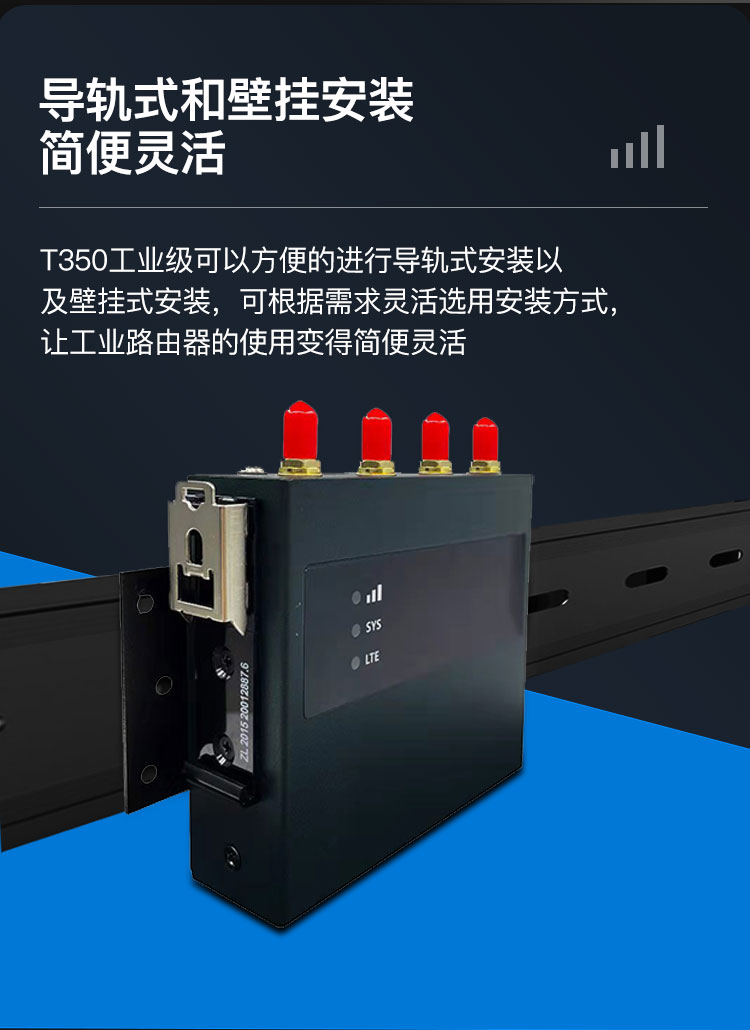

● Muti-type mounting(Desktop, Wall mount, Guide rail)
● Supports in-vehicle use with extended power module
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: 350-CN-4GA-W4-S1-RS485; Version 350, China 4G domestic solution, single band WiFi4, single card, protocol RS485, no customization Note: Some versions do not allow customization of the above content. | |||||

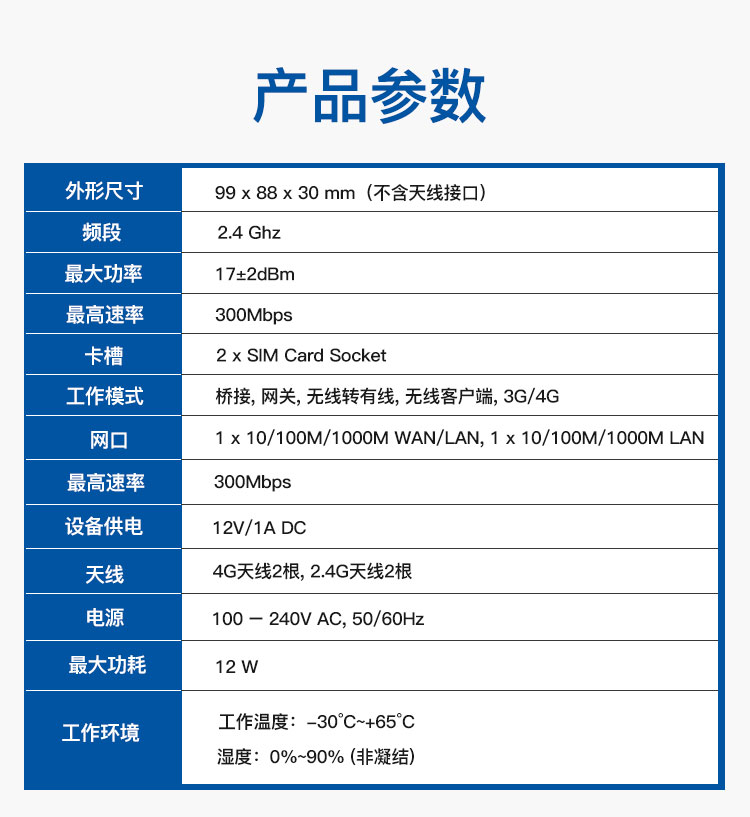

Hardware Parameters
Product size | 99*88*30mm(L×W×H) |
Power supply | DC：12V/1A |

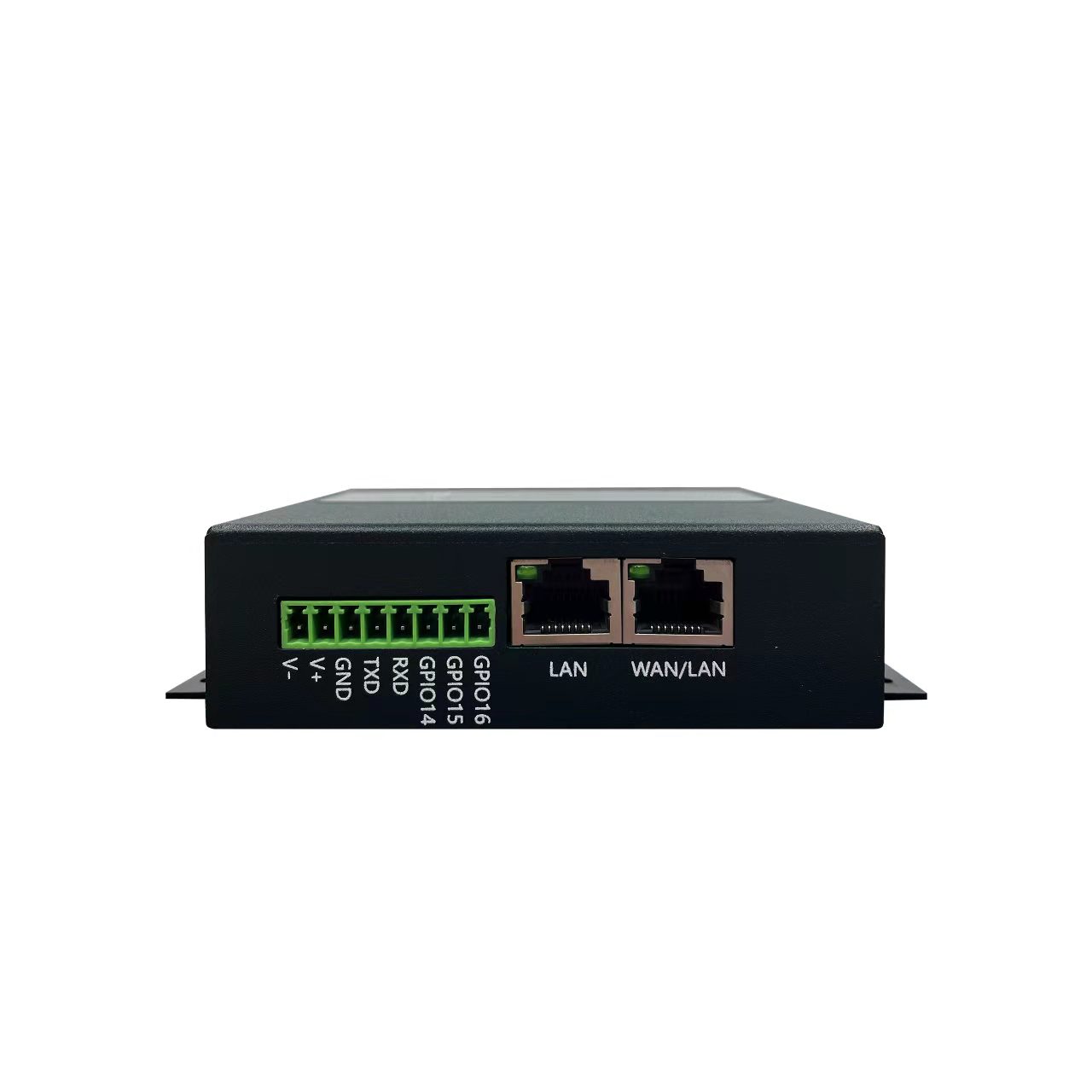

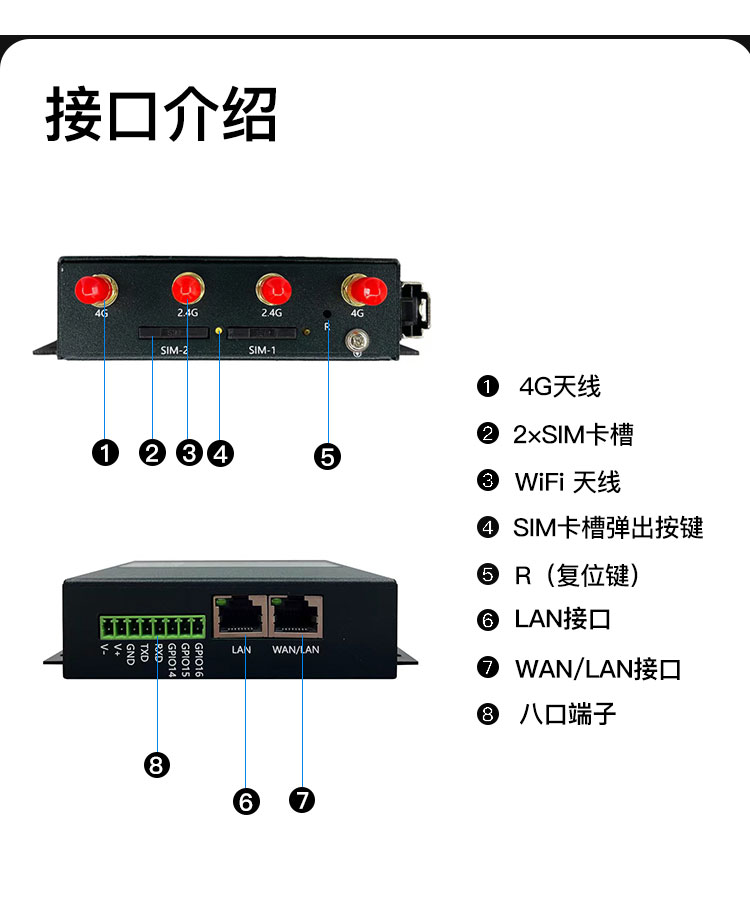

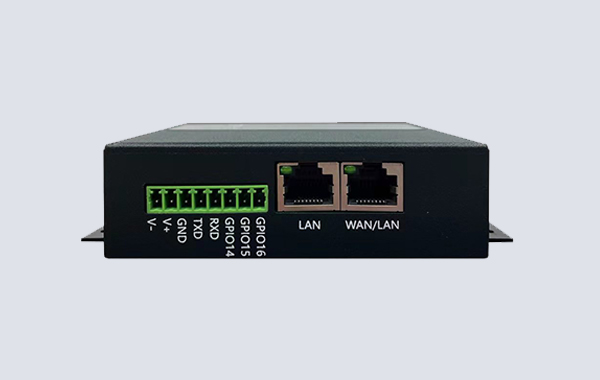

External interface / Protection level | Reset button: 1 Indicator lights: 5 Antenna interface: 1-4 (optional) SIM card slot: 1 DC power supply interface 1 (2.1mm round power connector) with surge protection RS485 interface: 3 (4PIN terminal male connector Edg 3.5mm) GPIO interface: Supports 2 channels of analog input/controlled output with audio isolation (requires additional customization) LAN port: 2 (LAN0 is WAN/LAN adaptive) Protection level: IP30 |

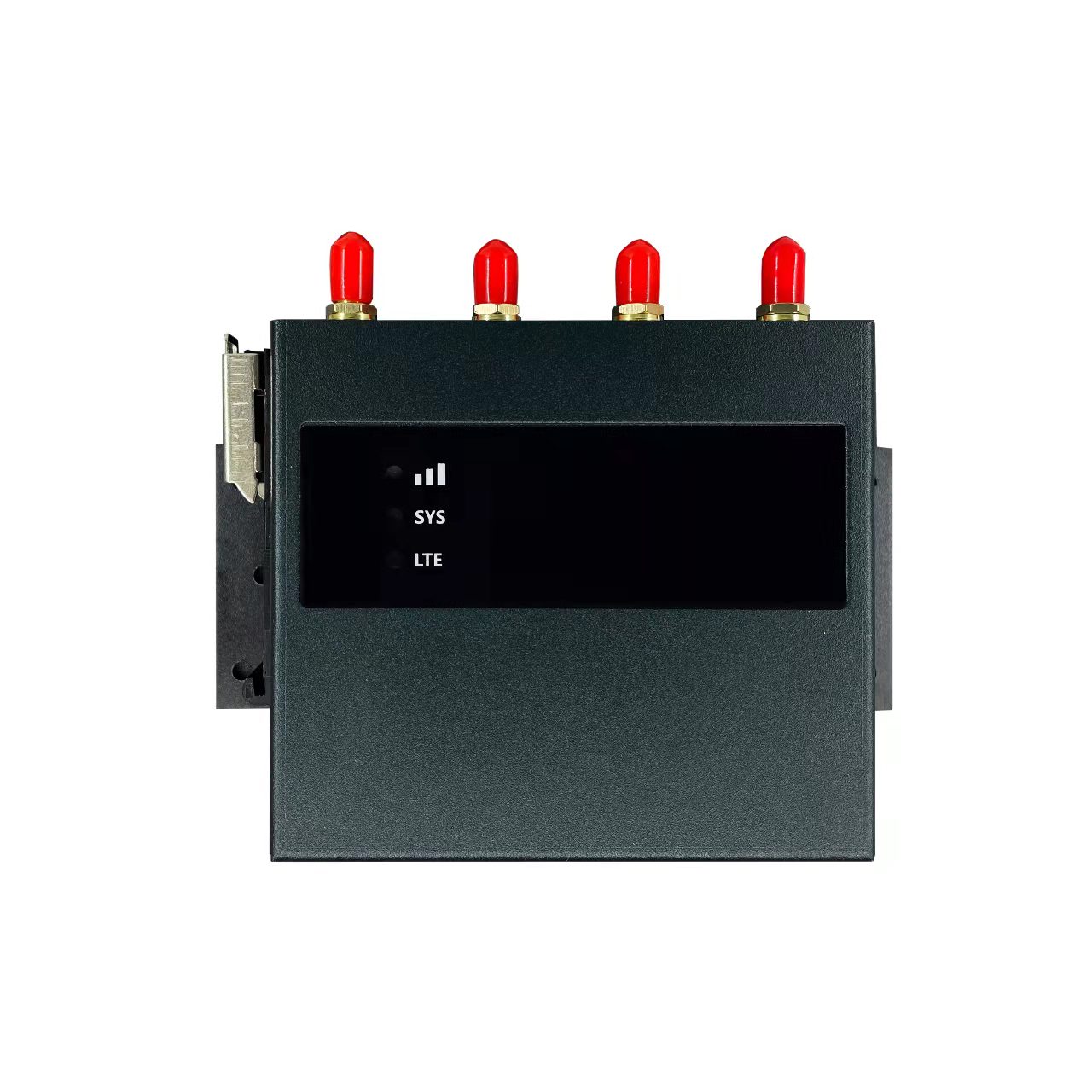

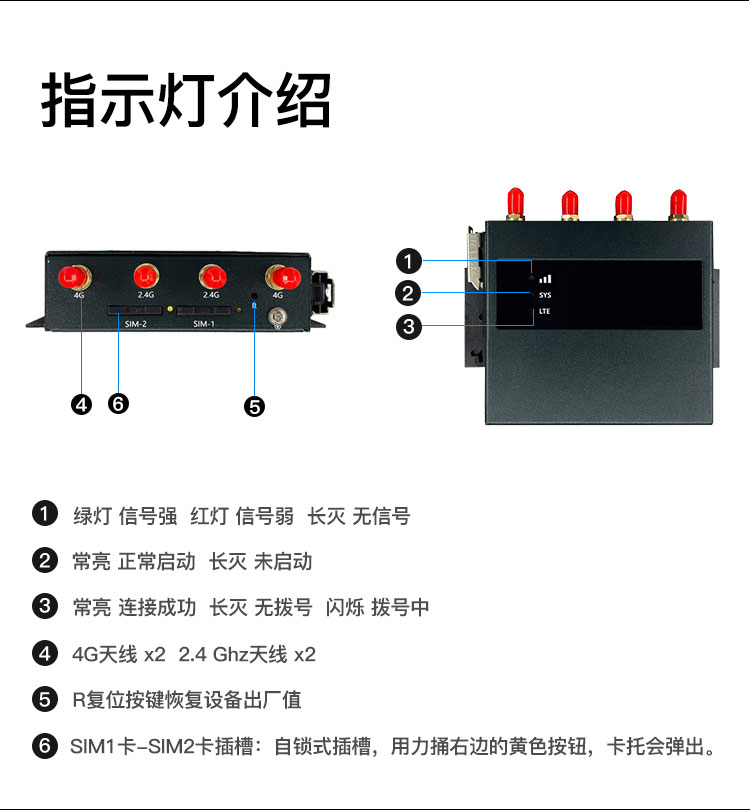

Indicator light | LAN、WAN/LAN、WLAN、LTE、SYSTEM |

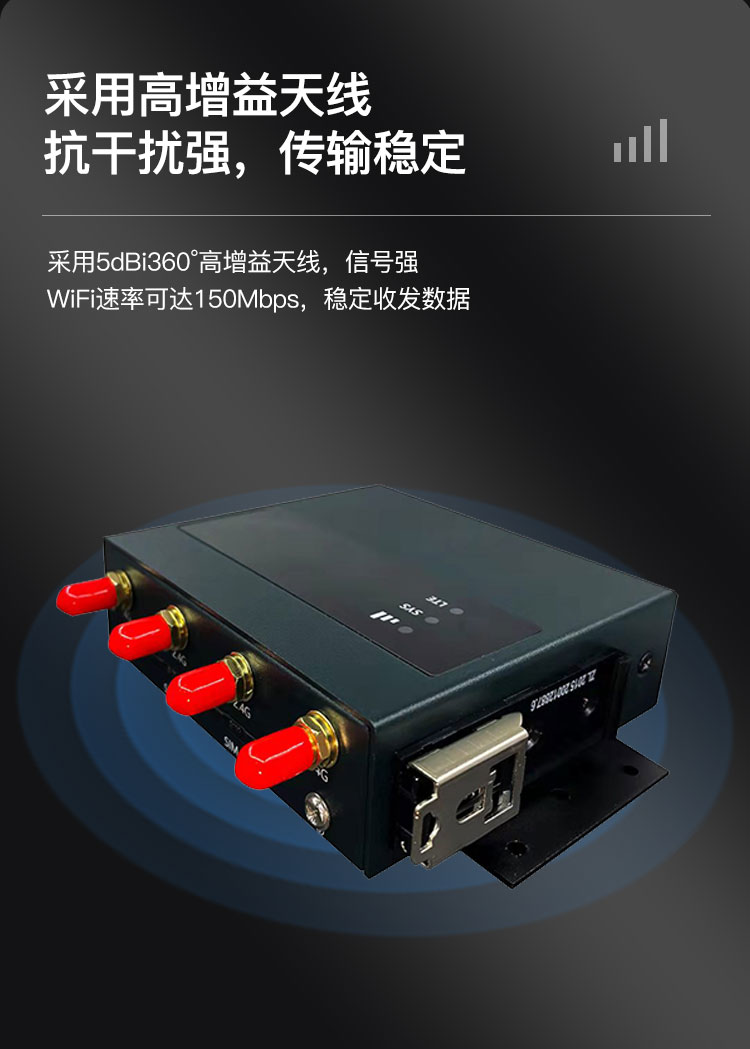

Antenna | SMA external rotating inner hole |
Storage memory | Storage: 8MB, Memory: 128MB |
Power consumption (current) | Less than 400mA |
Certification | CE 、FCC 、CCC |

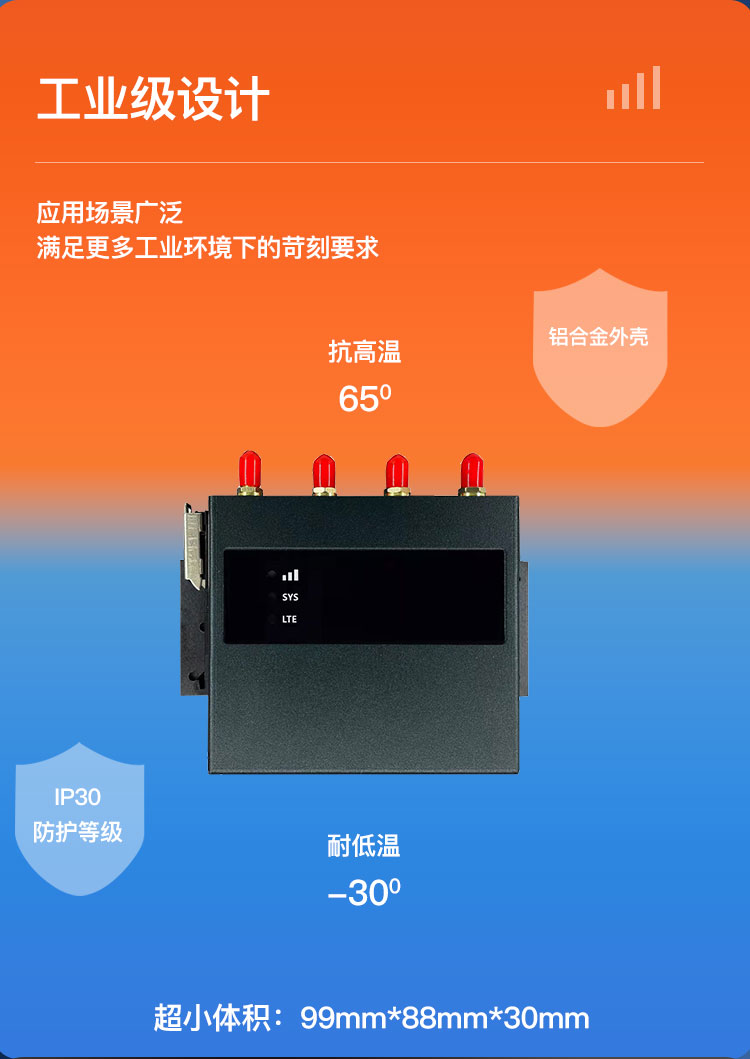

Work environment | Operating temperature: -30 to +65°C Storage temperature: -40 to +90°C Humidity: 0 to 90% (no condensation) |
Feature Data
Basic Features | 4G Internet Protocol: 4G Dial-up Internet Access, DHCP/Static IP/PPPoE Supported number of users: Wired: 253, Wireless: 30 VPN Protocol: PPTP Client, L2TP Client (only supported in dedicated network version) WiFi Protocol: IEEE802.11b/g/n Network Functions: DDNS, NAT, DNAT, DMZ, Port Forwarding |
WLAN Security Consultative | OpenSystem, WPA-PSK, WPA2-PSK, WPAPSK/WPA2 PSK, WPA1 / WPA2 |
Operating frequency band | 2400-2483.5MHz |
WiFi transmission Rate/Data | Transfer rate: 300Mbps(MAX) (theoretical maximum) WiFi data: 802.11n:-66dBm at 300 Mbps HT40MCS7:+14dBm(±2dB) 802.11b:-86dBm at 11Mbps/CCK:+14dBm(±2dB) 802. 11g:-73dBm at 54Mbps/OFDM:+14dBm(±2dB) |
System Services | Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 |
Product packaging size/weight
Product weight (g) | 427.5g |
Product dimensions (mm) | 99.88.30mm |
Packaging size (cm) | 35*18*7cm |
Product packaging weight (kg) | 1kg |
Outer box dimensions (cm) | 71.3*44.3*26.8cm |
Container weight estimate (kg) | 22kg |
Optional frequency bands
4G band | CN：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 NA：FDD-LTE B2/3/4/5/7/8/12/ 13/17/25/26/66 TDD-LTE B41 AU:FDD-LTE B1/3/5/7/8/20/28 TDD-LTE B38/40/41 |

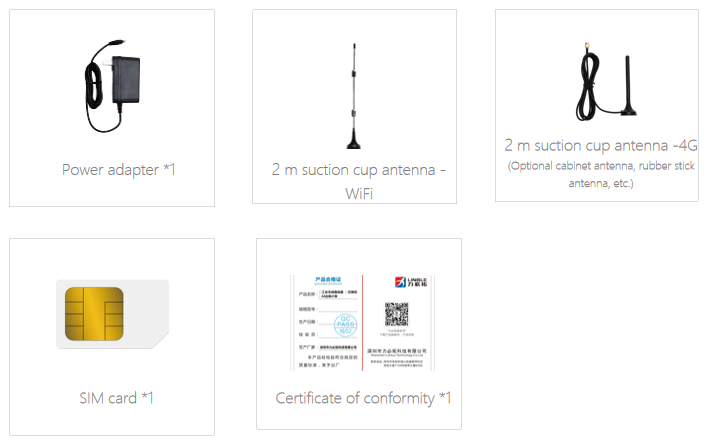

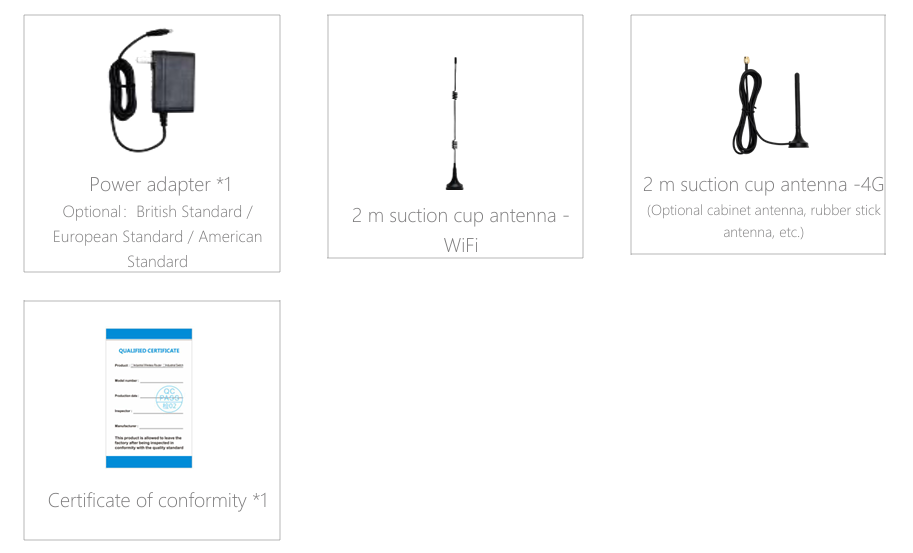

Standard accessories
