4G industrial router for remote monitoring / solar / vending
Product overview
Industrial 4G wireless router is a wireless communication product with excellent performance developed by Shenzhen Libiton Technology Co., Ltd. for many data transmission needs. It is mainly used in data transmission business of industry users, transparent data transmission, image transmission, equipment monitoring and wireless routing Internet access. The embedded high-performance CPU can handle routing effortlessly, and the single SIM card design can handle protocols and large amounts of data at high speed and stability, and can be matched with a variety of 4G industrial modules. (WCDMA/EVDO/TD-SCDMA/TDD/FDD-LTE networks). Provide 10/100m Ethernet port, WIFI wireless interface and many other interfaces.
Support WEB configuration mode, convenient and simple management, and support remote cloud control.
Product characte
1. Adopt high-performance industrial wireless module;
2. Support (WCDMA/CDMA/TD-SCDMA) and 4G (FDD-LTE/TDD-LTE)
3. Adopt metal shell with protection grade of IP30;
4. Standard RJ45 (Ethernet) interface built-in lightning protection 3000V (non-standard configuration needs to be customized);
5. Wide voltage current input: DC6-36V/3A;
6. Support APN/VPDN network;
7. Software and hardware watchdog anti-crash design, after the router is disconnected, it will automatically power off and restart to ensure stable and reliable operation of the equipment; 8, automaticdetection of network disconnection, automatic restart of dialing failure, timing restart and other functions;
9. Serial port transparent transmission function. The command control mode can be entered through the serial port to control the router and ancillary equipment;
10. Support multiple DDNS dynamic domain name services;
11. Port mapping, DMZ host and other functions;
12. Support VPN (PPTP Client, L2TP Client);
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: 280-8-CN-4GA-W4-S1-RS485; Version 280-8, China 4G domestic solution, single band WiFi4, single card, protocol RS485, no customization Note: Some versions do not allow customization of the above content. | |||||

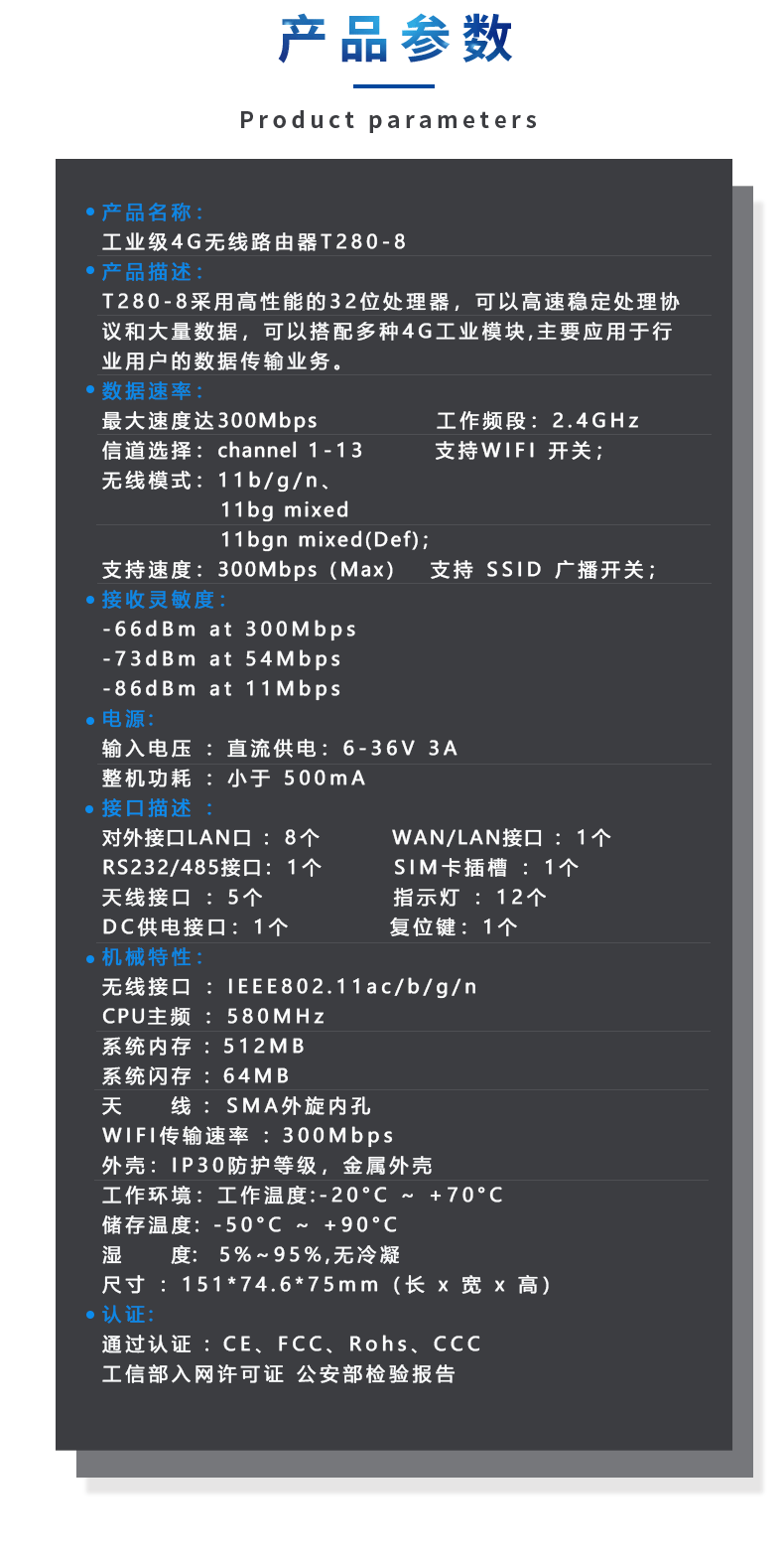

Hardware Parameters

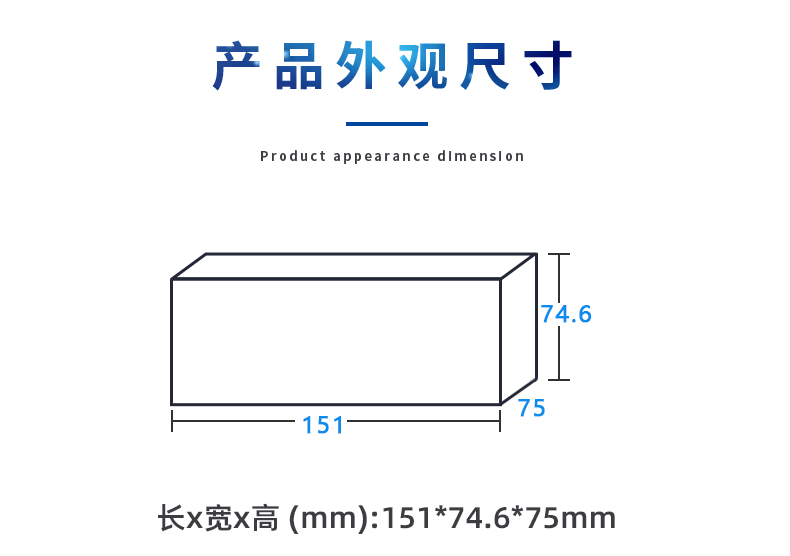

Product size | 151*74.6*75mm(L×W×H) |
Power supply | DC：7-36V/3A |

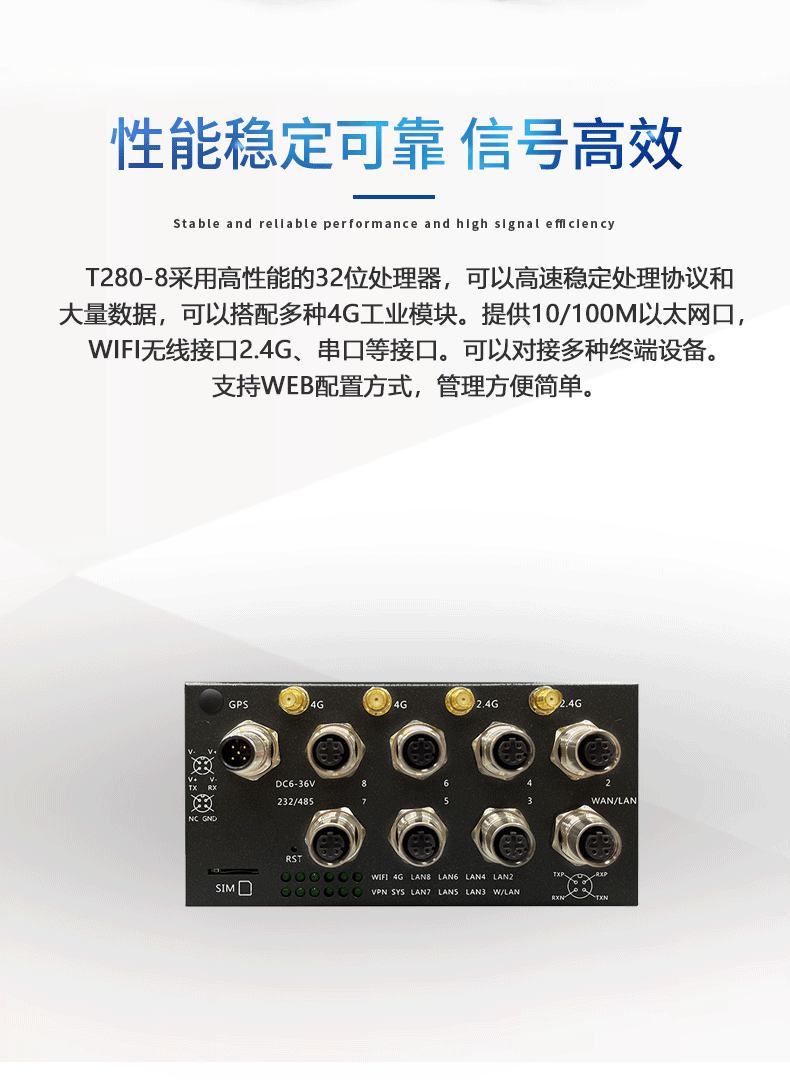

External interface / Protection level | Reset button: 1 Indicator lights: 12 Antenna interface: 1-5 (optional) SIM card slot: 1 DC power supply interface 1 (2.1mm round power connector) with surge protection RS232/485 interface: 1 (4PIN terminal male 3.5mm) GPIO interface: Supports 2 channels of analog input/controlled output with audio isolation (requires additional customization) LAN port: 8 (LAN0 is WAN/LAN adaptive) Protection level: IP30 |
Indicator light | LINK 、SYS 、WiFi、VPN、4G |
Antenna | SMA external rotating inner hole |
Storage memory | Storage: 16MB, Memory: 128MB |
Power consumption (current) | Less than 400mA |
Certification | CE 、FCC 、CCC |
Work environment | Operating temperature: -40 to +80°C Storage temperature: -50 to +90°C Humidity: 5 to 95% (no condensation) |
Feature Data
Basic Features | 4G Internet Protocol: 4G Dial-up Internet Access, DHCP/Static IP/PPPoE Supported number of users: Wired: 253, Wireless: 30 VPN Protocol: PPTP Client, L2TP Client (only supported in dedicated network version) WiFi Protocol: IEEE802.11b/g/n Network Functions: DDNS, NAT, DNAT, DMZ, Port Forwarding |
WLAN Security Consultative | OpenSystem, WPA-PSK, WPA2-PSK, WPAPSK/WPA2 PSK, WPA1 / WPA2 |
Operating frequency band | 2400-2483.5MHz |
WiFi transmission Rate/Data | Transfer rate: 300Mbps(MAX) (theoretical maximum) WiFi data: 802.11n:-66dBm at 300 Mbps HT40MCS7:+14dBm(±2dB) 802.11b:-86dBm at 11Mbps/CCK:+14dBm(±2dB) 802. 11g:-73dBm at 54Mbps/OFDM:+14dBm(±2dB) |
System Services | Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 |
Product packaging size/weight
Product weight (g) | 498g |
Product dimensions (mm) | 151*74.6*75mm |
Packaging size (cm) | 35*18*7cm |
Product packaging weight (kg) | 1kg |
Outer box dimensions (cm) | 71.3*44.3*26.8cm |
Container weight estimate (kg) | 22kg |
Optional frequency bands
4G band | CN：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 EU：FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 NA：FDD-LTE B2/3/4/5/7/8/12/ 13/17/25/26/66 TDD-LTE B41 SA：FDD-LTE B2/4/5/7/8/28 TDD-LTE B40 J：FDD-LTE B1/3/8/18/19/26 TDD-LTE 41 GL：FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |

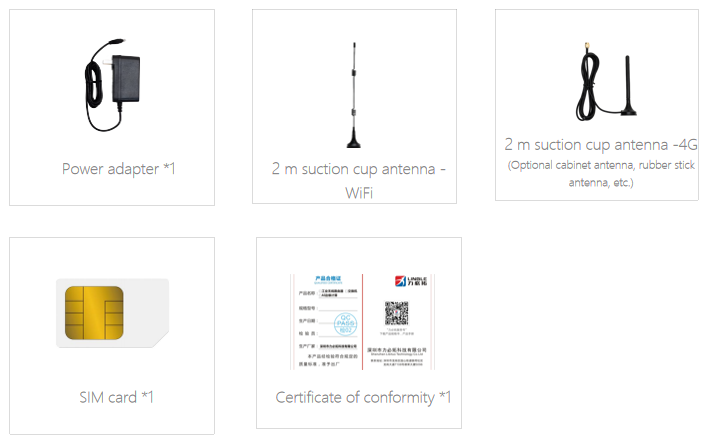

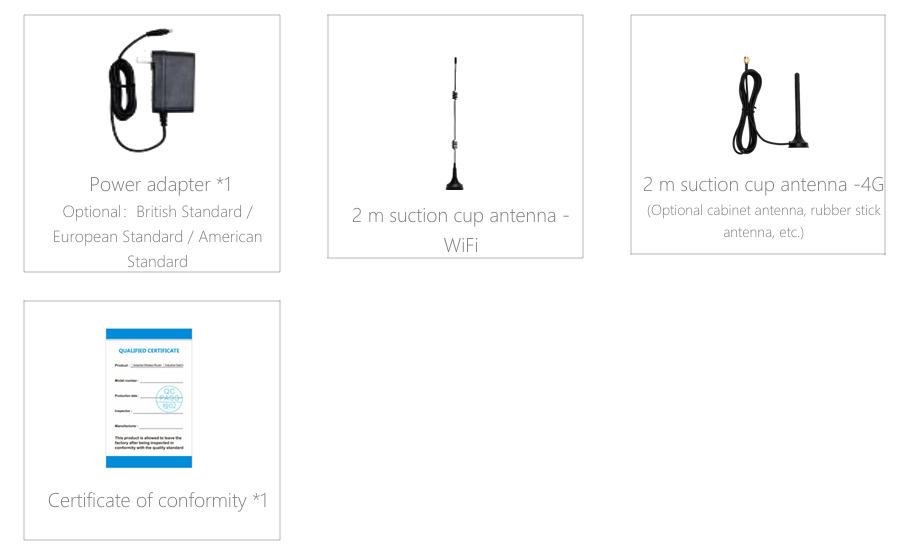

Standard accessories
