T300-1800K
- Product details
- Data download
- Video and Documents
4G industrial router for remote monitoring / solar / vending

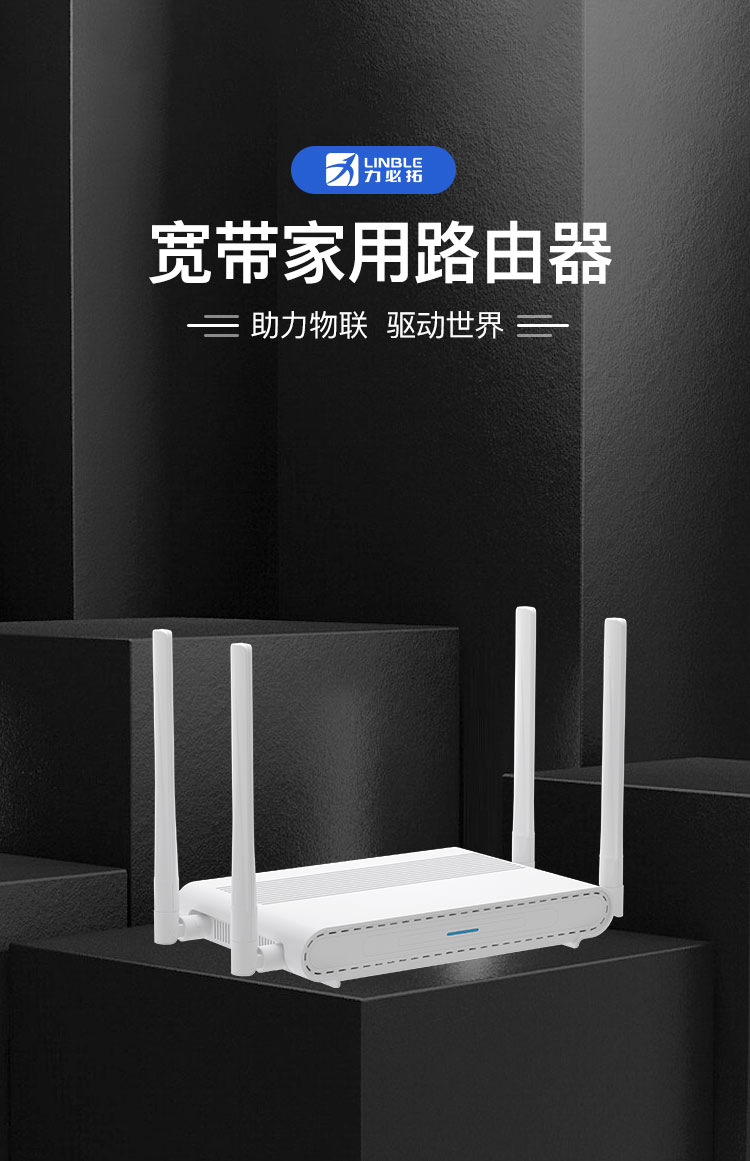

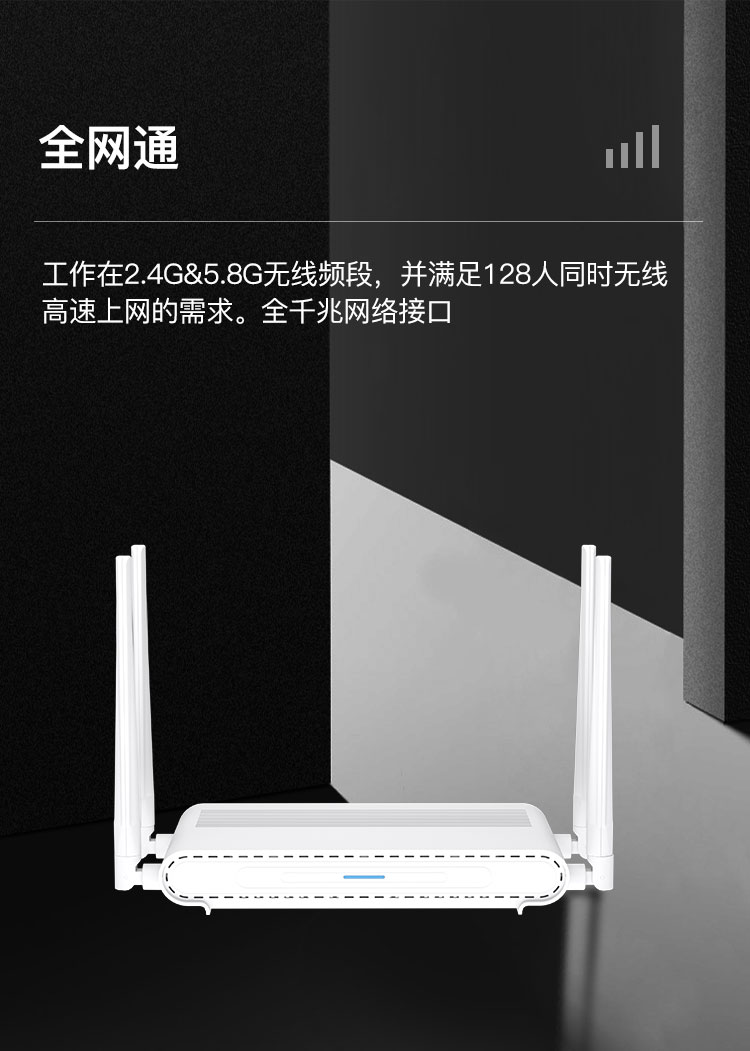

This is a high-performance enterprise-level WiFi6 router that supports 802.11ax technology. It operates in the 2.4G and 5.8G wireless frequency bands and can meet the demand for 128 people to have high-speed wireless internet access simultaneously. It has full gigabit network interfaces. In 2.4G 802.11ax mode, it can support a maximum wireless access speed of 573 Mbps, and in 5.8G 802.11ax mode, it can support a maximum wireless access speed of 1201 Mbps. It features high performance, high gain, high receiving sensitivity, high bandwidth, and high access number. It not only covers a larger area but also provides higher wireless transmission performance and stability. With a fashionable design, it is easy to install and convenient to use. It is the ideal choice for wireless access in high-density environments such as homes, stores, restaurants, and enterprises.
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: 1800K-W6; Version 1800K,Dual-band WiFi6, no customization Note: Some versions do not allow customization of the above content. | |||||

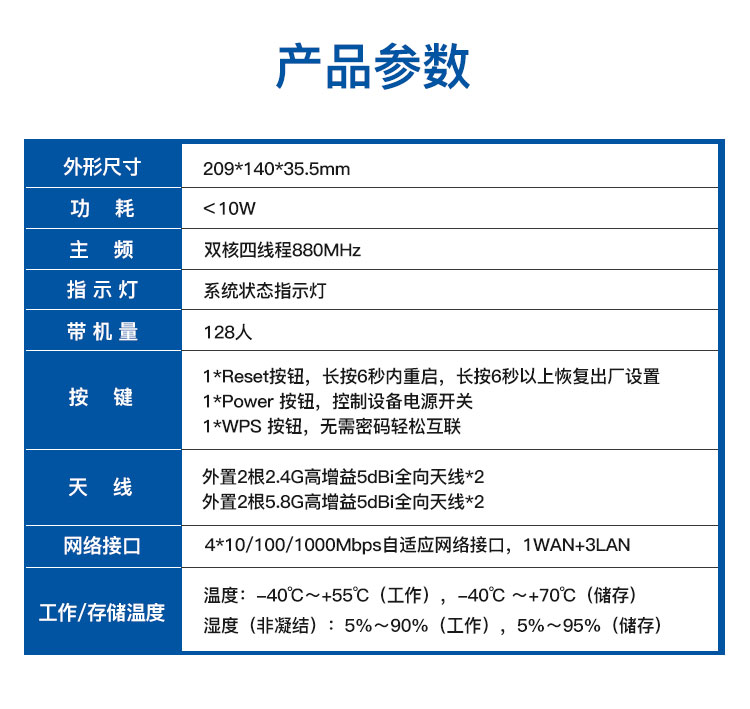

Hardware Parameters

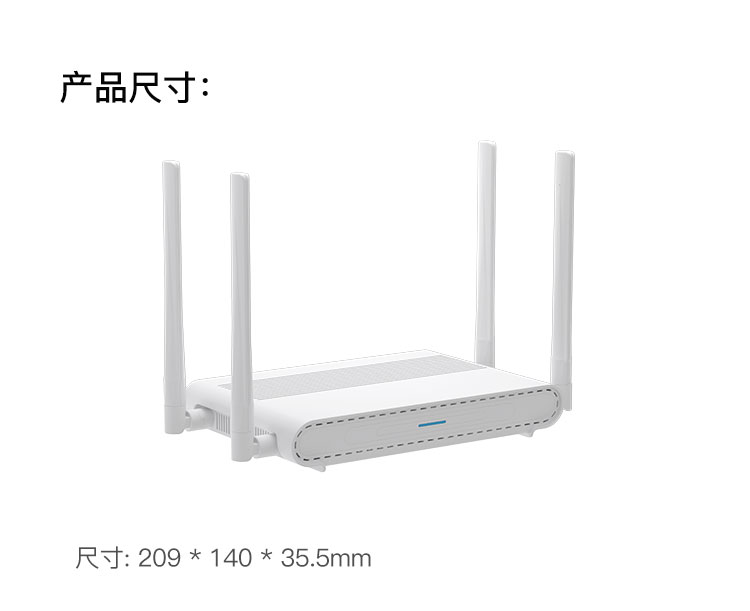

Product size | 209*140*35.5mm(L×W×H) |
Power supply | DC：12V/1A |

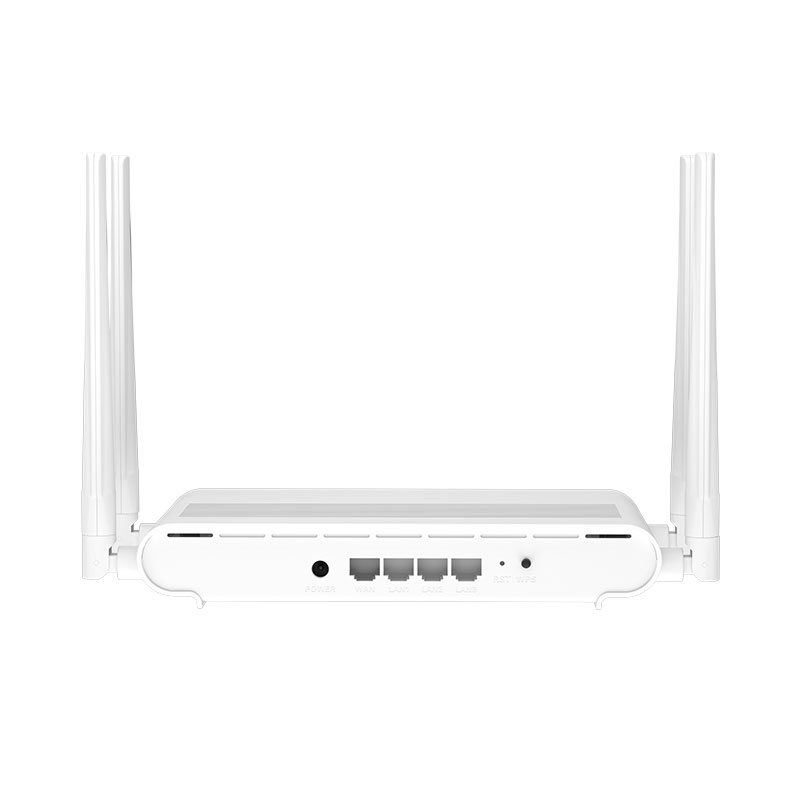

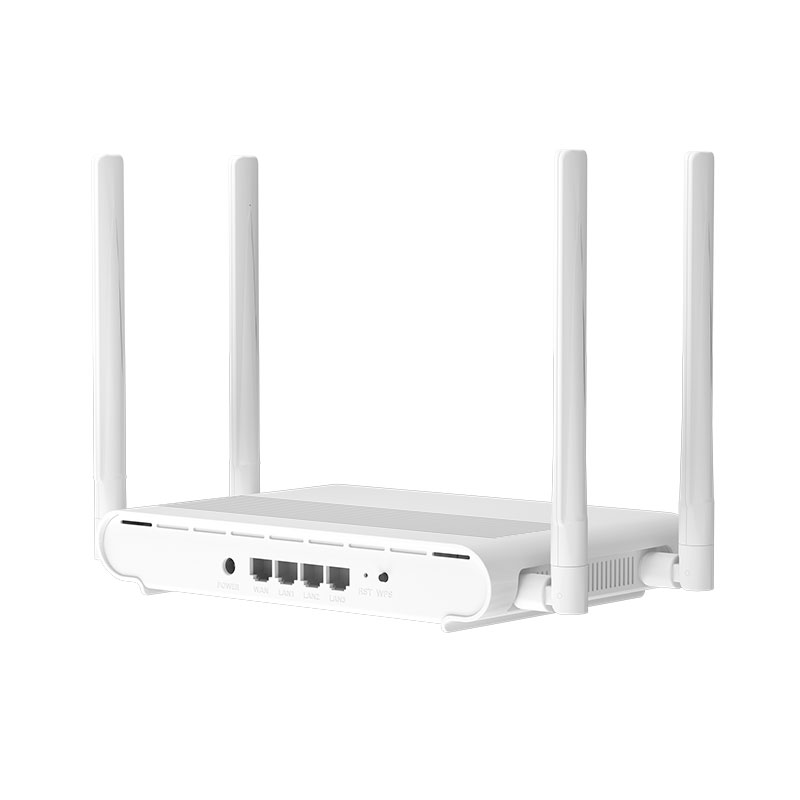

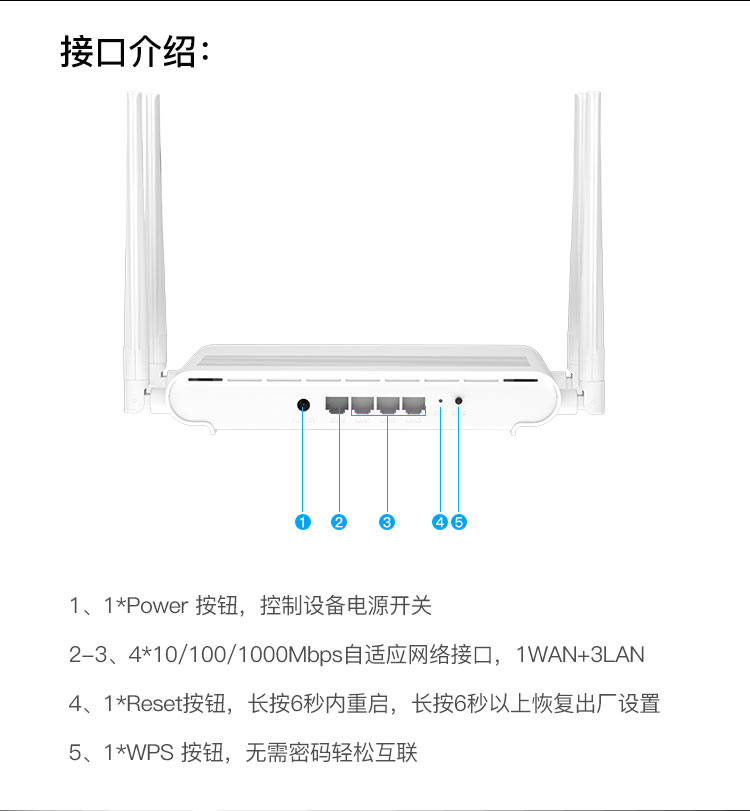

External interface Protection level | Power button: 1 WPS button: 1 Reset button: 1 Indicator light: 1 Antenna interface: 1-8 (optional) DC power supply interface: 1 (2.1mm round-head power interface) WAN/LAN ports: 4 (WAN*1 + LAN*3, 10/100/1000Mbps auto-adaptive) |

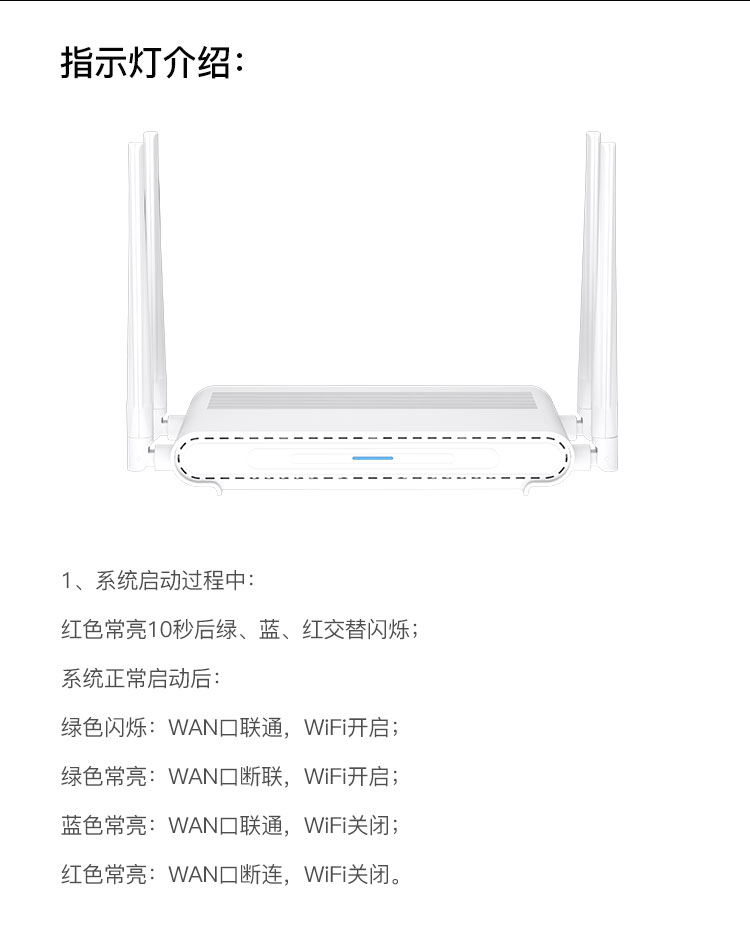

Indicator light | System indicator light |

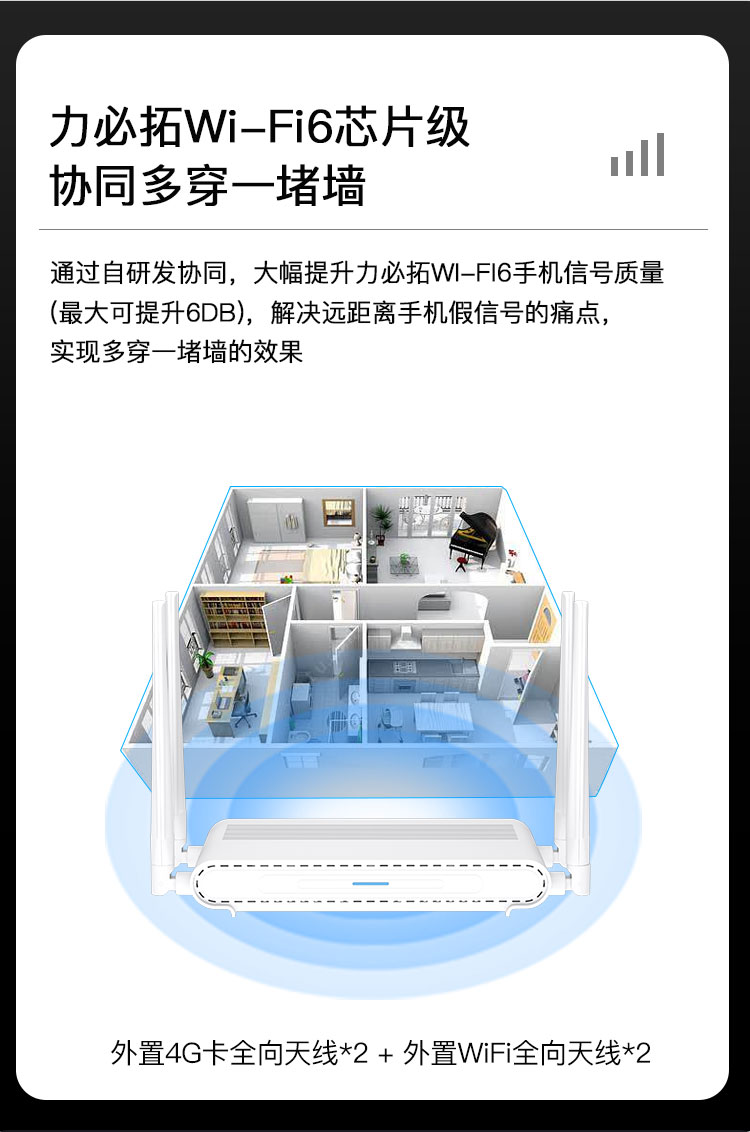

Antenna | SMA outward rotation inner hole |
Storage memory | Storage: 16MB, Memory: 256MB |
Authentication | CE 、FCC 、CCC |
Power consumption | <12W |

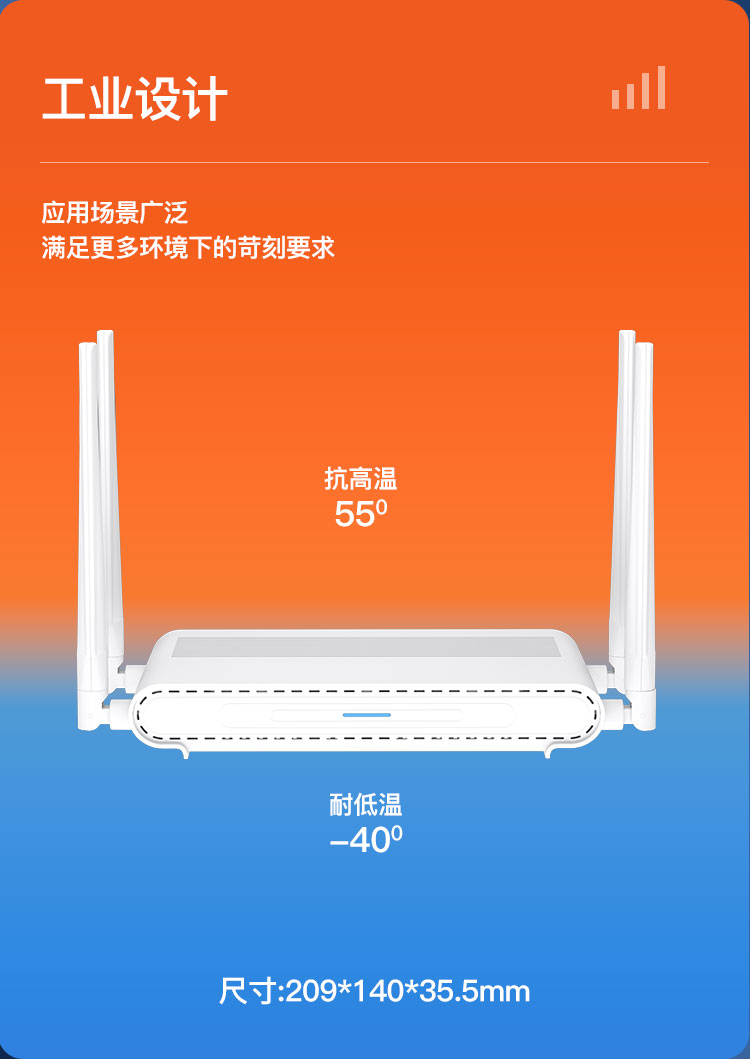

Work environment | Operating temperature: -40 ~ +55℃ Storage temperature: -40 ~ +70℃ Humidity: 5 ~ 95% (no condensation) |
Feature Data
Basic functions | Work mode: Routing mode, Bridging mode Internet access method: Network connection method (Broadband Dial-up, Dynamic IP, Static IP), DNS (Automatic acquisition, Manual input), Local Area Network settings, Guest network address pool Supported number of users: Wired/Wireless: 128 WiFi protocol: IEEE802.11b/g/n/ac/ax Port protocol: NAT, DNAT, DMZ, Port forwarding | |
Working frequency band | 2400-2483MHz、5180-5825Mhz | |
WiFi Transmission rate data | Transmission rate: 1800Mbps (MAX) WiFi data: 2.4G speed: 573Mbps (Max) 2.4G power: 14dB (±2dB) 5.8G speed: 1201Mbps (MAX) 5.8G power: 12dB (±2dB) | |
VPN | PPTPVPN Client、L2TPVPN Client | |
WLAN Security Agreement | WPA-PSK 、WPA2-PSK、WPAPSK/WPA2PSK、 WPA1/WPA2 | |
System service | Firewall, port blocking, virtual server, DMZ, port triggering, serial port service, advanced network settings: IPv6, relay mode, static IP, dynamic IP, IPTV, guest network, parental control | |
Operating System Browser requirements | System: Windows XP/VISTA, Linux 2.6, Windows 7 and above, MAC OS: 10.3.7 and above Browser: IE: 6.0 and above, Safari: 1.2.4 and above, Firefox: 2.0.0.8 and above | |
Equipment Management | Management | SNTP, password modification, backup/upgrade, restart/reset, log |
Setup Wizard | Quick Configuration Wizard | |
Management approach | WEB remote management, TR069 remote management (not yet available to ordinary users) | |
Status | Internet connectivity status, router status, WiFi status, main network users, guest network users, IPv4/IPv6 status | |
WPS button | The WPS function button. Press it briefly to activate the PBC function. | |
Product packaging size/weight
Product weight (g) | 552g |
Product dimensions (mm) | 209*140*35.5mm |
Packaging size (cm) | 22*22*12cm |
Product packaging weight (kg) | 1kg |
Outer box dimensions (cm) | 71.3*44.3*26.8cm |
Container weight estimate (kg) | 22kg |

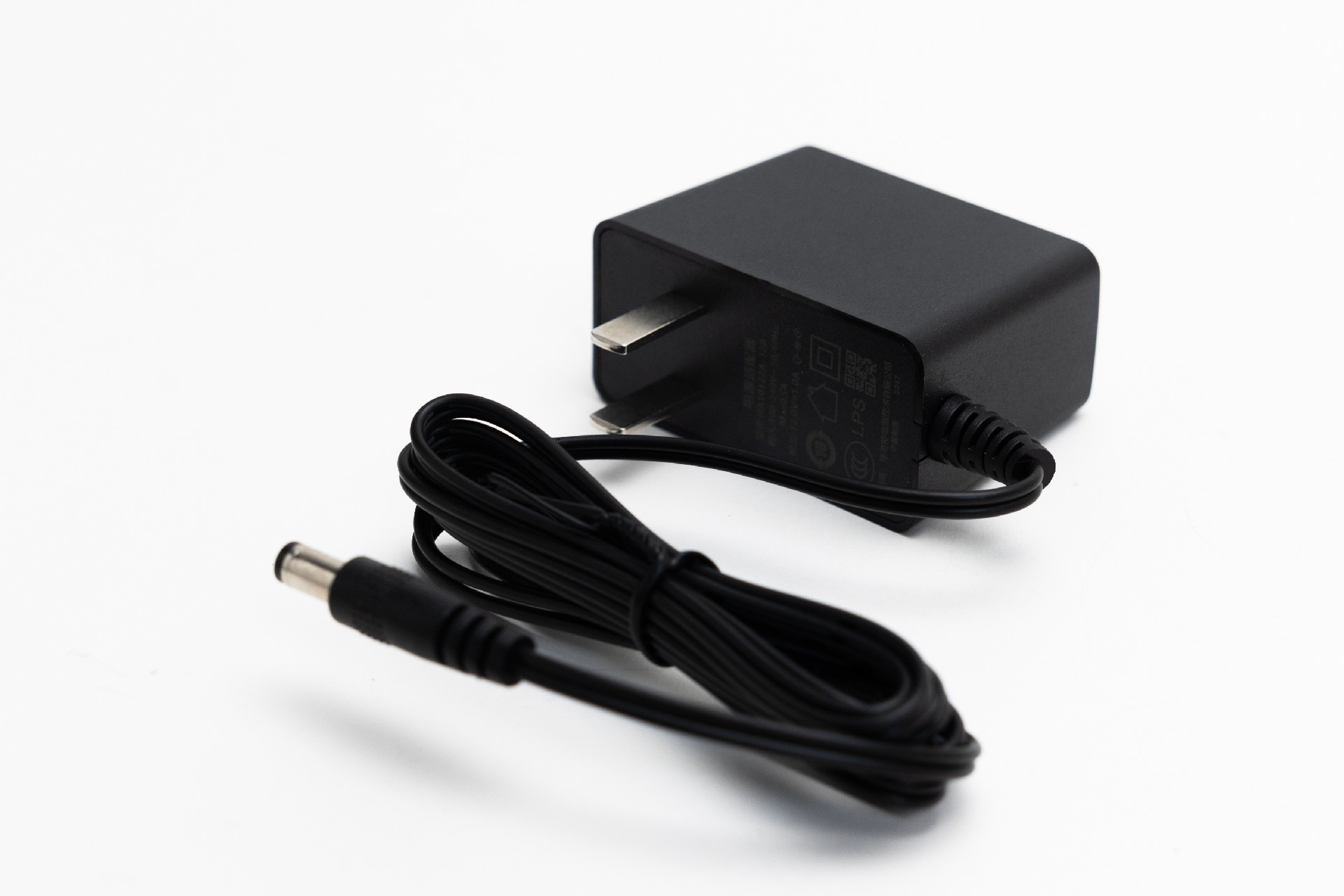

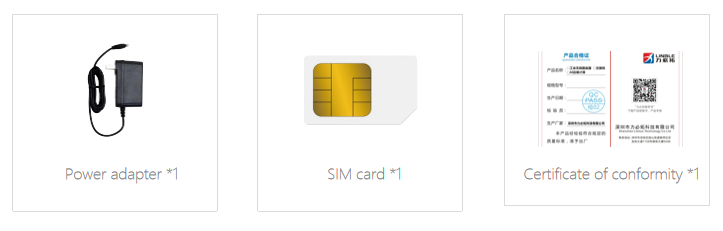

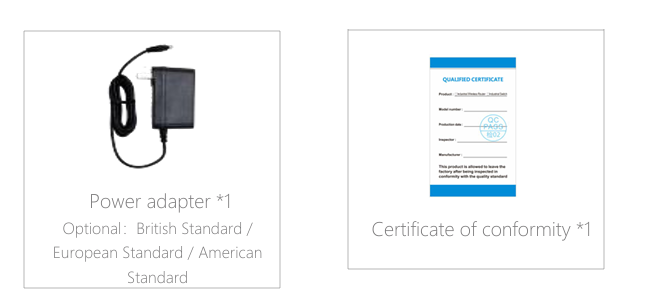

Standard accessories
