4G industrial router for remote monitoring / solar / vending

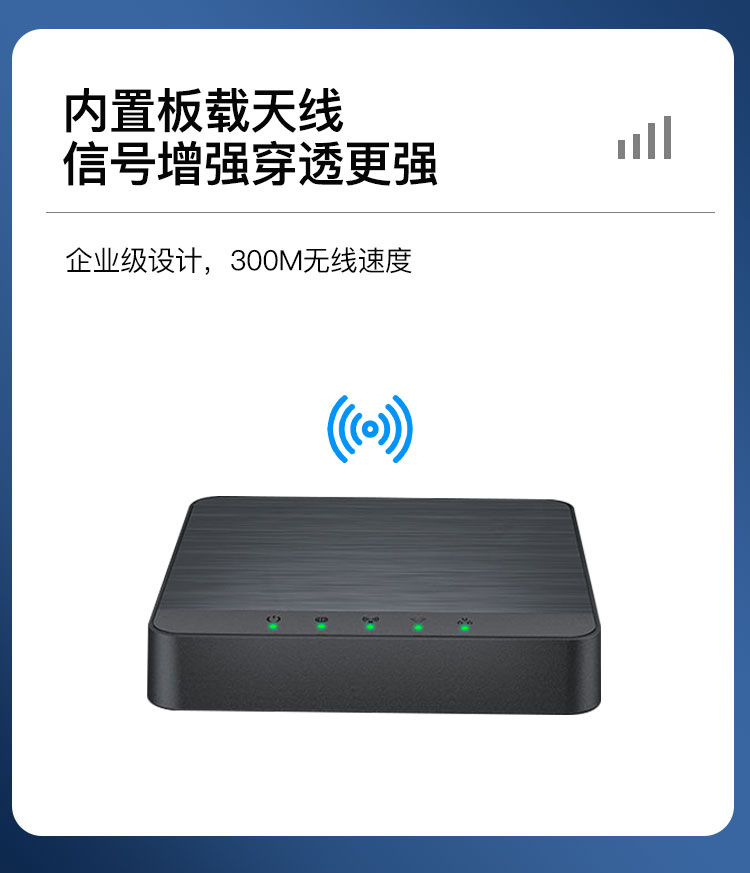

Enterprise-class design, 300m wireless speed
Adopt professional wireless processor, wireless rate up to 300Mpbs, barrier-free transmission distance of about 20 meters, independent professional power amplifier and low noise amplifier, stable and smooth with 30 machines, no stutter, no drop.
Simple setup, flexible and multi-purpose

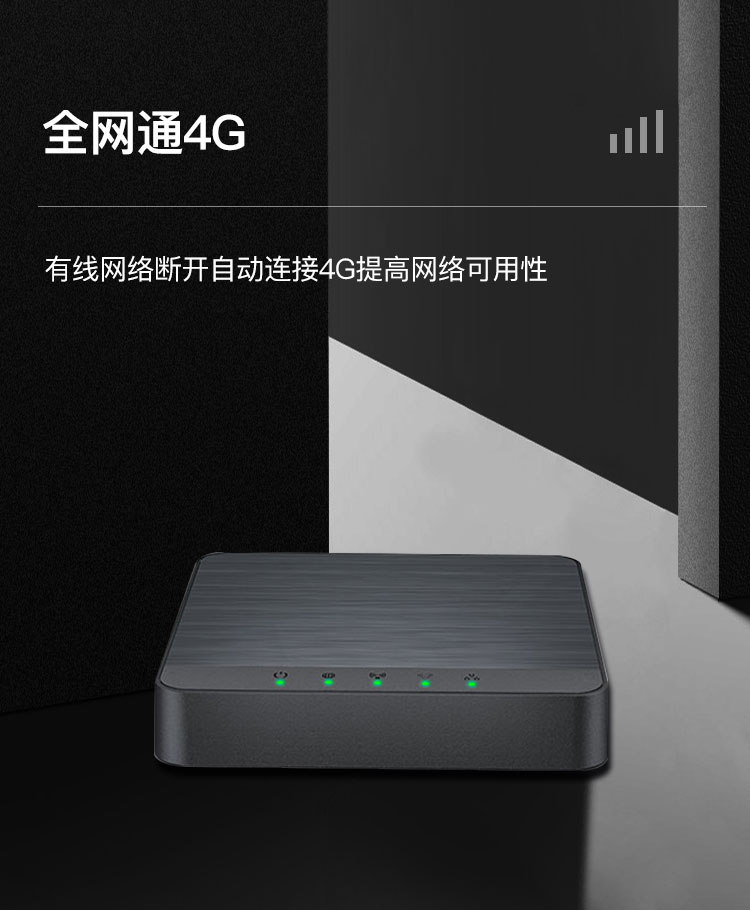

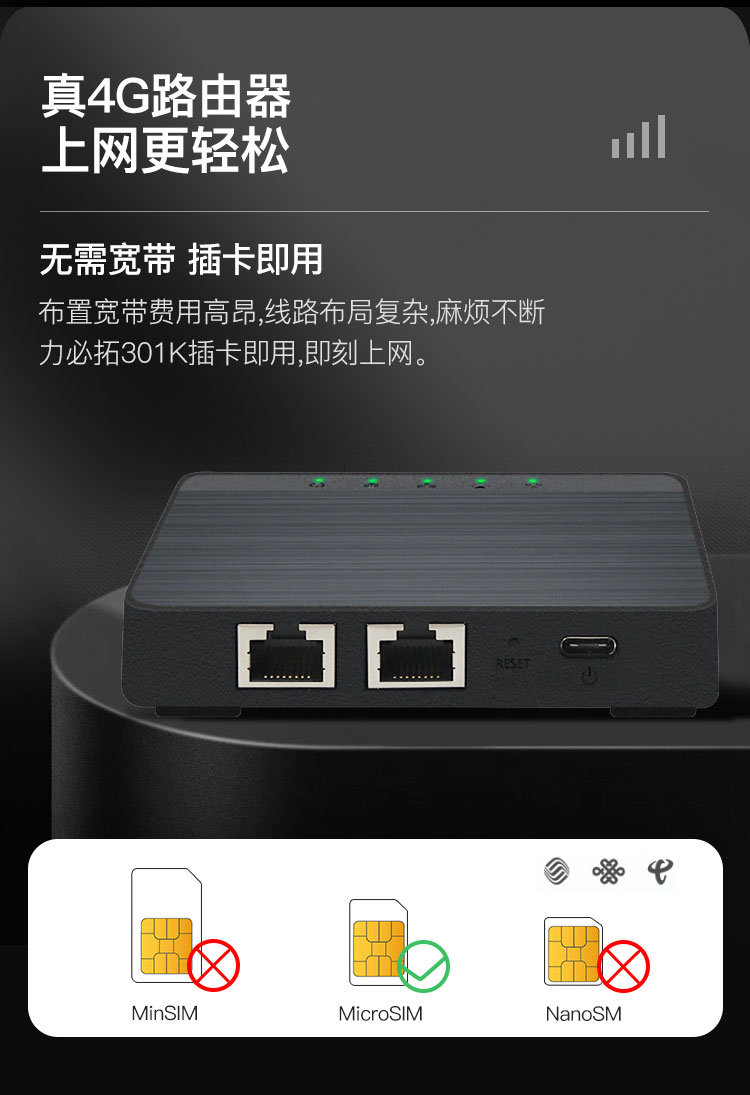

Support 4G and wired broadband access, built-in quick setup wizard, guide customers to complete the configuration easily. Default 4G access mode, plug in the card and use it; The WAN accesses the network and automatically switches to routing mode. It supports both 4G and wired broadband access modes, supports 4G/3G/2G network cards of China Mobile, China Unicom and China Telecom, and has more advantages of 4G Internet access in places where wired bandwidth cannot be reached. 4G and wired can automatically switch and never be disconnected.
Multiple security strategies to ensure network data security at all times
Support WPS, WPA, WPA2 wireless security access, support SSID hiding, guest network, black and white list, LAN port isolation, ALG, MAC filtering, IP filtering, NAT settings, DDOS to effectively protect network security, and ensure user network data security at all times.
Multiple status statistics, always know the working status of the equipment
Built-in flow statistics, support flow package settings, easy to understand the monthly flow usage; Multi-state working indicator light, real-time working log view, always know the working status of the equipment.
Non-stop product function update and performance optimization
Adhering to the spirit of craftsmen, the R & D team has been constantly updating its functions to meet the needs of various network environments simply and efficiently. Careful performance optimization ensures the best quality network products and improves user experience.
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: 301K-CN-4GA-W4-S1-RS485; Version 301K, China 4G domestic solution, single band WiFi4, single card, protocol RS485, no customization Note: Some versions do not allow customization of the above content. | |||||

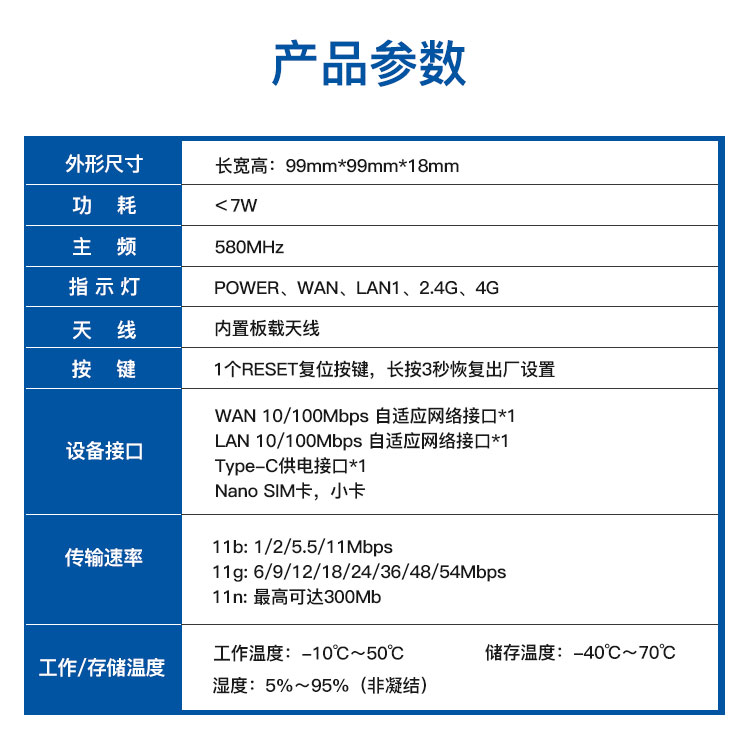

Hardware Parameters

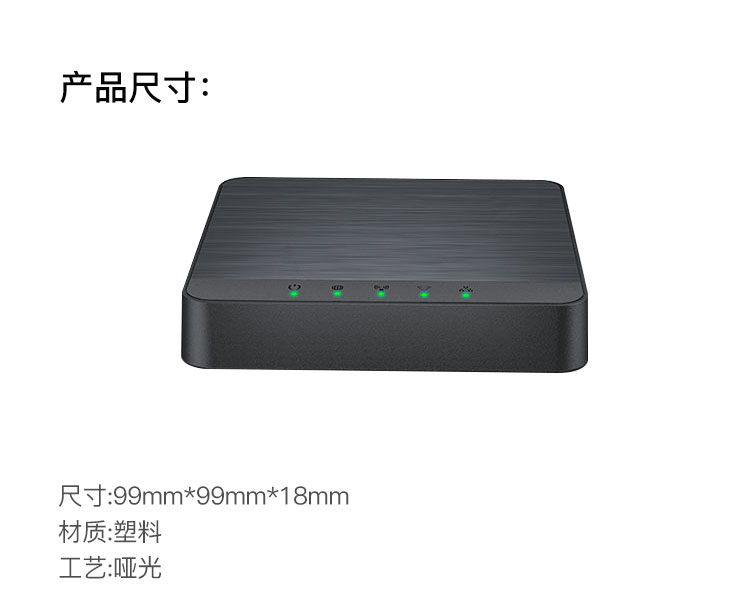

Product size | 99*99*18mm(L×W×H) |
Power supply | DC：<7W |

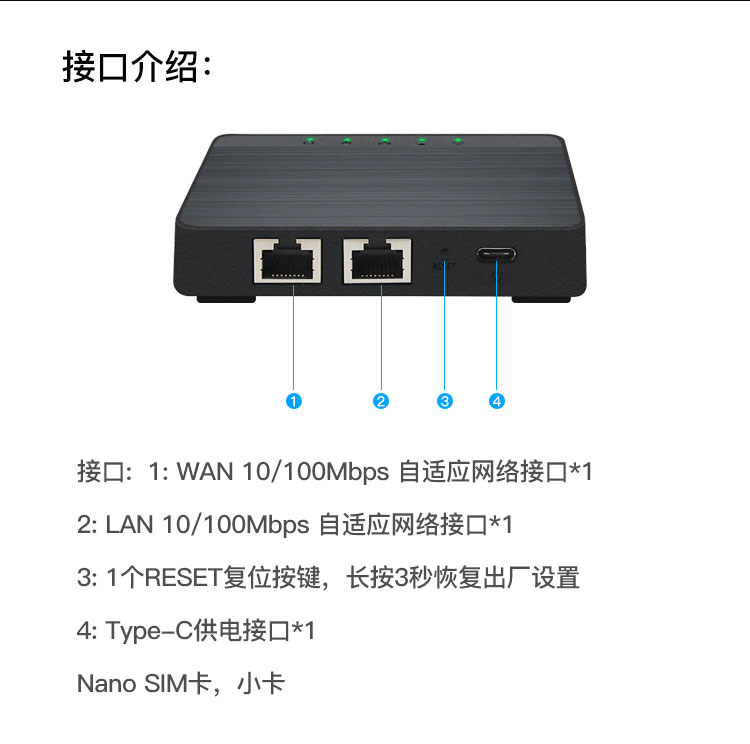

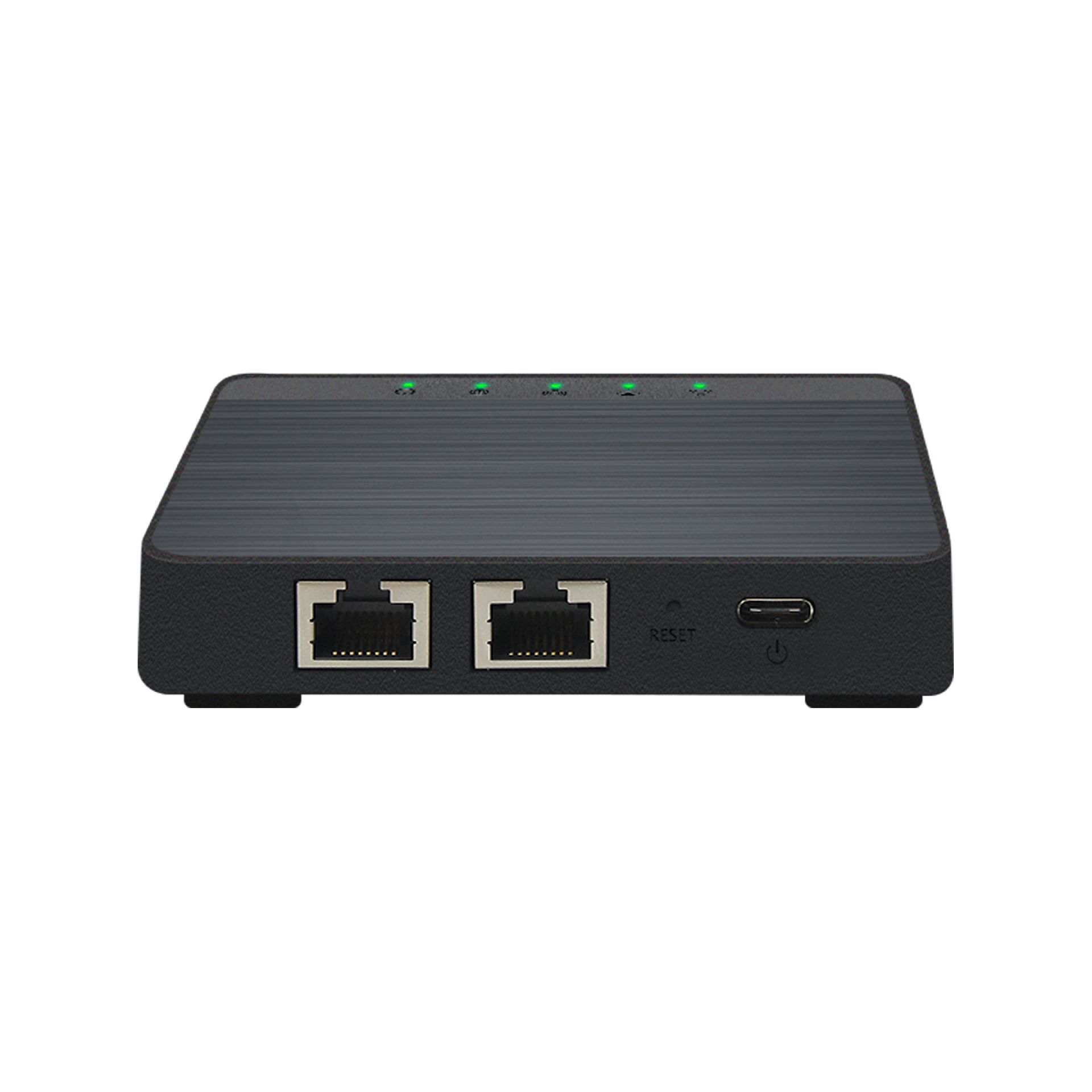

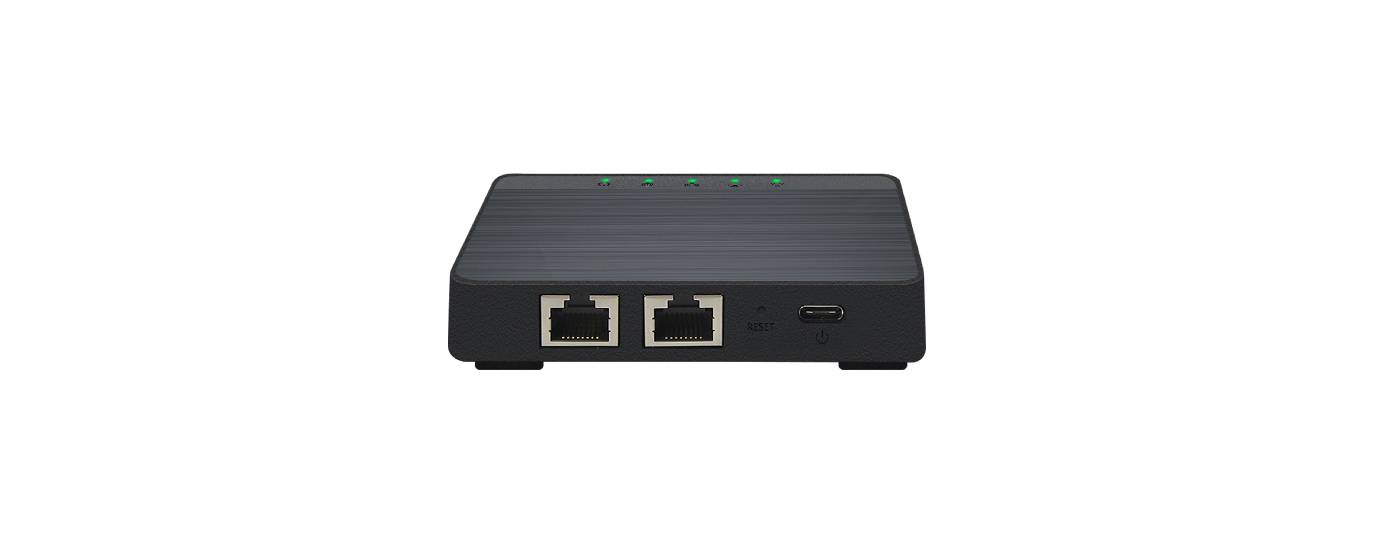

External interface / Protection level | Reset button: 1 Indicator lights: 5 SIM card slot: 1 Type-C power supply interface: 1 LAN ports: 2 (LAN1 is WAN/LAN adaptive) Protection level: IP30 |

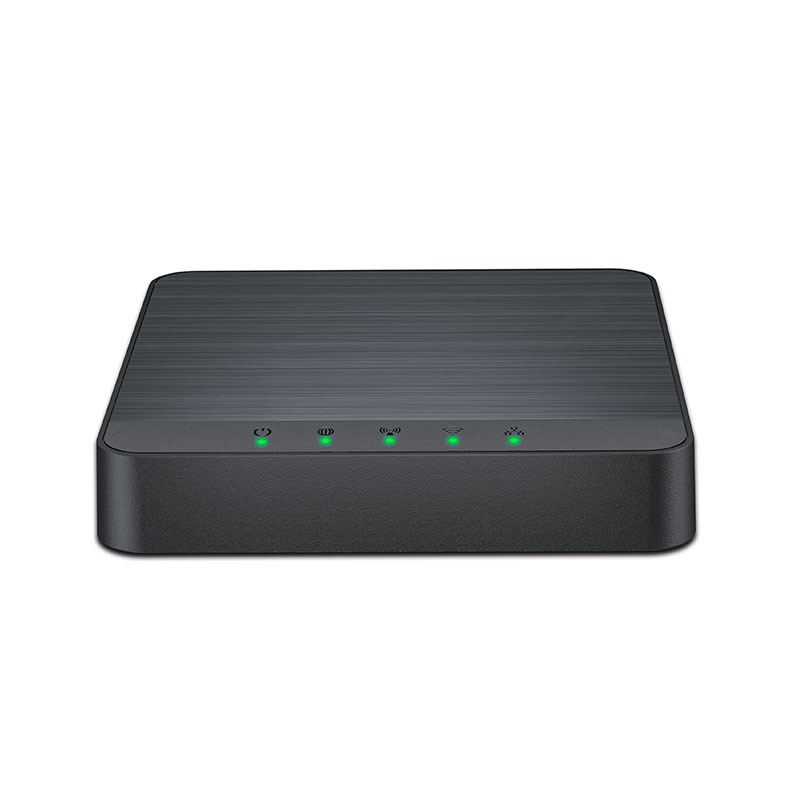

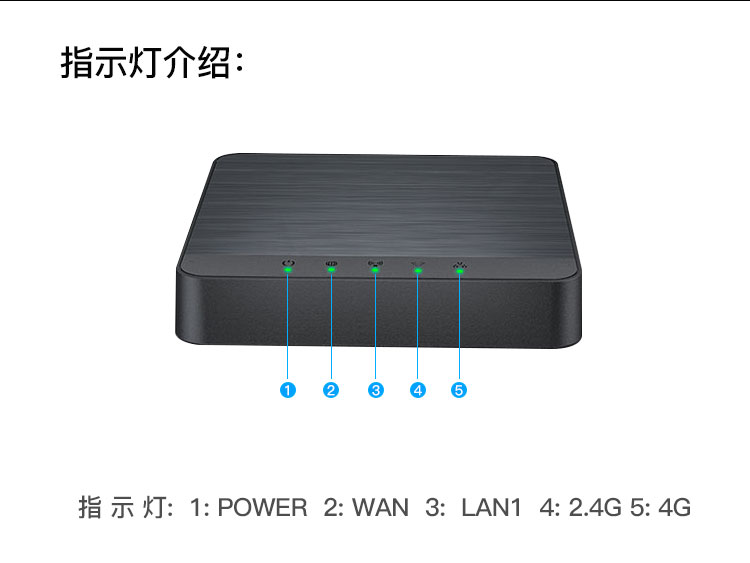

Indicator light | POWER、WAN、LAN1、2.4G、4G |
Antenna | 内置板载天线 |
Storage memory | Storage: 8MB, Memory: 8MB |
Power consumption (current) | CE 、FCC 、CCC |
Certification | Less than 400mA |

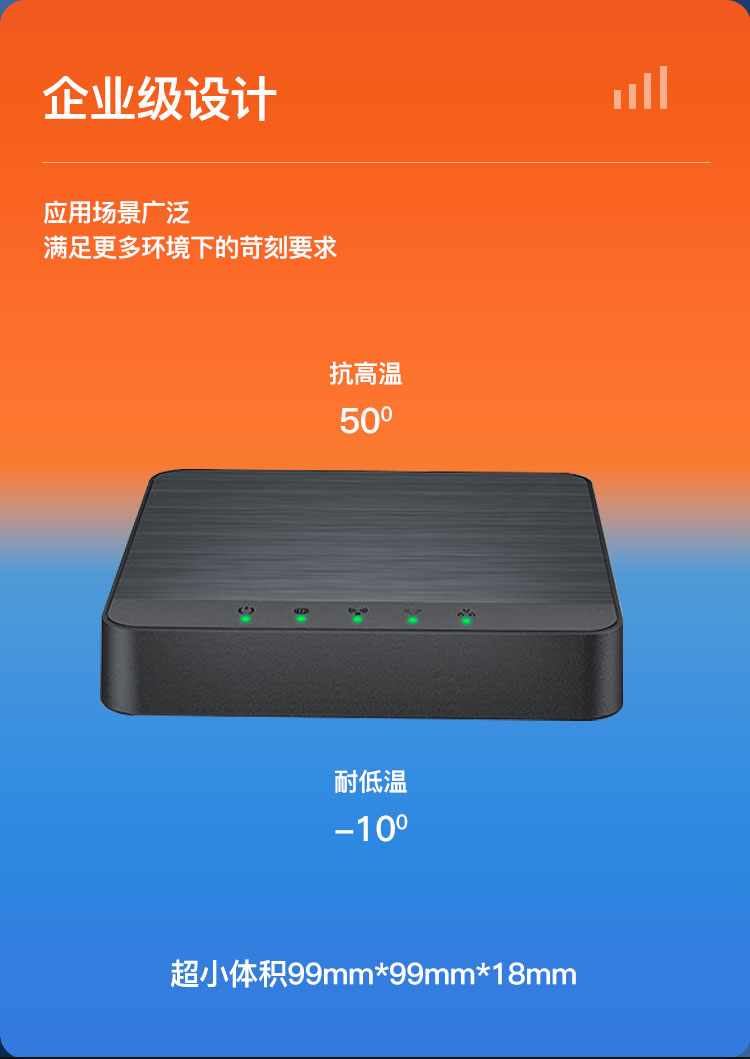

Work environment | Operating temperature: -10 to +70°C Storage temperature: -50 to +85°C Humidity: 5 to 95% (no condensation) |
Feature Data
Basic Features | Work mode: 4G access, routing mode Supported number of users: Wired: 30, Wireless: 30 VPN protocol: PPTP Client, L2TP Client (only supported in dedicated network version) Network functions: NAT, DNAT, DMZ, port forwarding |
WLAN Security Consultative | OpenSystem, WPA-PSK, WPA2-PSK, WPAPSK/WPA2 PSK, WPA1 / WPA2 |
Operating frequency band | 2400-2483.5MHz |
WiFi transmission Rate/Data | Transfer rate: 300Mbps(MAX) (theoretical maximum) WiFi data: 802.11n:-66dBm at 300 Mbps HT40MCS7:+14dBm(±2dB) 802.11b:-86dBm at 11Mbps/CCK:+14dBm(±2dB) 802. 11g:-73dBm at 54Mbps/OFDM:+14dBm(±2dB) |
System Services | Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 |
Product packaging size/weight
Product weight (g) | 145g |
Product dimensions (mm) | 99*99*18mm |
Packaging size (cm) | 25*16*7cm |
Product packaging weight (kg) | 0.5kg |
Outer box dimensions (cm) | 71.3*44.3*26.8cm |
Container weight estimate (kg) | 22kg |
Optional frequency bands
4G band | CN：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 EU：FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 NA：FDD-LTE B2/3/4/5/7/8/12/ 13/17/25/26/66 TDD-LTE B41 SA：FDD-LTE B2/4/5/7/8/28 TDD-LTE B40 J：FDD-LTE B1/3/8/18/19/26 TDD-LTE 41 GL：FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |

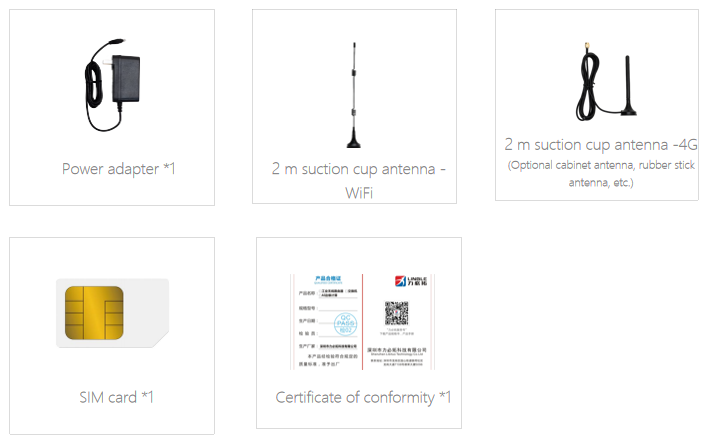

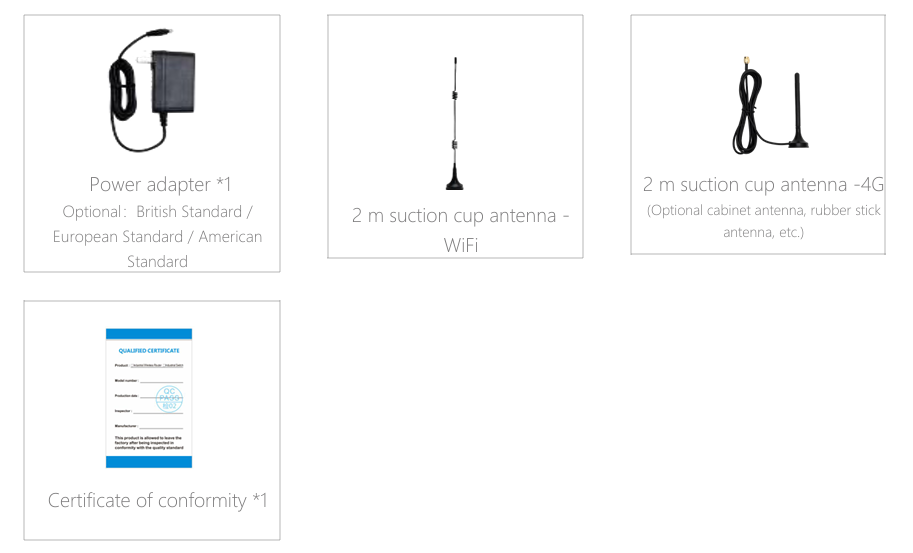

Standard accessories
