LBT-T300-M390

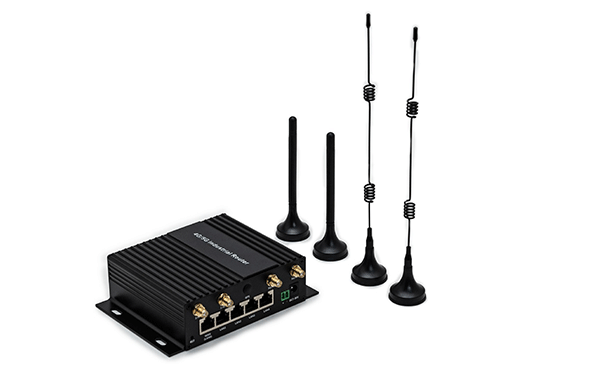

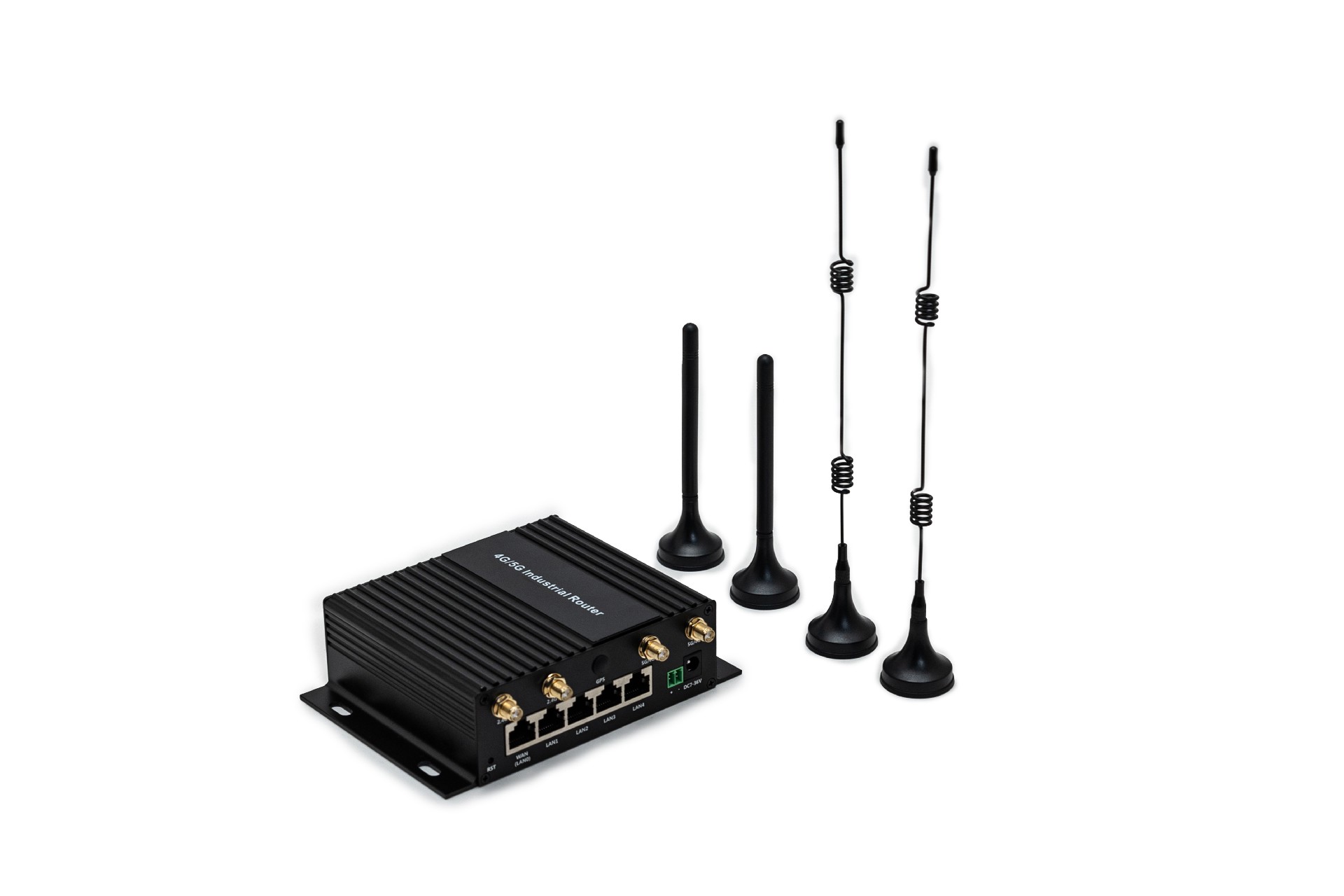

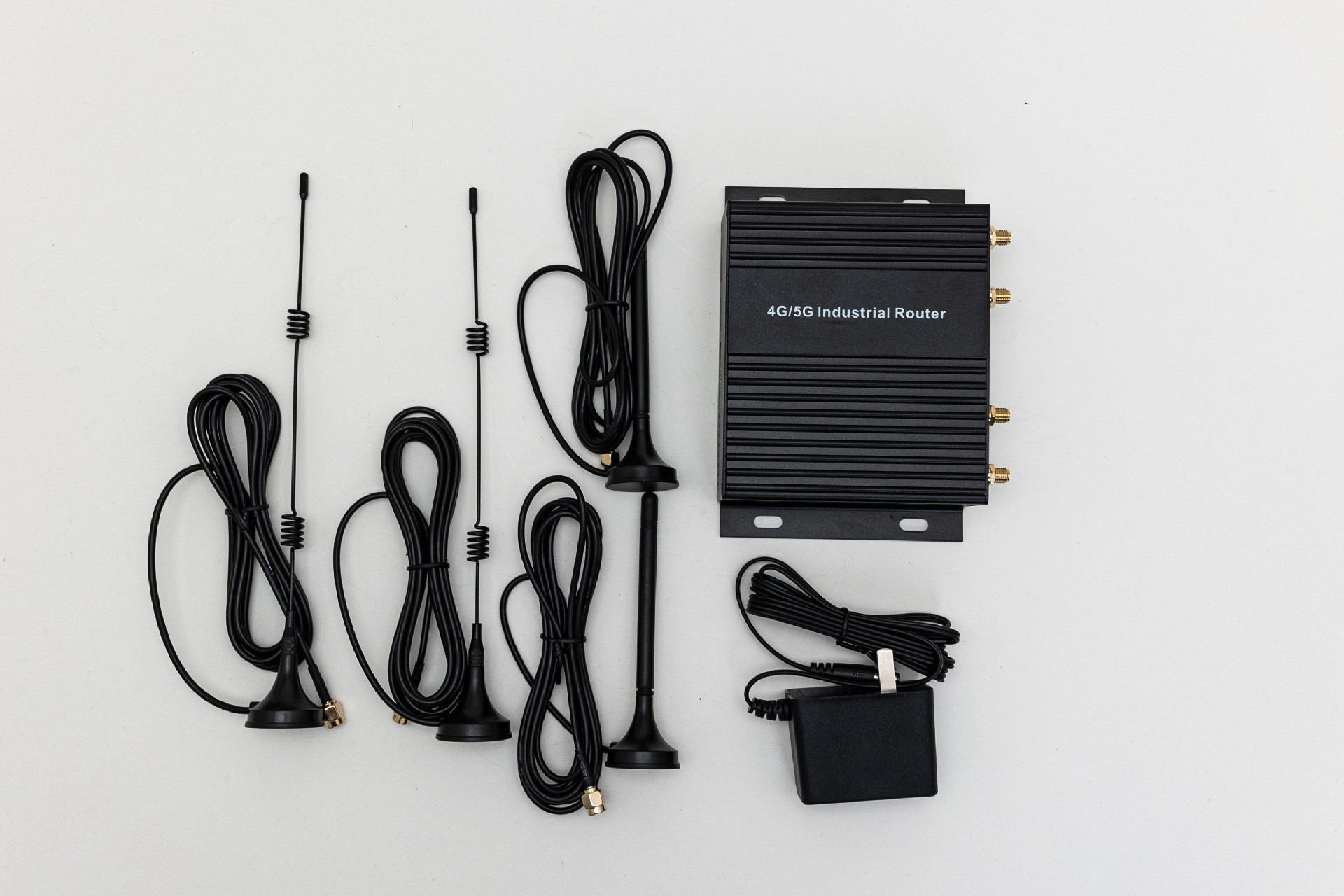

T390 industrial wireless router is a wireless communication product with excellent performance developed by Shenzhen Libiton Technology Co., Ltd. based on 4G/5G network demand. It is mainly used in the data transmission businessof industry users, supporting transparent data transmission, image

T390 industrial wireless router is a wireless communication product with excellent performance developed by Shenzhen Libiton Technology Co., Ltd. based on 4G/5G network demand. It is mainly used in the data transmission business

of industry users, supporting transparent data transmission, image transmission, equipment monitoring and wireless routing Internet access and other functions.

The T390 uses an embedded high-performance CPU to effortlessly handle advanced applications such as routing and security, and can be paired with a variety of 4G/5G industrial communication modules (TDD-LTE/FDD-LTE networks,

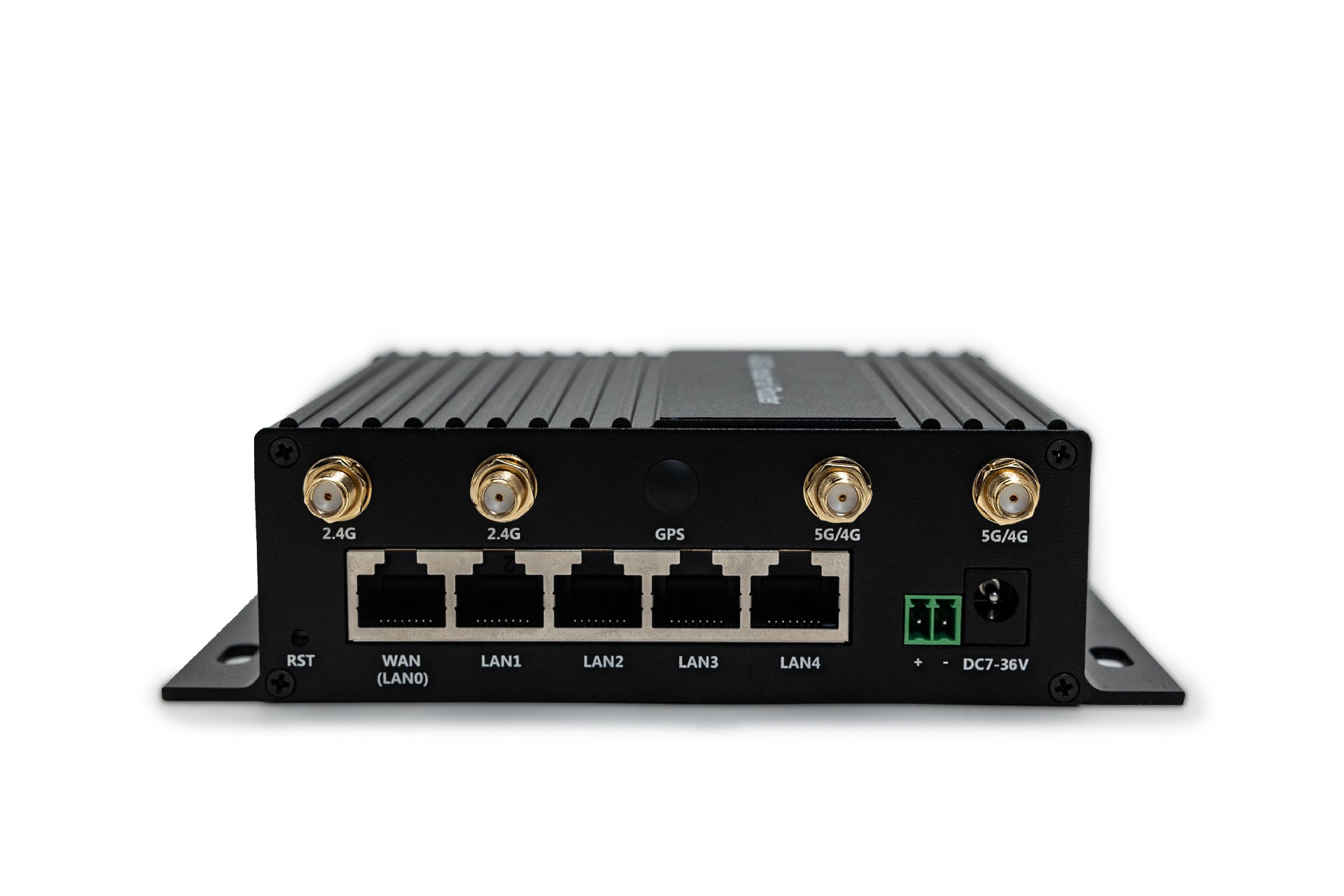

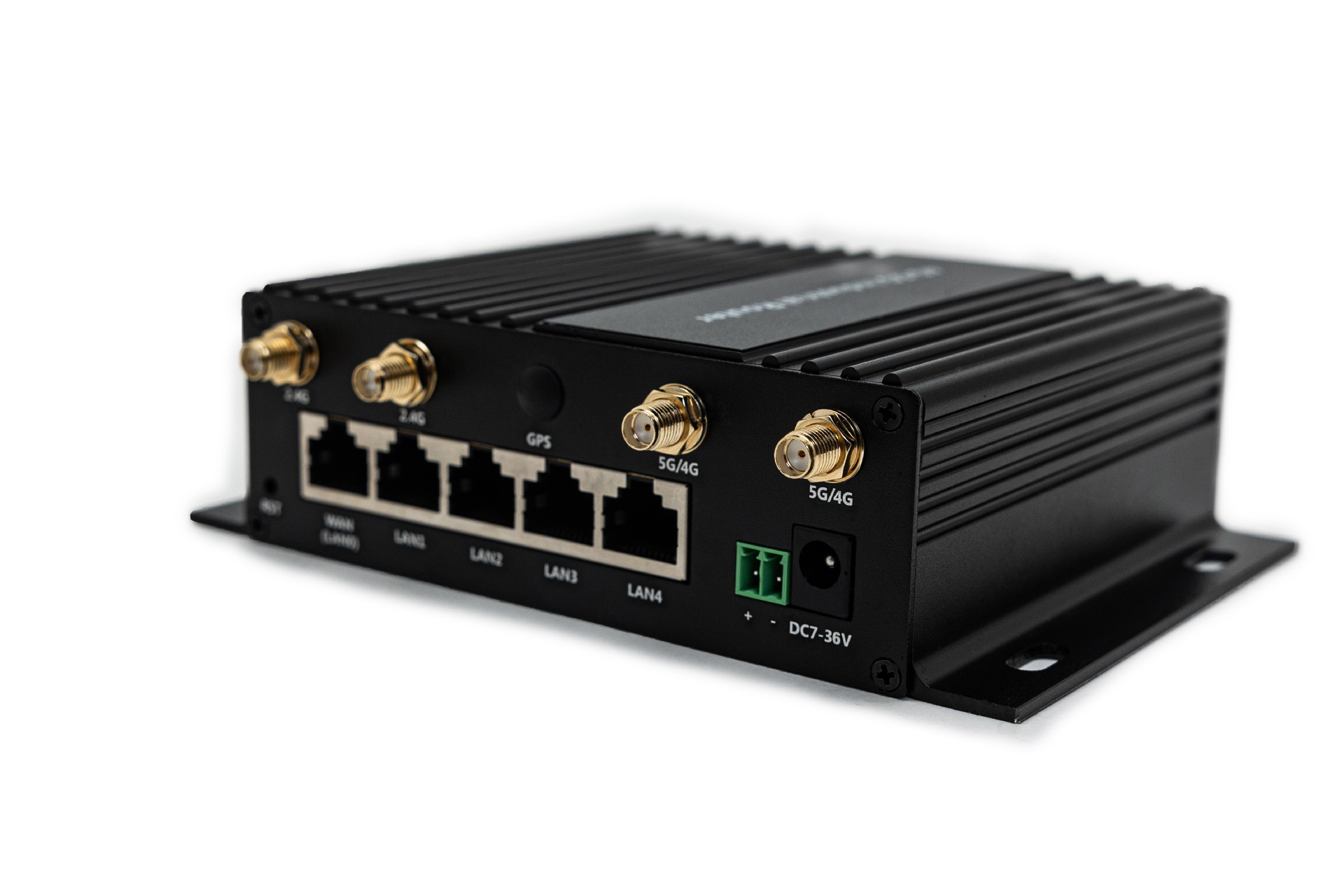

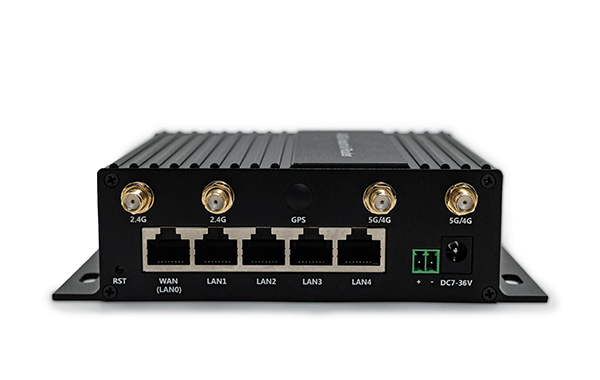

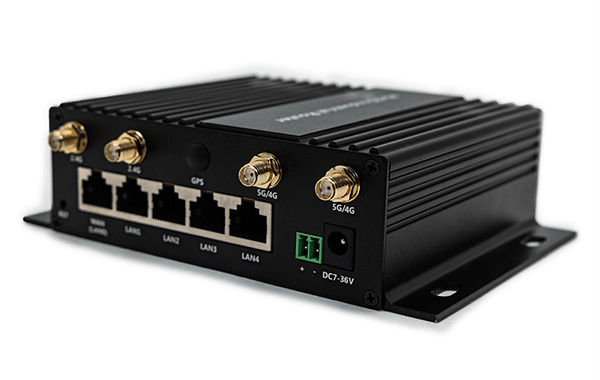

5G-SA/NSA). Provide 10/100M Ethernet port, WIFI wireless interface, serial port and DO port. A variety of terminal devices can be docked.

Support WEB configuration mode, convenient and simple management, and support remote cloud control.


Product features

1. Adopt high-performance industrial wireless module;

2. Support 5G NR Sub6 (SA/NSA). 5G RedCap.4G (FDD-LTE/TDD-LTE), -- selection required;

3. Adopt metal shell with protection grade of IP30;

4. Standard RJ45 (Ethernet) interface with built-in lightning protection 3000V (non-standard configuration needs to be customized);

5, wide voltage current input: DC7-35V/3A;

6. (Optional)Support 2 channels of analog input/control output with photoelectric quarantine, which can be used for vehicle diagnosis alarm, vehicle flameout control, etc.

7. Software and hardware watchdog anti-crash design, after the router is disconnected, it will automatically power off and restart to ensure the stable operation of the equipment;

8, automatic detection of network disconnection, automatic restart of dialing failure, timing restart and other functions;

9. Serial port transparent transmission function. The command control mode can be entered through the serial port to control the router and ancillary equipment;

10. Support multiple DDNS dynamic domain name services;

11. Port mapping, DMZ host and other functions;

12. Support VPN (PPTP Client, L2TP Client);

13, optional GNSS positioning module, support RTK technology, support multiple satellite systems (GPS, GLONASS, Beidou, WAAS, EGNOS, MSAS, GAGAN) hybrid engine);

14. Optional CAN standard communication protocol interface;
