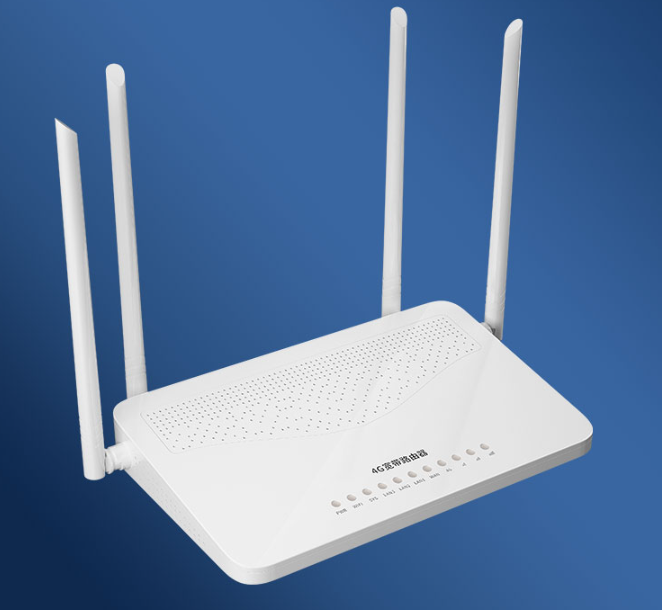

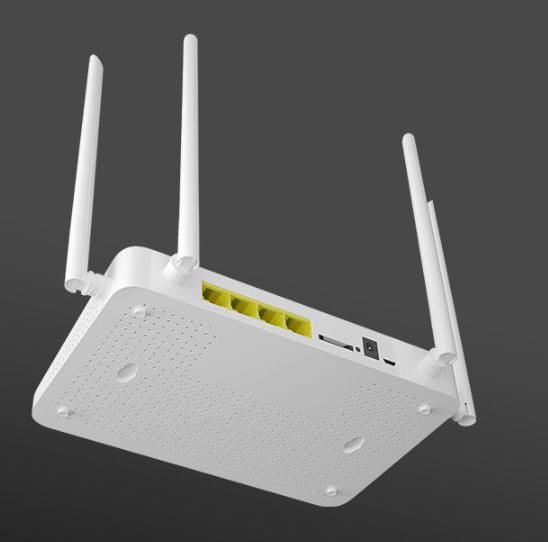

4G industrial router for remote monitoring / solar / vending



Product features

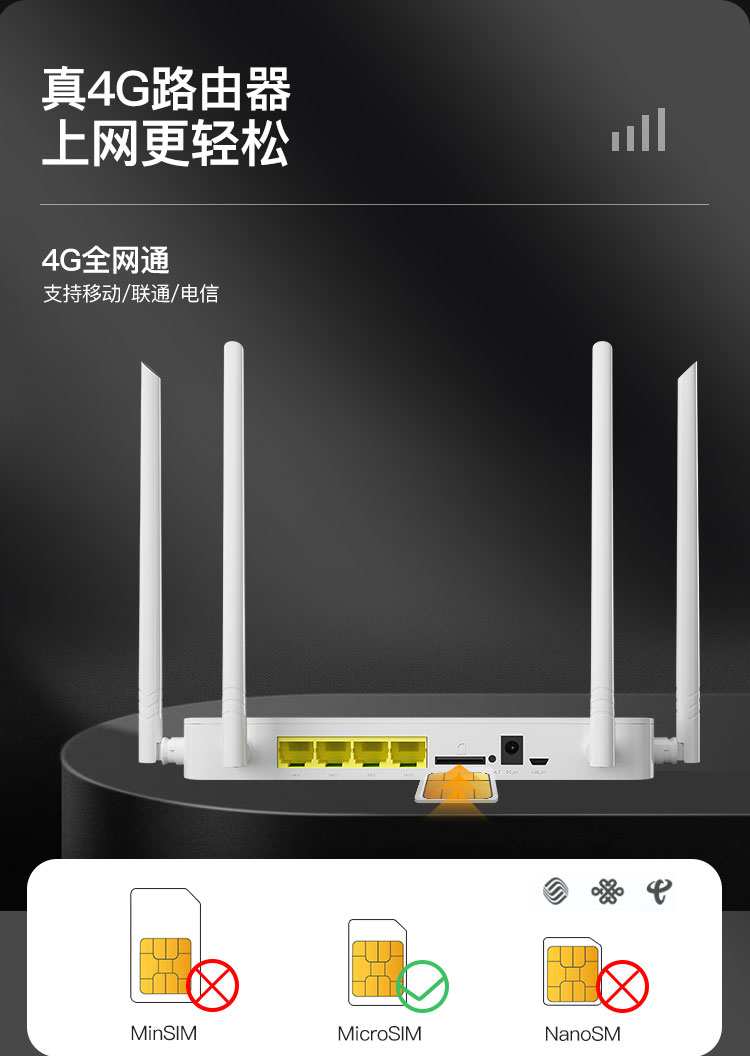

1. Support 4G access of China Mobile, China Unicom, China Mobile and China Telecom.


2, broadband access, wireless relay, wireless reception of a variety of ways to supply the network.

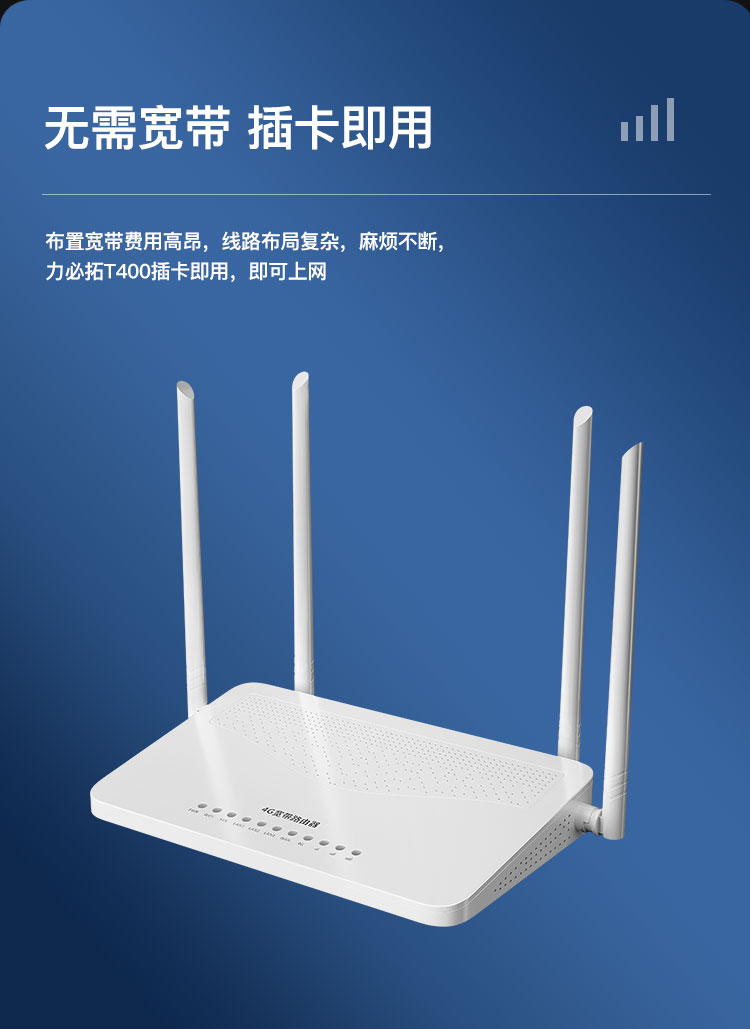

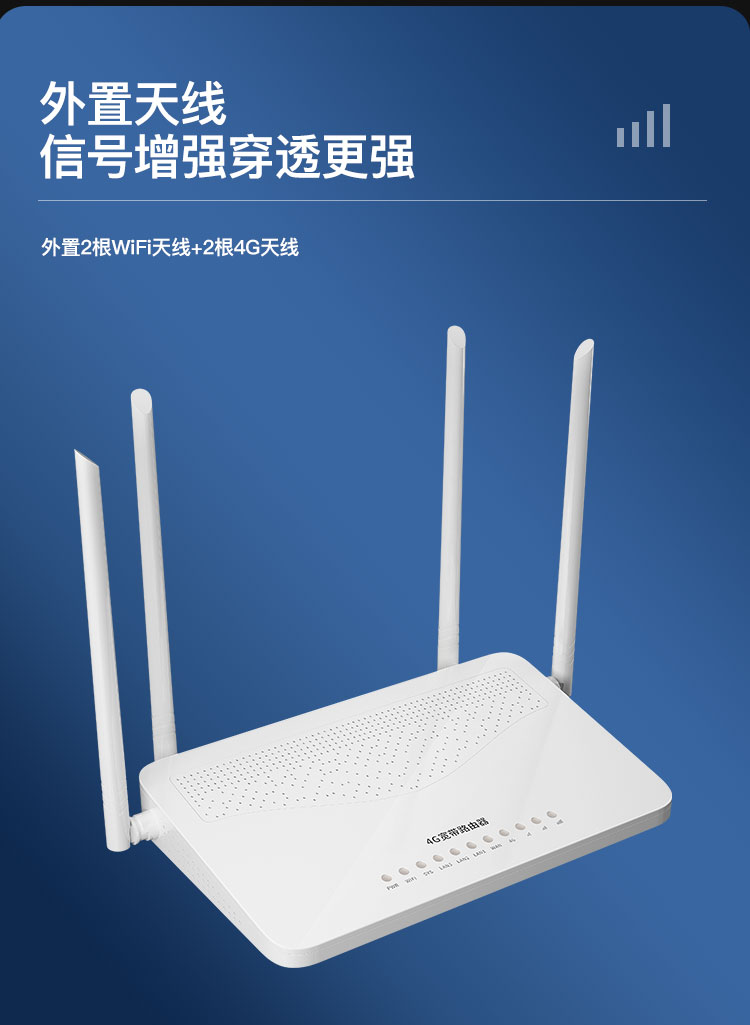

3. External omni-directional four-antenna, better signal reception and transmission, dustproof design


4. The equipment adopts standard router DC interface/MICRO USB power supply design (5-12 V power supply). The mobile power supply can supply power directly.


5. Built-in watchdog WDT protection places the device offline and crashes to ensure that the device is always online.


6. The equipment adopts high-performance MIPS communication processor and takes embedded operating system as software support platform. The system integrates a full range of communication protocols from logical link layer to application layer.


7. Support VPN (including PPTP and L2TP), IPTABLE firewall, static and dynamic routing, PPPOE, and PPP Client, DHCP Server, DDNS, firewall, SNAT/DNAT, DMZ host, and WEB configuration. Support APN/VPN


8. Support power-on automatic dialing, automatically maintain the communication link, and ensure that the link is always online


9. The equipment is used for wireless Internet access of various WIFI devices and Internet access of various wired (rj45) devices.



Countries

4G/5G network solutions

Wireless network

Number of slots

Serial port Protocol

Custom content

CN= China Version

EU= European version

NA= North American version

GL= Global Edition

SA= South American version

JP= Japanese version

AU= Australian version

A= Domestic

Q= Qualcomm

V=4G private network

R=Redcap

H= hisilicon

W0= No WiFi

W4=WiFi4

W5=WiFi5

W6=WiFi6

S1= Single card

S2= Dual cards

RS232

RS485

TTL

DO

POE

GPS

ESIM

Example: 400-CN-4GA-W4-S1; Version 400, China 4G domestic solution, single band WiFi4, single card,, no customization

Note: Some versions do not allow customization of the above content.

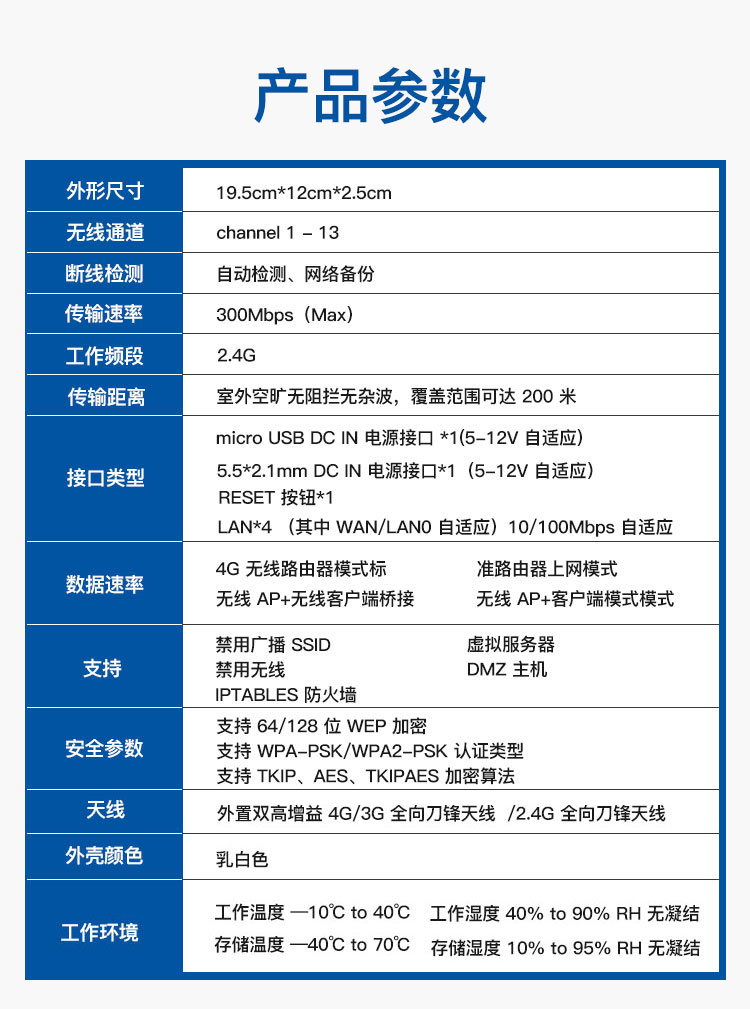

Hardware Parameters



Product size

19.5*12*2.5cm(L×W×H)

Power supply

DC：5-12V/1A

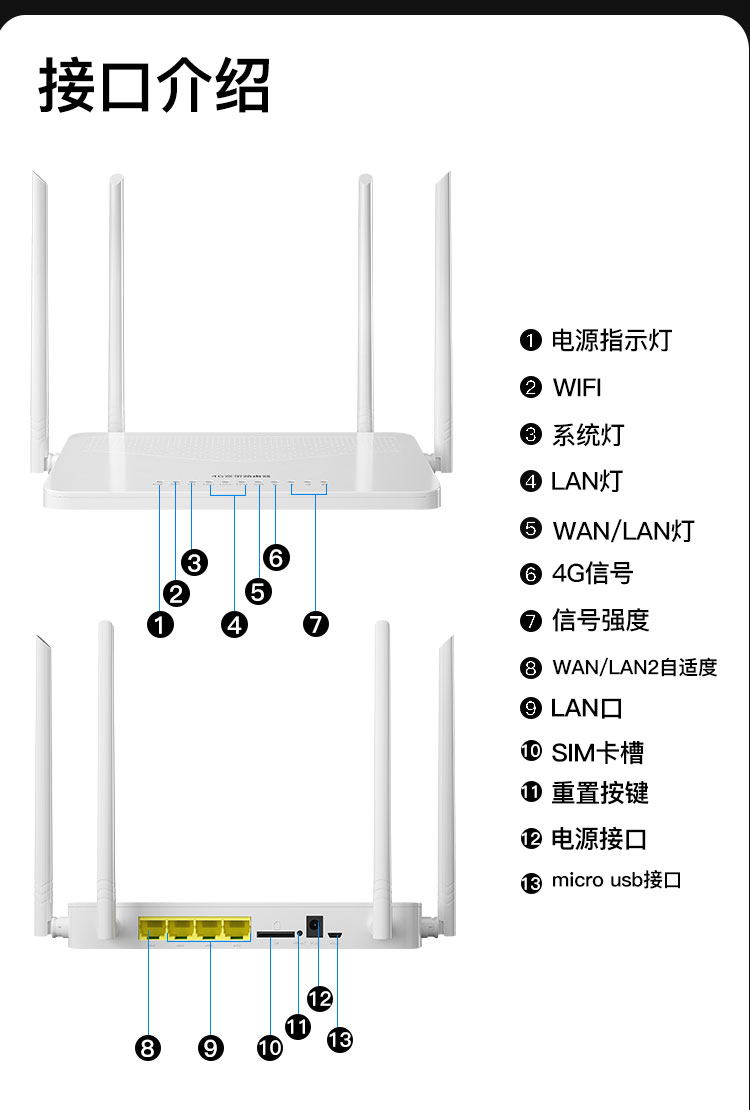

External interface / Protection level

Reset button: 1

Indicator lights: 6

Antenna interface: 4

SIM card slot: 1

DC power supply interface (2.1mm round power connector) with surge protection

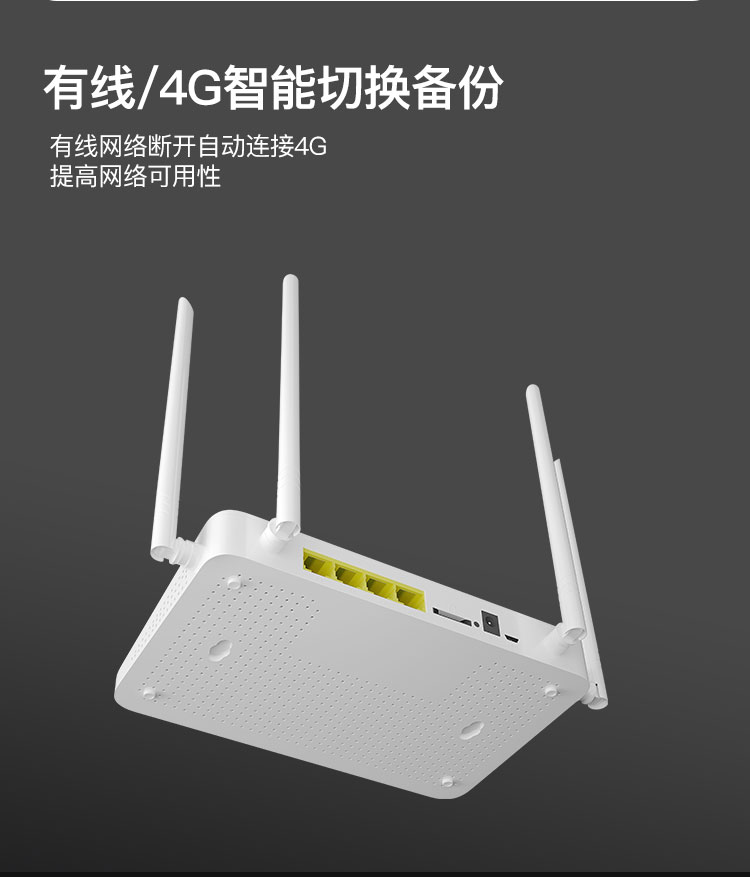

LAN ports: 4 (LAN0 is WAN/LAN adaptive)

Protection level: IP30

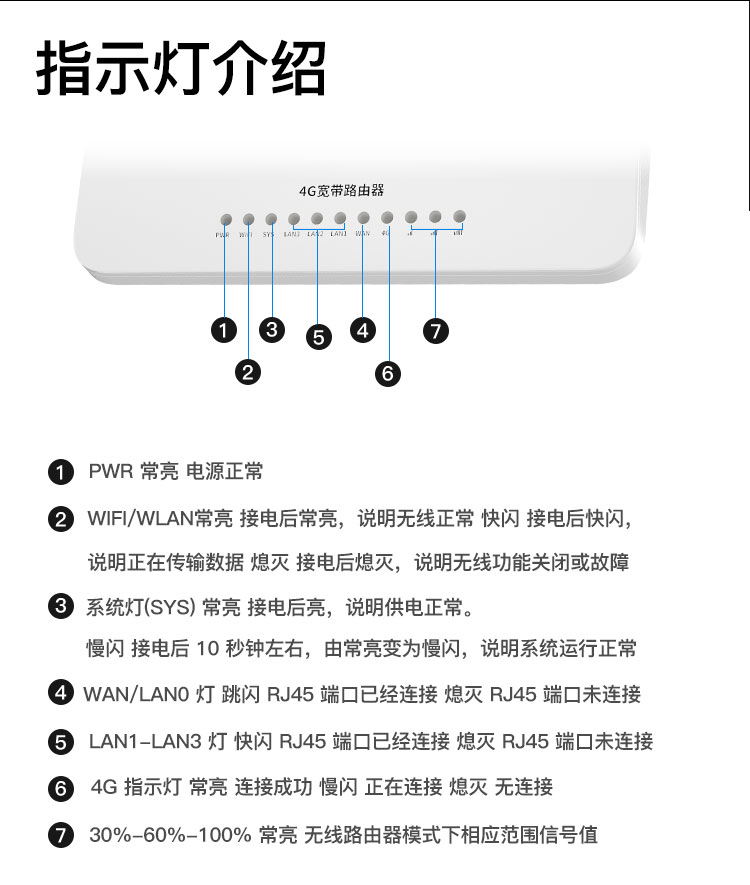

Indicator light

PWR、WiFi、sys、WAN/LAN、LAN1-LAN3、4G

Antenna

Integrated

Storage memory

Storage: 8MB, Memory: 64MB

Power consumption (current)

Less than 400mA

Certification

CE 、FCC 、CCC

Work environment

Operating temperature: -10 to 40°C

Storage temperature: -40 to +70°C

Humidity: 10 to 95% (no condensation)



Feature Data

Basic Features

Work mode: Bridge, Gateway, Wireless to Wired Conversion, Wireless Client, 3G/4G, WAN

Supported number of users: Wired: 253, Wireless: 30

VPN protocol: PPTP Client, L2TP Client (only supported in dedicated network version)

WiFi protocol: IEEE802.11b/g/n

Network functions: DDNS, NAT, DNAT, DMZ, Port Forwarding

WLAN Security Consultative

OpenSystem, WPA-PSK, WPA2-PSK, WPAPSK/WPA2 PSK, WPA1 / WPA2

Operating frequency band

2400-2483.5MHz

WiFi transmission

Rate/Data

Transfer rate: 300Mbps(MAX) (theoretical maximum)

WiFi data:

802.11n:-66dBm

at 300 Mbps HT40MCS7:+14dBm(±2dB)

802.11b:-86dBm

at  11Mbps/CCK:+14dBm(±2dB)

802. 11g:-73dBm

at 54Mbps/OFDM:+14dBm(±2dB)

System service

Virtual server, port triggering, serial port service, firewall, MAC filtering, access control, port blocking, area settings, restore factory settings, NTP server settings, backup system information, software upgrade/remote management

Operating system

Browser Requirements

System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0  Safari:1.2.4  Firefox:2.0.0.8


Product packaging size/weight


Product weight (g)

498g

Product dimensions (mm)

19.5*12*2.5cm

Packaging size (cm)

35*18*7cm

Product packaging weight (kg)

1kg

Outer box dimensions (cm)

71.3*44.3*26.8cm

Container weight estimate (kg)

22kg



Optional frequency bands


4G band

CN：FDD-LTE  B1/3/5/8

TDD-LTE B38/39/40/41

EU：FDD-LTE B1/3/5/7/8/20

TDD-LTE B38/39/40/41

NA：FDD-LTE B2/3/4/5/7/8/12/ 13/17/25/26/66 TDD-LTE B41

SA：FDD-LTE B2/4/5/7/8/28

TDD-LTE B40

J：FDD-LTE B1/3/8/18/19/26

TDD-LTE 41

GL：FDD-LTE  B1/2/3/4/5/7/8/17/20/28

TDD-LTE B38/39/40/41

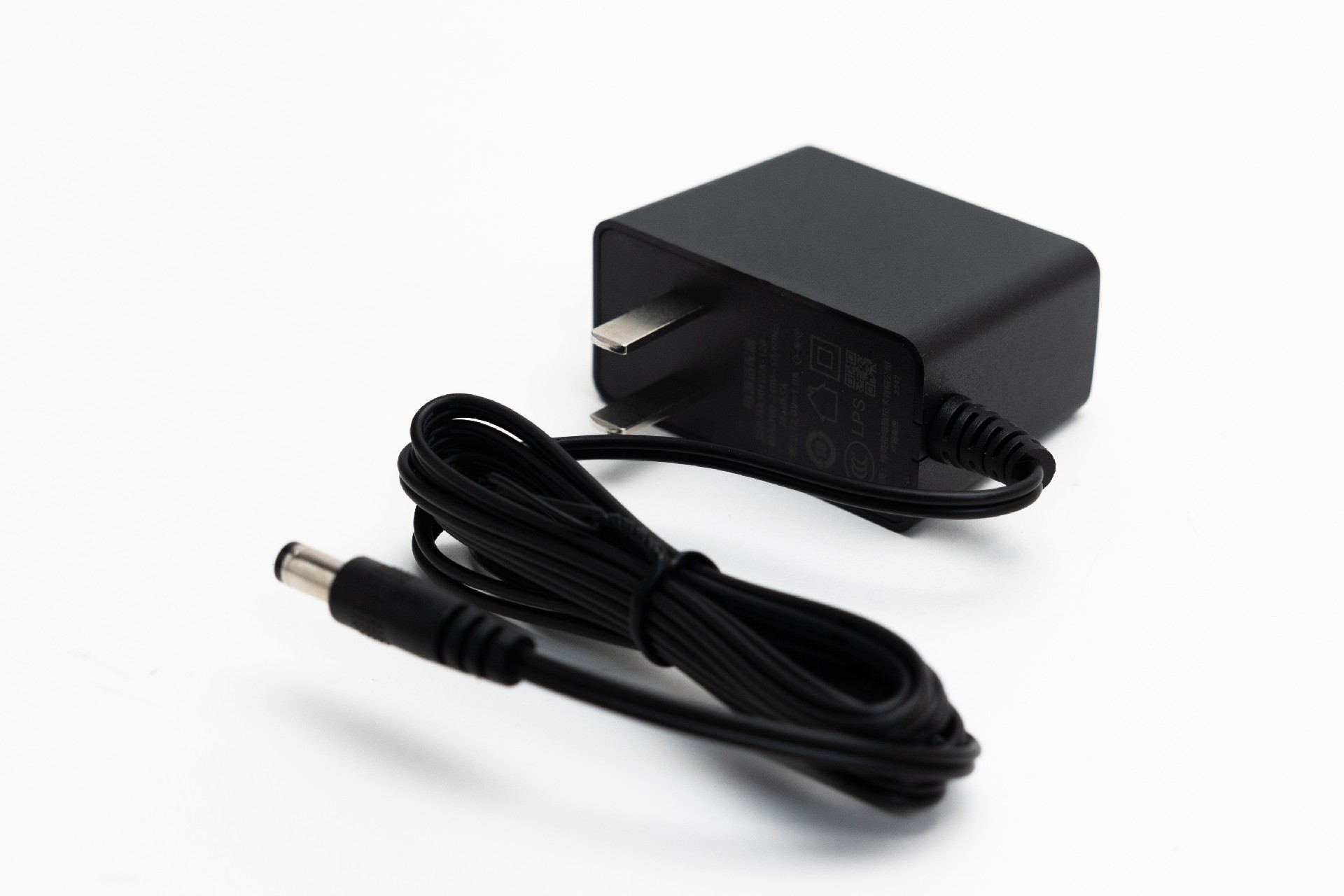

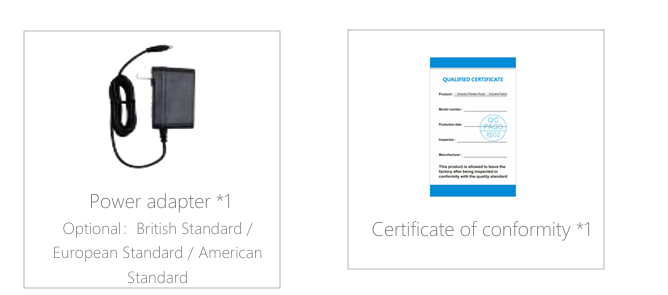

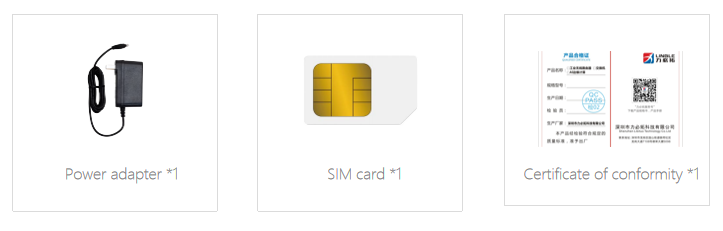

Standard accessories
