T300-1801K
- Product details
- Data download
- Video and Documents
Product Introduction

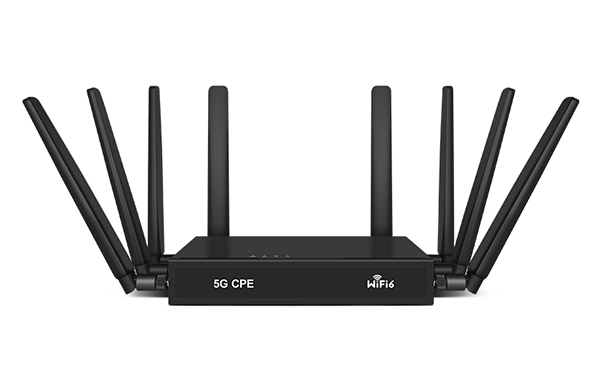

The 1801K is a high-performance 5G WiFi6 wireless router specially designed for low-latency and high-speed data transmission scenarios. It integrates 3G/4G/5G, 5G NSA/SA independent networking, LTE carrier aggregation, PCI & frequency band locking, network mode selection, ESIM/pluggable card switching, dual-band 802.11ax 1800M WiFi, 10/100/1000M adaptive network ports (2 LAN/WAN), 5G+ broadband dual-line backup, traffic control, MESH networking, fast roaming between multiple devices, IPv6, VPN, SMS, SNMP and TR069 centralized management features. It offers faster speed, more stable connection and wider coverage, which can meet the needs of high-speed data transmission for both households and enterprises. It is suitable for scenarios such as mobile office, home internet access, small and medium-sized enterprises, short-term rental and sharing, commodity stores, exhibition sites, etc., where high-speed internet access is required.
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: 1801K-CN-5GA-W6-S1; Version 1801K, China 5G domestic solution, Dual band WiFi6, single card, no customization Note: Some versions do not allow customization of the above content. | |||||
Hardware Parameters
Product size | 292*152*36.5mm(L×W×H) |

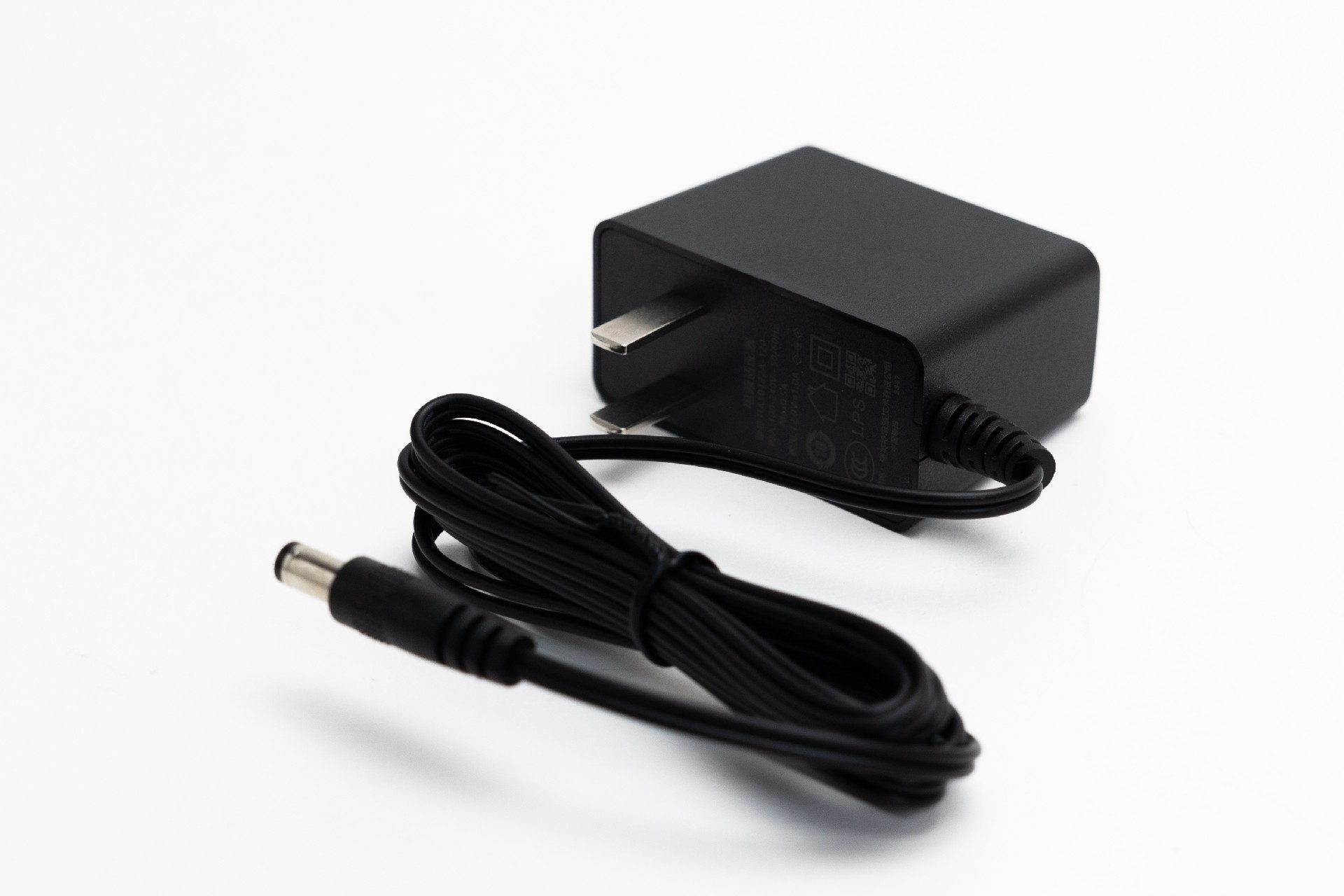

Power supply | DC：12V/2A |

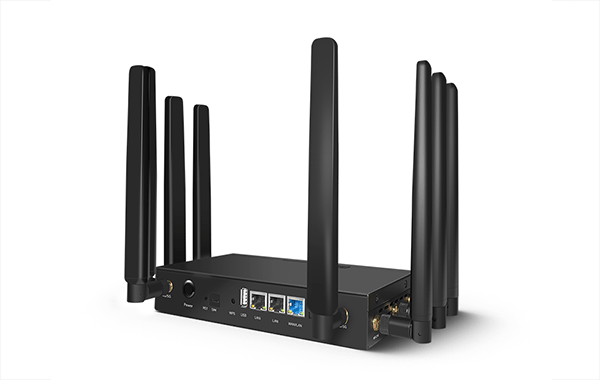

External interface / Protection level | Power button: 1 WPS button: 1 Reset button: 1 Indicators: 4 Antenna interface: 8 (optional) SIM card slot: 1 DC power supply interface: 1 (2.1mm round-head power interface) WAN/LAN ports: 3 (WAN*1 + LAN*2, 10/100/1000Mbps auto-adaptive) |
Indicator light | PWR, WiFi, 5G, 4G, network port indicator light |
Antenna | SMA outward rotation inner hole |
Storage memory | Flash memory: 1GB, Memory: 256MB |
Certification | CE 、FCC 、CCC |
Power consumption (current) | <12W |
Work environment | Operating temperature: -40 ~ +55℃ Storage temperature: -40 ~ +70℃ Humidity: 5 ~ 95% (no condensation) |
Feature Data
Basic Features | Work mode: Routing mode, Bridging mode Internet access method: Network connection method (Broadband Dial-up, Dynamic IP, Static IP), DNS (Automatic acquisition, Manual input), Local Area Network settings, Guest network address pool Supported number of users: Wired/Wireless: 128 WiFi protocol: IEEE802.11b/g/n/ac/ax Port protocol: NAT, DNAT, DMZ, Port forwarding | |
Operating frequency band | 2400-2483MHz、5180-5825Mhz | |
WiFi transmission Rate/Data | Transmission rate: 1800Mbps (MAX) WiFi data: 2.4G speed: 573Mbps (Max) 2.4G power: 14dB (±2dB) 5.8G speed: 1201Mbps (MAX) 5.8G power: 12dB (±2dB) | |
VPN | PPTPVPN Client、L2TPVPN Client | |
WLAN Security Consultative | WPA-PSK 、WPA2-PSK、WPAPSK/WPA2PSK、 WPA1/WPA2 | |
System Services | Firewall, port blocking, virtual server, DMZ, port triggering, serial service, advanced network settings: IPv6, relay mode, static IP, dynamic IP, IPTV, guest network, parental control | |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 | |
Equipment Management | Management | SNTP, password modification, backup/upgrade, restart/reset, log |
setup wizard | Quick Configuration Wizard | |
supervisor mode | WEB remote management, TR069 remote management (not yet available to ordinary users) | |
state | Internet connectivity status, router status, WiFi status, main network users, guest network users, IPv4/IPv6 status | |
WPS button | The WPS function button. Press it briefly to activate the PBC function. | |
Product packaging size/weight
Product weight (g) | 552g |
Product dimensions (mm) | 292*152*36.5mm |
Packaging size (cm) | 22*22*12cm |
Product packaging weight (kg) | 1kg |
Outer box dimensions (cm) | 71.3*44.3*26.8cm |
Container weight estimate (kg) | 22kg |
Optional frequency bands
4G band | CN：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 EU：FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 AU:FDD-LTE B1/3/5/7/8/20/28 TDD-LTE B38/40/41 NA：FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41 SA：FDD-LTE B2/4/5/7/8/28 TDD-LTE B40 J：FDD-LTE B1/3/8/18/19/26 TDD-LTE 41 GL：FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |
5G band (Optional accessories) | CN：5G NR NSA:N41/78/79 5G NR SA:N1/8/28/41/78/79 LTE-FDD B1/3/5/8 LTE-TDD：B34/38/39/40/41 EA：5G SA&NSA:N1/3/5/7/8/20/28/38/40/41/71/77/78/79 LTE-FDD：B1/3/5/7/8/18/19/20/28/32 LTE-TDD：B34/38/39/40/41/42 GL：5GNR SA：n1/2/3/5/7/8/12/20/25/28/38/40/41/48/66/71/77/78/79 5G NR NSA：n38/41/77/78/79 LTE-FDD： B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 LTE-TDD：B34/38/39/40/41/42/43/48 |

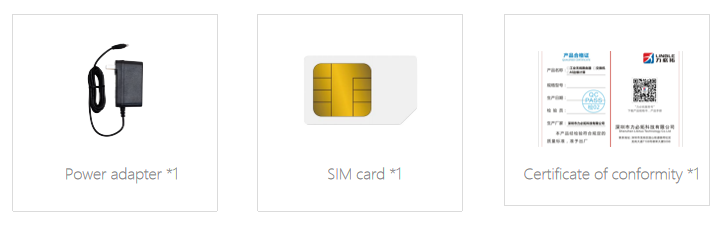

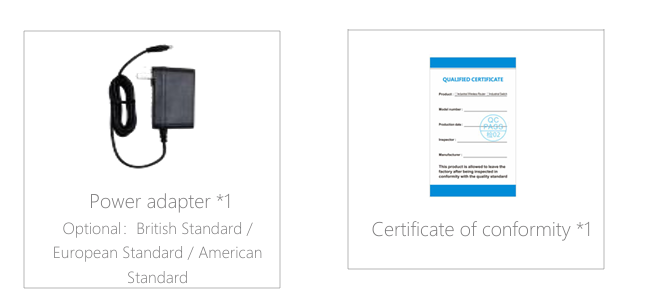

Standard accessories
Click to download document materials
