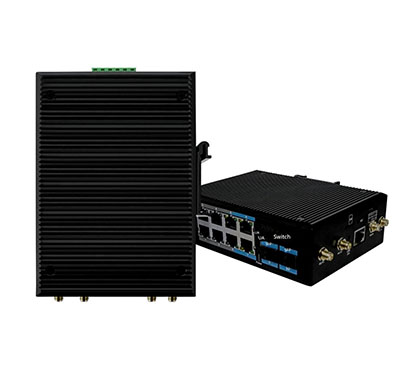

5G industrial router for remote monitoring / solar / vending .
Product Introduction:
This 4/5G industrial-grade wireless router is a performance-oriented wireless communication product developed based on 4/5G network requirements. It is mainly used for data transmission services of industry users, supporting transparent data transmission, image transmission, equipment monitoring, and wireless internet access functions.
It adopts an embedded high-performance CPU and can be paired with various 5G industrial communication modules (TDD-LTE/FDD-LTE, SA/NSA networks). It provides 10/100/1000 Ethernet ports, WiFi wireless interfaces, serial ports, and can be connected to various terminal devices.
It supports WEB configuration mode, which is convenient and simple for management and supports remote cloud control.
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: D28G-CN-5GA-W4-S1-RS485; Version D28G, China 5G domestic solution,single band WiFi4, single card, protocol RS232, no customization Note: Some versions do not allow customization of the above content. | |||||
Hardware Parameters
Product dimensions | 143.7*103*44.2mm (L×W×H) |

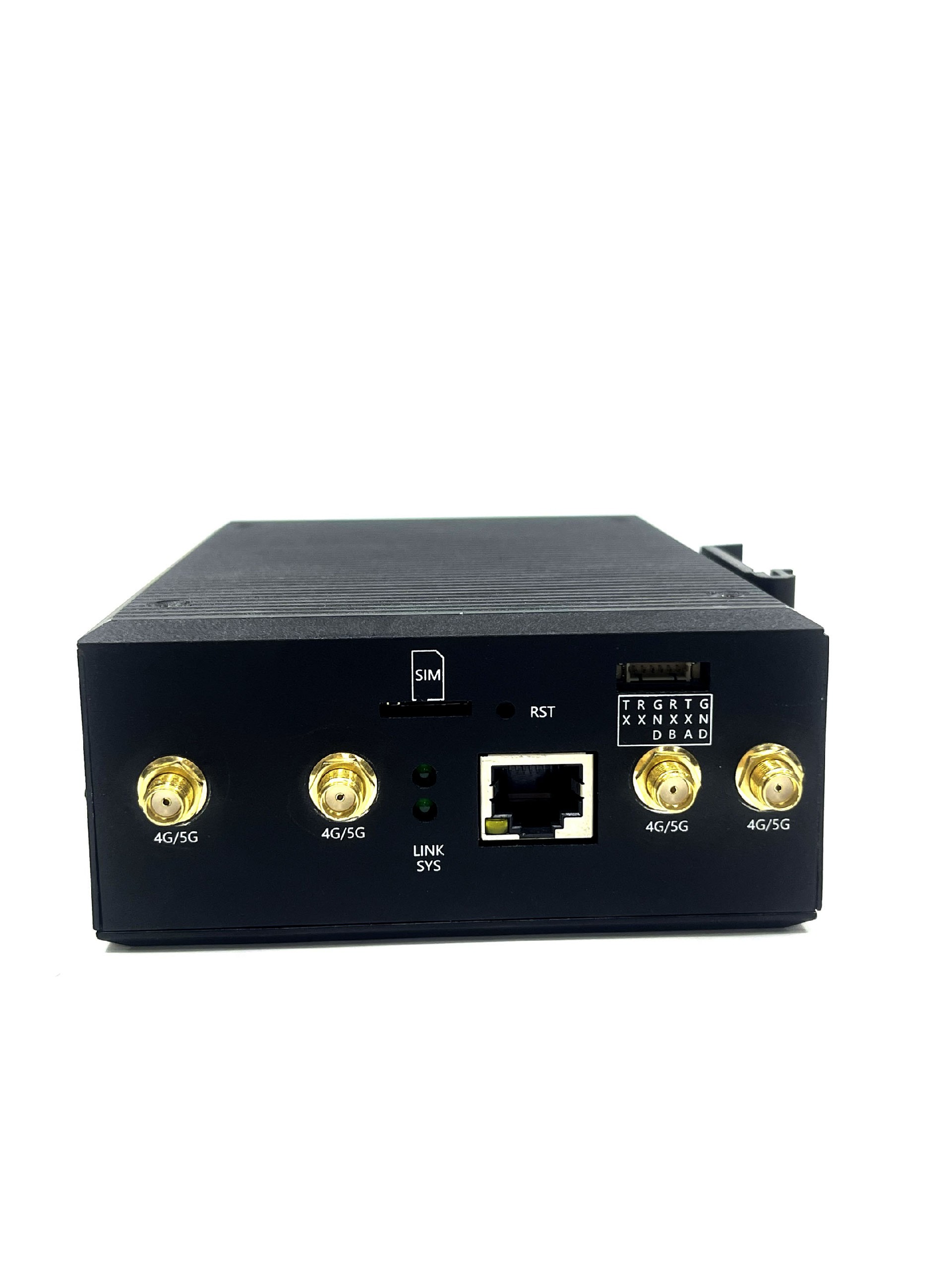

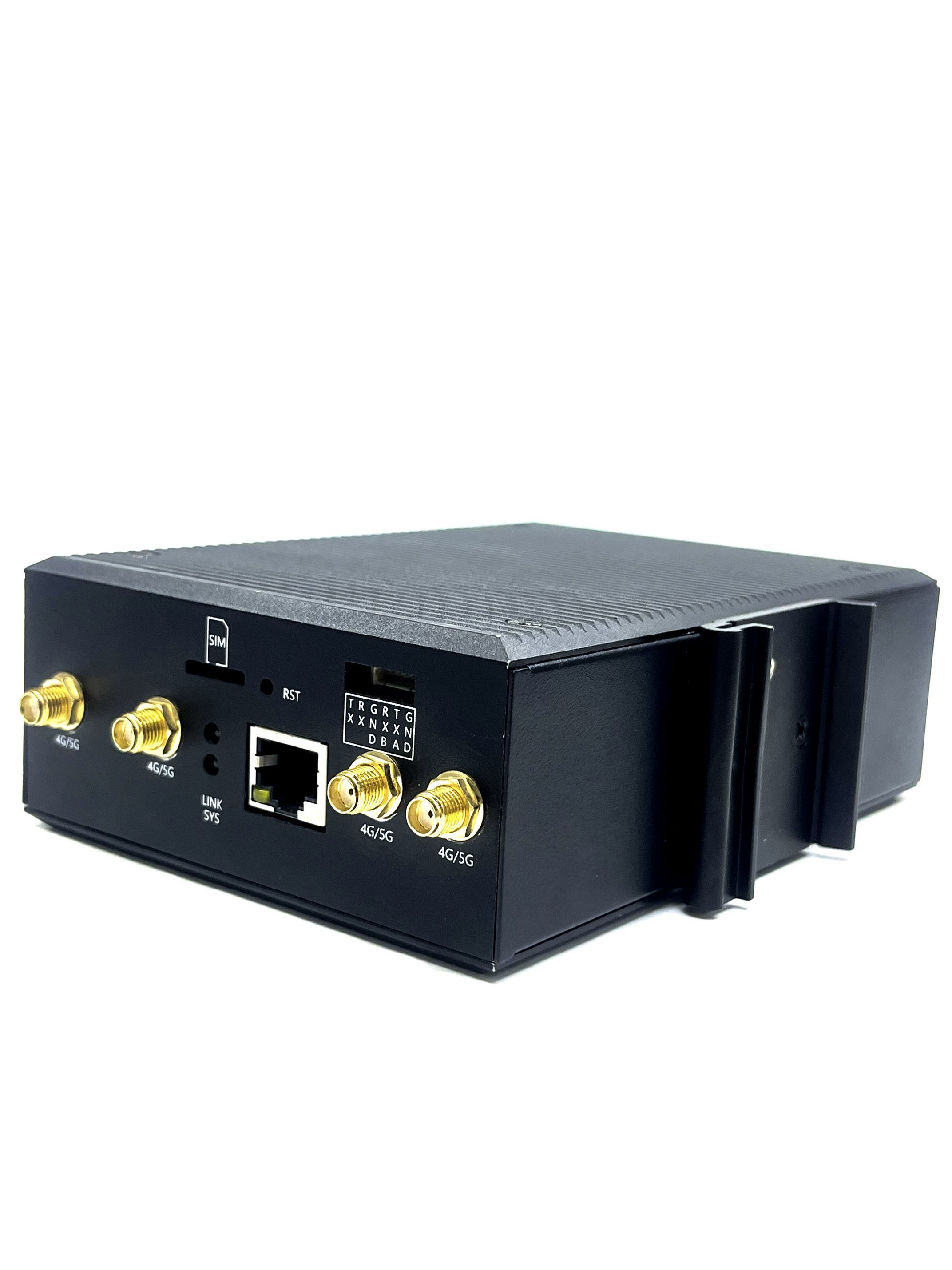

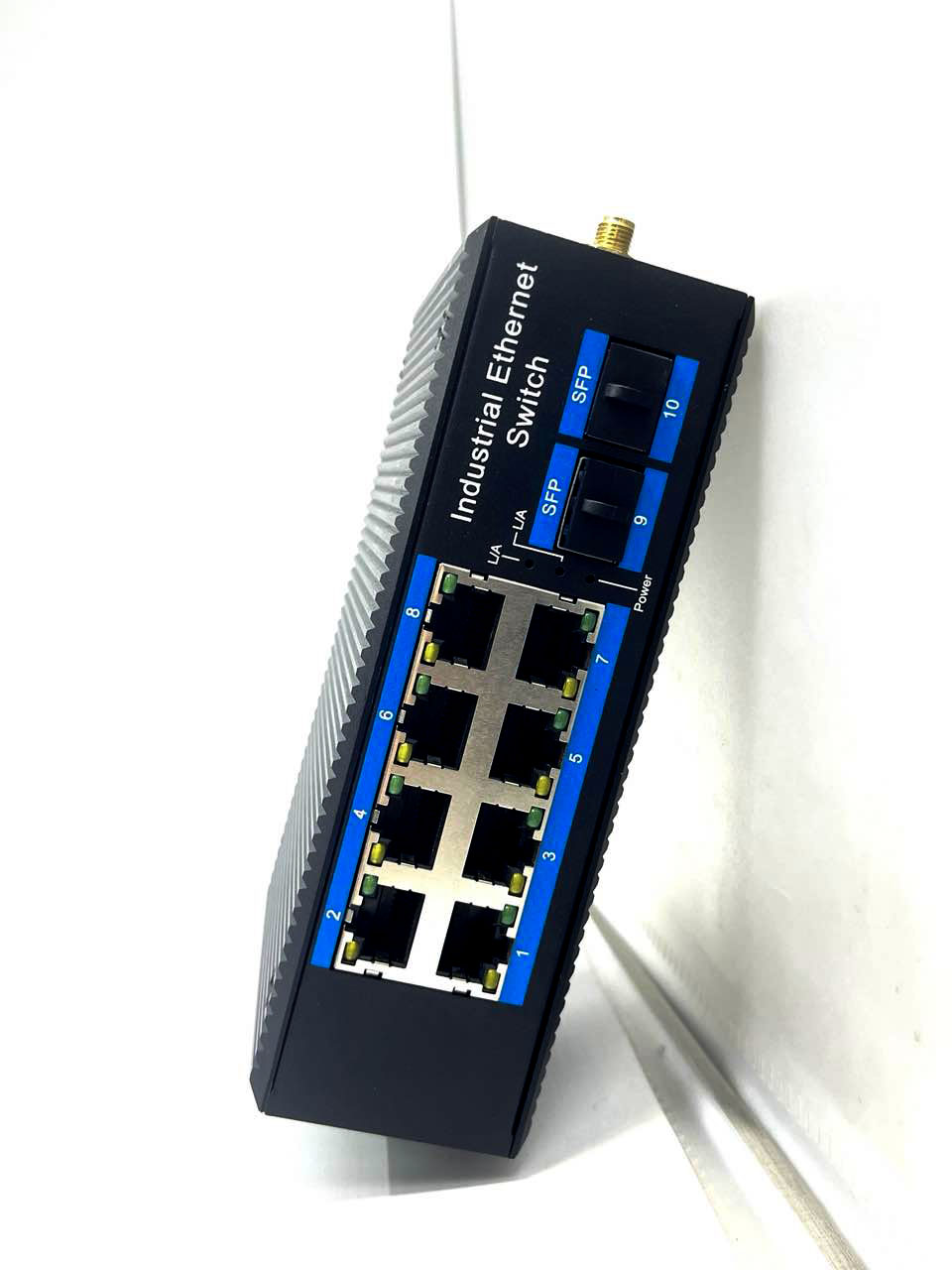

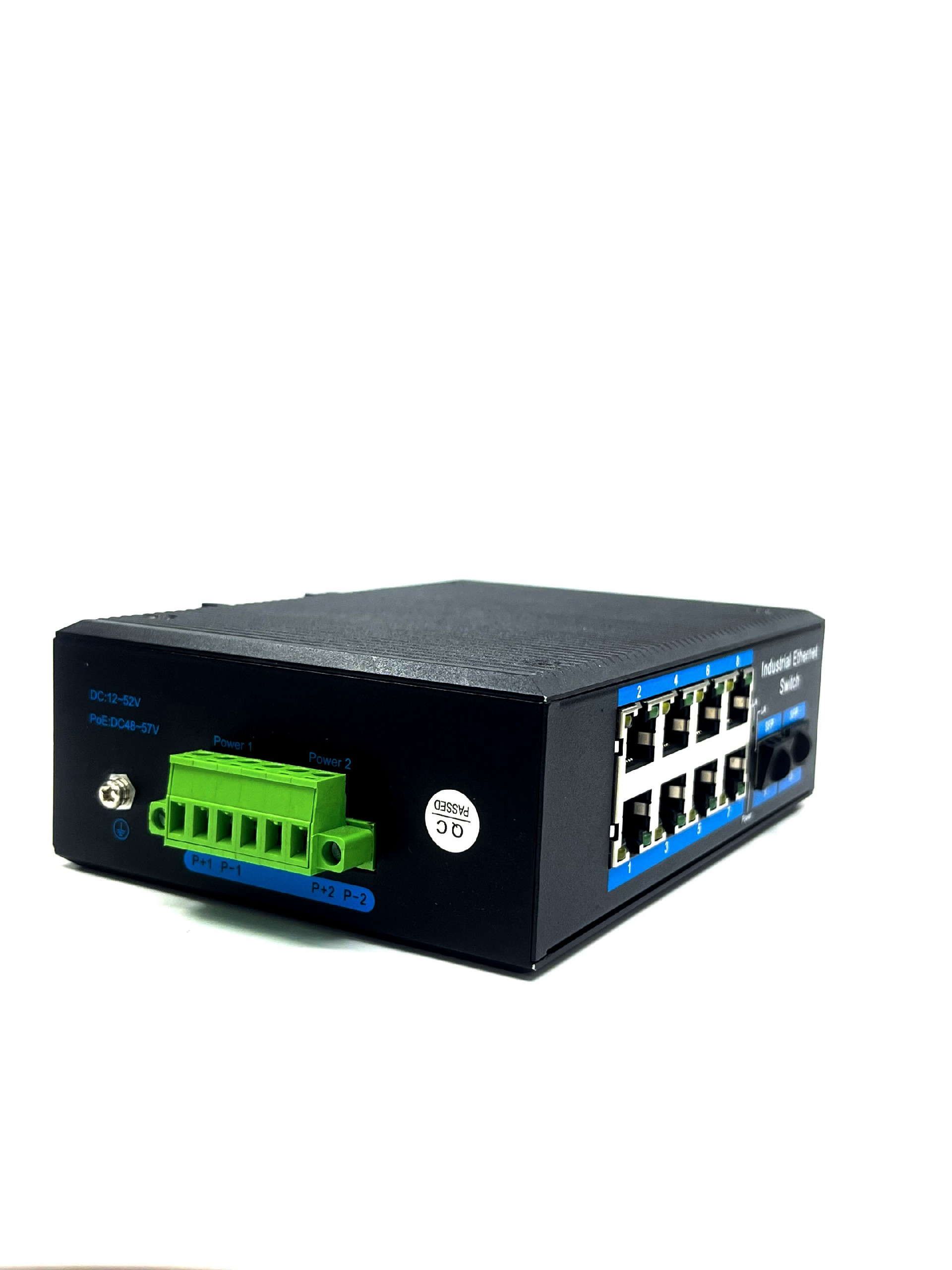

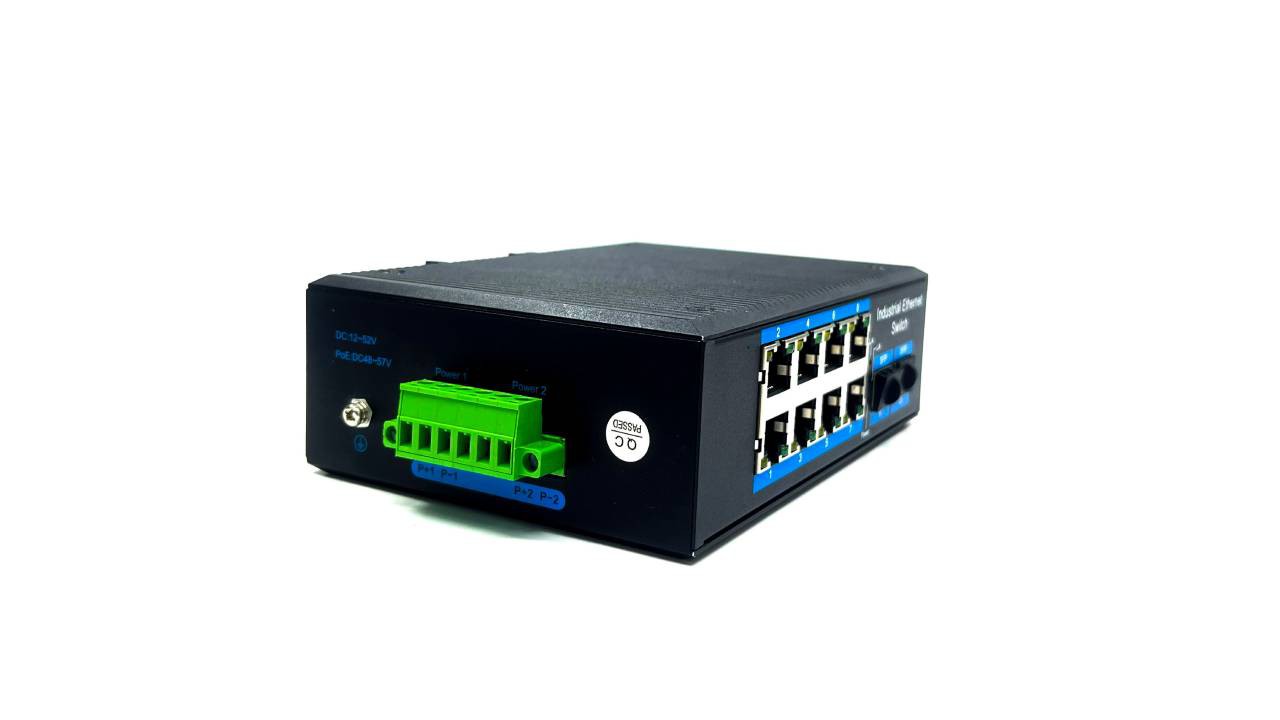

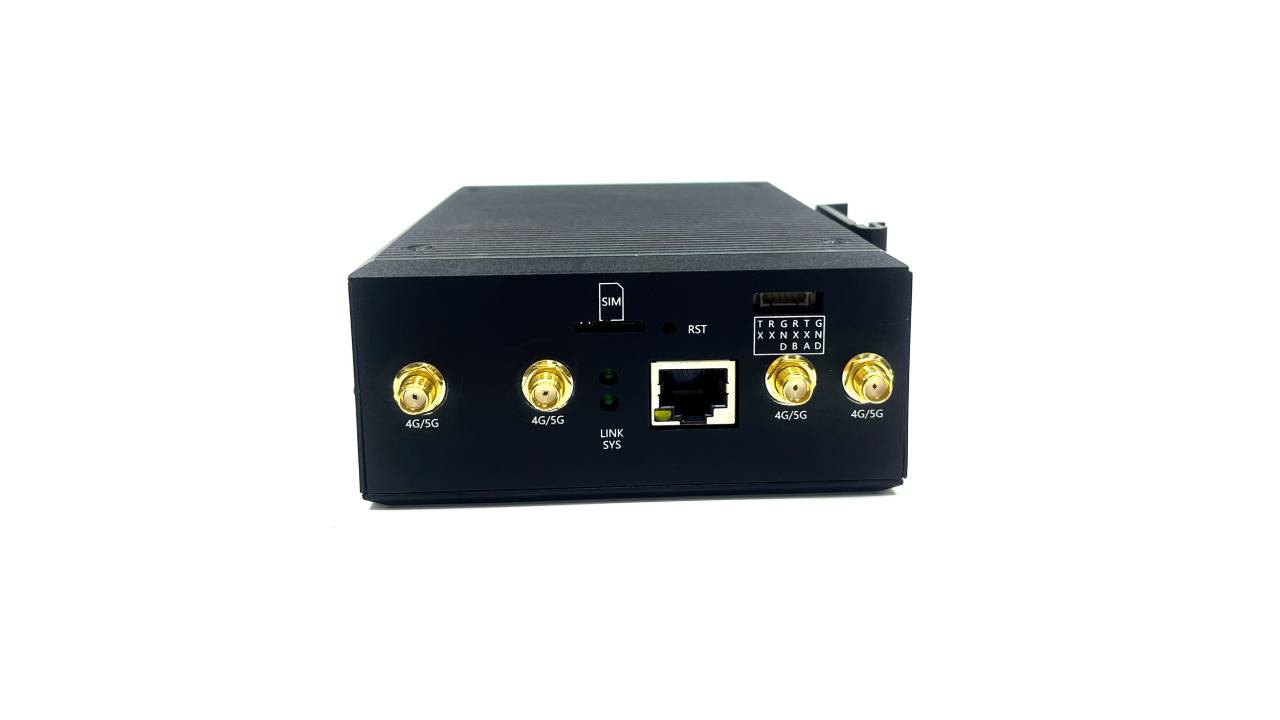

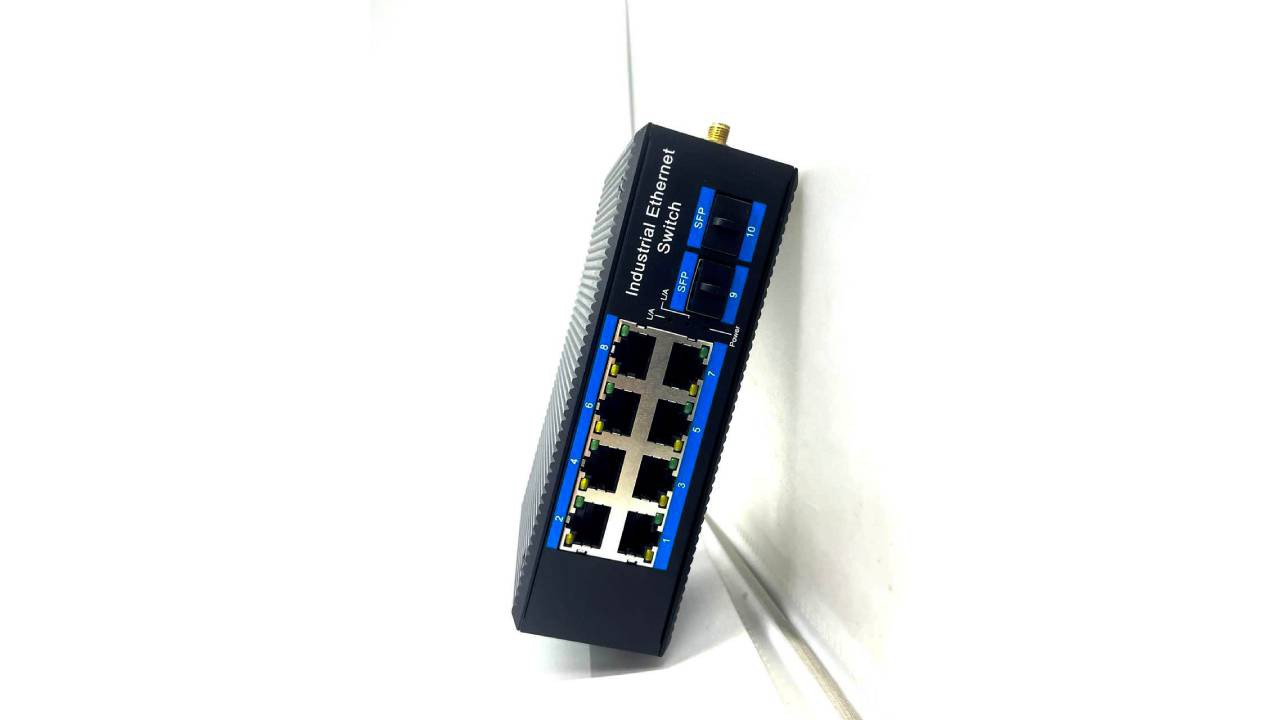

External interfaces / Protection level | RS232/485 interface: 1 (2.5mm 6PIN connector) WAN/LAN ports: 1 WAN port, 8 gigabit adaptive electrical ports, built-in lightning protection 4KV SFP: 2 * gigabit optical ports Reset button: 1 Power supply interface: 1 (6-pin 5.08 industrial DC power socket) Antenna interface: 4 SIM card slot: 1 Protection level: IP40 |
Power supply | DC power supply：12-52 |
Indicators | PWR、LINK、ACT |
Antenna | SMAantenna interface |
Certifications | CE 、FCC 、Rohs |
Storage memory | Storage: 16MB, Memory: 128MB |
Power consumption (current) | <8W |
Operating environment | Operating temperature: -40 ~ +80°C Storage temperature: -40 ~ +85°C Humidity: 5 ~ 95% (no condensation) |
Feature Data
Basic Features | 4G Internet Protocol: 4G Dial-up Internet Access, DHCP/Static IP/PPPoE Supported User Quantity: Wired: 253 VPN Protocol: PPTP Client, L2TP Client (Only the dedicated network version supports it) Network Functions: NAT, DNAT, DMZ, Port Forwarding Dynamic DNS: Supports Huaxia Shell, 88IP and dyndns domain name service providers |
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
System Services | Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 |
Product packaging size/weight
Product weight (g) | 1000g |
Product dimensions (mm) | 144*104*40mm |
Packaging size (cm) | 385*220*64mm |
Product packaging weight (kg) | 1.5kg |
Outer box dimensions (cm) | 71.3*44.3*26.8cm |
Container weight estimate (kg) | 17kg |
Optional frequency bands
4G band | CN：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 EU：FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 AU:FDD-LTE B1/3/5/7/8/20/28 TDD-LTE B38/40/41 NA：FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41 SA：FDD-LTE B2/4/5/7/8/28 TDD-LTE B40 J：FDD-LTE B1/3/8/18/19/26 TDD-LTE 41 GL：FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |
5G band (Optional) | CN：5G NR NSA:N41/78/79 5G NR SA:N1/8/28/41/78/79 LTE-FDD B1/3/5/8 LTE-TDD：B34/38/39/40/41 EA：5G SA&NSA:N1/3/5/7/8/20/28/38/40/41/71/77/78/79 LTE-FDD：B1/3/5/7/8/18/19/20/28/32 LTE-TDD：B34/38/39/40/41/42 GL5GNR SA：n1/2/3/5/7/8/12/20/25/28/38/40/41/48/66/71/77/78/79 5G NR NSA：n38/41/77/78/79 LTE-FDD： B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 LTE-TDD：B34/38/39/40/41/42/43/48 |

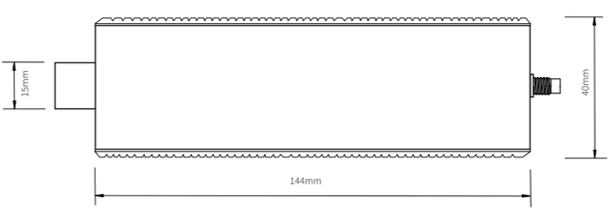

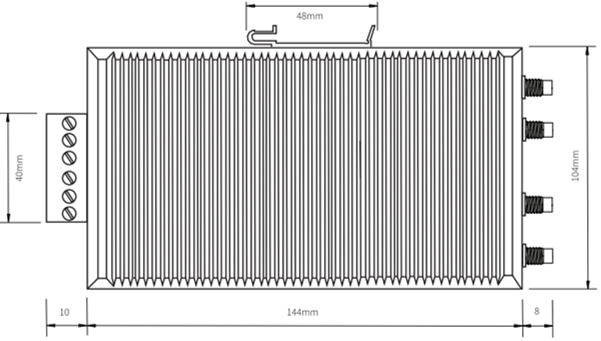

Housing positioning holes

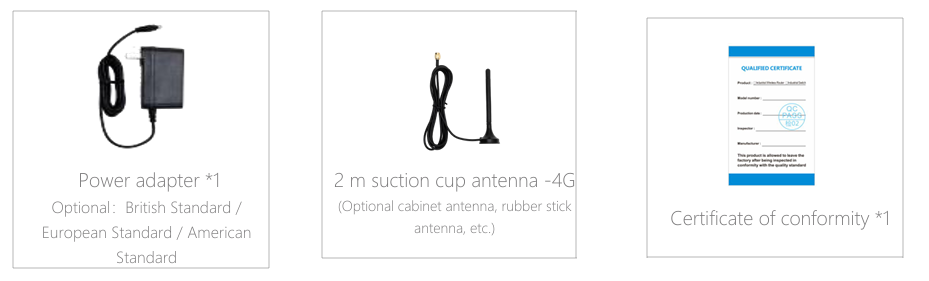

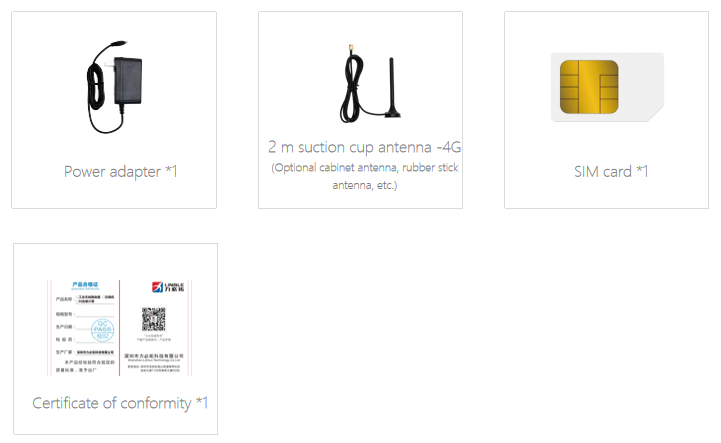

Standard accessories
