Product overview

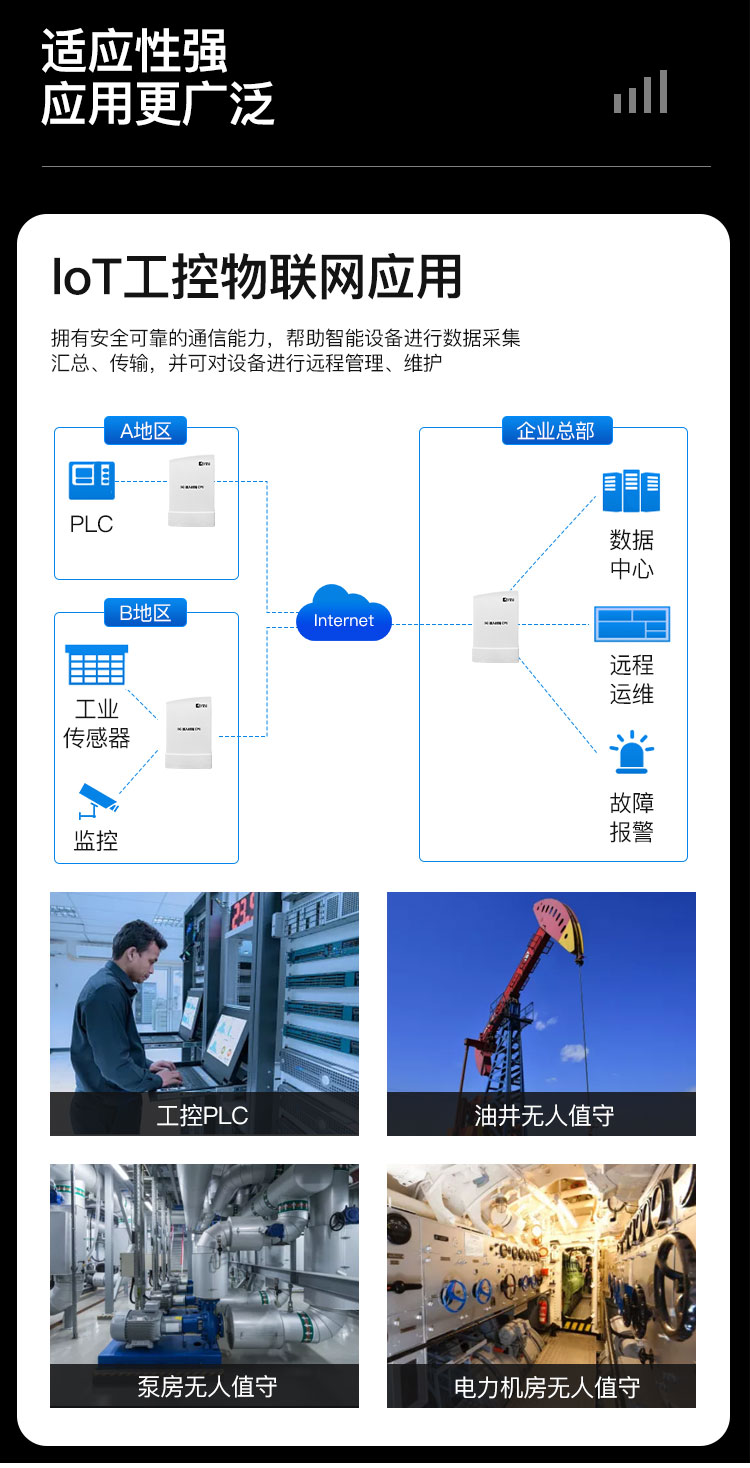

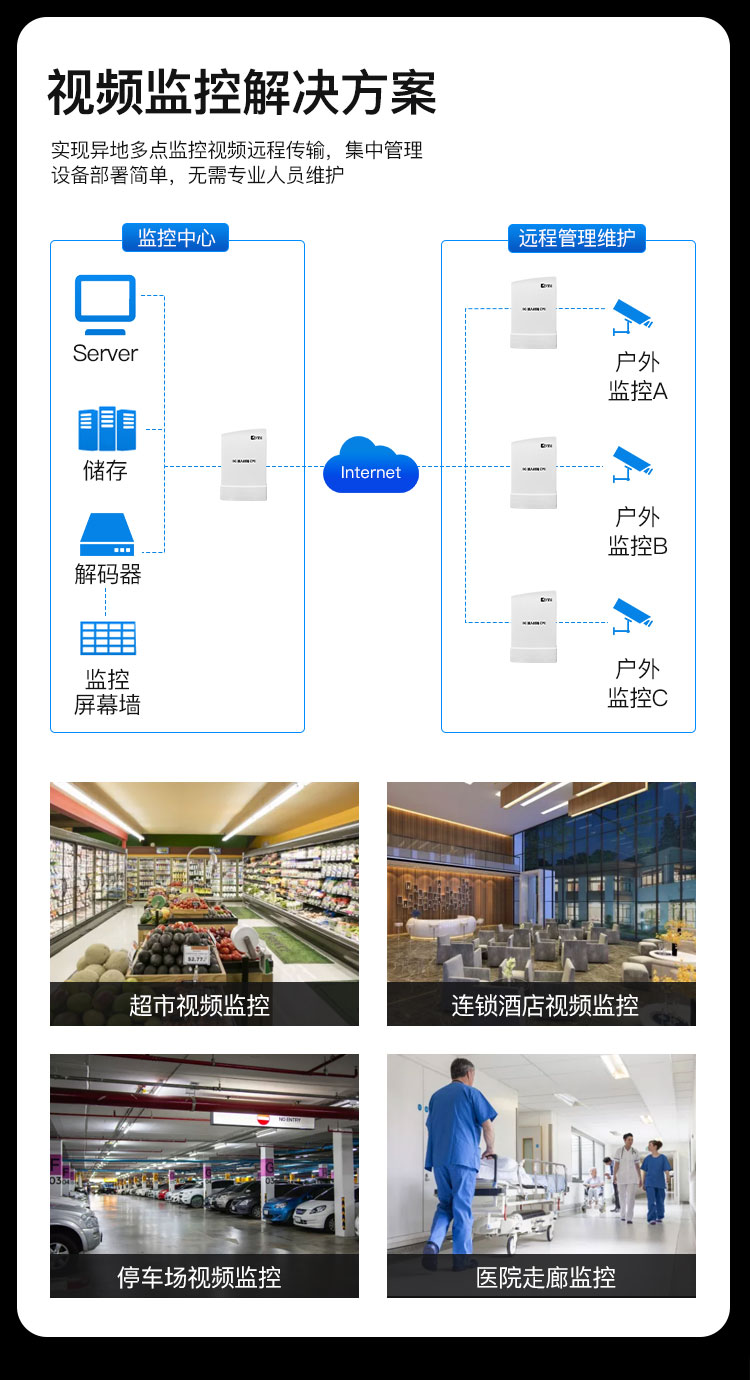

HW1 Industrial-grade Wireless Router is an outstanding wireless communication product developed by Shenzhen Lifituo Technology Co., Ltd. based on the requirements of 4G/5G networks. It is mainly used for data transmission services for industry users, supporting transparent data transmission, image transmission, equipment monitoring, and wireless internet access functions.
HW1 uses an embedded high-performance CPU that can effortlessly handle advanced applications such as routing and security. It can be paired with various 4G/5G industrial communication modules (TDD-LTE/FDD-LTE networks, 5G-SA/NSA). It provides 10/100M/1000M Ethernet ports, WIFI wireless interfaces, and serial ports. It can be connected to various terminal devices.
It supports WEB configuration mode, which is convenient and simple for management and supports remote cloud control.
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: HW1-CN-5GA-W5-S1-RS485; Version HW1, China 5G domestic solution, single band WiFi5, single card, protocol RS485, no customization Note: Some versions do not allow customization of the above content. | |||||
Hardware Parameters
Product size | 180*180*45mm (Length×Width×Height) |
Power supply | POE power supply: 48V/0.5A, DC power supply: 7-35V/1A |
GPS | Customizable GNSS positioning module, supporting RTK technology, and capable of using a variety of satellite systems (GPS, GLONASS, Beidou, WAAS, EGNOS, MSAS, GAGAN) as a mixed engine. |

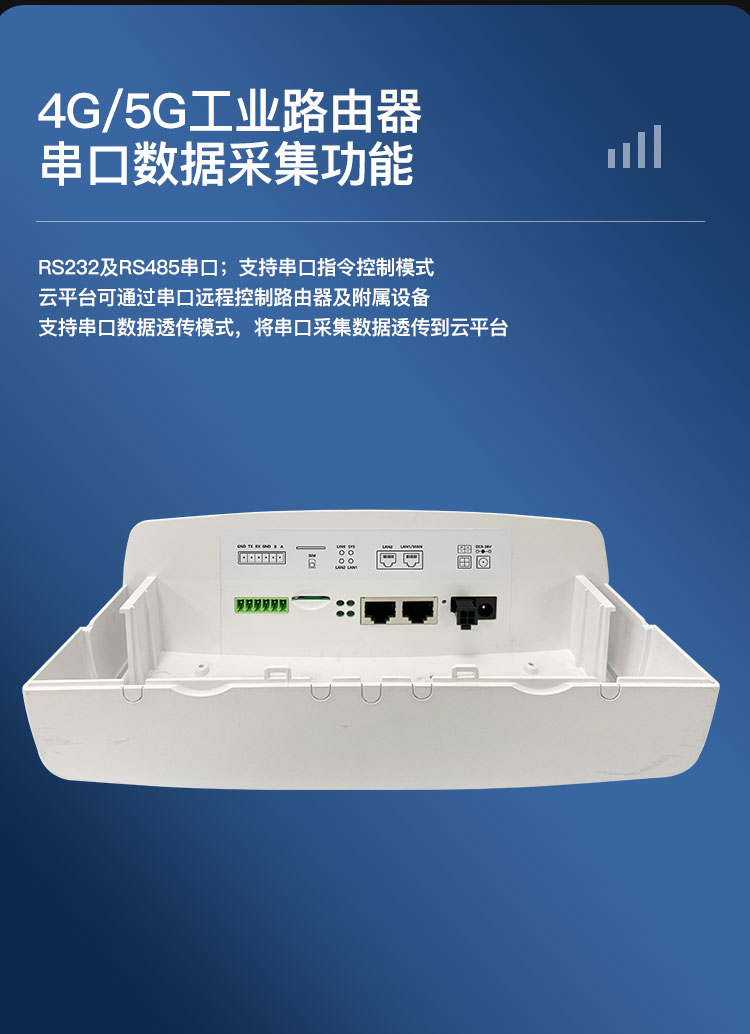

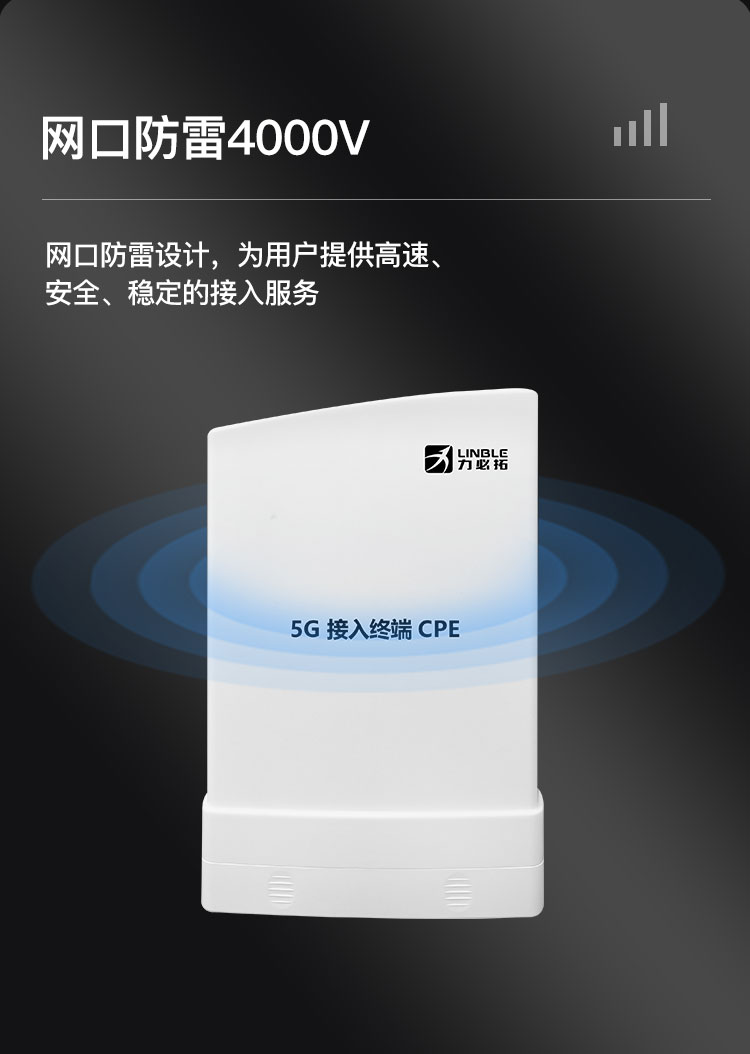

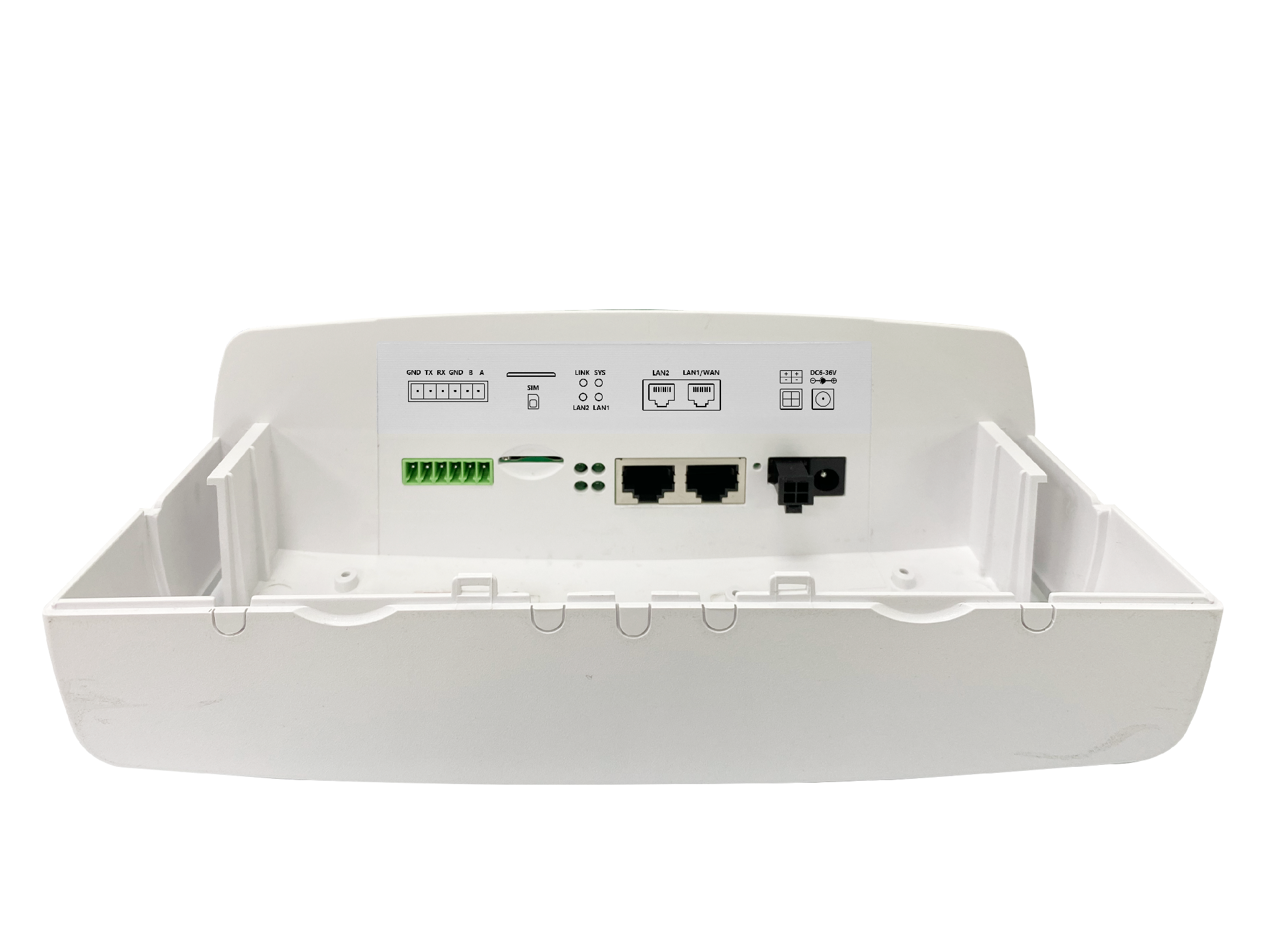

External interface Protection grade | Reset key: 1 Indicator lights: 6 Antenna interface: 4-5 (optional) RS232/485 interface: 1 (3.5mm 6PIN connector) USB2.0: for connecting USB cameras without drivers, sharing files Ports: 1(1 LAN ~ 1 POE), 3KV lightning protection (optional), POE input (optional) Protection level: IP66 |
Antenna | N-headed female connector |
Storage memory | Storage :16MB, memory: 128MB |
Authentication | CE, FCC, CCC |
Power consumption (current) | 5G: less than 800mA |
Operating temperature Humidity | Operating temperature: -20 to +70 ° C Storage temperature: -40 to +80 ° C Humidity: 5 to 95% (non-condensing) |
Feature Data
Basic Features | Internet Protocol: 4G /5G dial-up DHCP/Static /PPPoE dial-up /WiFi relay Number of supported users: Wired: 253, wireless:60 WiFi Protocol: IEEE802.11b/g/n Network functions: NAT, DNAT, DMZ, port forwarding Port protocols: MODBUS, MODBUS slave, MQTT gateway | |
VPN | OpenVPN Client、 IPSecVPN Client、PPTP VPN Client、L2TP VPN Client | |
Operating frequency band | 2412-2472MHz、5180-5825Mhz | |

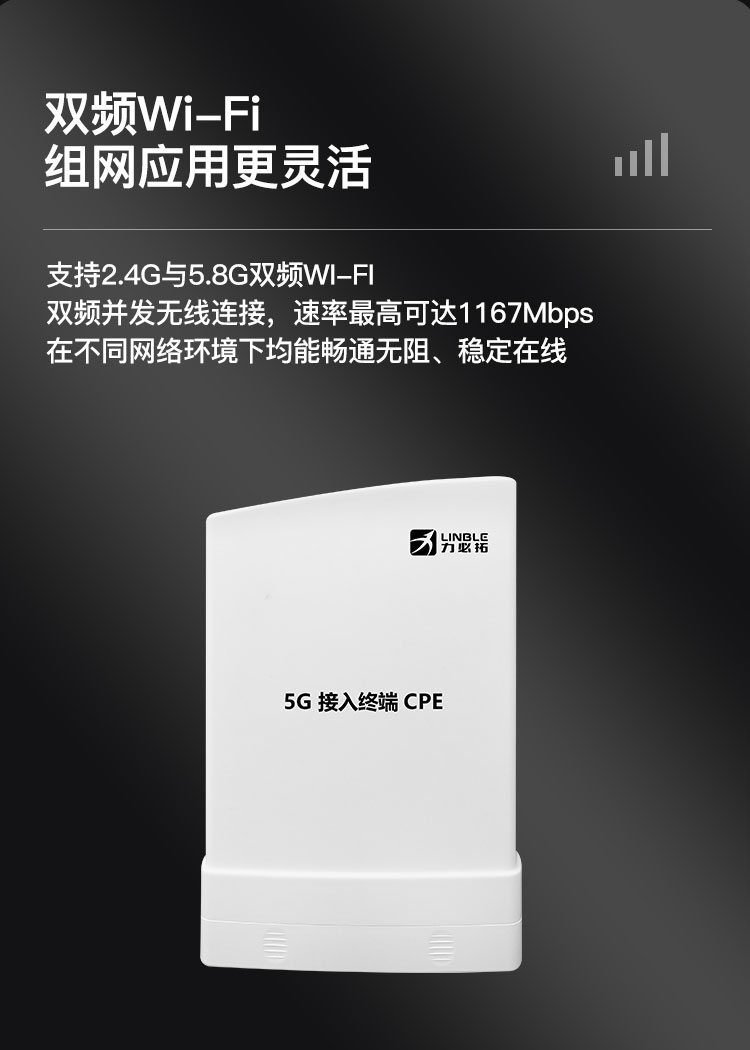

WiFi transmission Rate/Data | Transmission Rate: 1800 Mbps (MAX) Wi-Fi Data: 2.4G Speed: 573 Mbps (Max) 2.4G Power: 21 dB (-2 dBm+) 5.8G Speed: 1201 Mbps (Max) 5.8G Power: 21 dB (-2 dBm+) | |
Firmware customization | Operating System: Linux operating system based on OpenWrt Supported languages: BusyBOS sheel,Lua,C,C++ Development tools: Provide SDK packages with built-in environments and contact us for custom development based on requirements documentation | |
WLAN Security Consultative | OpenSystem, WPA-PSK, WPA2-PSK, WPAPSK/WPA2 PSK, WPA1 / WPA2 | |
System Services | Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management | |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 | |
Device Management | WEB UI | HTTP/HTTPS, status, configuration, local firmware updates, troubleshooting, Syslog |
FOTA upgrades | Cloud platform server update | |
SSH/TELNET | SSH(v1,v2), telnet | |
TR-069 | OpenACS, EasyCwm p, ACSLite, tGem, Libre ACS, Genie ACs, Free ACS, LibCWMP, Friendly tech(customizable) | |
SNMP Network Management | SNMP(v1, v2, v3)(customizable) | |
Remote Interface Protocol | API management based on HTTP/HTTPS (customizable) | |
MODBUS | MODBUS TCP Status/Control (customizable) | |
Product packaging size/weight
Product weight (g) | 830g |
Product dimensions (mm) | 180*180*45mm |
Packaging size (cm) | 385*220*64cm |
Product packaging weight (kg) | 1kg |
Outer box dimensions (cm) | 71.3*44.3*26.8cm |
Container weight estimate (kg) | 22kg |
Optional frequency bands
4G band | CN：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 EU：FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 AU:FDD-LTE B1/3/5/7/8/20/28 TDD-LTE B38/40/41 NA：FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41 SA：FDD-LTE B2/4/5/7/8/28 TDD-LTE B40 J：FDD-LTE B1/3/8/18/19/26 TDD-LTE 41 GL：FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |
5G band (Optional) | CN：5G NR NSA:N41/78/79 5G NR SA:N1/8/28/41/78/79 LTE-FDD B1/3/5/8 LTE-TDD：B34/38/39/40/41 EA：5G SA&NSA:N1/3/5/7/8/20/28/38/40/41/71/77/78/79 LTE-FDD：B1/3/5/7/8/18/19/20/28/32 LTE-TDD：B34/38/39/40/41/42 GL5GNR SA：n1/2/3/5/7/8/12/20/25/28/38/40/41/48/66/71/77/78/79 5G NR NSA：n38/41/77/78/79 LTE-FDD： B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 LTE-TDD：B34/38/39/40/41/42/43/48 |

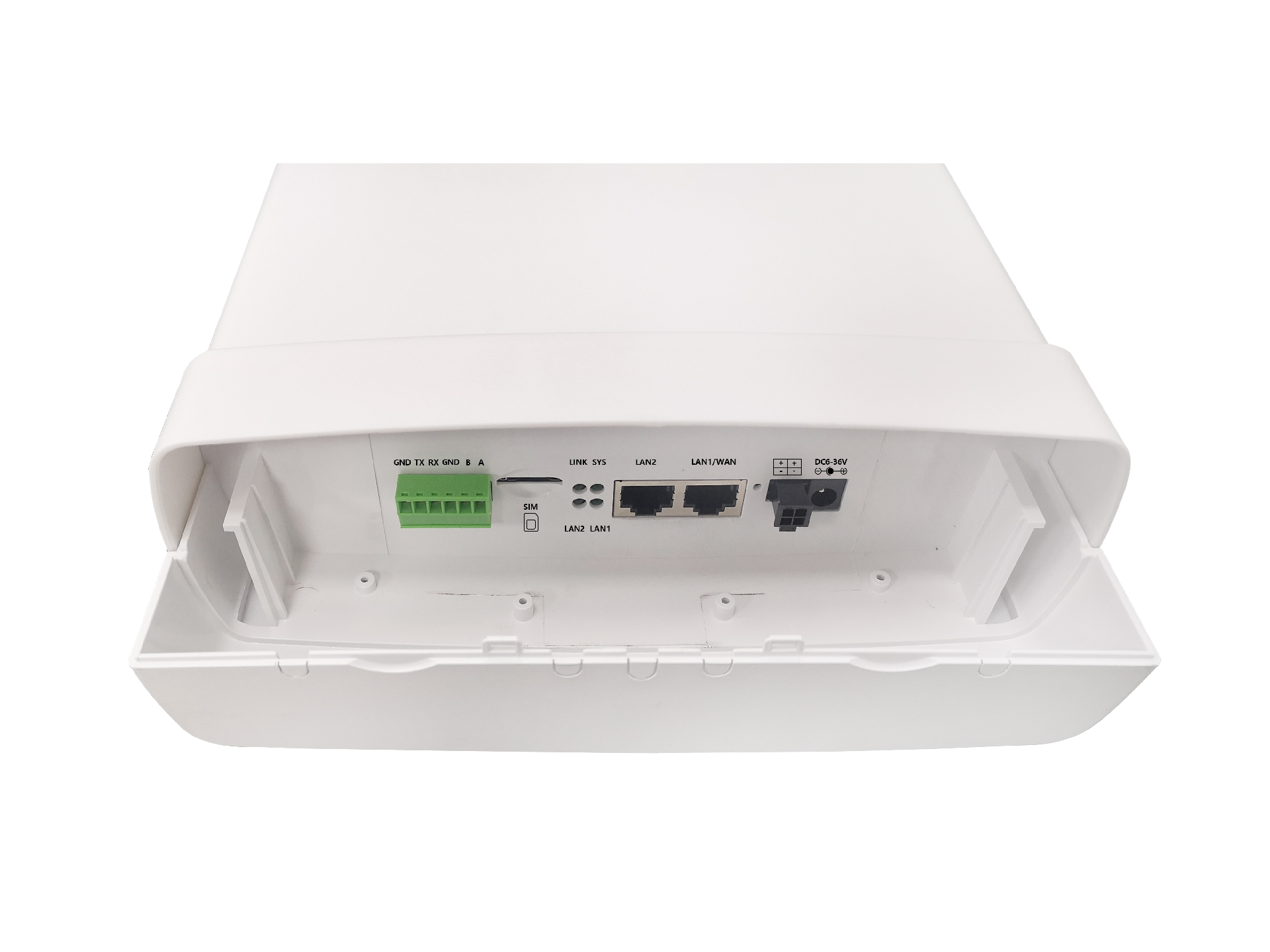

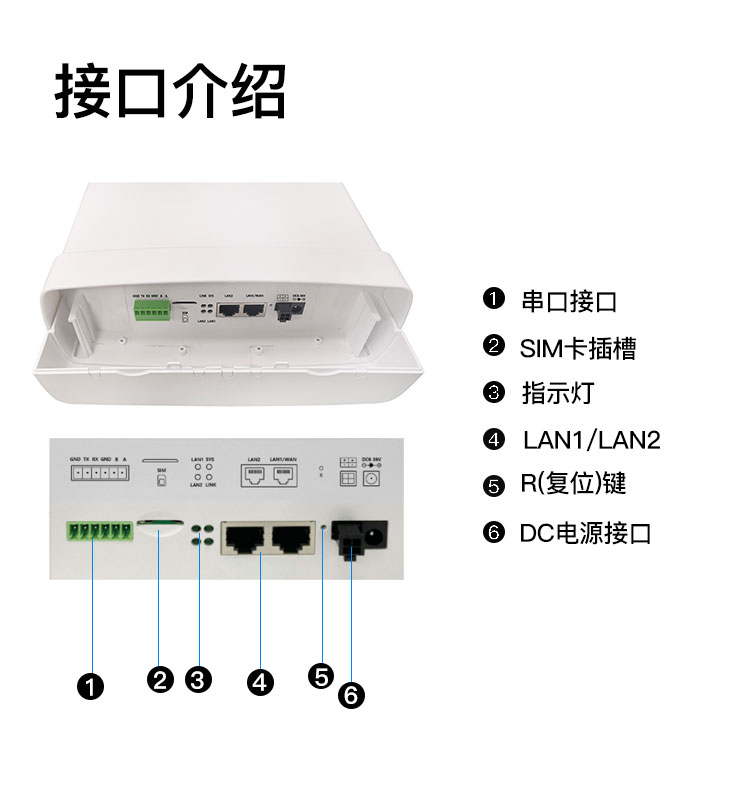

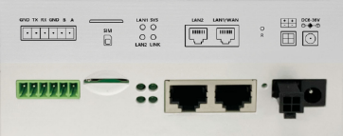

Interface

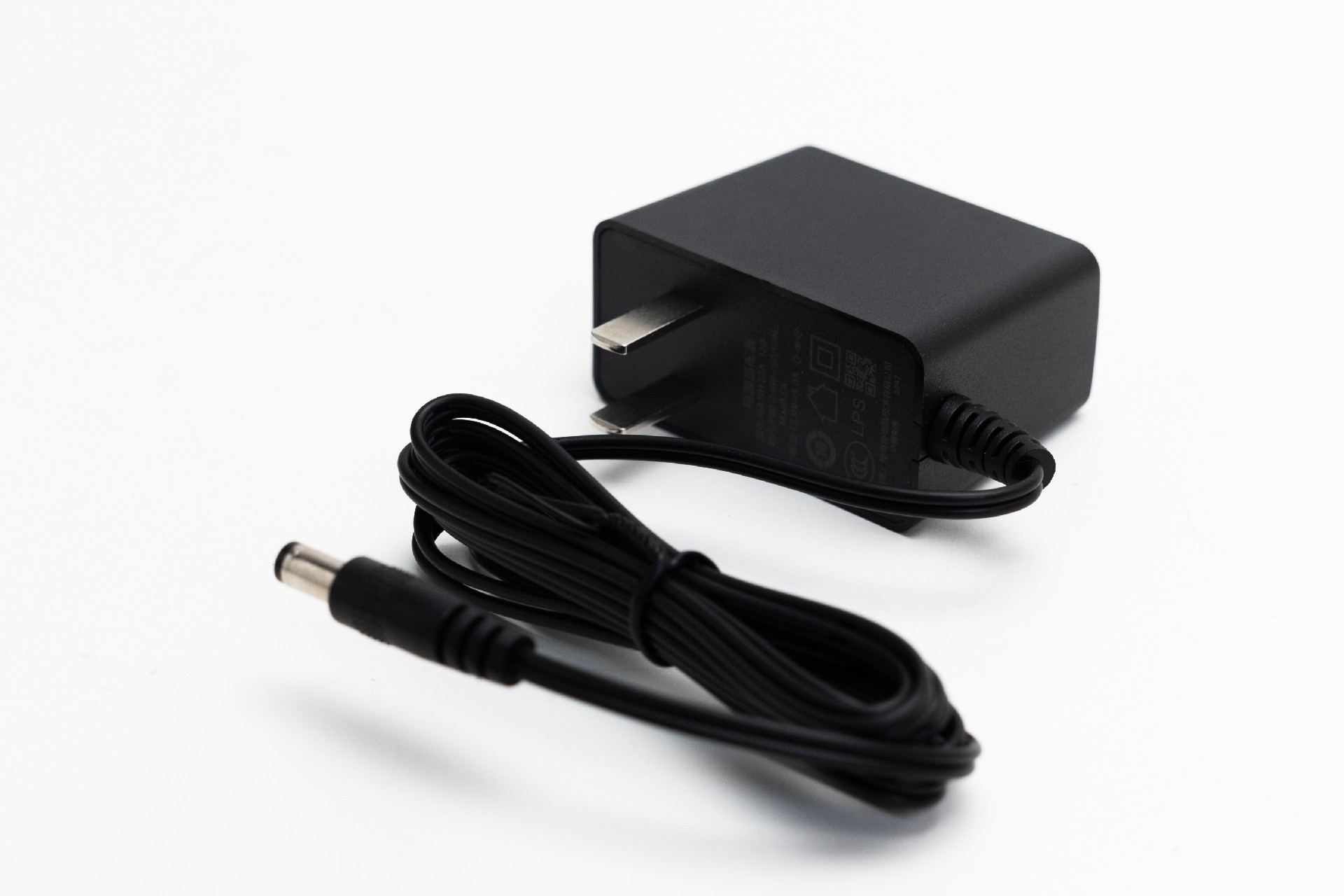

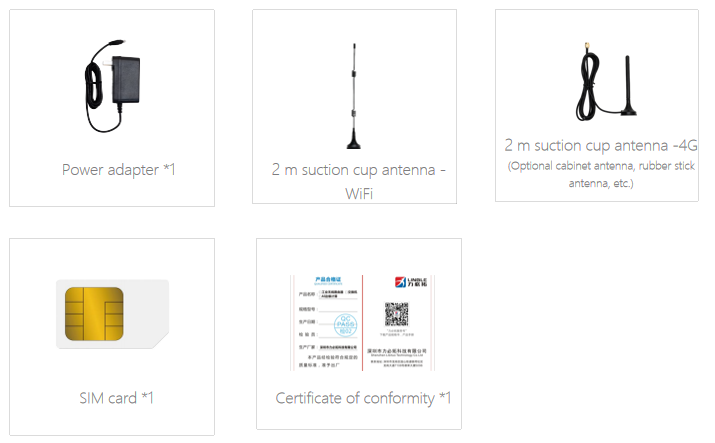

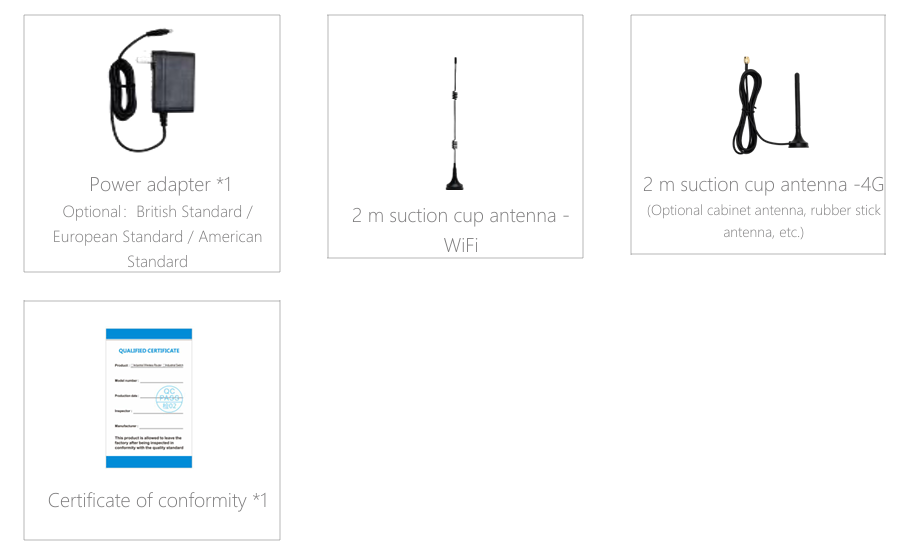

Standard accessories
