5G industrial router for remote monitoring / solar / vending
Product overview
The T300-mini2 industrial CPE router supports multiple Internet ACC (Ethernet/WIFI client/4G/5G) mode, multiple local data access (WIFI2.4G/Ethernet/RS232/RS485) full-stack intelligent protocol Internet of Things gateway equipment. The device is loaded with Wan communication, VPN tunnel, WIFI LAN, RS232/485 transparent transmission and other functions to realize seamless connection of wireless LAN, Ethernet, intelligent hardware and wireless Wan, providing users with high-speed, safe and reliable access services. 5G industrial router can also be used as vehicle-mounted special equipment. The equipment adopts metal shell, provides vehicle-mounted fixing piece, and is designed with IP30 protection grade.
Support WEB configuration mode, convenient and simple management, and support remote cloud control.
Product characte
1. Adopt metal shell with protection grade of IP30;
2. Support (WCDMA/CDMA/TD-SCDMA), 4G (FDD-LTE/TDD-LTE), 5G (SA/NSA);
3, UIM/SIM card ESD protection: 1.8V/3V standard push-type user card interface, built-in 15KV ESD protection; Serial port ESD protection: RS232 built-in 15 KV ESD protection, IEC61000-4-2 (Contact) ± 30KV, IEC61000-2-4 (Air) ± 30KV;
4. Standard RJ45 (Ethernet) interface built-in lightning protection 3000V (non-standardized configuration);
5. Industrial wireless dual-frequency high-power CPE: industrial wireless module is adopted, with strong anti-interference and stable transmission;
6. Software and hardware watchdog anti-crash design, after the router is disconnected, it will automatically power off and restart. Ensure stable and reliable operation of the equipment;
7, automatic detection of network disconnection, automatic restart of dialing failure, timing restart and other functions;
8. Serial port transparent transmission function. The command control mode can be entered through the serial port to control the router and ancillary equipment;
9. Support multiple DDNS dynamic domain name services;
10. Port mapping, DMZ host and other functions;
11. Support VPN (PPTP Client, L2TP Client);
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: MINI2-CN-5GA-W4-S1-RS485&232; Version MINI2, China 5G domestic solution, single band WiFi4, single card, protocol RS485&232, no customization Note: Some versions do not allow customization of the above content. | |||||
Hardware Parameters
Product size | 123*84.2*30mm(L×W×H) |
Power supply | Direct Current Power Supply：6-36V/3A |
GPS | Customizable GNSS positioning module, supporting RTK technology, and featuring a hybrid engine compatible with multiple satellite systems (GPS, GLONASS, Beidou, WAAS, EGNOS, MSAS, GAGAN). |

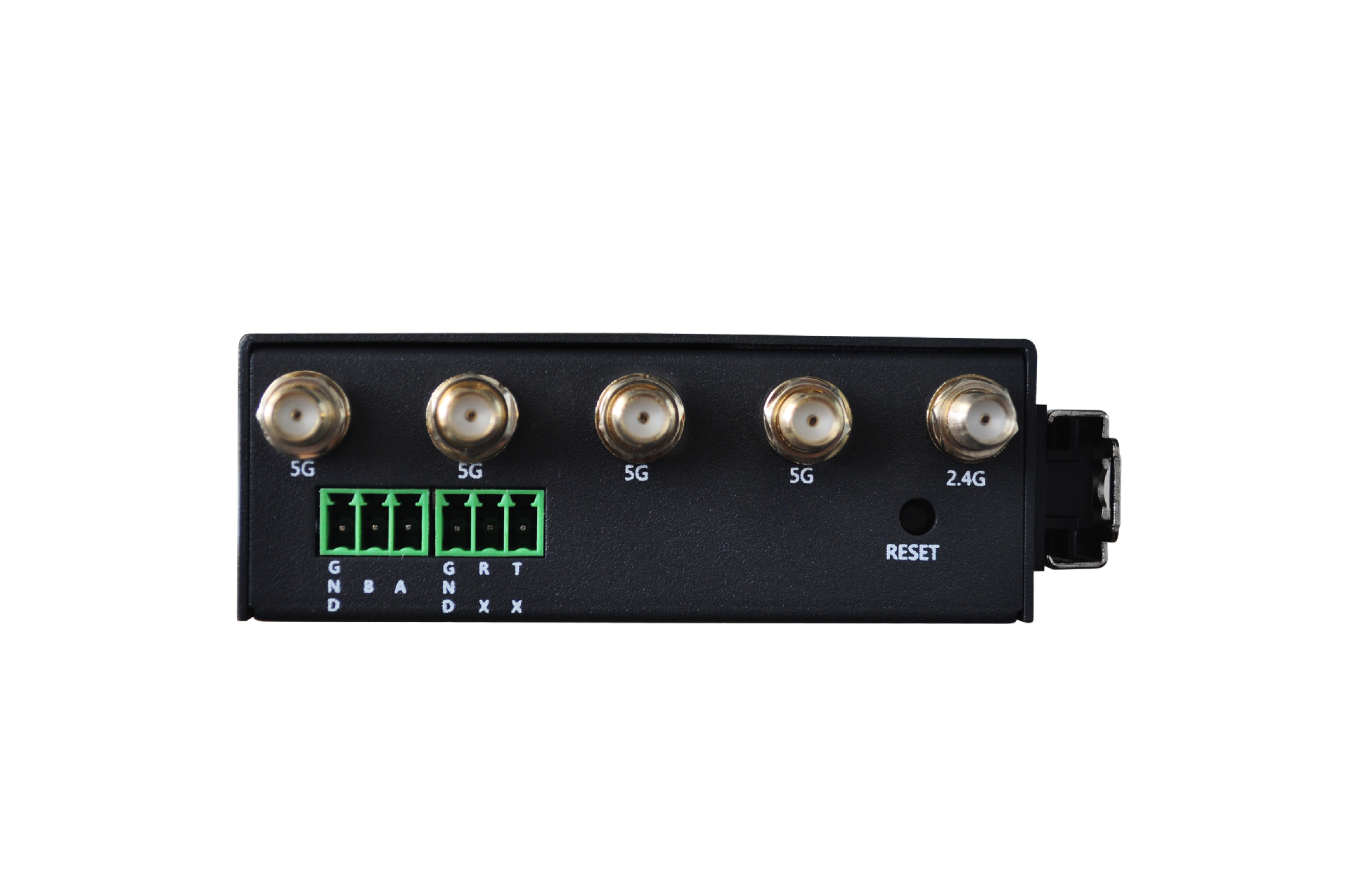

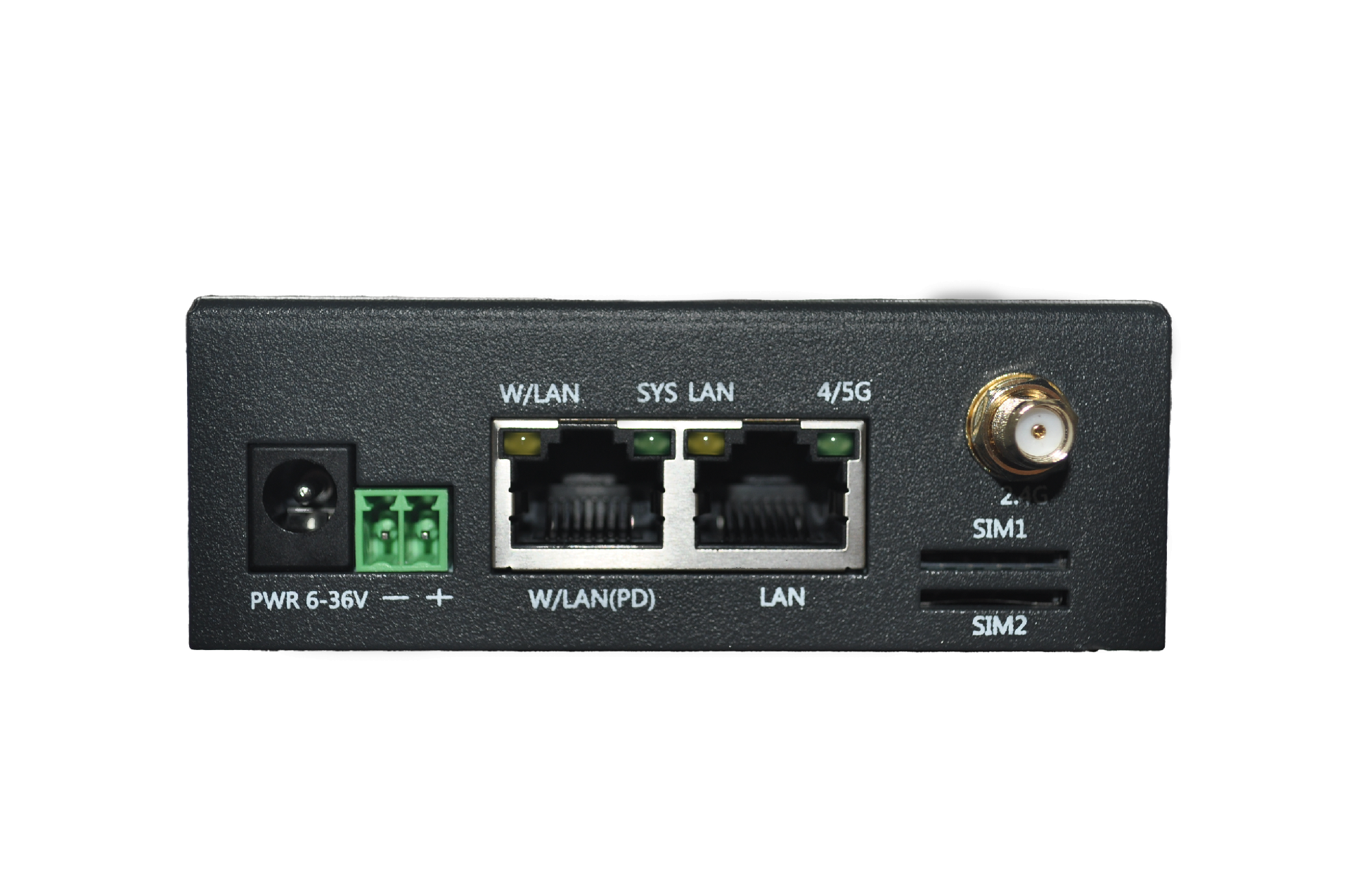

External interface Protection grade | Reset button: 1 Indicator lights: 4 Antenna interface: 6 (optional) SIM card slot: 1 DC power supply interface/terminal power supply (2PIN female edge 3.5): 1 (2.1mm round power interface), reverse protection, voltage input of 12V, recommended input power greater than 10W RS232 & 485 interface: 1 (2.0mm 6PIN connector) LAN port: 2 (LAN1 is WAN/LAN adaptive) Protection level: IP30 |
Indicator light | LINK 、SYS 、WAN/LAN0~LAN4 |
Antenna | SMA external rotating inner hole |
Storage memory | Storage :8MB, memory: 64MB |
Power consumption | 5G: less than 800mA |
Authentication | CE, FCC, CCC |
Operating temperature Humidity | Operating temperature: -20 to +70 ° C Storage temperature: -40 to +80 ° C Humidity: 5 to 95% (non-condensing) |
Feature Data
Basic Features | 4G Internet Protocol: 4G Dial-up Internet via DHCP/Static IP/PPPoE Supported User Count: Wired: 253, Wireless: 30 VPN Protocols: PPTP Client, L2TP Client (supported only in dedicated network version) Wi-Fi Protocols: IEEE 802.11b/g/n Network Features: NAT, DNAT, DMZ, Port Forwarding |
Operating frequency band | 2412-2472MHz |
WiFi transmission Rate/Data | Transfer rate: 300Mbps(MAX) (theoretical maximum) WiFi data: 802.11n:-66dBm at 300 Mbps HT40MCS7:+14dBm(±2dB) 802.11b:-86dBm at 11Mbps/CCK:+14dBm(±2dB) 802. 11g:-73dBm at 54Mbps/OFDM:+14dBm(±2dB) |
WLAN Security Consultative | OpenSystem, WPA-PSK, WPA2-PSK, WPAPSK/WPA2 PSK, WPA1 / WPA2 |
System Services | Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 |
Product packaging size/weight
Product weight (g) | 1000g |
Product dimensions (mm) | 97*78.2*25.5mm |
Packaging size (cm) | 35*18*7cm |
Product packaging weight (kg) | 1kg |
Outer box dimensions (cm) | 71.3*44.3*26.8cm |
Container weight estimate (kg) | 22kg |
Optional frequency bands
4G band | CN：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 EU：FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 NA：FDD-LTE B2/3/4/5/7/8/12/ 13/17/25/26/66 TDD-LTE B41 SA：FDD-LTE B2/4/5/7/8/28 TDD-LTE B40 J：FDD-LTE B1/3/8/18/19/26 TDD-LTE 41 GL：FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |
5G band (Optional) | CN：5G NR NSA:N41/78/79 5G NR SA:N1/8/28/41/78/79 LTE-FDD B1/3/5/8 LTE-TDD：B34/38/39/40/41 EA：5G SA&NSA:N1/N3/5/7/8/20/28/38/40/41/71/77/78/79 LTE-FDD：B1/3/5/7/8/18/19/20/28/32 LTE-TDD：B34/38/39/40/41/42 GL：5GNR SA：n1/2/3/5/7/8/12/20/25/28/38/40/41/48/66/71/77/78/79 5G NR NSA：n38/41/77/78/79 LTE-FDD：B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 LTE-TDD：B34/38/39/40/41/42/43/48 |

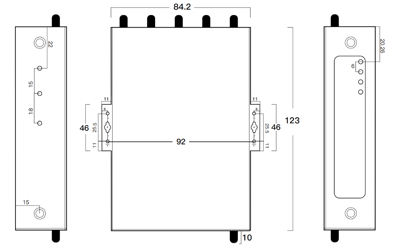

Housing positioning holes

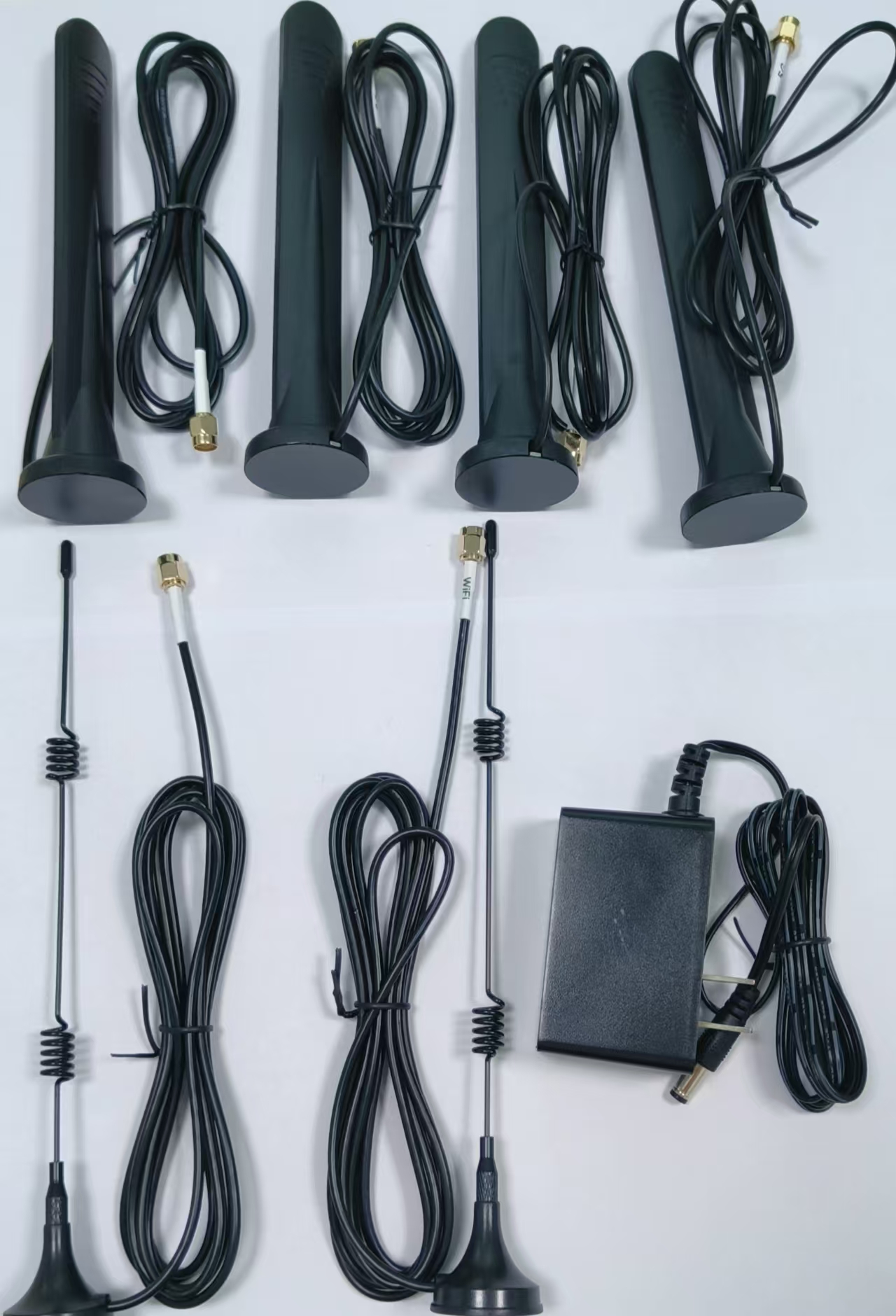

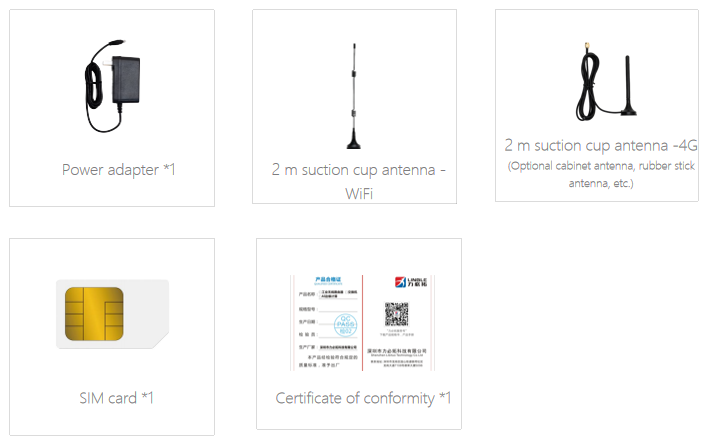

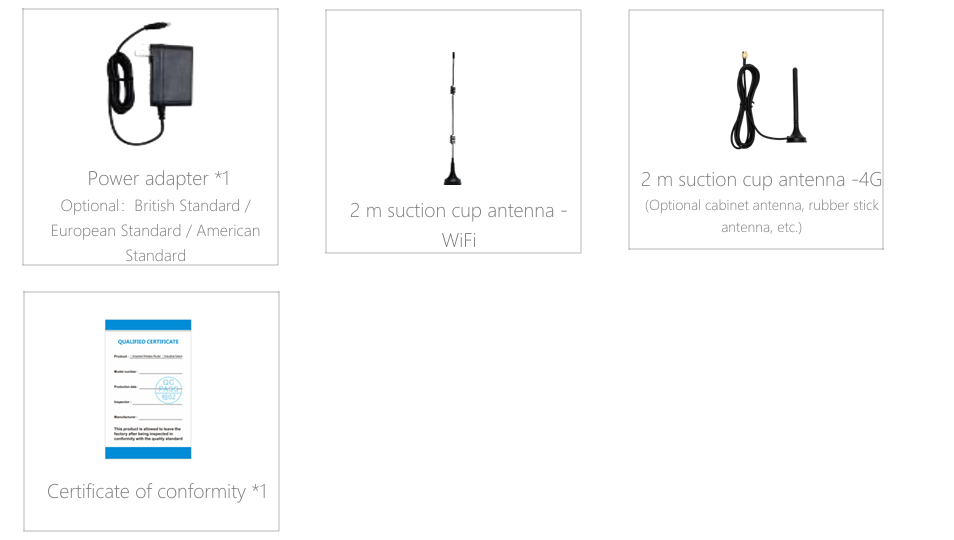

Standard accessories
