CPU

IPQ5018+QCN6102+QCA8337

Flash

SPI NOR 8MB，Nand 128MB

DDR2

512MB×1

2.4G Frequency

2.4GHz ~ 2.484GHz

2.4G Protocol

802.11b / g / n / ax

5G Frequency

5.150GHz～5.850GHz

5G Protocol

802.11a/ n / ac /ax

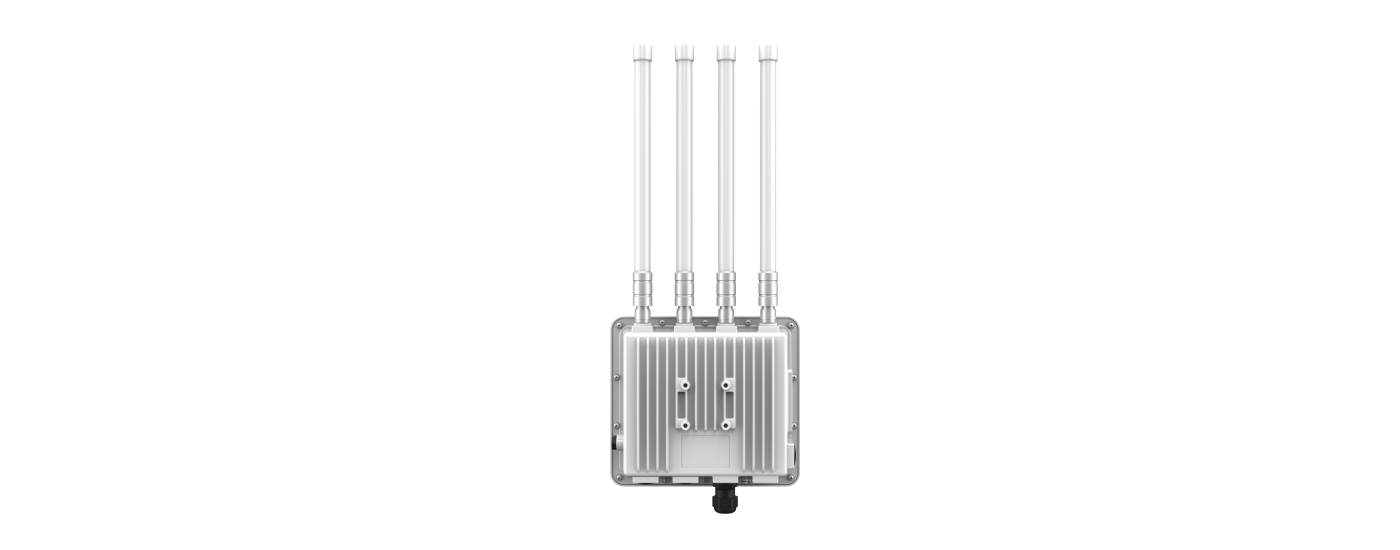

Antenna

4*6dBi Dual Band

Data Rate

2.4G 574 Mbps MIMO 2*2, 5G 2402Mbps MIMO 2*2

2.4G TX Power

802.11b

11M

25±2dBm

1M

25±2dBm

802.11g

54M

23±2dBm

6M

25±2dBm

802.11n HT20

MCS7

22±2dBm

MCS0

24±2dBm

802.11n HT40

MCS7

22±2dBm

MCS0

24±2dBm

802.11ax HE20

MCS11

20±2dBm

MCS0

24±2dBm

802.11ax HE40

MCS11

20±2dBm

MCS0

24±2dBm

5G TX Power

802.11a

54M

22±2dBm

6M

24±2dBm

802.11n HT20

MCS7

21±2dBm

MCS0

24±2dBm

802.11n HT40

MCS7

21±2dBm

MCS0

24±2dBm

802.11ac VHT20

MCS7

21±2dBm

MCS0

24±2dBm

802.11ac VHT40

MCS7

20±2dBm

MCS0

24±2dBm

802.11ac VHT80

MCS9

20±2dBm

MCS0

24±2dBm

802.11ax HE20

MCS11

20±2dBm

MCS0

24±2dBm

802.11ax HE40

MCS11

20±2dBm

MCS0

24±2dBm

802.11ax HE80

MCS11

19±2dBm

MCS0

24±2dBm

802.11ax HE160

MCS11

18±2dBm

MCS0

23±2dBm

2.4G Receiving Sensitivity

802.11b

11M

-87dBm

1M

-94dBm

802.11g

54M

-75dBm

6M

-88dBm

802.11n HT20

MCS7

-72dBm

MCS0

-88dBm

802.11n HT40

MCS7

-70dBm

MCS0

-88dBm

802.11ax HE20

MCS11

-63dBm

MCS0

-88dBm

802.11ax HE40

MCS11

-61dBm

MCS0

-88dBm

5G Receiving Sensitivity

802.11a

54M

-75dBm

6M

-92dBm

802.11n HT20

MCS7

-73dBm

MCS0

-92dBm

802.11n HT40

MCS7

-70dBm

MCS0

-90dBm

802.11ac VHT20

MCS7

-67dBm

MCS0

-88dBm

802.11ac VHT40

MCS7

-64dBm

MCS0

-88dBm

802.11ac VHT80

MCS7

-60dBm

MCS0

-88dBm

802.11ax HE20

MCS11

-62dBm

MCS0

-90dBm

802.11ax HE40

MCS11

-60dBm

MCS0

-88dBm

802.11ax HE80

MCS11

-58dBm

MCS0

-86dBm

802.11ax HE160

MCS11

-54dBm

MCS0

-84dBm

2.4G EVM

802.11b: ≤-10 dB ；802.11g: ≤-25 dB ；802.11n: ≤-28dB ;  802.11ax: ≤-35 dB

5G EVM

802.11a: ≤-25 dB ；802.11n: ≤-28 dB ；802.11ac: ≤-32 dB;  802.11ax: ≤-35 dB

ppm

±20ppm

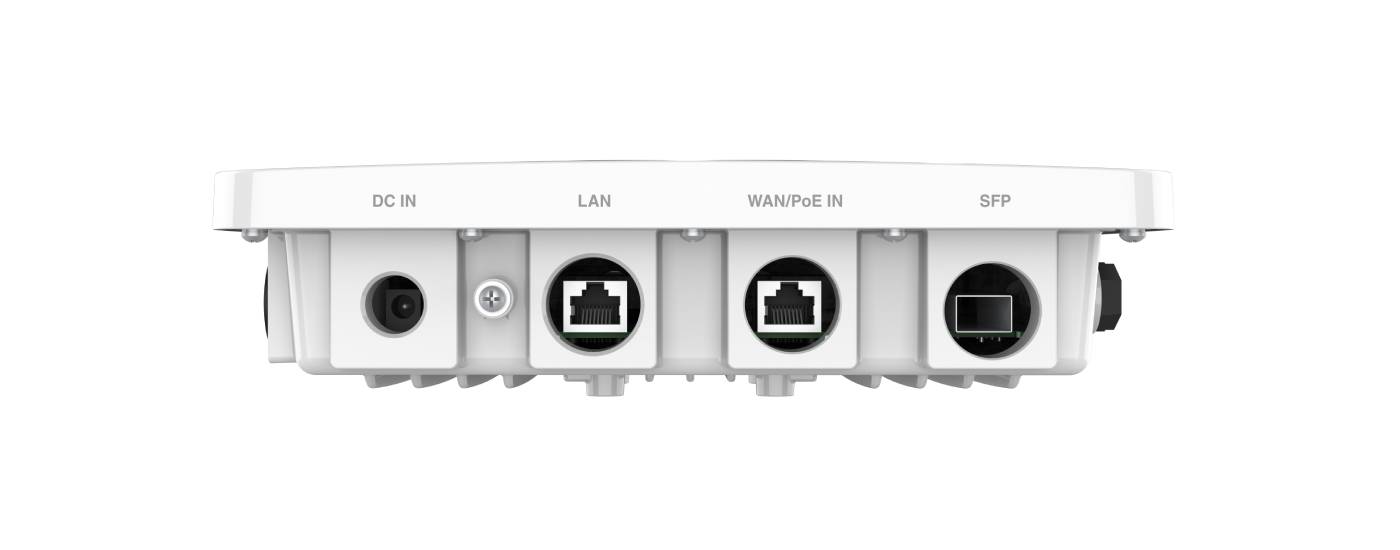

WAN

1*10/100/1000M RJ45, support 48V PoE

LAN

1*10/100/1000M LAN

SFP

1*10/100/1000M SFP

POE（WAN）

802.3at

Reset

Reset to factory settings by pressing 6-10 seconds

Indicators

WAN, LAN, SYS, 2.4G_WiFi, 5G_WiFi.

Power

<18W

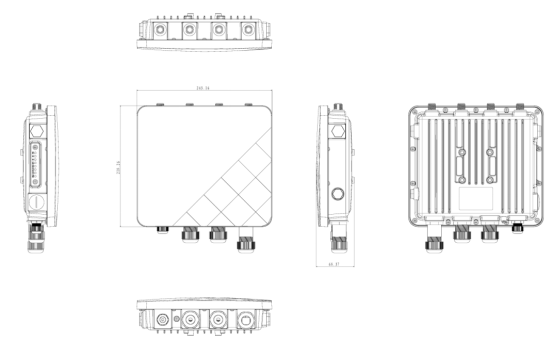

Dimension

243.2mm*218.3mm*64.1mm

Temperature

Working: -40°C to 70°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing)

Protection Grade

IP65

ESD

Air:±8K, Touch:±6K

Electrical Surge

Common Mode: 4K, Differential Mode: 2K

Wireless Functions

Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4.

Support SSID hidden

Support seamless roaming, 802.11kv standard.

Support 5G Prior for a faster Ethernet.

Wireless Security: Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP

Support MAC filter

Support Wi-Fi time on/off to save energy

Support client isolation to improve the wireless stability

Support RF power adjustable, adjust the RF power based on environment.

Support user quantity limited, Max 64 users to access each band.

Networking Function

VLAN settings

Cloud access support in gateway mode

Device Management

Back-up the configuration

Restore the configuration

Reset to factory default

Reboot the device: including time reboot or reboot immediately

Admin management password modify

Firmware upgrade

System log

Support firmware GUI web management, AC controller management, remote management and cloud management

Protocols

IPv4

LAN cable

1

Installation Accessory

1
