CPU

MT7981B+MT7976CN+7531AE

Flash

SPI NOR 16MB

DDR3

256M

2.4G Frequency

2.4GHz ~ 2.484GHz

2.4G WIFI protocol

802.11 b / g / n / ax

5G Frequency

5.150GHz～5.850GHz

5G WIFI protocol

802.11 a / n / ac / ax

2.4G Antenna

2*2.4G: 4.6dBi

5G Antenna

3*5G: 4dBi

Wireless data rate

2.4G: 574Mbps，5G: 2402Mbps

2.4G Power

802.11b

11M

23±2dBm

1M

23±2dBm

802.11g

54M

20±2dBm

6M

22±2dBm

802.11n HT20

MCS7

19±2dBm

MCS0

21±2dBm

802.11n HT40

MCS7

19±2dBm

MCS0

21±2dBm

802.11ax HT20

MCS11

17±2dBm

MCS0

21±2dBm

802.11ax HT40

MCS11

17±2dBm

MCS0

21±2dBm

5G Power

802.11a

54M

20±2dBm

6M

23±2dBm

802.11n HT20

MCS7

19±2dBm

MCS0

21±2dBm

802.11n HT40

MCS7

19±2dBm

MCS0

21±2dBm

802.11ac HT20

MCS8

19±2dBm

MCS0

21±2dBm

802.11ac HT40

MCS9

19±2dBm

MCS0

21±2dBm

802.11ac HT80

MCS9

18±2dBm

MCS0

21±2dBm

802.11ax HT20

MCS11

18±2dBm

MCS0

21±2dBm

802.11ax HT40

MCS11

18±2dBm

MCS0

21±2dBm

802.11ax HT80

MCS11

17±2dBm

MCS0

21±2dBm

802.11ax HT160

MCS11

16±2dBm

MCS0

19±2dBm

2.4G Receive Sensitivity

802.11b

11M

-87dBm

1M

-96dBm

802.11g

54M

-75dBm

6M

-93dBm

802.11n HT20

MCS7

-73dBm

MCS0

-92dBm

802.11n HT40

MCS7

-70dBm

MCS0

-89dBm

802.11ax HT20

MCS11

-64dBm

MCS0

-92dBm

802.11ax HT40

MCS11

-61dBm

MCS0

-89dBm

5G Receive Sensitivity

802.11a

54M

-74dBm

6M

-92dBm

802.11n HT20

MCS7

-73dBm

MCS0

-90dBm

802.11n HT40

MCS7

-70dBm

MCS0

-87dBm

802.11ac HT20

MCS8

-67dBm

MCS0

-91dBm

802.11ac HT40

MCS9

-63dBm

MCS0

-88dBm

802.11ac HT80

MCS9

-60dBm

MCS0

-84dBm

802.11ax HT20

MCS11

-62dBm

MCS0

-91dBm

802.11ax HT40

MCS11

-59dBm

MCS0

-89dBm

802.11ax HT80

MCS11

-56dBm

MCS0

-86dBm

802.11ax HT160

MCS11

-53dBm

MCS0

-83dBm

2.4G EVM

802.11b:≤-10 dB；802.11g:≤-25 dB；802.11n:≤-28dB ; 802.11ax: ≤-35 dB

5G EVM

802.11a:≤-25 dB； 802.11n:≤-28 dB；802.11ac:≤-32 dB ; 802.11ax:≤-35 dB

ppm

±20ppm

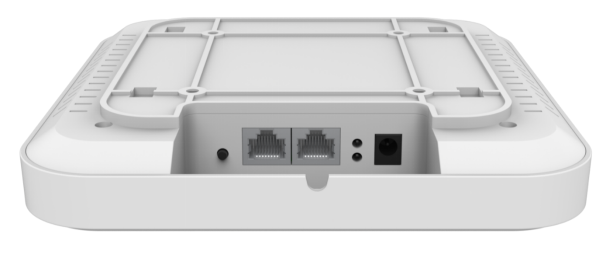

WAN

1*10/100/1000M WAN, support 48V POE

LAN

1*10/100/1000M LAN

Reset

Reset*1

Indicator

Triple color(sys-red，2.4G-green，5.8G-blue)

Power

PoE 802.3af，DC2.0 12V/1.5A，

Max Power Consumption

<15W

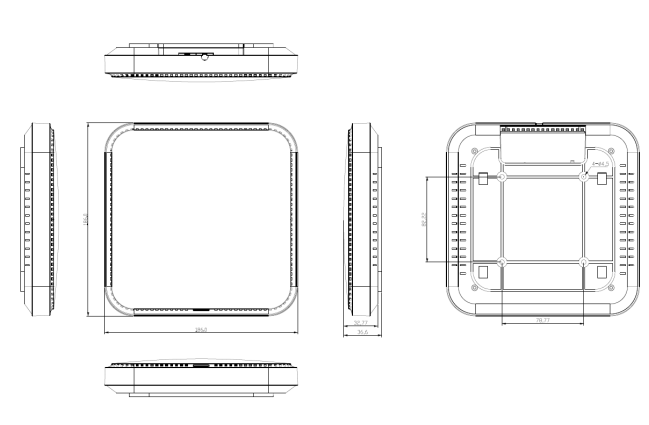

Size

186mm × 186mm ×37mm

Weight

0.55kg

Temperature

Working: -20°C to 55°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing)

ESD

Air: +/-8K，Touch: +/-6K

Electrical Surge

Common Mode: 2K, Differential Mode: 1K

Wireless Functions

Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4.

Support SSID hidden

Support seamless roaming

Support 5G Prior for a faster Ethernet.

Wireless Security: OPEN、WPA/WPA2PSK-TKIPAES、WPA3PSK-AES

Support MAC filter

Support Wi-Fi time on/off to save energy

Support client isolation to improve the wireless stability

Support RF power adjustable, adjust the RF power based on environment.

Support user quantity limited, Max 64 users to access each band.

Networking Function

VLAN settings

Cloud access support in gateway mode

Device Management

Back-up the configuration

Restore the configuration

Reset to factory default

Reboot the device: including time reboot or reboot immediately

Admin management password modify

Firmware upgrade

System log

Support firmware GUI web management, AC controller management, remote management and cloud management

Protocols

IPv4

Lan cable

1

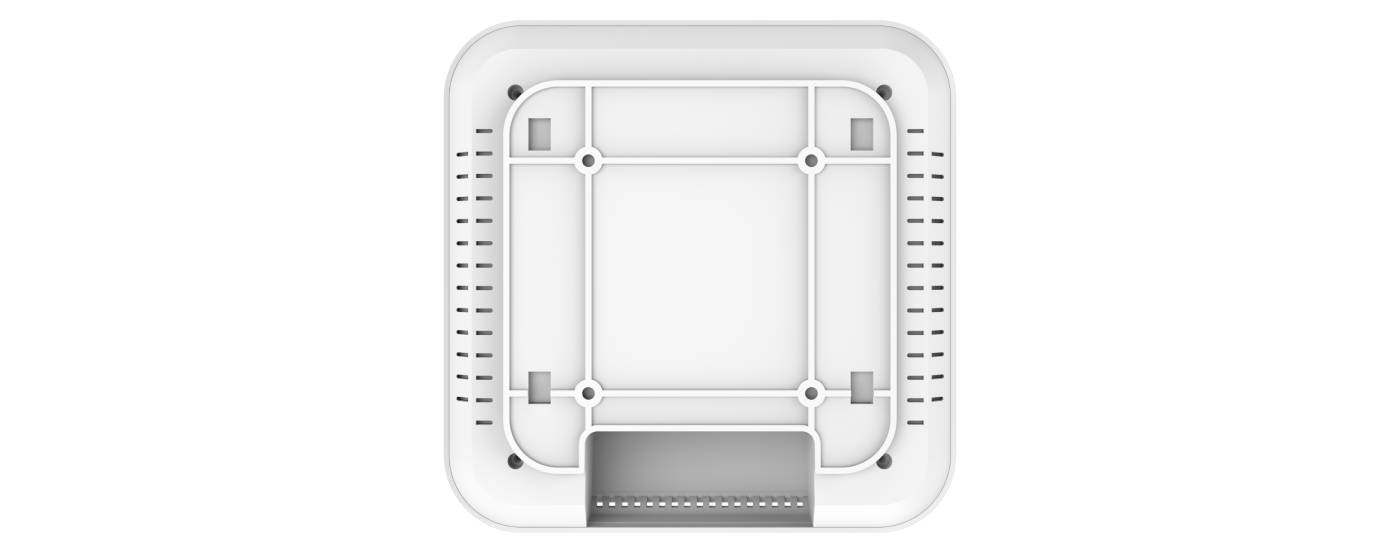

Mounting Accessories

1

Gift Box

1
