Short Specification

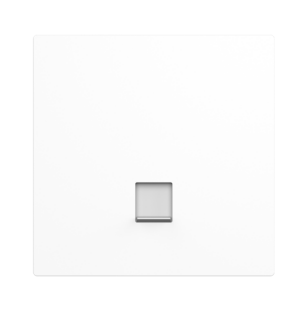

T300-FAP836 is a high-performance, high-speed indoor Wi-Fi 7 panel AP, delivering dual-band wireless services (2.4GHz and 5GHz) for a fast and stable wireless connectivity experience.



Main Features:


Ø Compliant with IEEE 802.11be (Wi-Fi 7), supporting MLO and 4096QAM.

Ø Maximum wireless speeds of up to 3570Mbps (2.4GHz: 688Mbps + 5GHz: 2882Mbps).

Ø Uplink 2.5Gbps Ethernet port, downlink Gigabit Ethernet port.

Ø Supports standard PoE power supply, compliant with IEEE 802.3at.

Ø Hardware watchdog function for automatic device recovery in case of anomalies, maintenance-free.

Ø Metal base casing for superior heat dissipation.




Hardware Specification



ModelT300-FAP836
CPUAN7563+MT7991B+MT7976CN+EN8811H
FlashNAND128MB
DDR3512MB
2.4GFrequency2.4GHz–2.4835GHz
2.4GProtocol802.11b/g/n/ax/be
5GFrequency5.150GHz～5.850GHz
5GProtocol802.11a/n/ac/ax/be
Antenna2*dualbandantenna:2.4G1.7dBi;5G3dBi
DataRate5G:2402Mbps2.4G:574Mbps
2.4GTXPower802.11b11M23±2dBm1M23±2dBm
802.11g54M20±2dBm6M22±2dBm
802.11nHT20MCS718.5±2dBmMCS020.5±2dBm
802.11nHT40MCS718.5±2dBmMCS020.5±2dBm
802.11axHE20MCS1117±2dBmMCS020.5±2dBm
802.11axHE40MCS1117±2dBmMCS020.5±2dBm
802.11beEHT20MCS1316±2dBmMCS020.5±2dBm
802.11beEHT40MCS1316±2dBmMCS020.5±2dBm
5GTXPower802.11a54M19.5±2dBm6M22±2dBm
802.11nHT20MCS719±2dBmMCS021±2dBm
802.11nHT40MCS719±2dBmMCS021±2dBm
802.11acVHT20MCS718.5±2dBmMCS021±2dBm
802.11acVHT40MCS718.5±2dBmMCS020.5±2dBm
802.11acVHT80MCS918.5±2dBmMCS020.5±2dBm
802.11axHE20MCS1118±2dBmMCS021±2dBm
802.11axHE40MCS1118±2dBmMCS020.5±2dBm
802.11axHE80MCS1117±2dBmMCS020.5±2dBm
802.11axHE160MCS1116±2dBmMCS019.5±2dBm
802.11beEHT20MCS1316.5±2dBmMCS021±2dBm
802.11beEHT40MCS1316±2dBmMCS020.5±2dBm
802.11beEHT80MCS1315.5±2dBmMCS020.5±2dBm
802.11beEHT160MCS1314.5±2dBmMCS019.5±2dBm
2.4GReceiving Sensitivity802.11b11M-87dBm1M-95dBm
802.11g54M-75dBm6M-92dBm
802.11nHT20MCS7-74dBmMCS0-92dBm
802.11nHT40MCS7-71dBmMCS0-89dBm
802.11axHE20MCS11-63dBmMCS0-92dBm
802.11axHE40MCS11-60dBmMCS0-88dBm
802.11beEHT20MCS13-56dBmMCS0-92dBm
802.11beEHT40MCS13-53dBmMCS0-89dBm
5GReceiving Sensitivity802.11a54M-74dBm6M-91dBm
802.11nHT20MCS7-73dBmMCS0-90dBm
802.11nHT40MCS7-70dBmMCS0-87dBm
802.11acVHT20MCS7-67dBmMCS0-91dBm
802.11acVHT40MCS7-63dBmMCS0-88dBm
802.11acVHT80MCS9-60dBmMCS0-85dBm
802.11axHE20MCS11-62dBmMCS0-91dBm
802.11axHE40MCS11-59dBmMCS0-89dBm
802.11axHE80MCS11-56dBmMCS0-86dBm
802.11axHE160MCS11-53dBmMCS0-83dBm
802.11beEHT20MCS13-55dBmMCS0-91dBm
802.11beEHT40MCS13-52dBmMCS0-88dBm
802.11beEHT80MCS13-49dBmMCS0-85dBm
802.11beEHT160MCS13-46dBmMCS0-82dBm
2.4GEVM802.11b:≤-10dB；802.11g:≤-25dB；802.11n:≤-28dB；
802.11ax:≤-35dB；802.11be:≤-38dB
5GEVM802.11a:≤-25dB；802.11n:≤-28dB；802.11ac:≤-32dB
802.11ax:≤-35dB；802.11be:≤-38dB
ppm±20ppm
WAN1*10/1000/2500MWAN,supportPoE48V
LAN1*10/100/1000MLAN
POE 802.3at
ResetResettofactorysettingsbypressing6-10seconds
IndicatorsSYS
MaxPowerConsumption<14W
ESDAir:±8K,Touch:±6K
ElectricalSurgeCommonMode:2K,DifferentialMode:1K
Size86mm*86mm*42.8mm(10.8mmbeyondthewall)
Weight0.22kg
TemperatureWorking:-10°Cto40°C；Storage:-40°Cto70°C；Humidity:5％～95％(Non-Condensing)




Firmware Specification



Working Mode

AP (FAT/FIT)

Wireless Functions

Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4.

Support SSID hidden

Support seamless roaming

Support 5G Prior for a faster Ethernet.

Wireless Security: OPEN, WPA/WPA2PSK-TKIPAES, WPA2PSK-TKIPAES, WPA3PSK-AES

Support MAC filter

Support Wi-Fi time on/off to save energy

Support client isolation to improve the wireless stability

Support RF power adjustable, adjust the RF power based on environment.

Networking Function

VLAN settings

Cloud access support in gateway mode

Device Management

Back-up the configuration

Restore the configuration

Reset to factory default

Reboot the device: including time reboot or reboot immediately

Admin management password modify

Firmware upgrade

System log

Support firmware GUI web management, AC controller management, remote management and cloud management

Protocols

IPv4

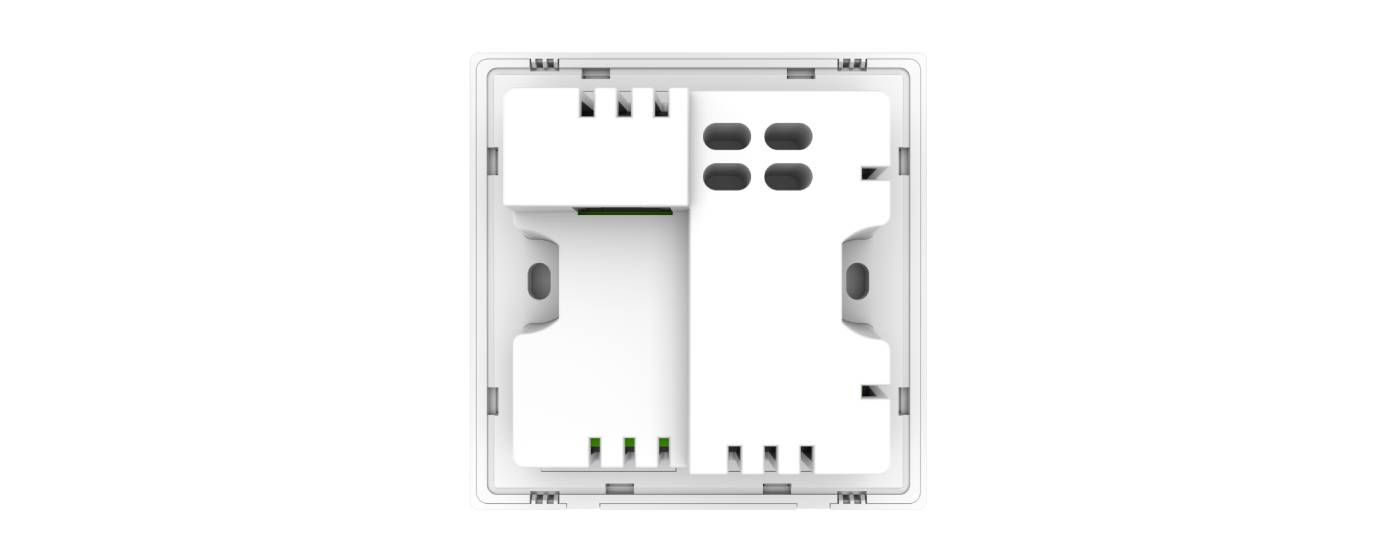

Interface

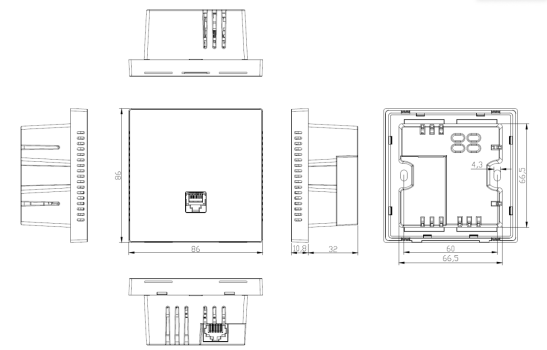

Dimension







Packing List




AP

1

Screw

2
