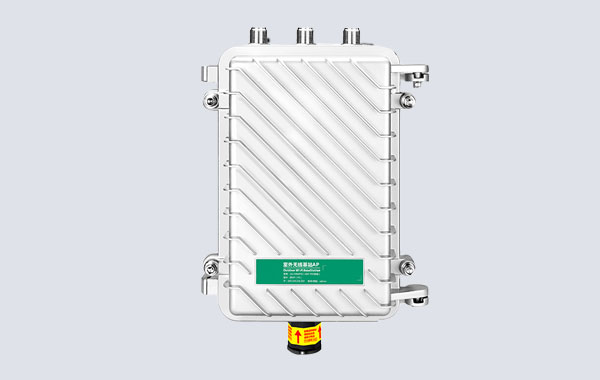

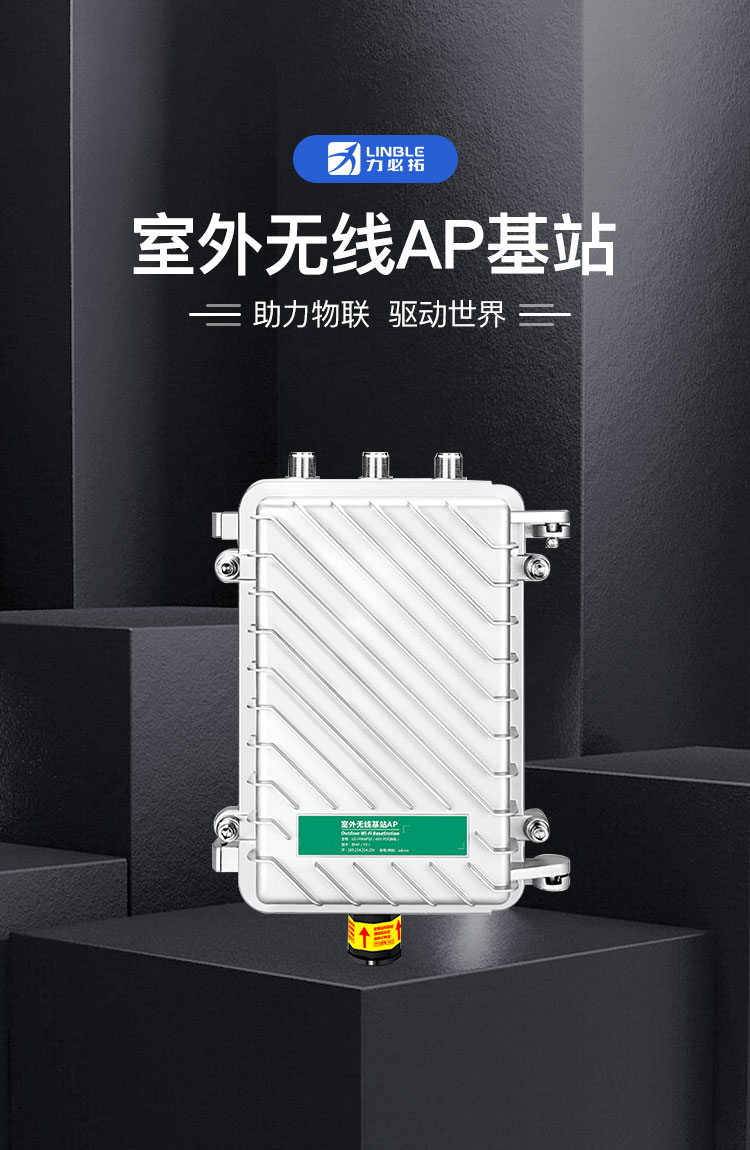

AP80 is a new generation of high-performance enterprise-class dual-band outdoor AP product supporting 802.11ac Wave2 technology, which supports communication with multiple wifi terminals at the same time. It can work in 2.4G/5.8G frequency bands at the same time and meet the needs of 256 people for wireless high-speed connection. Full Gigabit Network Interface, 2.4G 802.11 N Wireless access speed of 300Mbps + 5G 802.11 AC 900Mbps, wireless processing speed up to 1200Mbps. Plug and play, high performance, high gain Benefit, high receiving sensitivity, high bandwidth, high access number and other characteristics, not only can cover a larger range, but also can provide higher wireless transmission performance and stability Access more wireless clients to solve the problem of wireless access in large outdoor environments such as scenic spots, mountainous areas and streets.
Hardware configuration | |
Model | AP80 |
Main chip | Qualcomm QCA 9563 1200Mbps High-Performance Enterprise-Class Chip |
Lord Frequency | Quad-core 717MHz |
Wireless technology | 2.4G: 300m 802.11 B/G/n, 5.8G: 900m 802.11a/n/AC MIMO technology |
Memory | 256MB DDR2 RAM |
Flash | 32MB |

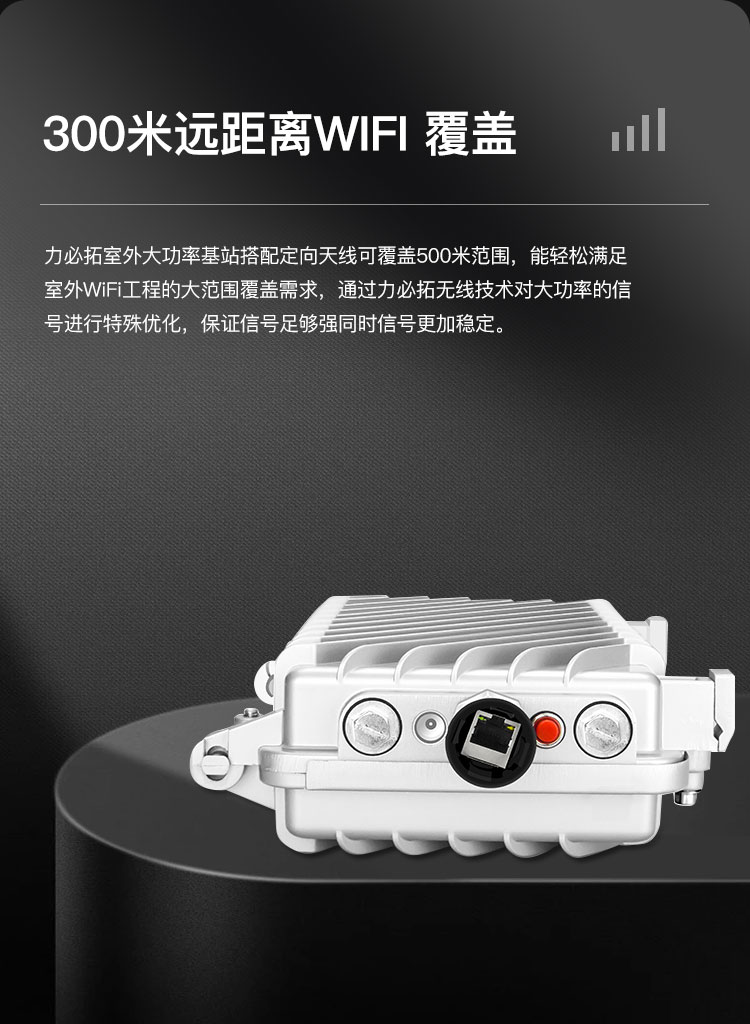

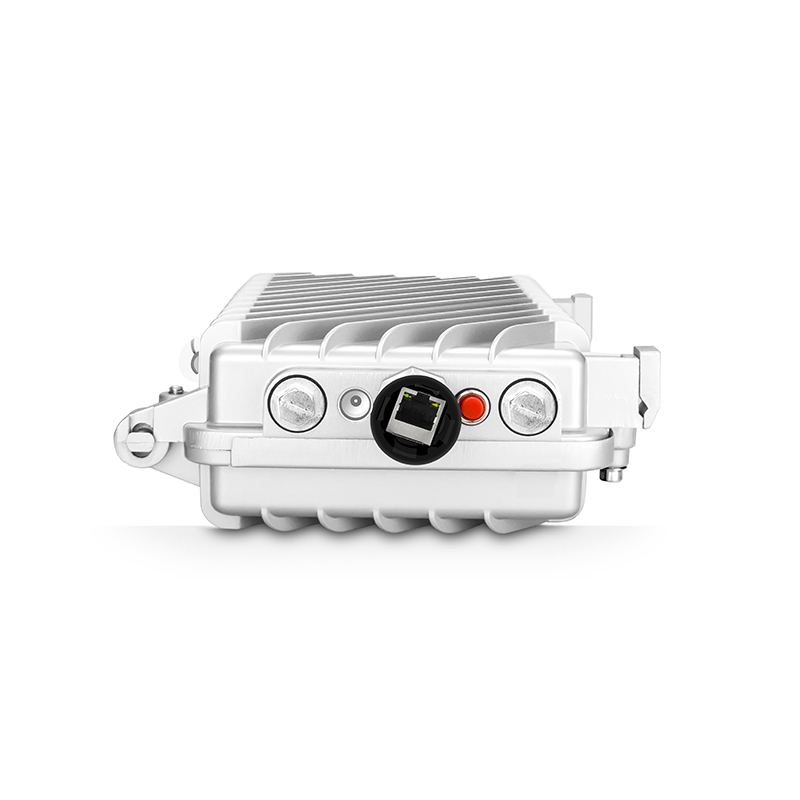

Network interface | One 10/100/1000Mbps RJ45 port |
Press Button | 1 * Reset Press and hold for 15 seconds to restore factory settings |
Work Consumption | <18W ; |

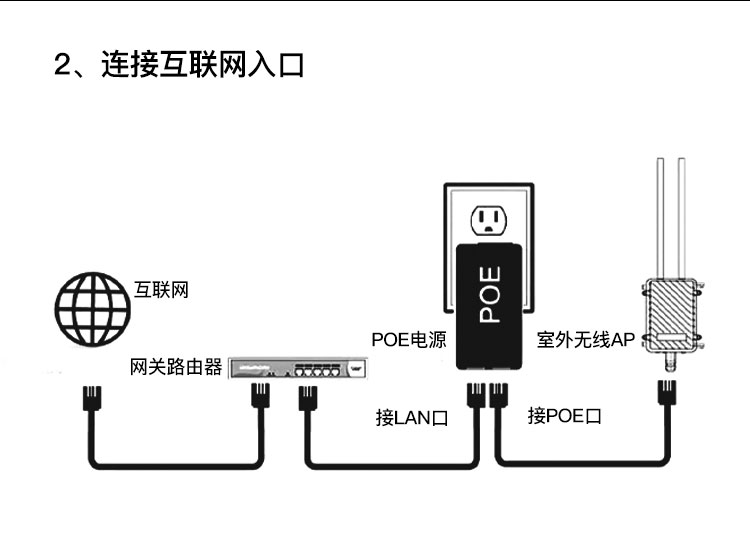

Electricity Source | POE:48V(IEEE802.3at) 0.5A,DC:12V 1.5A |

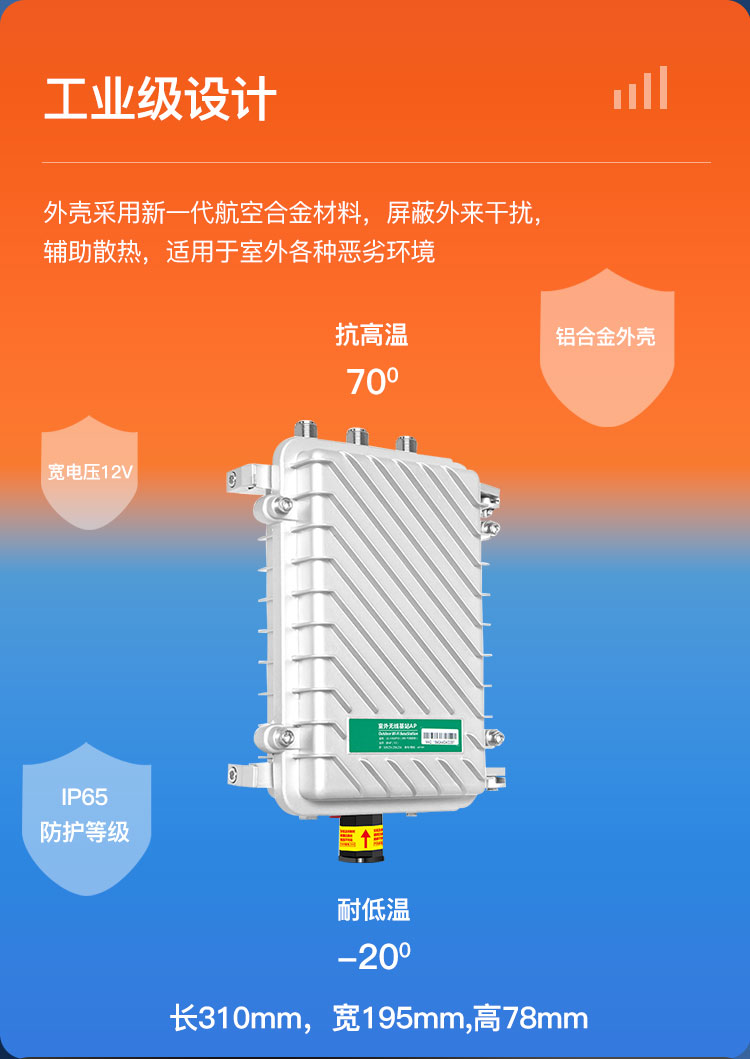

| Operating/storage temperatures | -Temperature: -20 ℃ ~ + 75 ℃ (working), -20 ℃ ~ + 70 ℃ (storage) |
