T300-N540

  • Product details
  • Data download
  • Video and Documents


Product overview


1) Industrial-grade components with anti-high and low-temperature design, built-in multiple protections such as static electricity, surge, and rapid pulse group, easily adapt to various harsh environments, ensuring long-term stable and reliable operation.

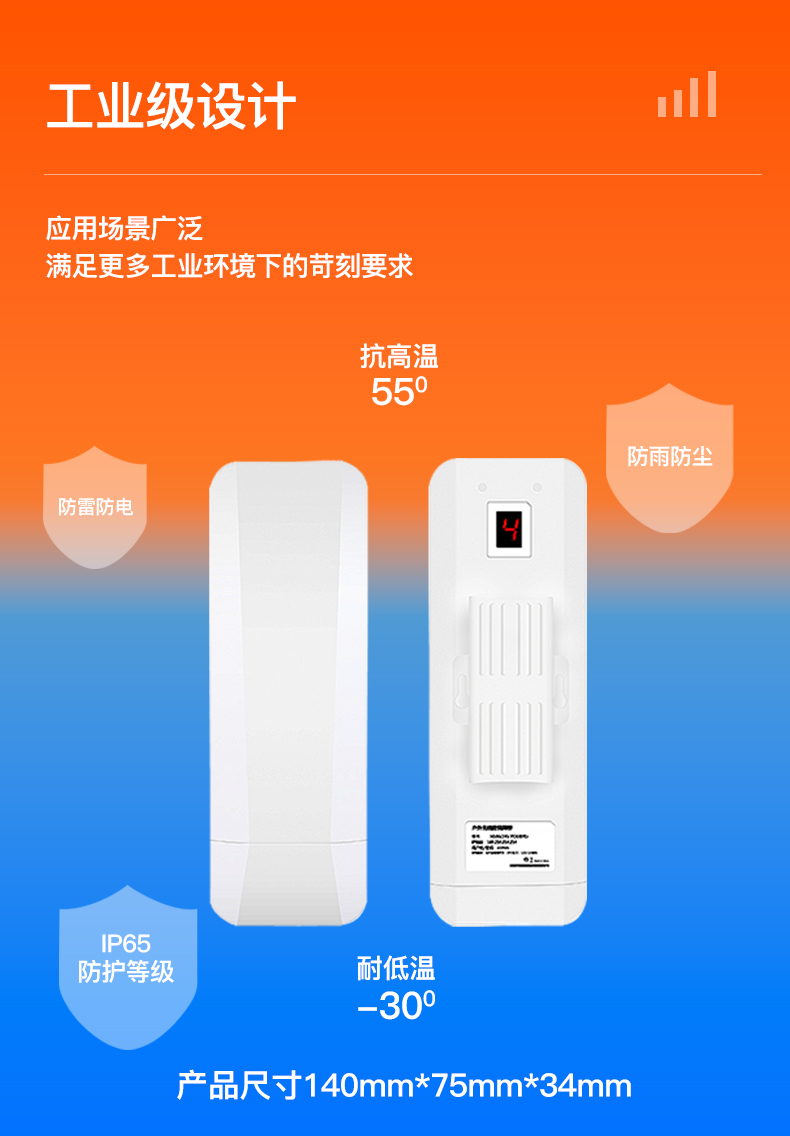

2) Designed with an outdoor IP65-rated shell, providing protection against wind, rain, dust, and sun exposure, easily adapting to various outdoor harsh environments.

3) Professional RF circuit calibration to enhance RF transmission power and receive sensitivity, improving wireless transmission distance, performance, and stability.

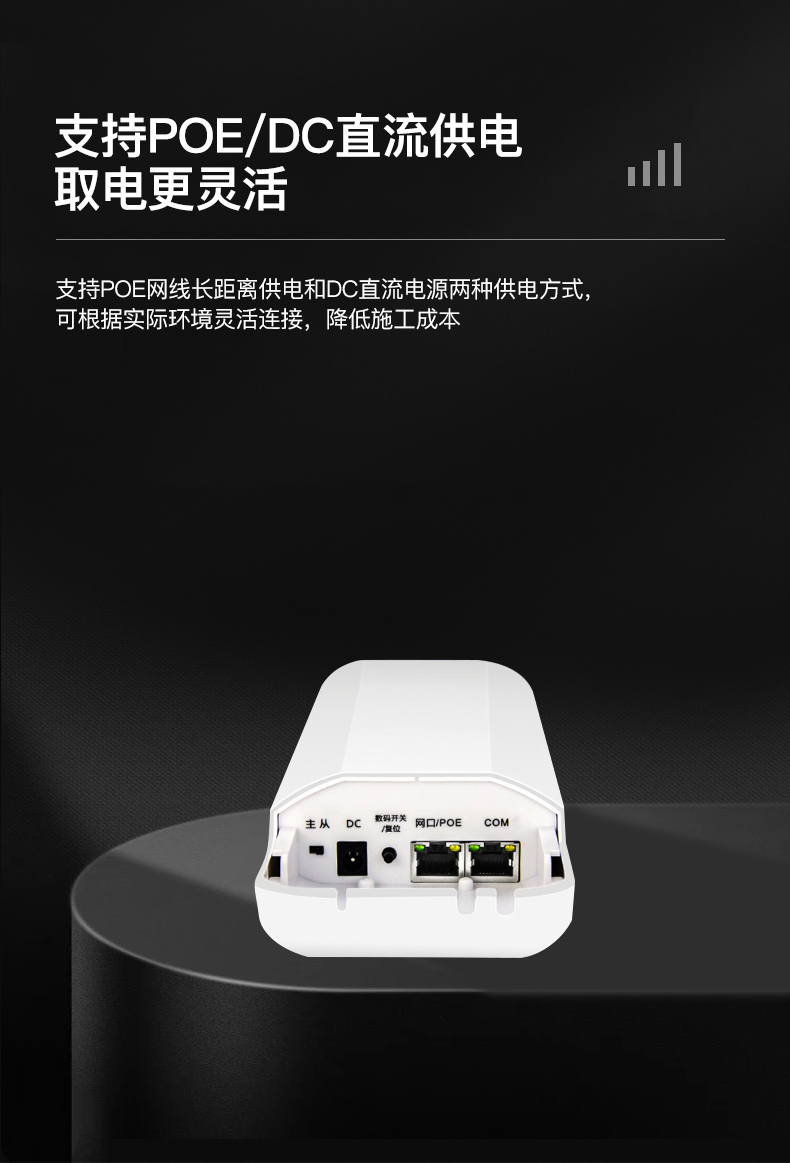

4) Flexible power supply options, supporting 24V PoE remote power supply and 12V DC local power supply, with a high PoE Ethernet remote power supply distance of up to 70 meters.

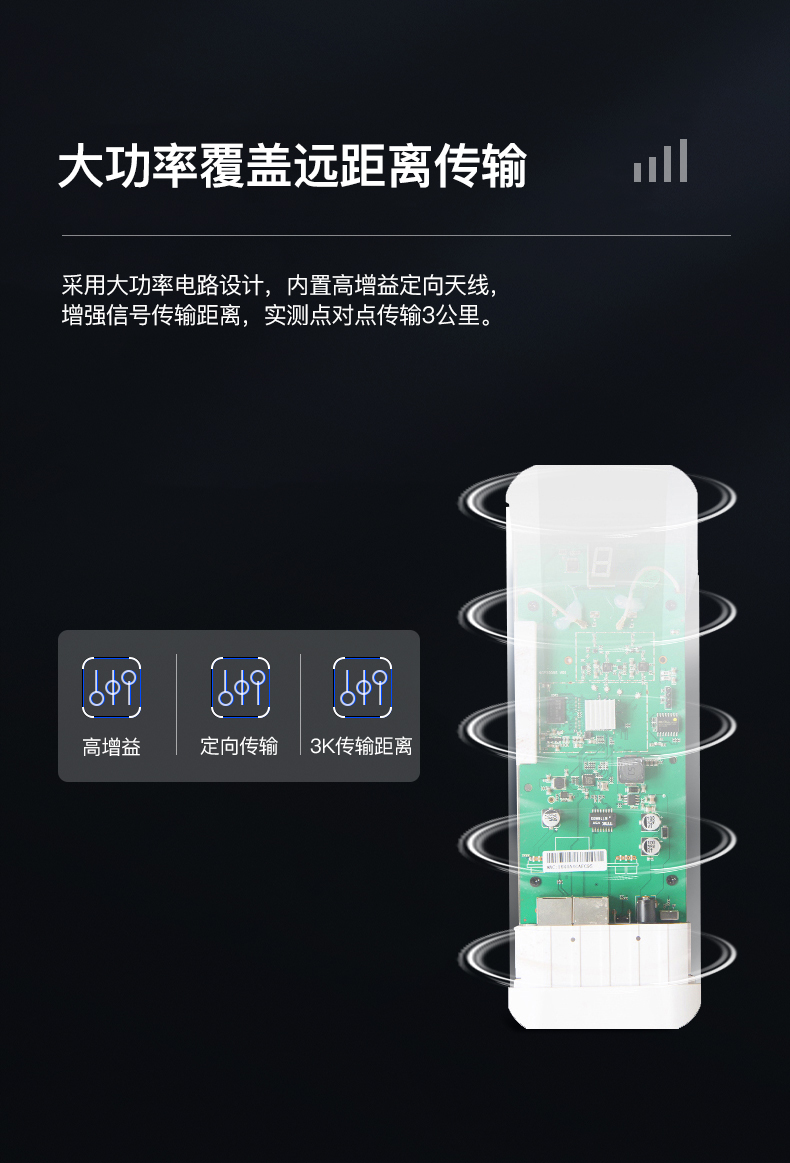

5) Provides 802.11a/n/ac WiFi 450Mbps wireless transmission, paired with high-gain antennas, achieving a range of 3000 meters in open environments; also provides 10/100Mbps wired access, with a total throughput of 90+Mbps.

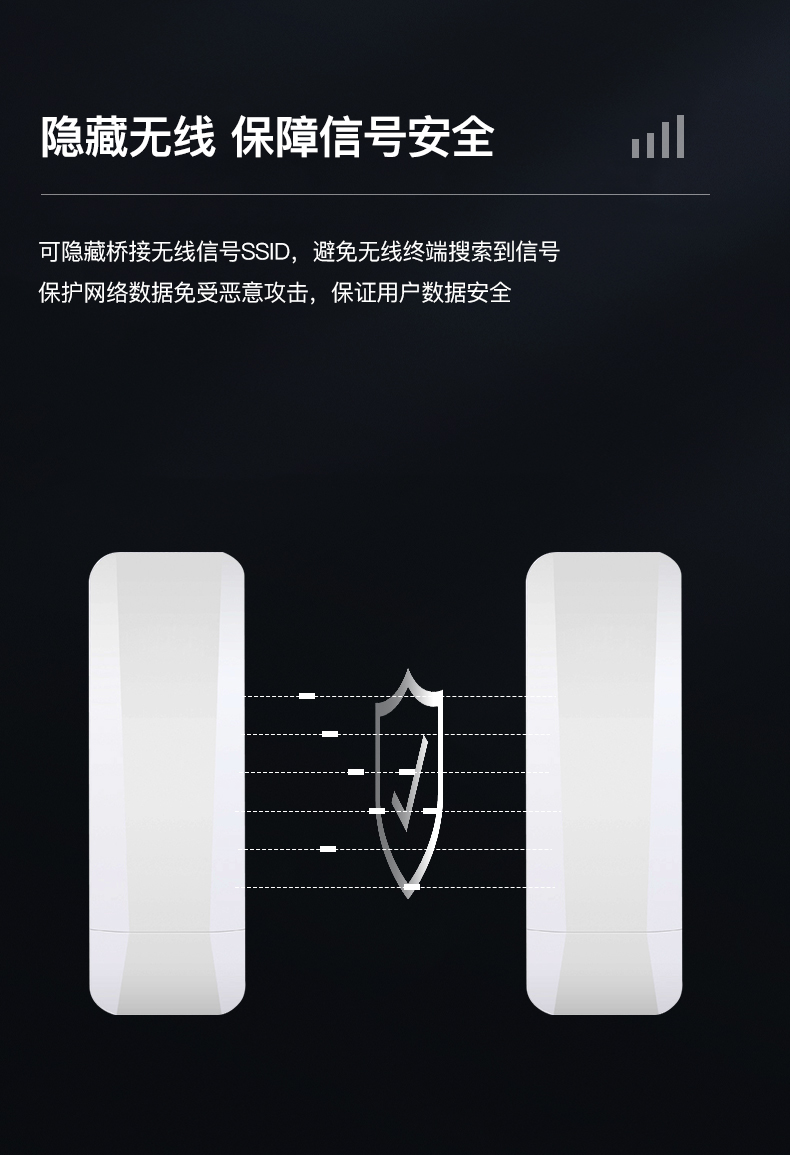

6) Default bridged SSID hiding, WPA2 data encryption, effectively ensuring user data security.

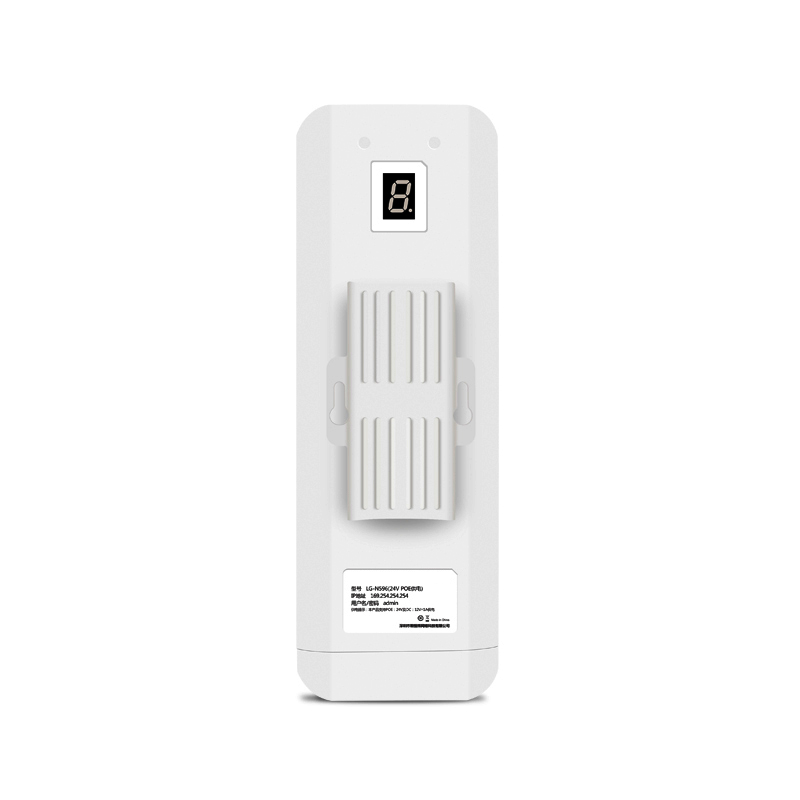

7) Compact in size, supports wall mounting or pole installation, making installation simple.

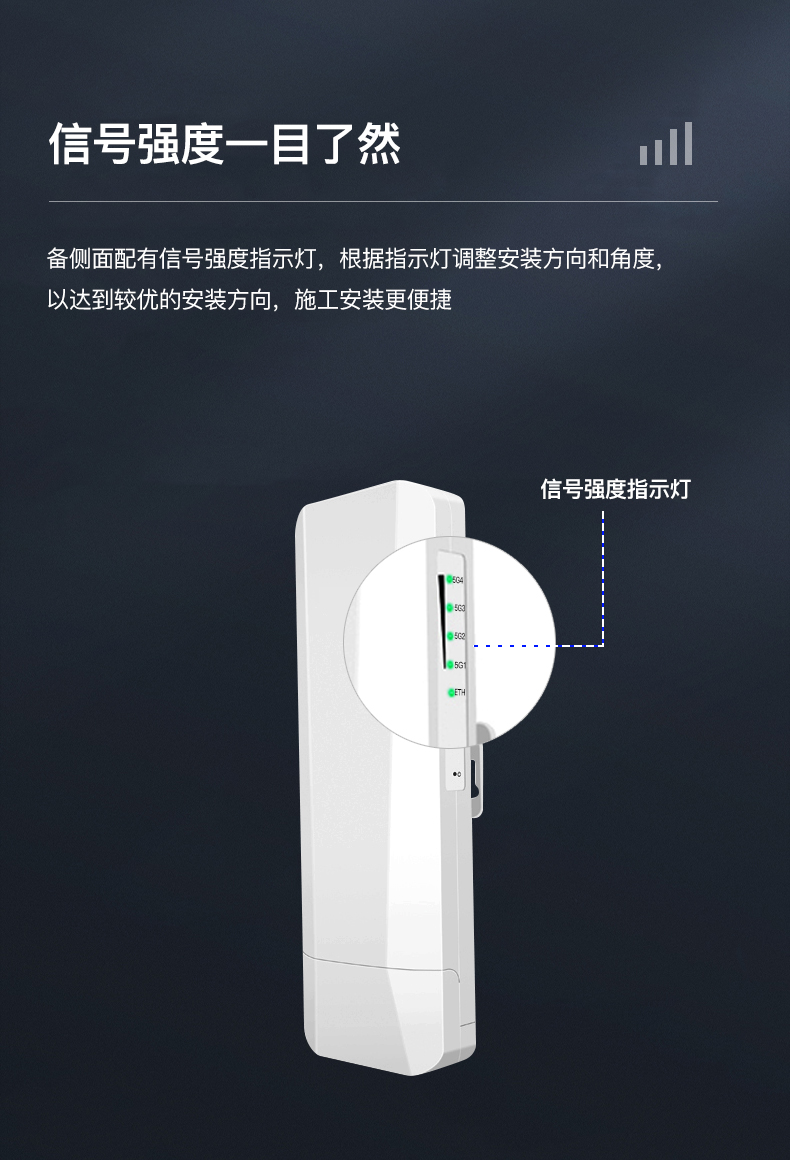

8) Rich status indicator lights for easy understanding of device operation status; simple and clear web management interface for easy bridge configuration.

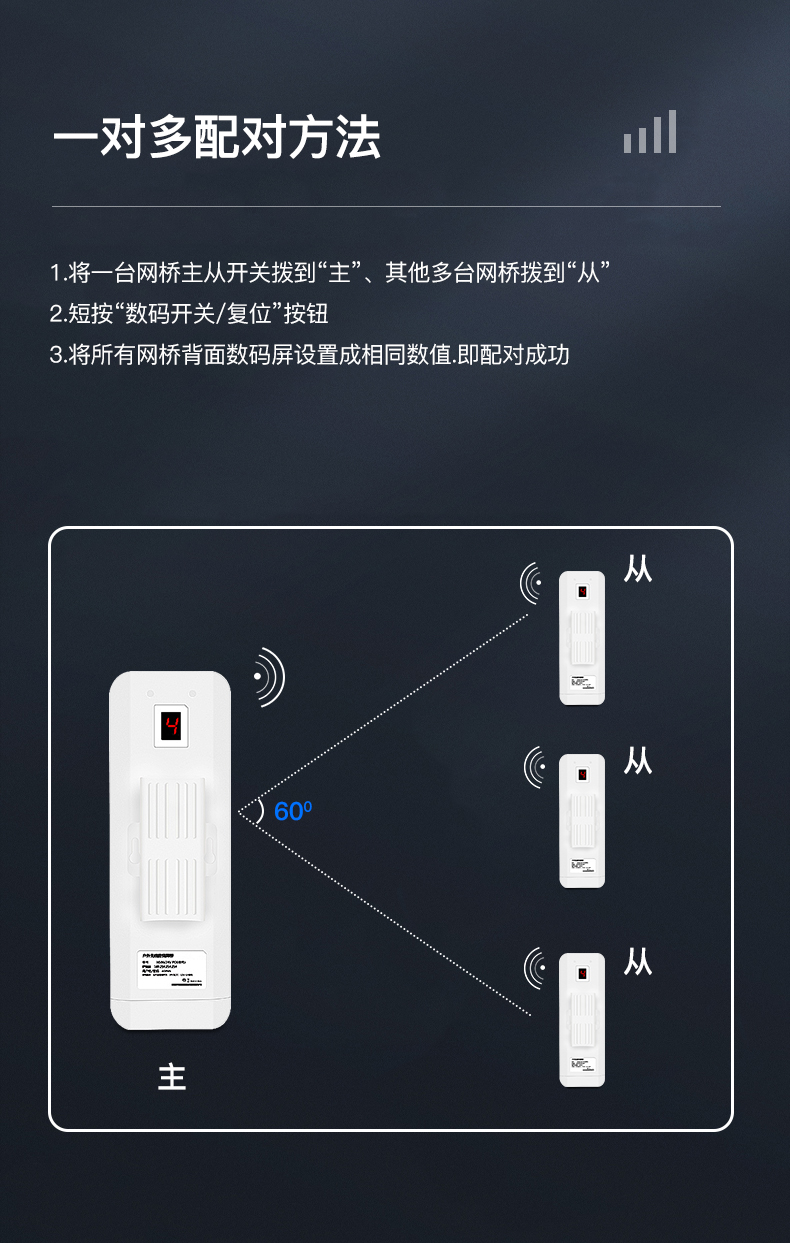

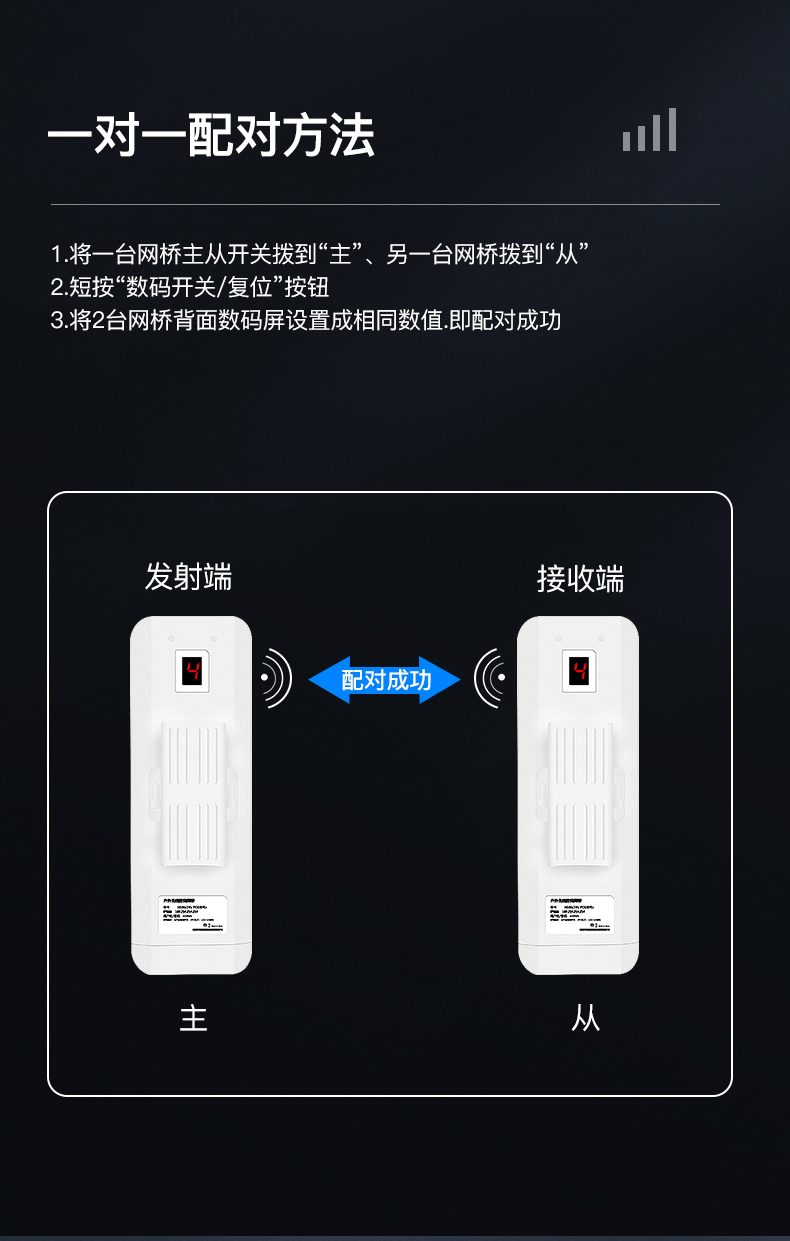

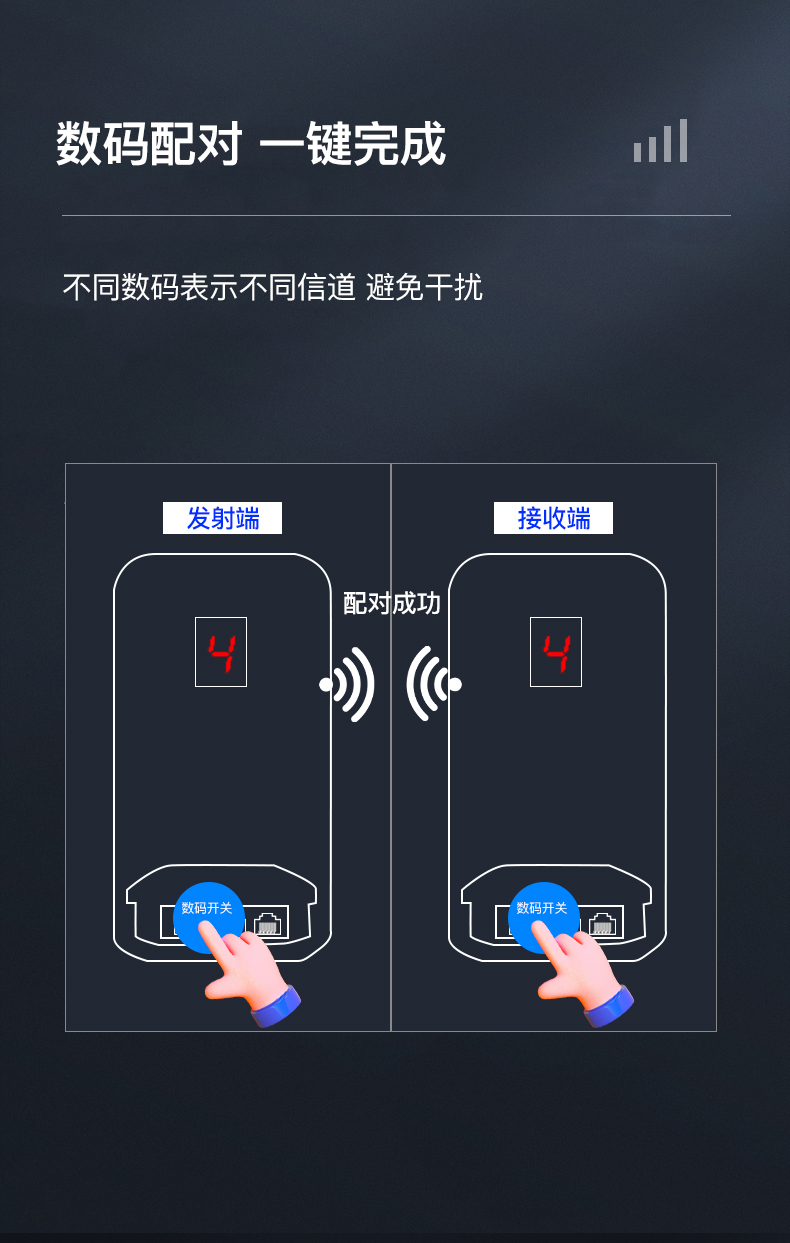

9) No need for professional knowledge or computer operation, easily pair the bridge through dialing switches or buttons, supporting interconnection of up to eight points.

10) Continuous product updates, feature enhancements, and performance optimization to adapt to various network environments and enhance user experience."



Hardware configuration

Main Chip

MT7628KN+7610E

Frequency

575MHz

Memory

8MB

Flash

1MB

Wireless Technology

802.11a/n/ac 450Mbps 1T1R technology

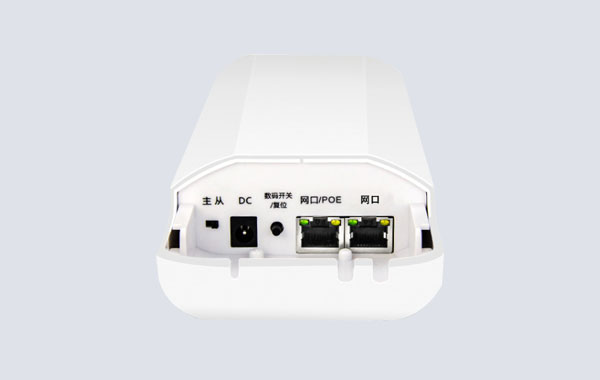

Device Interfaces

LAN*2 10/100Mbps adaptive Ethernet ports

DC power interface, compatible with power plugs with an outer diameter of 5.5mm, inner diameter of 2.1mm, and length of 9.5mm or above

Buttons

Reset Factory/ Digital Compound Button, short press to adjust the numeric display value, long press for 5 seconds to restore factory settings.

Indicators

PWR power indicator, WiFi status indicator,

LAN1/LAN2 port status indicator, SIG1/SIG2/SIG3/SIG4 signal strength indicators, numeric display.

Antenna

Built-in dual-polarization 12dBi directional panel

antenna (horizontal beamwidth 60°, vertical

beamwidth 60°)

Power

24V/0.5A PoE remote power supply

DC 12V/1A, positive external and negative internal

Operating/Storage Temperature

-30℃～55℃/

-40℃～70℃

Operating/Storage Humidity

10％～90％(operating)

/5％～95％(storage)

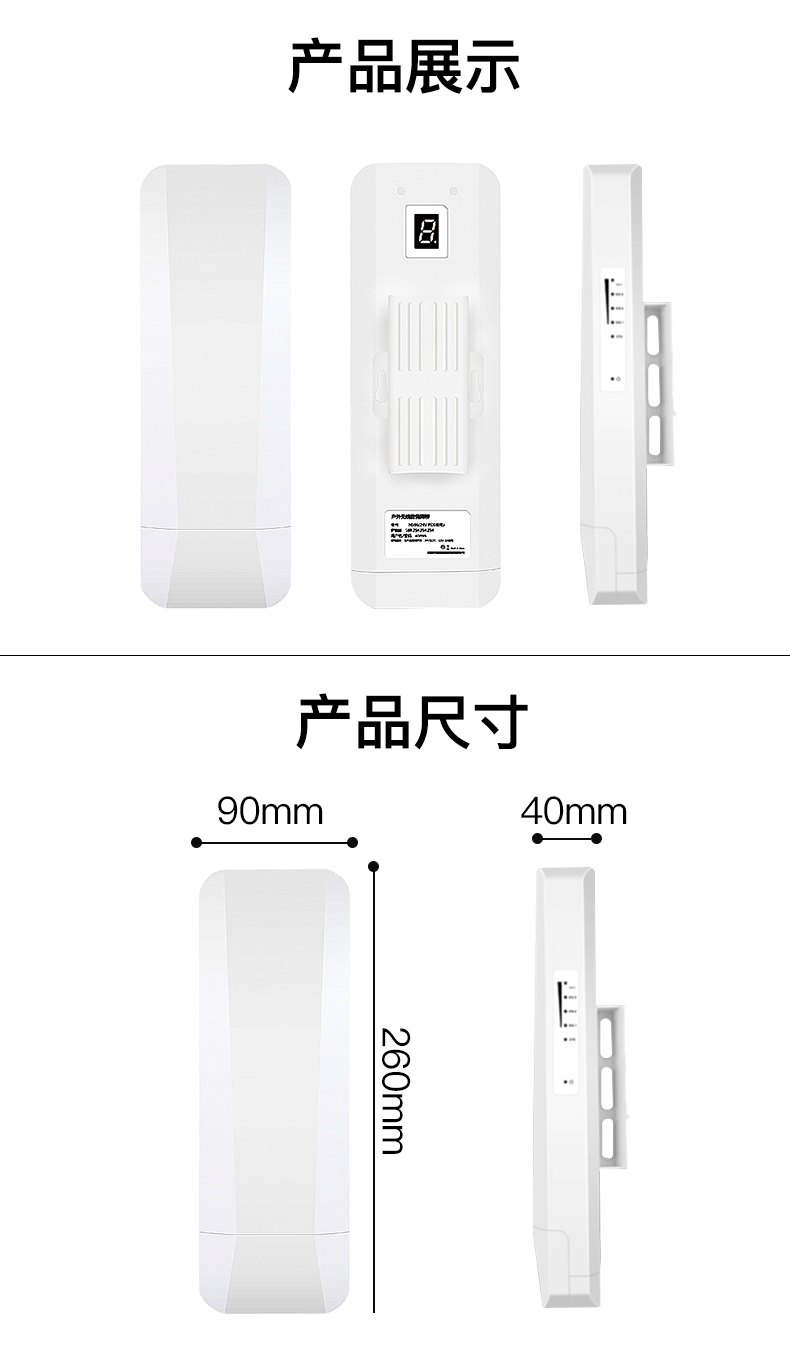

Dimensions

258*90*56.4mm

Weight

0.4kg




WiFi Spec

Frequency Range

5G:  UNII-1: 5.15~5.35GHz

UNII-2: 5.47~5.725GHz

UNII-3: 5.725~5.825GHz

Channel

36、40、44、48、52、60、64、149、153、157、161、165

Modulation

802.11a: OFDM (BPSK, QPSK,16-QAM)

802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM)

802.11ac: OFDM (BPSK, QPSK,64-QAM, 256-QAM)

Transmission Rate

11a up 54Mbps，11n up 144Mbps，

11ac up 450Mbps

Receiver

Sensitivity

11a：≤-86±1.5dBm @6Mbps，

≤-69±1.5dBm @54Mbps

11n 20MHz：≤-85±1.5dBm@MCS0，

≤-67±1.5dBm @MCS7

11n 40MHz：≤-82±1.5dBm @MCS0，

≤-64±1.5dBm @MCS7

11ac 20MHz：≤-84±1.5dBm @MCS0，

≤-59±1.5dBm @MCS8

11ac 40MHz：≤-82±1.5dBm @MCS0，

≤-56±1.5dBm @MCS9

11ac 80MHz：≤-78±1.5dBm @MCS0，

≤-52±1.5dBm @MCS9

Transmit Power

11a: 23dBm±1.5dBm@54Mbps

11n(20/40MHz): 23dBm±1.5dBm@MCS7

11ac(40/80MHz): 23dBm±1.5dBm@MCS9



Software Functions

Operation Mode

Bridge Access Point, Bridge Client

Network Topology

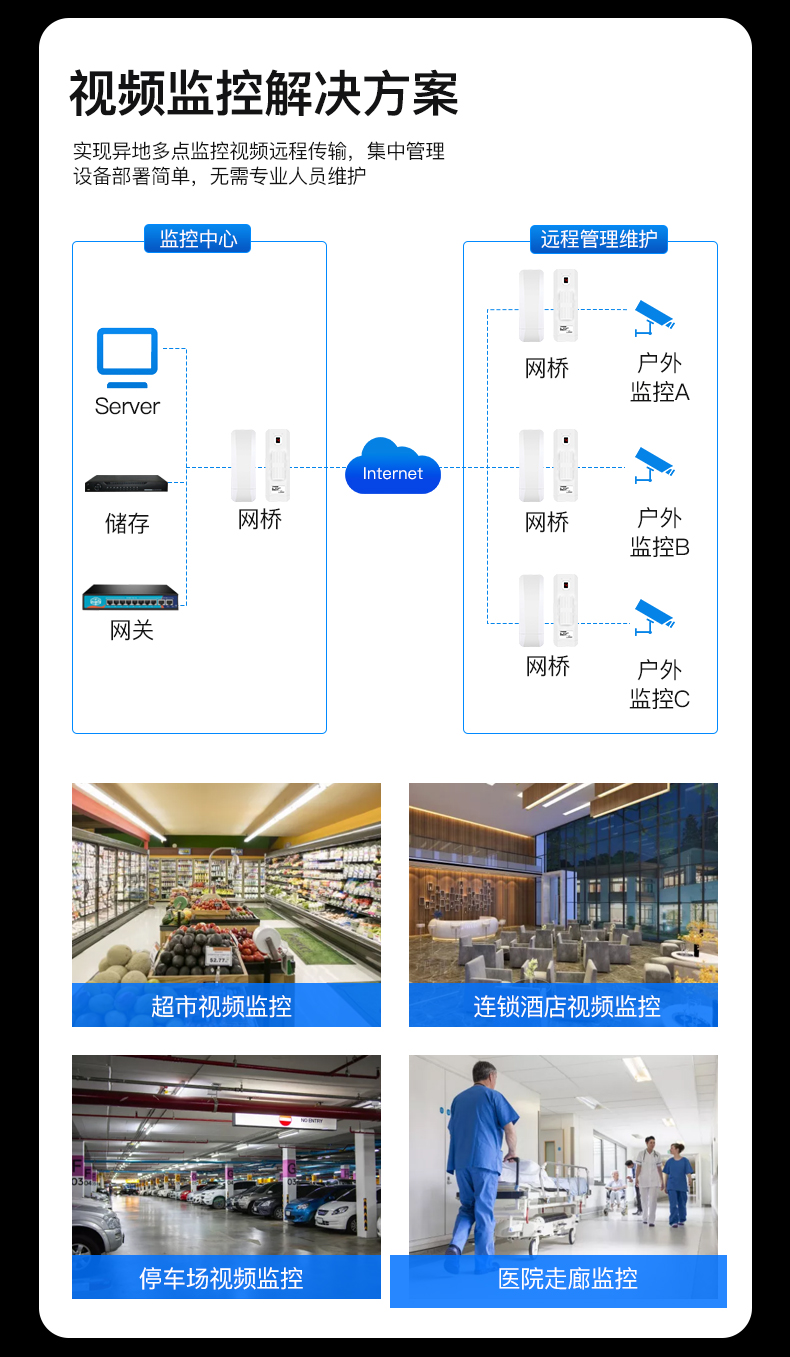

Point-to-Point, Point-to-Multipoint (up to eight points)

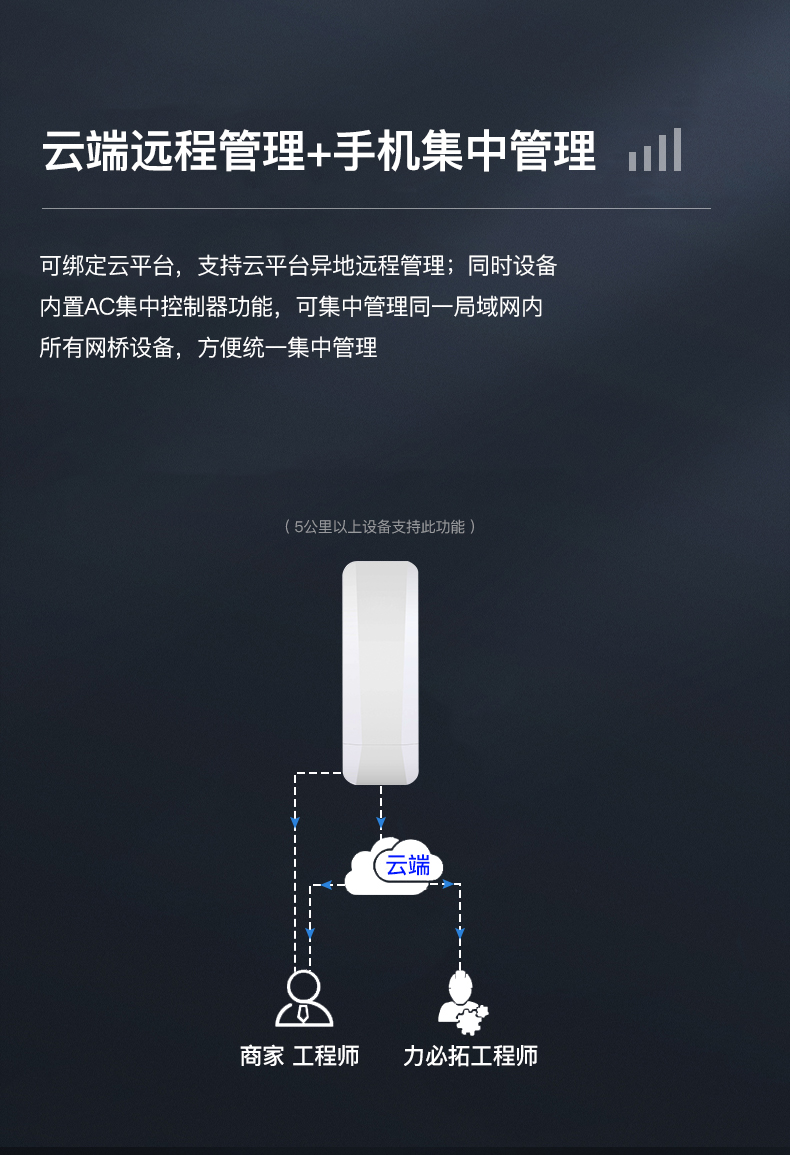

Management Method

Chinese language WEB remote management / Local

centralized management platform for bulk

management

Status

The system state/Bridge Status/Interface Status

Bridge

Wireless Mode: Bridge access point/Bridge client

Bridge access point: Bridge SSID/Encryption/Bridge

Password/Wireless protocol/Wireless bandwidth/

Wireless channel/Wireless TX power

Bridge client: Bridge SSID/Encryption/Bridge

Password/MAC /Wireless channel/Wireless TX power

Network

Obtain IP address: Automatic acquisition/Static IP

IP address/Subnet mask/Gateway/DNS1/DNS2

System

System Debug/Change Password/Reboot/Reset

/Upgrade
