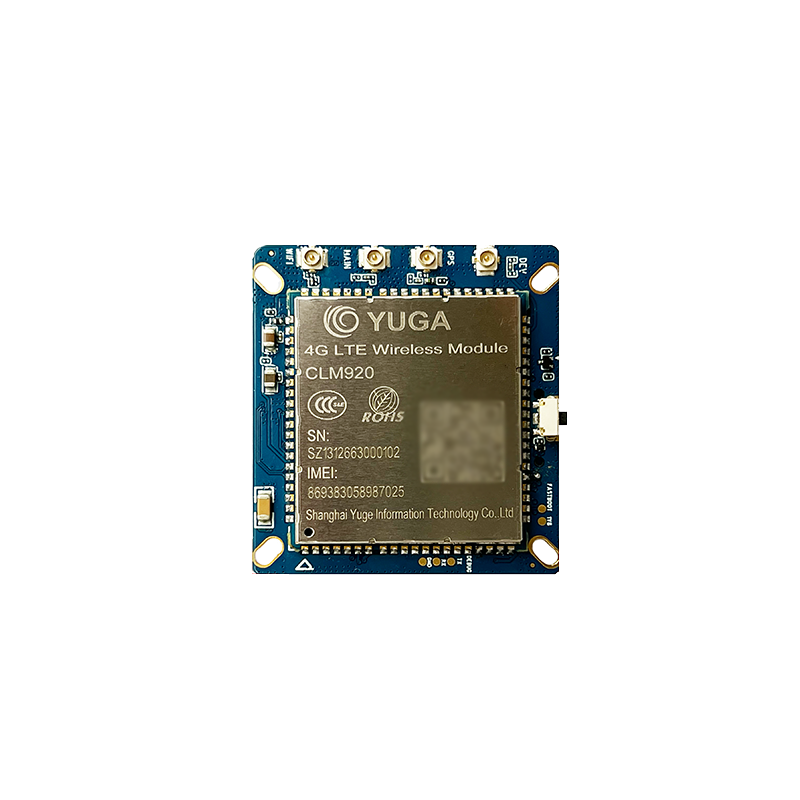

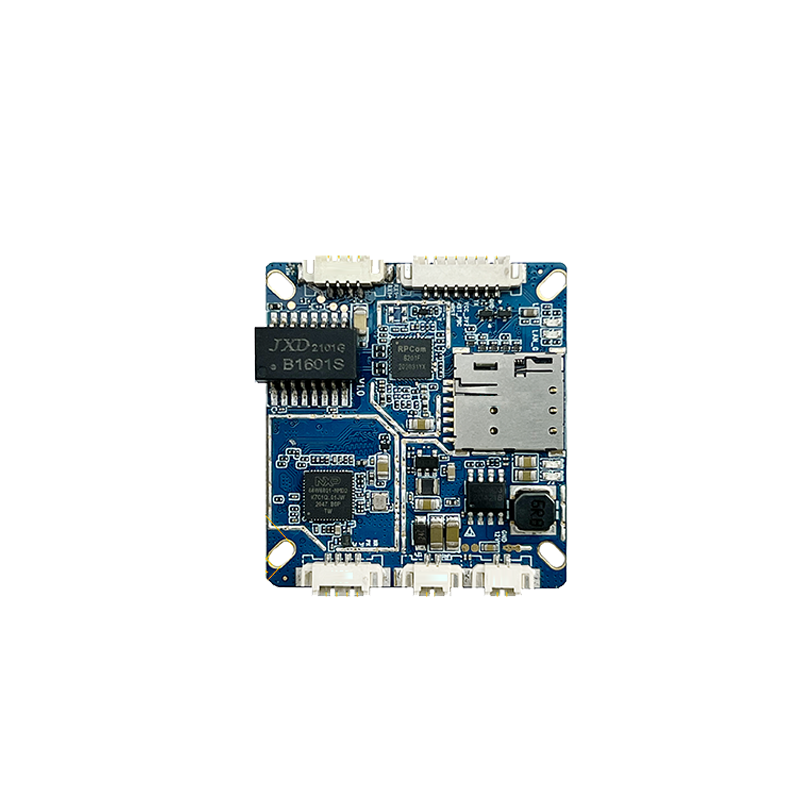

M400-C1

  • Product details
  • Data download
  • Video and Documents


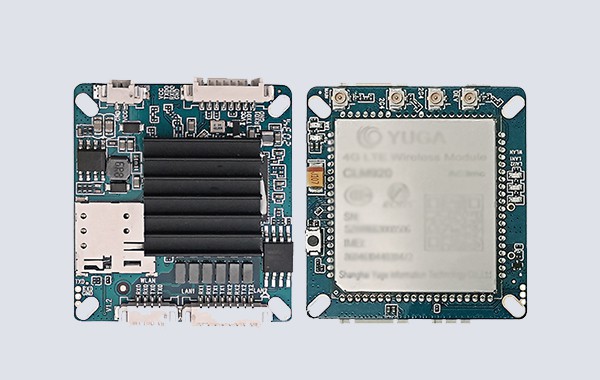

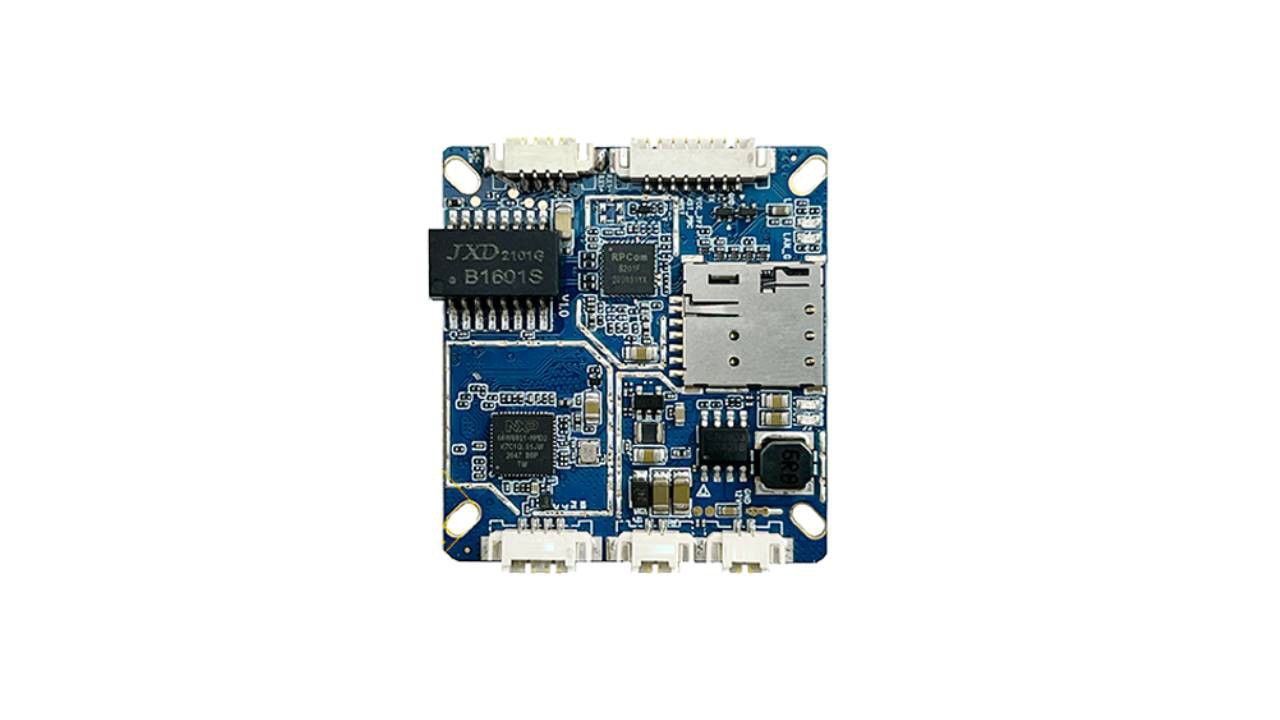

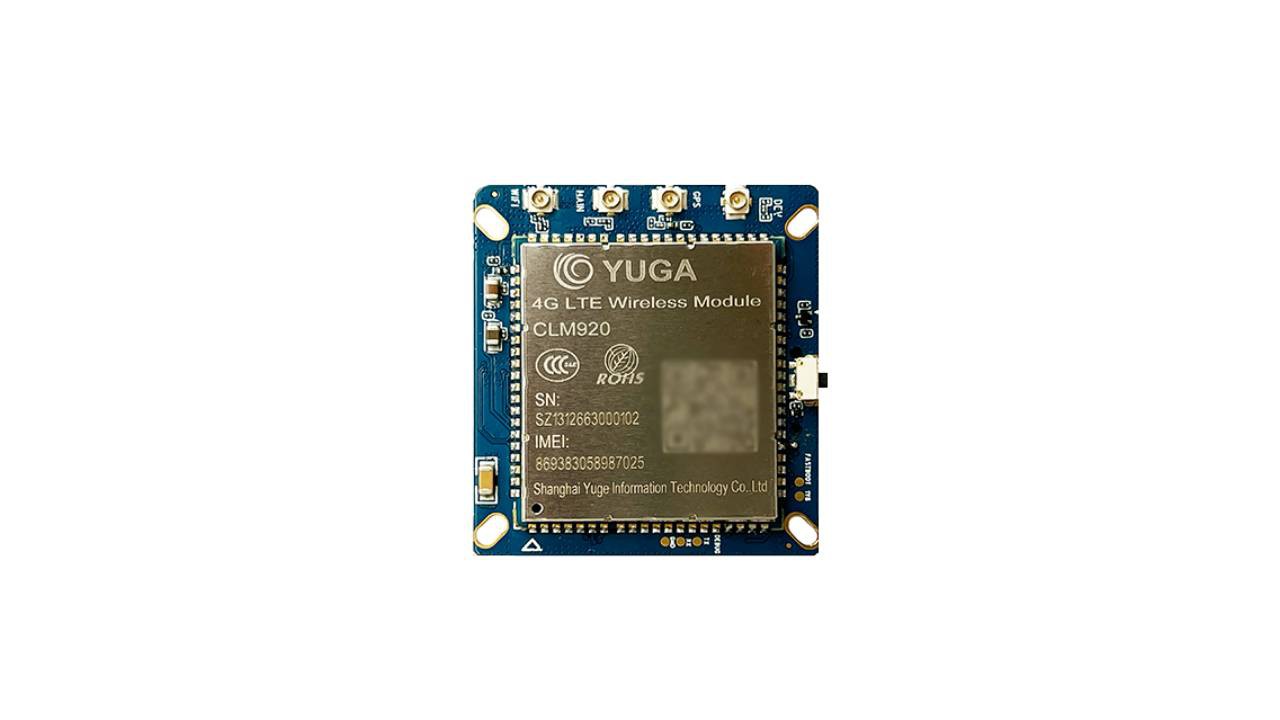

Product overview


The multi-functional 4G industrial router module is a module supporting 3-port Ethernet, WIFI LAN (802.11 B/G/n) communication, serial DTU, and WAN 4G wireless

 communication functions, realizing seamless connection between wireless LAN and wireless WAN, and providing users with high-speed, safe, and reliable mobile

broadband services. The camera can be fixed to transmit images through the 4G network to provide a stable and reliable network channel for various devices that

need to be connected to the Internet. The Ethernet port, TTL serial port and WIFI are used to provide a variety of easy-to-use network access methods for customers' applications, which simplifies the network development needs to the greatest extent.

Support WEB configuration mode, convenient and simple management.


Product Features

1, ultra-small size, length and width of only 38.0 * 43.5 * 7.5mm

2. 4G wireless communication module of MDM9X07 platform and ASR platform can be freely carried.

(MDM9X07 platform: CLM920 _ NC3, CLM920 _ TE3 ASR platform: CLM920 — JC3)

3, intelligent anti-drop, support online detection, drop automatic redial, to ensure that the device is always online

4. Support serial port data serial port TCP/UDP transparent data transmission

5. Support web software upgrade


Hardware Parameters


Product size

38.0*43.5*7.5mm(L×W×H)

Power supply

Dc power supply：6-25V/3A

GPS

Customizable GNSS positioning module, supporting RTK technology, and capable of using a variety of satellite systems (GPS, GLONASS, Beidou, WAAS, EGNOS, MSAS, GAGAN) as a mixed engine.

External interface

Protection grade

Reset button: 1

Indicator lights: 5

Antenna interfaces: 1-5 (optional)

SIM card slots: 1

Terminal power supply interface: 1

TTL interface: 1

LAN ports: 3 (LAN1 is WAN/LAN adaptive)

Indicator light

LINK, SYS, WAN/LAN1 to LAN2

Antenna

IPEX1 Mother Board

Storage memory

Storage :16MB, memory: 64MB

Authentication

CE, FCC, CCC

Power consumption (current)

less than 400 mA

Operating temperature

Humidity

Operating temperature: -20 to +70 ° C

Storage temperature: -40 to +80 ° C

Humidity: 5 to 95% (non-condensing)



Feature Data

Basic functions

4G Internet Protocol: 4G Dial-up Internet Access, DHCP/Static IP

Supported number of users: Wired: 30, Wireless: 20

Network functions: NAT, DNAT, DMZ, Port Forwarding

Soft and hardware watchdog design to prevent system freeze. When the router loses connection, it will automatically power off and restart to ensure stable and reliable operation of the equipment.

LTE speed

FDD-LTE：150M DL / 50M UL Cat4

TDD-LTE：130M DL / 35M UL Cat4

Working frequency band

2412-2484MHz

WLAN Security Consultative

OpenSystem, WPA-PSK, WPA2-PSK, WPAPSK/WPA2 PSK, WPA1 / WPA2

WiFi transmission

Rate/Data

Transfer rate: 300Mbps(MAX) (theoretical maximum)

WiFi data:

802.11n:-66 dBm at 300 Mbps/HT 40 MCS7:+1 3.5 dBm

802.11b:-86dBm at 11Mbps/CCK :+18 dBm

802. 11g:-73dBm at 54Mbps/OFDM: +1 3 .5   dBm

System Services

Port triggering, serial port service, firewall, MAC filtering, access control, port blocking, zone settings, factory reset recovery, NTP server settings, system information backup, software upgrade/remote management

Operating system

Browser Requirements

System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0  Safari:1.2.4  Firefox:2.0.0.8



Product packaging size/weight


Product weight (g)

24g

Product dimensions (mm)

38.0*43.5*7.5mm

Packaging size (cm)

14*16cm(Bubble bag)

Product packaging weight (kg)

0.5kg

Outer box dimensions (cm)

71.3*44.3*26.8cm

Container weight estimate (kg)

17kg


Optional frequency bands


4G band

CN：FDD-LTE  B1/3/5/8

TDD-LTE B38/39/40/41

EU：FDD-LTE B1/3/5/7/8/20

TDD-LTE B38/39/40/41

AU:FDD-LTE B1/3/5/7/8/20/28

TDD-LTE B38/40/41

NA：FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66

TDD-LTE B41

SA：FDD-LTE B2/4/5/7/8/28

TDD-LTE B40

J：FDD-LTE B1/3/8/18/19/26

TDD-LTE 41

GL：FDD-LTE B1/2/3/4/5/7/8/17/20/28

TDD-LTE B38/39/40/41

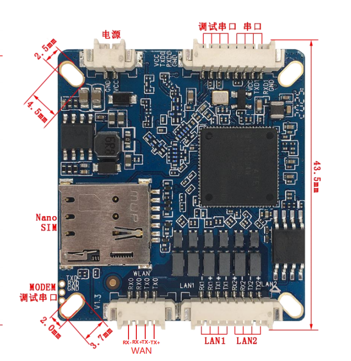

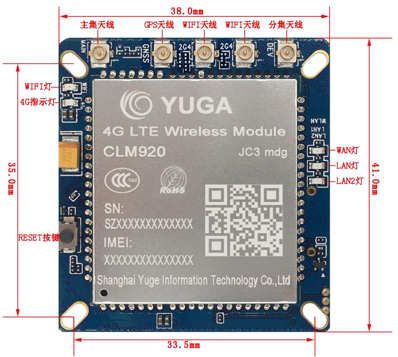

Interface and Positioning Hole Specification
