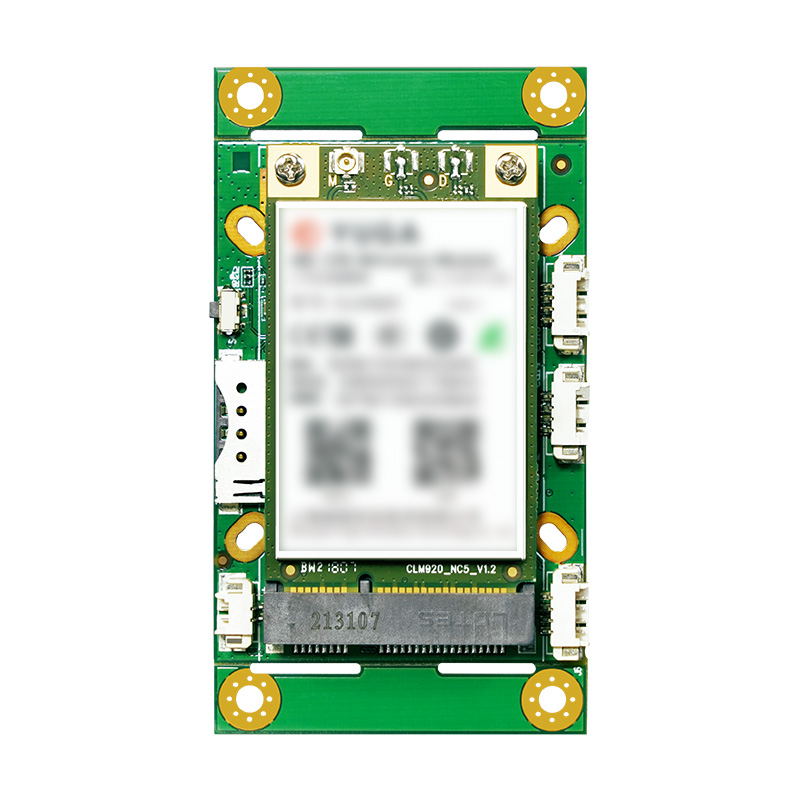

M400-D

  • Product details
  • Data download
  • Video and Documents


Product overview

Multifunctional 4G industrial router module, which supports 2-port Ethernet (1 LAN, 1 WAN), WIFI LAN (802.11 B/G/n) communication, serial DTU, WAN 4G wireless communication function module, realize seamless connection between wireless LAN and wireless WAN, and provide users with high-speed, safe and reliable mobile broadband services. The module supports 4G access of China Mobile, China Unicom, China Mobile and China Telecom. The camera can be fixed to transmit images through the 4G network to provide a stable and reliable network  channel for various devices that need to be connected to the Internet. The Ethernet port, RS232 port, RS485 port and WIFIare used to provide a variety of simple and easy-to-use network access modes for customer applications, whichsimplifies the network development needs to the greatest extent. Support WEB configuration mode, convenient and simple management, and support remote cloud control.


Product Characte



1. Ultra-small size, only 74 X 42 X 12.5mm in length and width;

2. Support hundreds of 4G wireless modules, basically plug and play 3, intelligent anti-drop, support online detection, drop automatic  redial, to ensure that the device is always online

4. Support 4G backup network, seamlessly switch to 4G network when cable is disconnected, and automatically detect cable recovery

5. Cloud remote background management, remote upgrade and remote configuration

6. Support serial port data serial port TCP/UDP transparent data transmission or AT command transmission

7. Support VPN security tunnel function, including PPTP and L2TP

8. Complete and robust router functions, supporting multiple Internet access modes: automatic IP allocation, designated IP, PPPoE

9. Support IPTABLES firewall and various network protocols

10. Support dynamic DDNS: support Peanut Shell, 88IP and dyndns domain name service providers

11. Support serial port local TFTP and web software upgrade




Hardware Parameters



Product size

74*42*12.5mm(L×W×H)

External interface

Protection grade

RS232/485 interface: 1 unit (customized required) (2.0mm 4PIN connector)

LAN port: 2 units (LAN1 is WAN/LAN adaptive)

Reset button: 1 unit

Terminal power supply interface: 1 unit

Indicator lights: 3 units

Antenna interface: 1-3 units (optional)

SIM card slot: 1 unit

Power supply

DC power supply：5-12V/ 1A

Indicator light

LINK 、SYS 、WiFi

Antenna

IPEX First Generation Mother Head

Authentication

 CE 、FCC 、CCC

Storage memory

Storage :16MB, memory: 64MB

Power consumption (current)

less than 400 mA

Operating temperature

Humidity

Operating temperature: -20 to +70 ° C

Storage temperature: -40 to +80 ° C

Humidity: 5 to 95% (non-condensing)



Feature Data



Basic Features

4G Internet Protocol: 4G Dial-up Internet Access, DHCP/Static, IP/PPPoE

Supported number of users: Wired: 253, Wireless: 30

VPN Protocol: PPTP Client, L2TP Client (only supported in dedicated network version)

WiFi Protocol: IEEE802.11b/g/n

Port Protocol: NAT, DNAT, DMZ, Port Forwarding

Dynamic DNS: Supports Huaxia Shell, 88IP and dyndns domain name service providers

Operating frequency band

 2400-2483.5MHz

WiFi transmission

Rate/Data

Transfer rate: 300Mbps(MAX) (theoretical maximum)

WiFi data:

802.11n:-66 dBm at 300 Mbps/HT 40 MCS7:+1 3.5 dBm

802.11b:-86dBm at 11Mbps/CCK :+18 dBm

802. 11g:-73dBm at 54Mbps/OFDM: +1 3 .5   dBm

WLAN Security Consultative

 OpenSystem 、WPA-PSK 、WPA2-PSK、WPAPSKWPA2PSK、 WPA1WPA2

System Services

Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management

Operating system

Browser Requirements

System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0  Safari:1.2.4  Firefox:2.0.0.8



Product packaging size/weight




Product weight (g)

 24g

Product dimensions (mm)

 74*42*12.5mm

Packaging size (cm)

 14*16cm(Bubble bag)

Product packaging weight (kg)

 0.5kg

Outer box dimensions (cm)

 71.3*44.3*26.8cm

Container weight estimate (kg)

 17kg



Optional frequency bands


4G band

CN：FDD-LTE  B1/3/5/8

TDD-LTE B38/39/40/41

EU：FDD-LTE B1/3/5/7/8/20

TDD-LTE B38/39/40/41

AU:FDD-LTE B1/3/5/7/8/20/28

TDD-LTE B38/40/41

NA：FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66

TDD-LTE B41

SA：FDD-LTE B2/4/5/7/8/28

TDD-LTE B40

J：FDD-LTE B1/3/8/18/19/26

TDD-LTE 41

GL：FDD-LTE B1/2/3/4/5/7/8/17/20/28

TDD-LTE B38/39/40/41

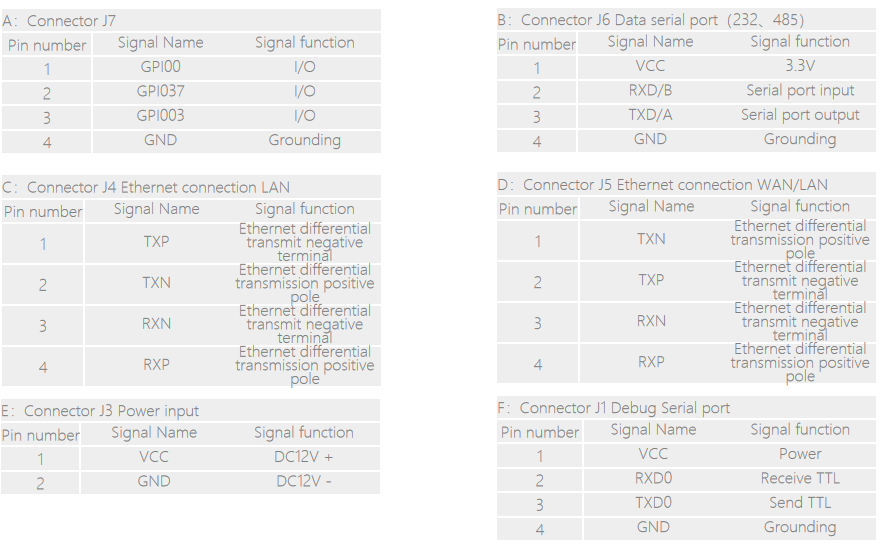

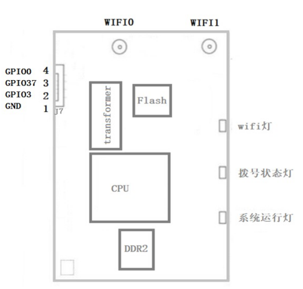

Interface Description


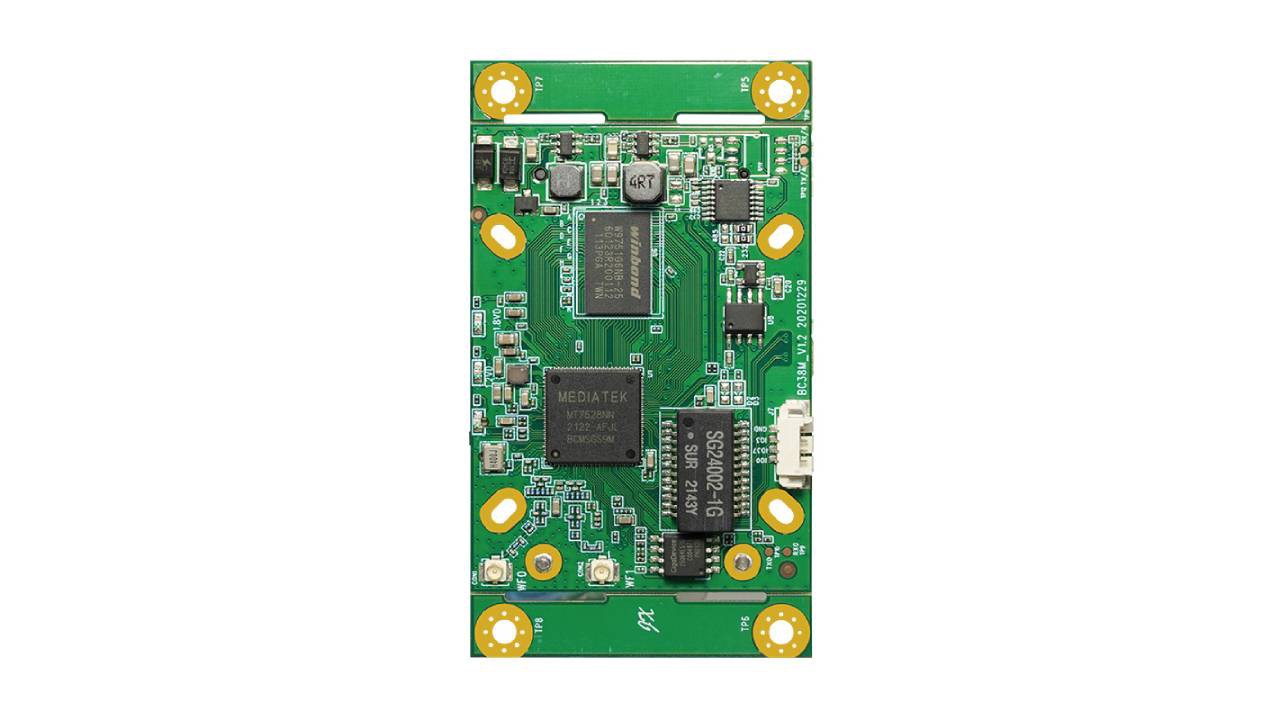

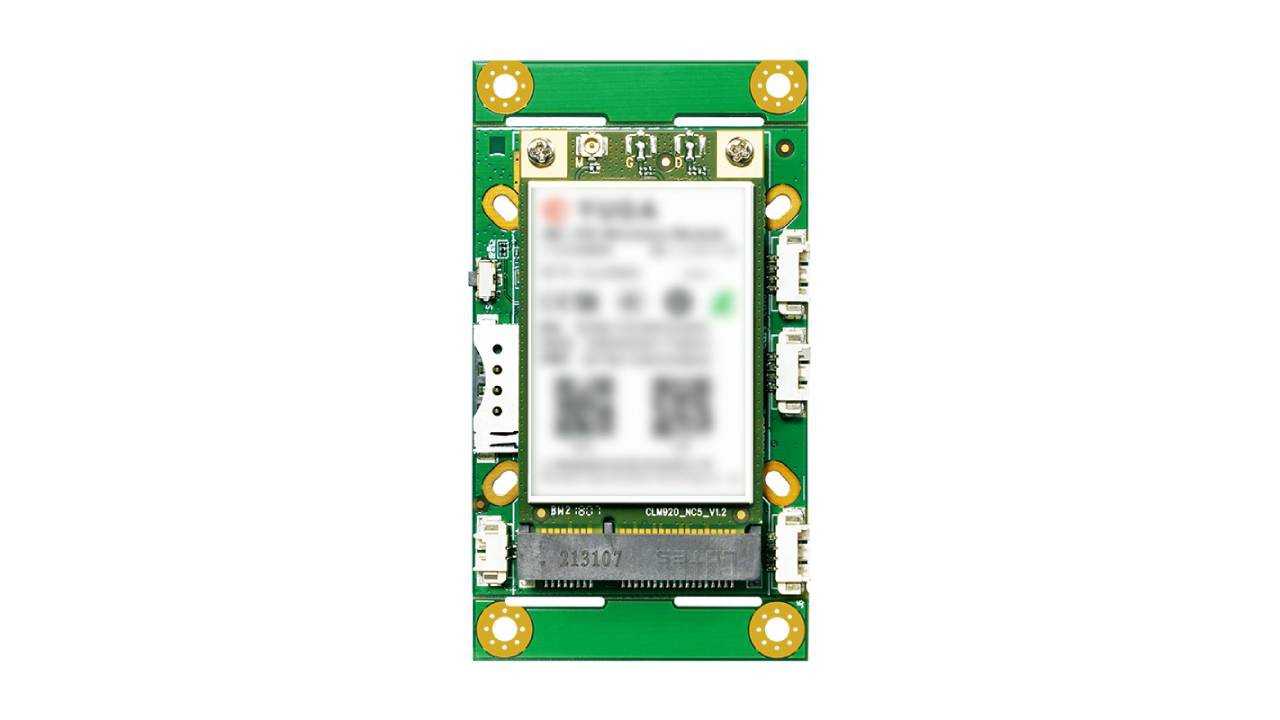

                                     A                                                                       B

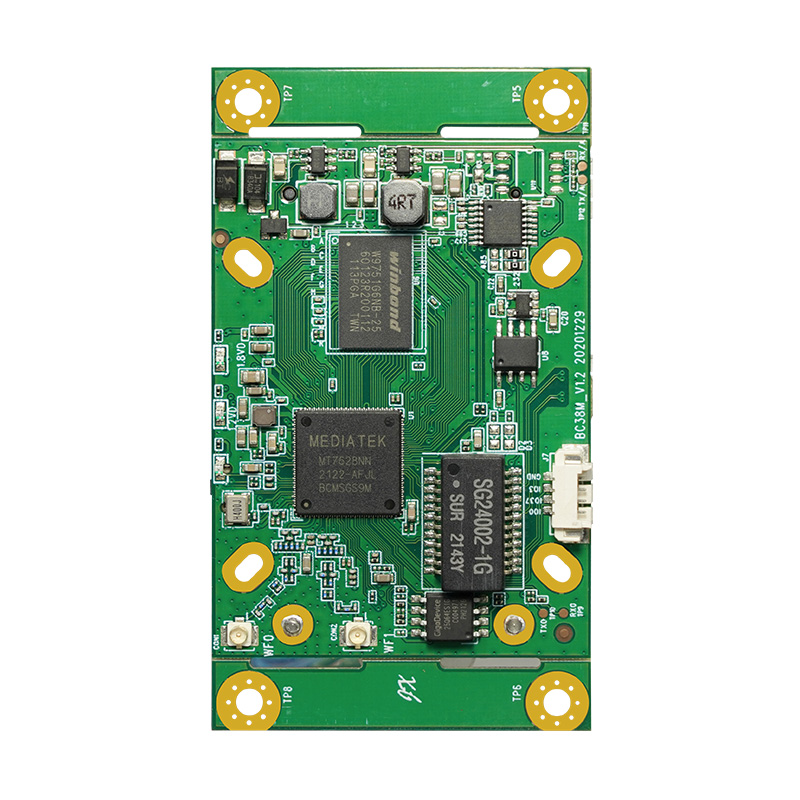

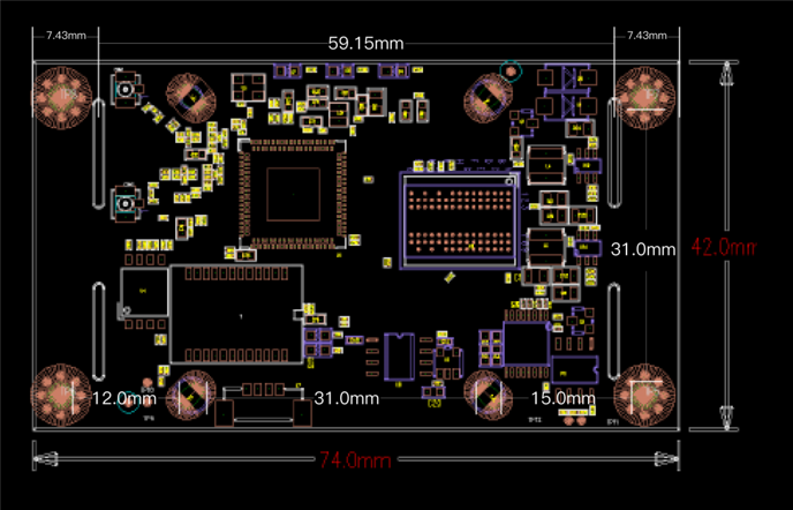

Exterior positioning hole illustration
