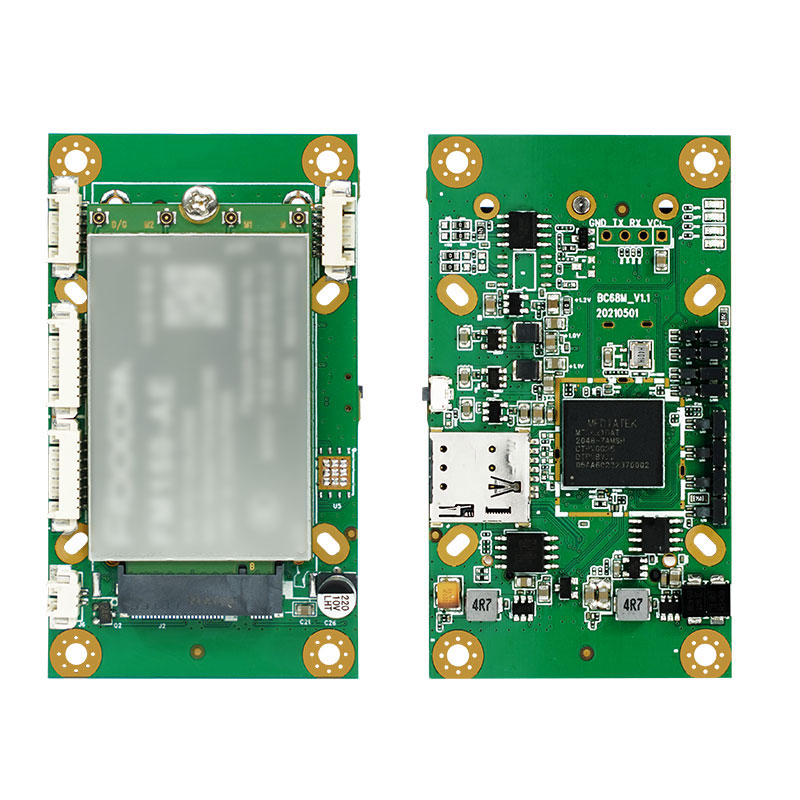

Product overview


The multi-functional 5G industrial router module is a module supporting 2-port Gigabit Ethernet, dual serial port D, and wide area network 5G wireless communication functions. The module firmware is loaded with wide area network

communication, VPN tunnel and other functions, providing users with high-speed, safe and reliable mobile broadband services. The module supports 5G access of China Mobile, China Unicom, China Mobile and China Telecom.

The 5G industrial router module can fix the camera to transmit images through the 5G network. Provide stable and reliable network channels for all kinds of devices that need to be connected to the Internet, and use Ethernet Network, RS232 port/RS485 port provide a variety of easy-to-use network access methods for customer applications, which simplifies the network development needs to the greatest extent. Support WEB configuration mode, convenient and simple management, and support remote cloud control.


Product characte


1, ultra-small size, length and width of only 74.09 X 41.92 X 9.45mm

2, support a variety of 5G wireless modules, basically plug and play

3,intelligent anti-drop, support online detection, drop automatic redial, to ensure that the device is always online

4. Support 5G backup network, seamlessly switch to 5G network when cable is disconnected, and automatically detect cable recovery

5. Cloud remote background management, remote upgrade and remote configuration

6. Support serial port data serial port TCP/UDP transparent data transmission or AT command transmission

7. Support VPN security tunnel function, including PPTP and L2TP

8. Complete and robust router functions, supporting multiple Internet access modes: automatic IP allocation, designated IP, PPPoE

9. Support IPTABLES firewall and various network protocols

10. Support dynamic DDNS: support Peanut Shell, 88IP and dyndns domain name service providers

11. Support serial port local TFTP and web software upgrade




Hardware Parameters



Product size

74.09*41.92*9.45mm(L×W×H)

External interface

Protection grade

RS232/485 interface: 2 (2.0mm 4PIN connectors)

LAN port: 2 (LAN1 is WAN/LAN adaptive)

Reset button: 1

Terminal power supply interface: 1

Indicator lights: 4

Antenna interface: 1-3 (optional)

SIM card slot: 1

Power supply

DC power supply：12V/2A

Indicator light

LINK 、SYS 、ETH0-1

Antenna

IPEX 4 generation connector socket

Authentication

 CE 、FCC 、CCC

Storage memory

Storage :16MB, memory: 128MB

Power consumption (current)

less than 400 mA

Operating temperature

Humidity

Operating temperature: -20 to +70 ° C

Storage temperature: -40 to +80 ° C

Humidity: 5 to 95% (non-condensing)



Feature Data


Basic Features

4G Internet Protocol: 4G Dial-up Internet Access, DHCP/Static, IP/PPPoE

Supported number of users: Wired: 253, Wireless: 30

VPN Protocol: PPTP Client, L2TP Client (only supported in dedicated network version)

WiFi Protocol: IEEE802.11b/g/n

Port Protocol: NAT, DNAT, DMZ, Port Forwarding

Dynamic DNS: Supports Huaxia Shell, 88IP and dyndns domain name service providers

System Services

Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management

Operating system

Browser Requirements

System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0  Safari:1.2.4  Firefox:2.0.0.8



Product packaging size/weight



Product weight (g)

24g

Product dimensions (mm)

74.09*41.92*9.45mm

Packaging size (cm)

14*16cm(Bubble bag)

Product packaging weight (kg)

0.5kg

Outer box dimensions (cm)

71.3*44.3*26.8cm

Container weight estimate (kg)

17kg




Optional frequency bands


4G Band

CN：FDD-LTE  B1/3/5/8

TDD-LTE B38/39/40/41

EU：FDD-LTE B1/3/5/7/8/20

TDD-LTE B38/39/40/41

AU:FDD-LTE B1/3/5/7/8/20/28

TDD-LTE B38/40/41

5G Band

(Optional)

GN(Qualcomm)：

5G Sub-6: n1/28/41/77/78/79

LTE FDD: B1/2/3/5/7/8

LTE TDD: B34/39/40/41

GN(ZESHI):

5G Sub-6: n1/28/41/78/79

LTE FDD: B1/2/3/5/7/8

LTE TDD: B34/38/39/40/41

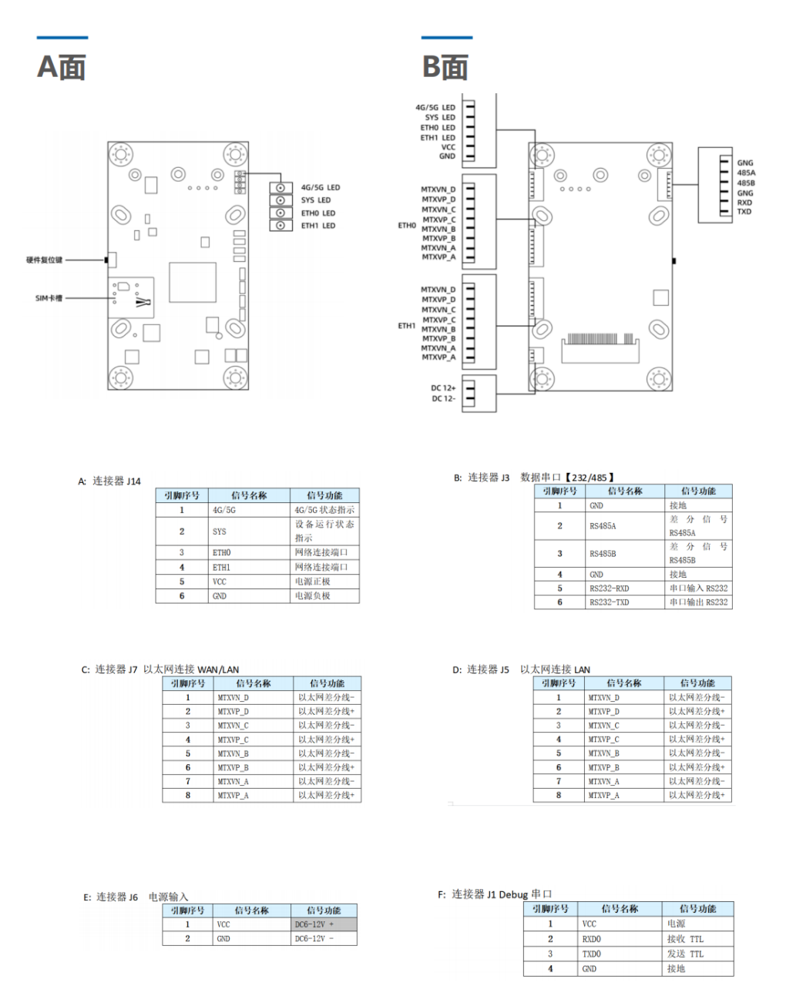

Interface Description
