M500

  • Product details
  • Data download
  • Video and Documents

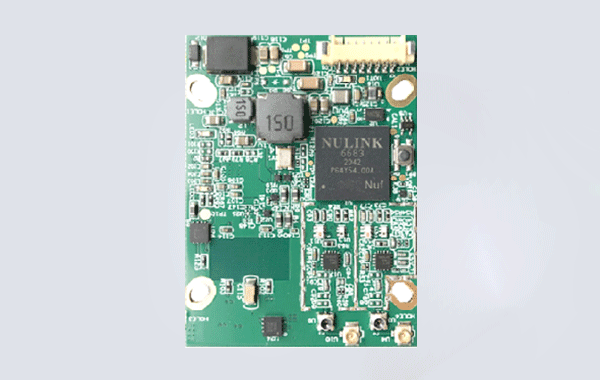

This module is a 5G private network wireless communication module developed based on EUHT-5G technology and the NL6683 platform. Its size is 51x38x8.5mm and its weight is approximately 15 grams. The module is equipped with a variety of peripheral interfaces and a powerful software support platform. It has a friendly secondary development software and hardware platform, which can support multiple peripheral devices, support the standard AT instruction set, and meet the rich business function requirements of users.


Hardware Parameters



Product size

51*38*10.5mm(L×W×H)

External interface / Protection level

RS232/485 interface: 1 unit (customized required) (2.0mm 4PIN connector)

LAN port: 2 units (LAN1 is WAN/LAN adaptive)

Reset button: 1 unit

Terminal power supply interface: 1 unit

Indicator lights: 3 units

Antenna interface: 1-3 units (optional)

Power supply

DC：9-24V/0.5A

Indicator light

pwr、sys

Antenna

IPEX First Generation Mother Head

Certification

 CE 、FCC 、CCC

Storage memory

Storage: 8MB, Memory: 64MB

Power consumption (current)

Less than 3W

Work environment

Operating temperature: -30 to +70°C

Storage temperature: -40 to +85°C

Humidity: 5 to 95% (no condensation)



Feature Data


Basic functions

4G Internet Protocol: 4G Dial-up Internet Access, DHCP/Static, IP/PPPoE

Supported number of users: Wired: 253, Wireless: 30

VPN Protocol: PPTP Client, L2TP Client (only supported in dedicated network version)

WiFi Protocol: IEEE802.11b/g/n

Port Protocol: NAT, DNAT, DMZ, Port Forwarding

Dynamic DNS: Supports Huaxia Shell, 88IP and dyndns domain name service providers

Working frequency band

 2400-2483.5MHz

WiFi

Transmission rate / Data

Transmission rate: 300Mbps (MAX) (Theoretical maximum value)

WiFi data:

802.11n: -66dBm at 300Mbps

HT40MCS7: +15.5 dBm

802.11b: -86dBm at 11Mbps CCK:+18 dBm

802. 11g:-73dBm at 54Mbps

OFDM: +15.5 dBm

WLAN Security Consultative

WPA-PSK 、WPA2-PSK、WPAPSK/WPA2PSK、 WPA1/WPA2

System service

Virtual server, port triggering, serial port service, firewall, MAC filtering, access control, port blocking, area settings, restore factory settings, NTP server settings, backup system information, software upgrade/remote management

Operating system

Browser Requirements

System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0  Safari:1.2.4  Firefox:2.0.0.8



Product packaging size/weight



Product weight (g)

 5.2g

Product dimensions (mm)

51*38*10.5mm

Packaging size (cm)

 14*16cm(Bubble bag)

Product packaging weight (kg)

 0.5kg

Outer box dimensions (cm)

 71.3*44.3*26.8cm

Container weight estimate (kg)

 17kg



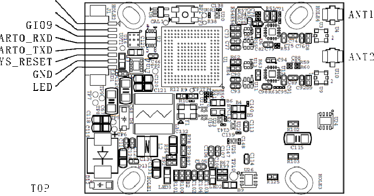

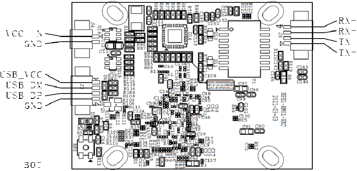

Interface Description


                                                    A                                                                                                  B


Housing positioning holes
