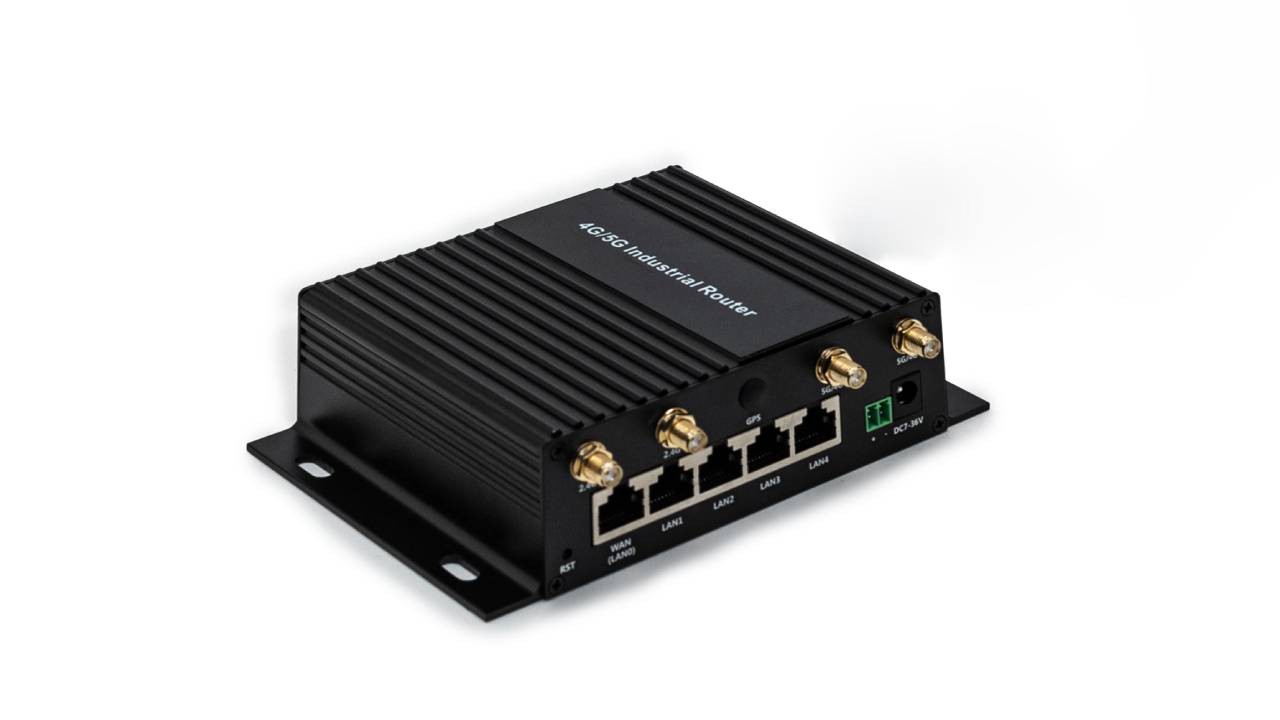

4G industrial router for remote monitoring / solar / vending
T300-390 industrial wireless router is a wireless communication product with excellent performance developed by Shenzhen Libiton Technology Co., Ltd. based on 4G/5G network demand. It is mainly used in the data transmission business of industry users, supporting transparent data transmission, image transmission, equipment monitoring and wireless routing Internet access and other functions.The T390 uses an embedded high-performance CPU to effortlessly handle advanced applications such as routing and security, and can be paired with a variety of 4G/5G industrial communication modules (TDD-LTE/FDD-LTE networks, 5G-SA/NSA). Provide 10/100M Ethernet port, WIFI wireless interface, serial port and DO port. A variety of terminal devices can be docked.Support WEB configuration mode, convenient and simple management, and support remote cloud control.
Product features
1. Adopt high-performance industrial wireless module;
2. Support 5G NR Sub6 (SA/NSA). 5G RedCap.4G (FDD-LTE/TDD-LTE), -- selection required;
3. Adopt metal shell with protection grade of IP30;
4. Standard RJ45 (Ethernet) interface with built-in lightning protection 3000V (non-standard configuration needs to be customized);
5, wide voltage current input: DC7-35V/3A;
6. (Optional)Support 2 channels of analog input/control output with photoelectric quarantine, which can be used for vehicle diagnosis alarm, vehicle flameout control, etc.
7. Software and hardware watchdog anti-crash design, after the router is disconnected, it will automatically power off and restart to ensure the stable operation of the equipment;
8, automatic detection of network disconnection, automatic restart of dialing failure, timing restart and other functions;
9. Serial port transparent transmission function. The command control mode can be entered through the serial port to control the router and ancillary equipment;
10. Support multiple DDNS dynamic domain name services;
11. Port mapping, DMZ host and other functions;
12. Support VPN (PPTP Client, L2TP Client);
13, optional GNSS positioning module, support RTK technology, support multiple satellite systems (GPS, GLONASS, Beidou, WAAS, EGNOS, MSAS, GAGAN) hybrid engine);
14. Optional CAN standard communication protocol interface;
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: 390-CN-4GA-W4-S1-RS232; Version 390, China 4G domestic solution, single band WiFi4, single card, protocol RS232, no customization Note: Some versions do not allow customization of the above content. | |||||
Hardware Parameters
Product size | 143*102.7*31mm(L×W×H)(antenna interface excluded) |
Power supply | Dc power supply：7-35V/ 3A |
GPS | Customizable GNSS positioning module, supporting RTK technology, and featuring a hybrid engine compatible with multiple satellite systems (GPS, GLONASS, Beidou, WAAS, EGNOS, MSAS, GAGAN). |

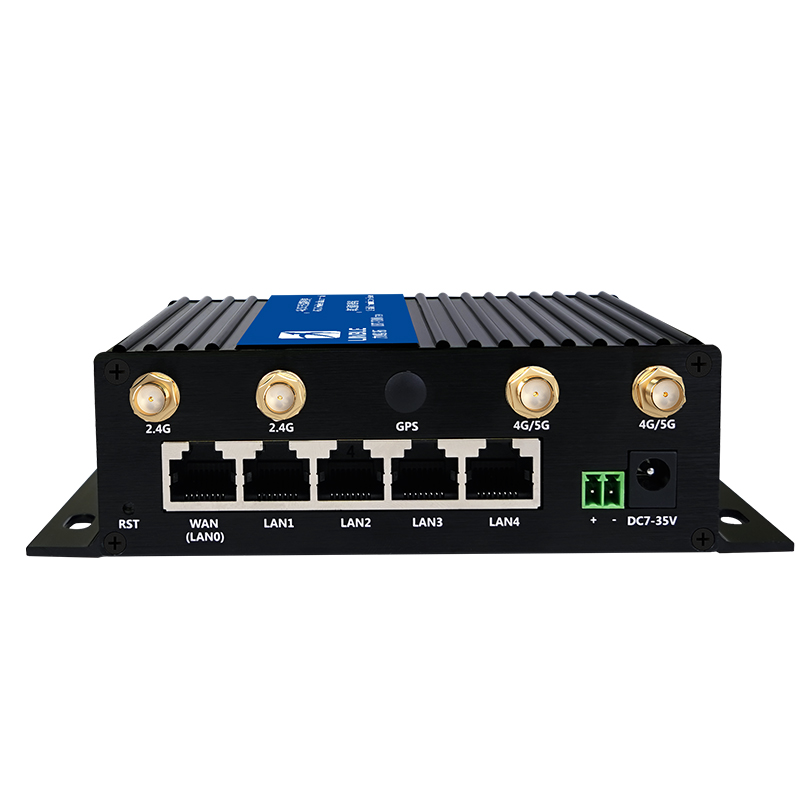

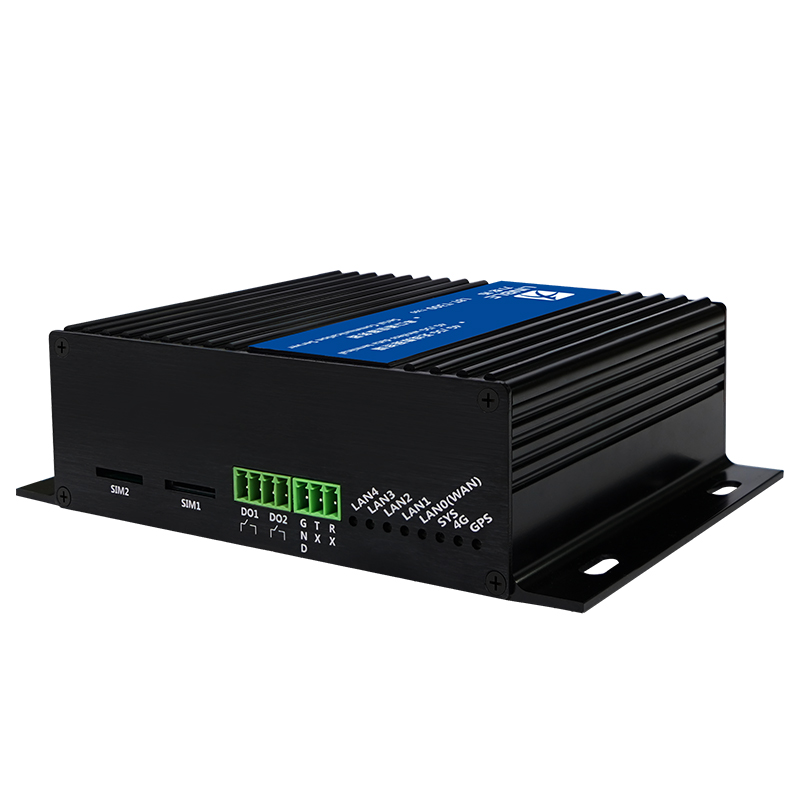

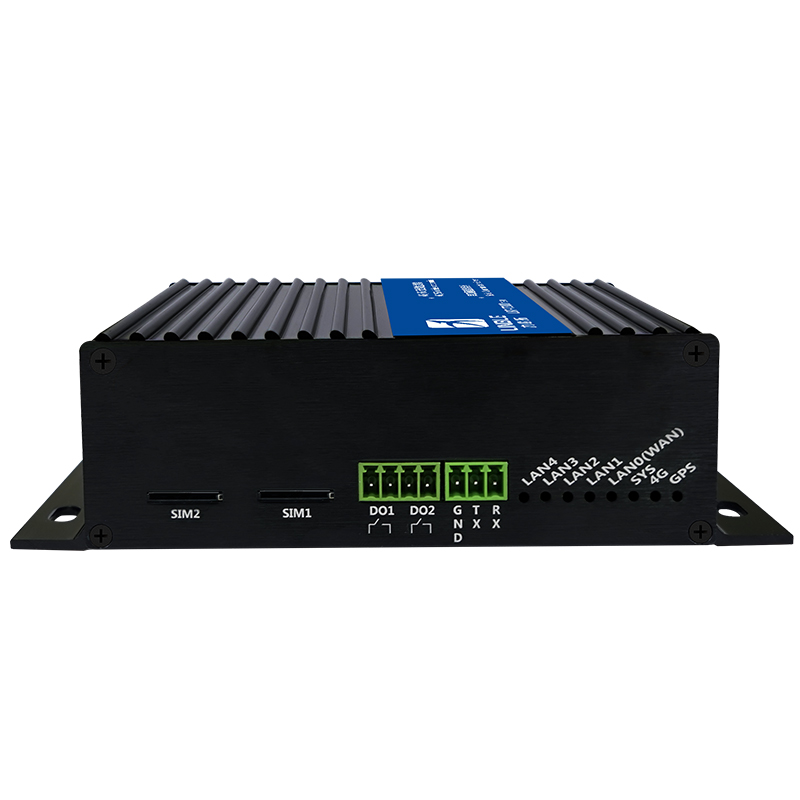

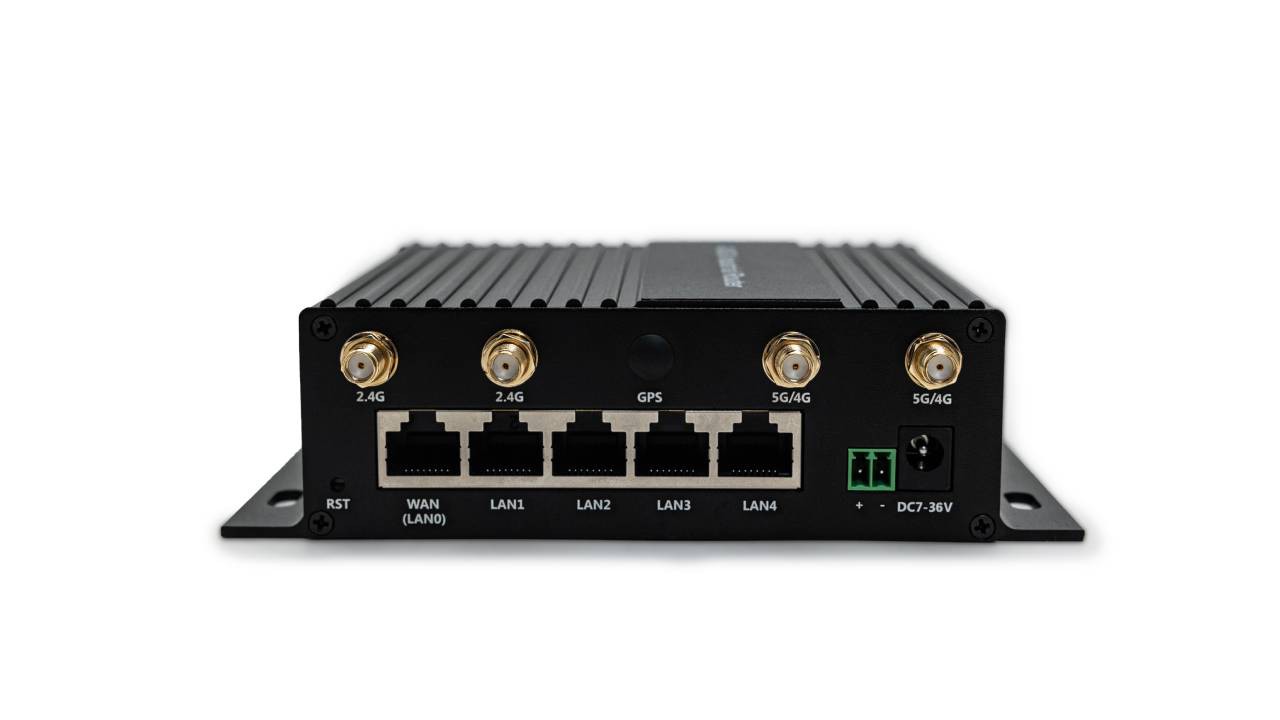

External interface Protection grade | Reset key: 1 LED indicators: 8 Antenna interface: 1–7 (customizable) SIM card slots: 1–2 (customizable) DC power input/terminal power supply: 2.1mm round power jack (recommended power >10W), 2-pin female terminal Edg3.5mm RS232/485 interface: 1 (customizable) (2.0mm 4PIN connector) LAN ports: 5 (WAN/LAN0 switchable) Digital output (DO) ports: 2 (customizable) Protection rating: IP30 |
Indicator light | LINK 、SYS 、WAN/LAN0~LAN4 |
Antenna | SMA external rotating inner hole |
Storage memory | Storage :8MB, memory: 64MB |
Power consumption (current) | 4G: less than 400 mA 5G: less than 800mA |
Authentication | CE, FCC, CCC |
Operating temperature Humidity | Operating temperature: -20 to +70 ° C Storage temperature: -40 to +80 ° C Humidity: 5 to 95% (non-condensing) |
Feature Data
Basic Features | 4G Internet Protocol: 4G Dial-up Internet via DHCP/Static IP/PPPoE Supported User Count: Wired: 253, Wireless: 30 VPN Protocols: PPTP Client, L2TP Client (supported only in dedicated network version) Wi-Fi Protocols: IEEE 802.11b/g/n Network Features: NAT, DNAT, DMZ, Port Forwarding |
Operating frequency band | 2412-2472MHz |
WiFi transmission Rate/Data | Transfer rate: 300Mbps(MAX) (theoretical maximum) WiFi data: 802.11n:-66dBm at 300 Mbps HT40MCS7:+14dBm(±2dB) 802.11b:-86dBm at 11Mbps/CCK:+14dBm(±2dB) 802. 11g:-73dBm at 54Mbps/OFDM:+14dBm(±2dB) |
WLAN Security Consultative | OpenSystem, WPA-PSK, WPA2-PSK, WPAPSK/WPA2 PSK, WPA1 / WPA2 |
System Services | Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 |
Product packaging size/weight
Product weight (g) | 338g |
Product dimensions (mm) | 143*102.7*31mm |
Packaging size (cm) | 35*18*7cm |
Product packaging weight (kg) | 1kg |
Outer box dimensions (cm) | 71.3*44.3*26.8cm |
Container weight estimate (kg) | 10kg |
Optional frequency bands
4G band | CN：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 EU：FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 AU:FDD-LTE B1/3/5/7/8/20/28 TDD-LTE B38/40/41 NA：FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41 SA：FDD-LTE B2/4/5/7/8/28 TDD-LTE B40 J：FDD-LTE B1/3/8/18/19/26 TDD-LTE 41 GL：FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |
5G band (Optional) | CN：5G NR NSA:N41/78/79 5GNR SA:N1/8/28/41/78/79 LTE-FDD B1/3/5/8 LTE-TDD：B34/38/39/40/41 EA：5GSA&NSA:N1/3/5/7/8/20/28/38/40/41/71/77/78/79 LTE-FDD：B1/3/5/7/8/18/19/20/28/32 LTE-TDD：B34/38/39/40/41/42 GL:5GNR SA：n1/2/3/5/7/8/12/20/25/28/38/40/41/48/66/71/77/78/79 5G NR NSA：n38/41/77/78/79 LTE-FDD：B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 LTE-TDD：B34/38/39/40/41/42/43/48 |

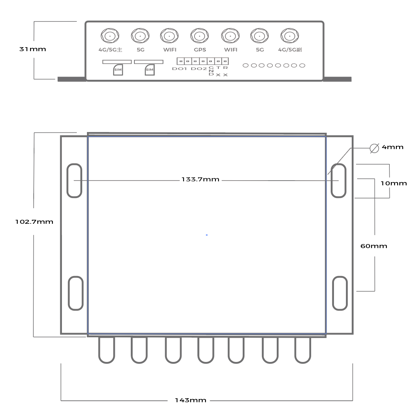

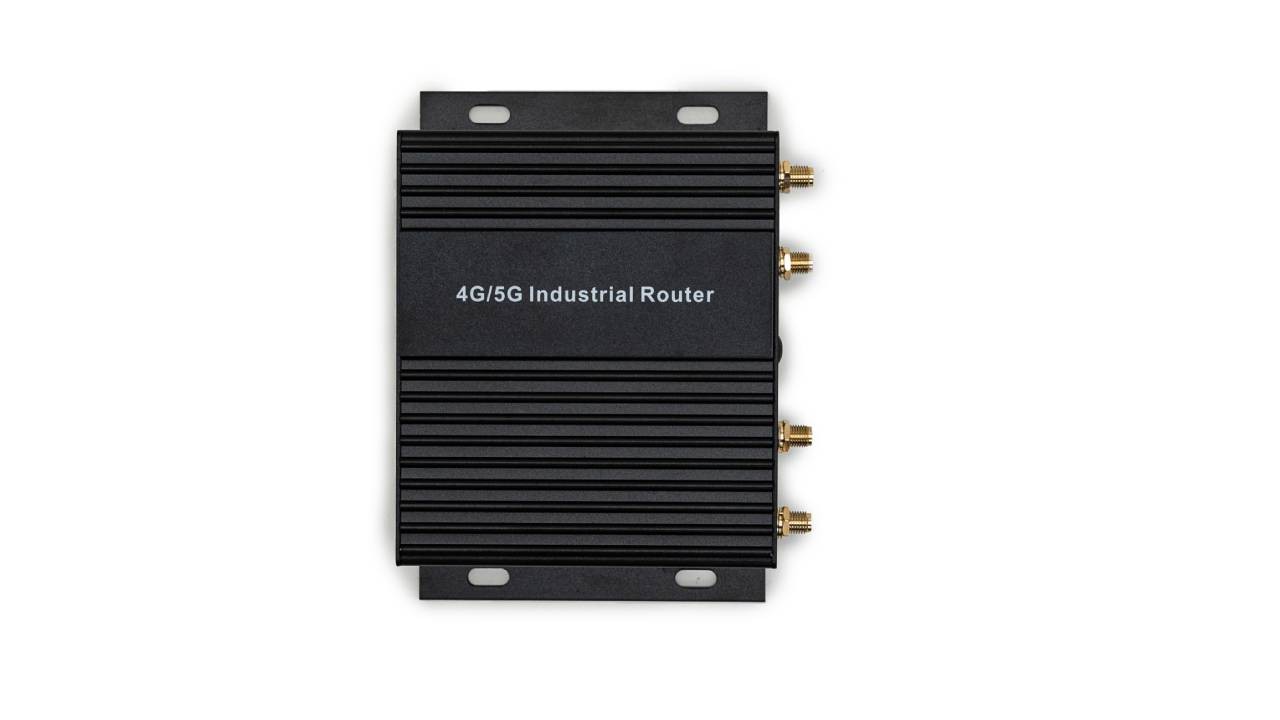

Housing positioning holes

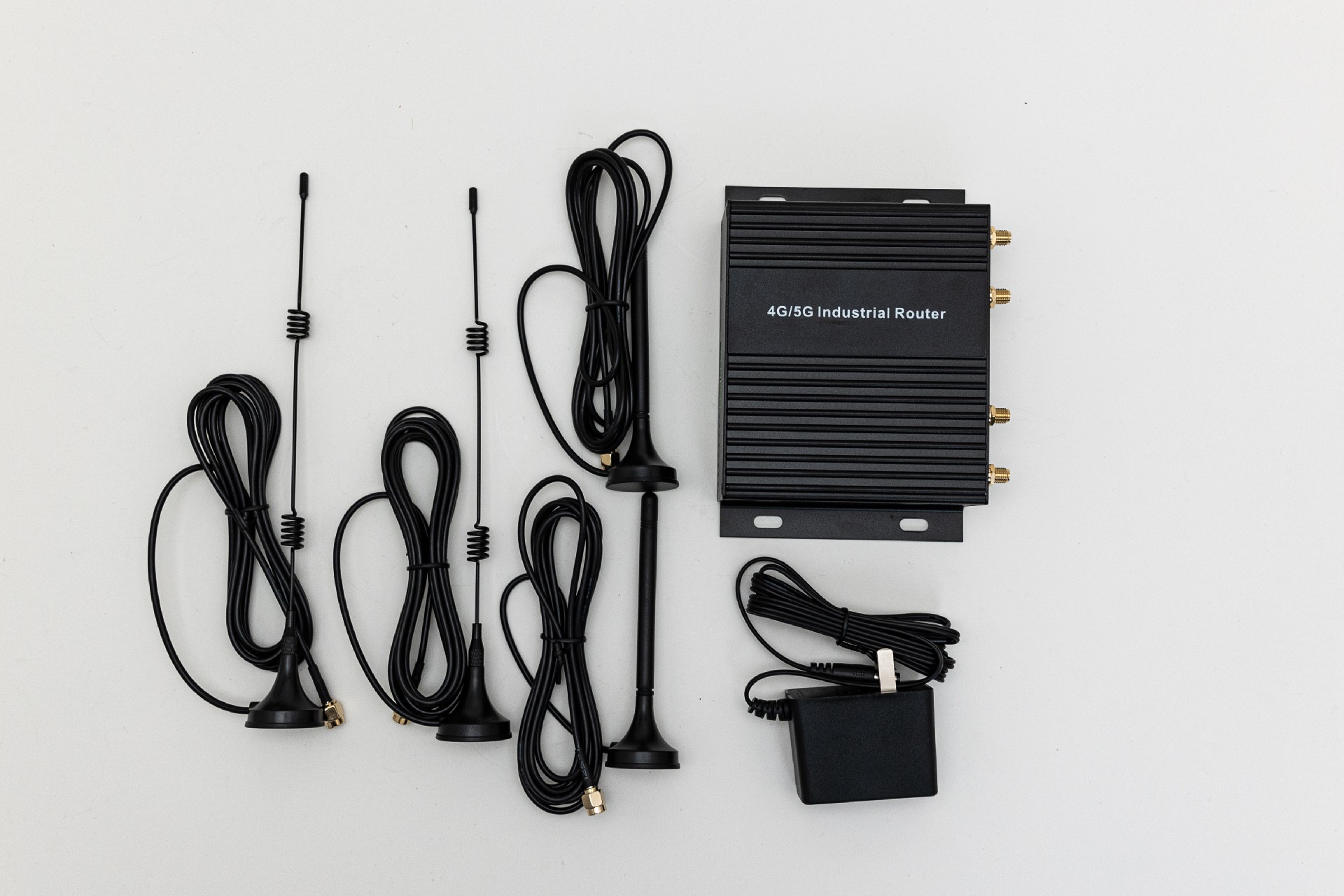

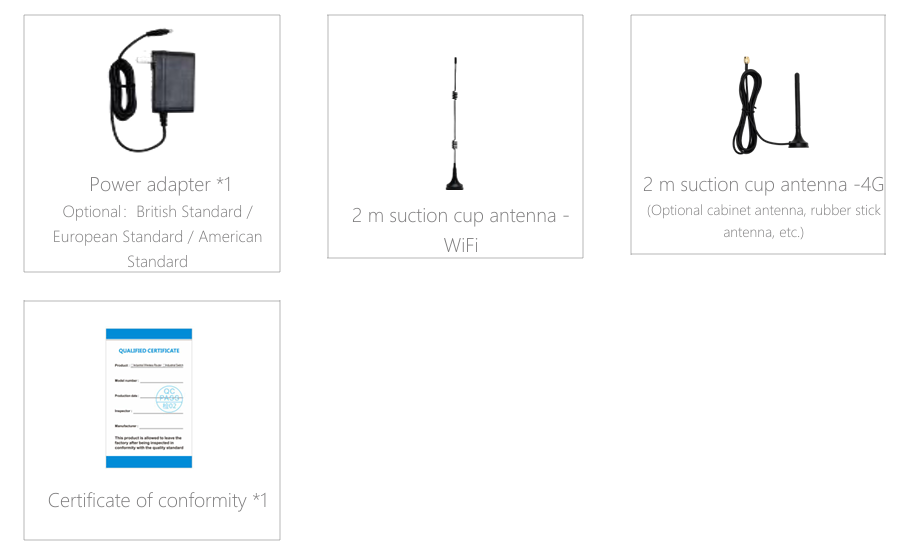

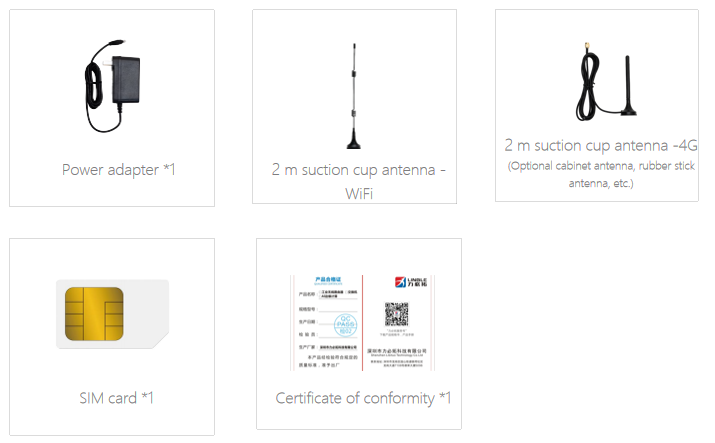

Standard accessories
