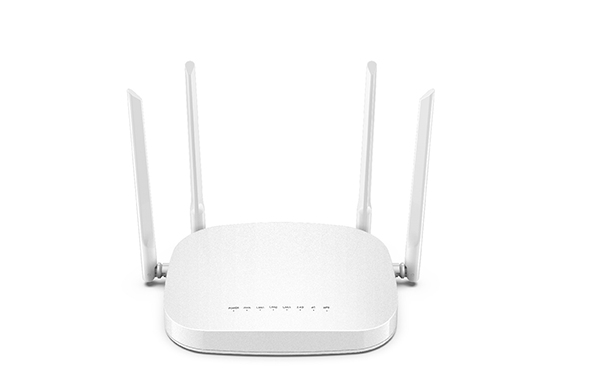

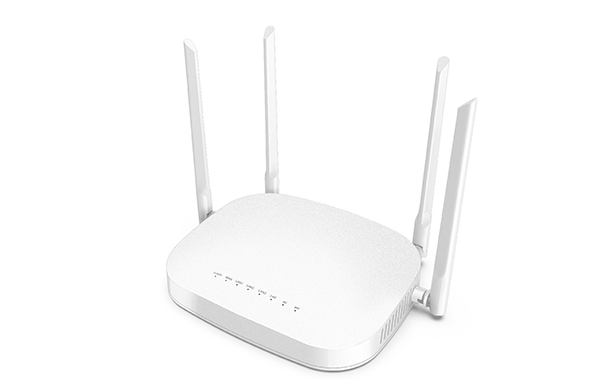

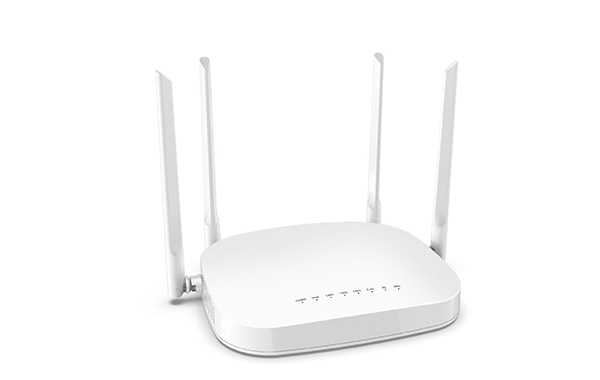

T300-304K

  • Product details
  • Data download
  • Video and Documents


4G industrial router for remote monitoring / solar / vending


This flagship wireless communication product developed based on 4G network demand has a wireless speed of up to 300Mbps, which can meet the needs of stable, safe and simple Internet access for small networks such as offices and homes. It can also be used in the Internet of Things communication industry to provide users with wireless long-distance data monitoring, acquisition and transmission functions. Full Netcom 4G network access, fully compatible with 4G/3G/2G network, equipped with three 10/100m adaptive Ethernet LAN interfaces, connected with the internal LAN; One 10/100M adaptive Ethernet WAN interface, providing wired broadband access.



Countries

4G/5G network solutions

Wireless network

Number of slots

Serial port Protocol

Custom content

CN= China Version

EU= European version

NA= North American version

GL= Global Edition

SA= South American version

JP= Japanese version

AU= Australian version

A= Domestic

Q= Qualcomm

V=4G private network

R=Redcap

H= hisilicon

W0= No WiFi

W4=WiFi4

W5=WiFi5

W6=WiFi6

S1= Single card

S2= Dual cards

RS232

RS485

TTL

DO

POE

GPS

ESIM

Example: 350-CN-4GA-W4-S1-RS485; Version 350, China 4G domestic solution, single band WiFi4, single card, protocol RS485, no customization

Note: Some versions do not allow customization of the above content.



Hardware Parameters



Product size

233*162*32.5mm(L×W×H)

Power supply

DC：<10W

External interface / Protection level

Reset button: 1

Indicator lights: 8

Antenna interfaces: 1-4 (optional)

SIM card slot: 1

WPS button: 1

Type-C power supply interface: 1

WAN port: 1, LAN ports: 3

Protection level: IP30

Indicator light

POWER、WAN、LAN1、LAN2、LAN3、2.4G、4G、WPS

Antenna

SMA external rotating inner hole

Storage memory

Storage: 2MB, Memory: 8MB

Power consumption (current)

Less than 400mA

Certification

CE 、FCC 、CCC

Work environment

Operating temperature: -20 to +70°C

Storage temperature: -40 to +80°C

Humidity: 5 to 95% (no condensation)



Feature Data



Basic Features

4G Internet Protocol: 4G Dial-up Internet Access, DHCP/Static IP/PPPoE

Supported number of users: Wired: 30, Wireless: 30

VPN Protocol: PPTP Client, L2TP Client (only supported in dedicated network version)

WiFi Protocol: IEEE802.11b/g/n

Network Functions: NAT, DNAT, DMZ, Port Forwarding

WLAN Security Consultative

OpenSystem, WPA-PSK, WPA2-PSK, WPAPSK/WPA2 PSK, WPA1 / WPA2

Operating frequency band

2400-2483.5MHz

WiFi transmission

Rate/Data

Transfer rate: 300Mbps(MAX) (theoretical maximum)

WiFi data:

802.11n:-66dBm

at 300 Mbps HT40MCS7:+14dBm(±2dB)

802.11b:-86dBm

at  11Mbps/CCK:+14dBm(±2dB)

802. 11g:-73dBm

at 54Mbps/OFDM:+14dBm(±2dB)

System Services

Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management

Operating system

Browser Requirements

System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0  Safari:1.2.4  Firefox:2.0.0.8



Product packaging size/weight


Product weight (g)

152g

Product dimensions (mm)

233*162*32.5mm

Packaging size (cm)

25*16*7cm

Product packaging weight (kg)

0.5kg

Outer box dimensions (cm)

71.3*44.3*26.8cm

Container weight estimate (kg)

22kg


Optional frequency bands

4G band

CN：FDD-LTE  B1/3/5/8

TDD-LTE B38/39/40/41

EU：FDD-LTE B1/3/5/7/8/20

TDD-LTE B38/39/40/41

NA：FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41

SA：FDD-LTE B2/4/5/7/8/28

TDD-LTE B40

J：FDD-LTE B1/3/8/18/19/26

TDD-LTE 41

GL：FDD-LTE  B1/2/3/4/5/7/8/17/20/28

TDD-LTE B38/39/40/41

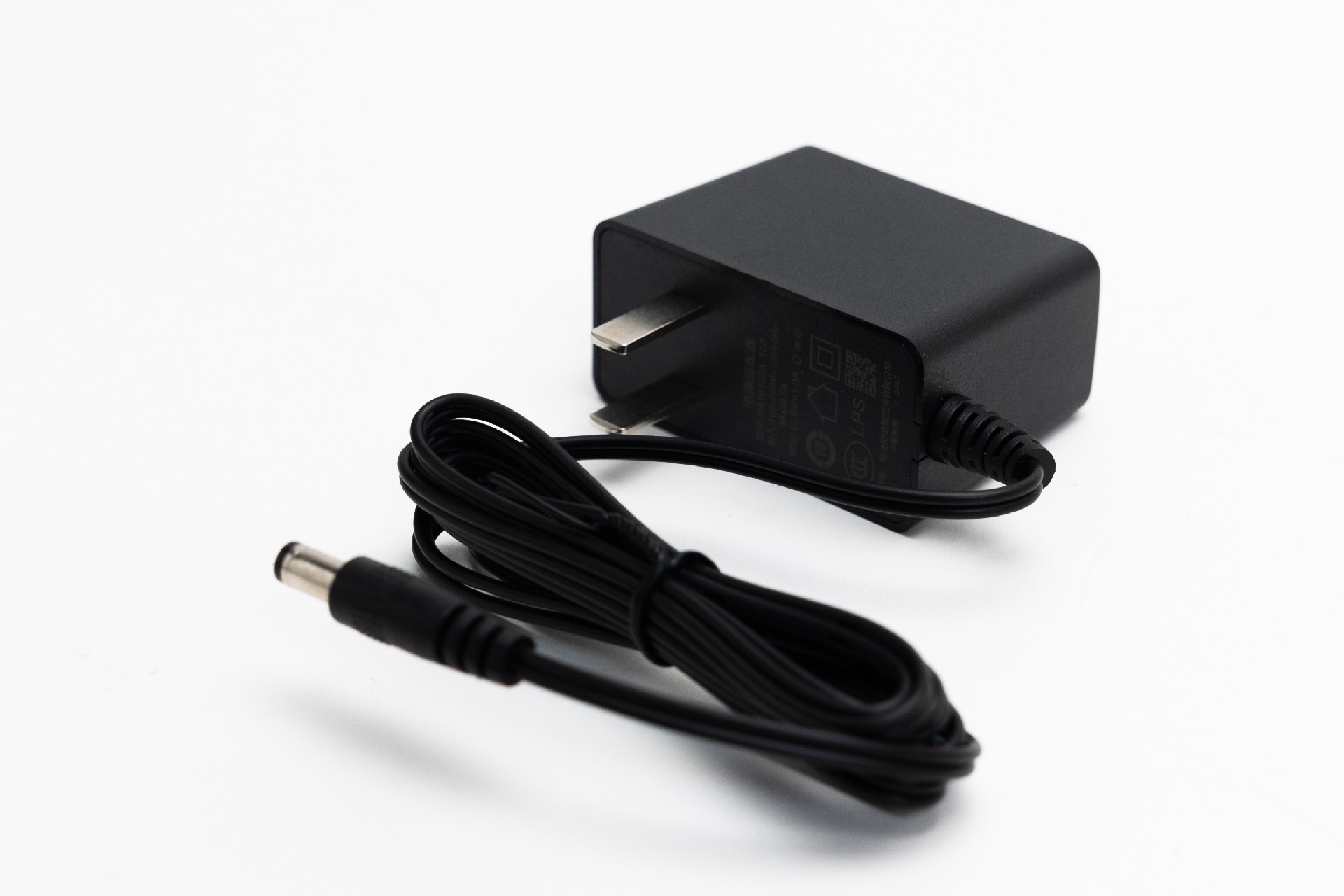

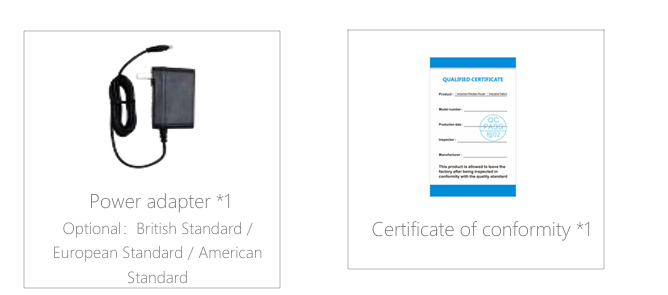

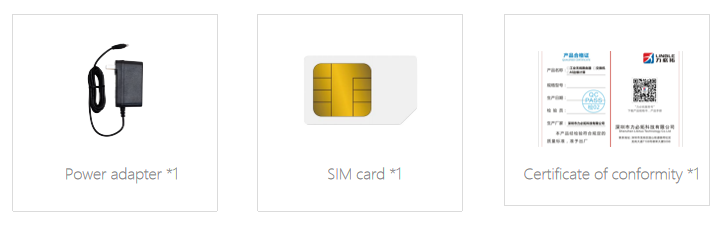

Standard accessories
