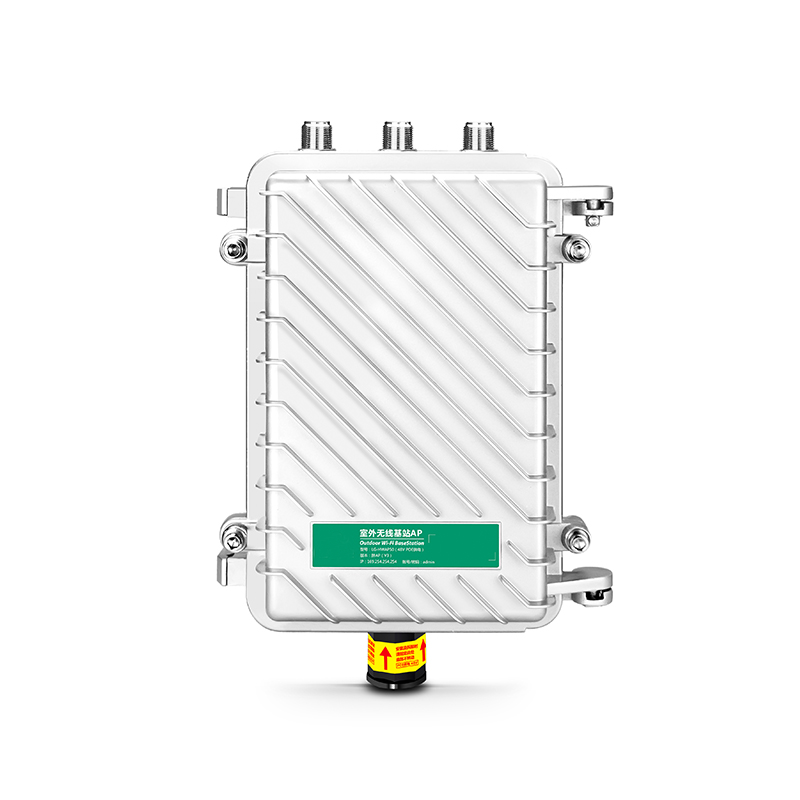

T300-HW3
- Product details
- Data download
- Video and Documents

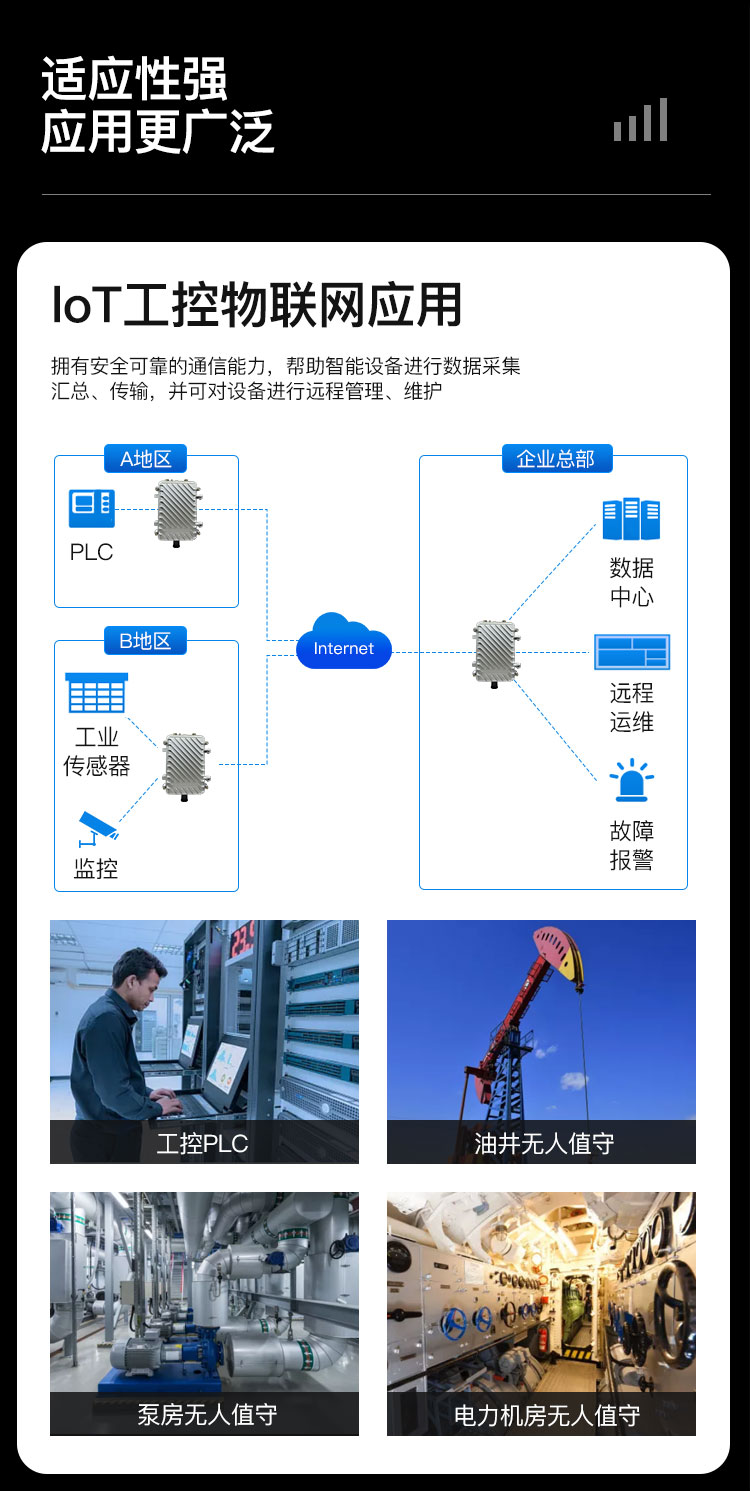

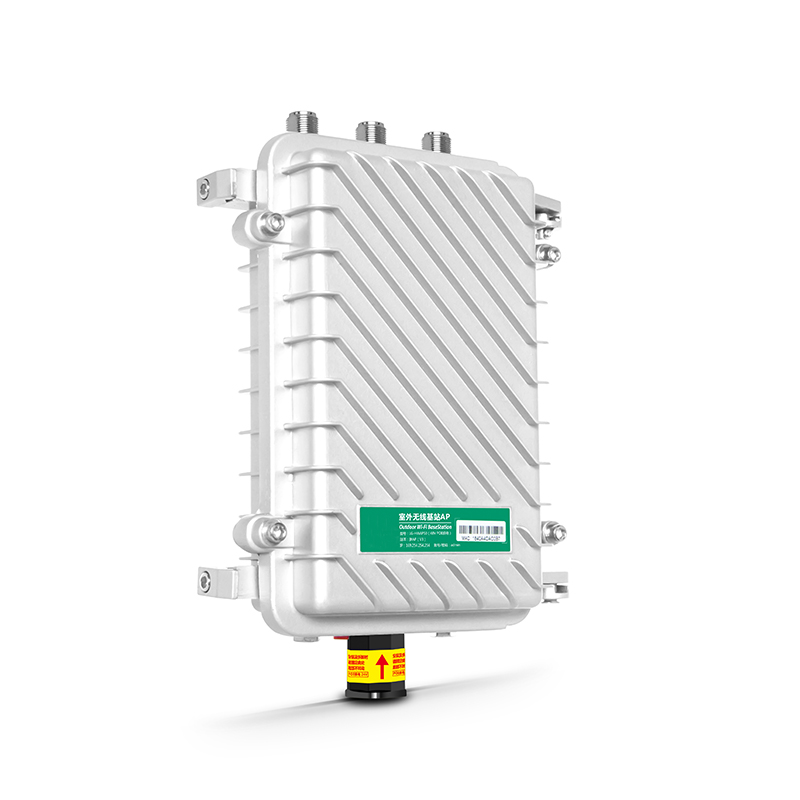

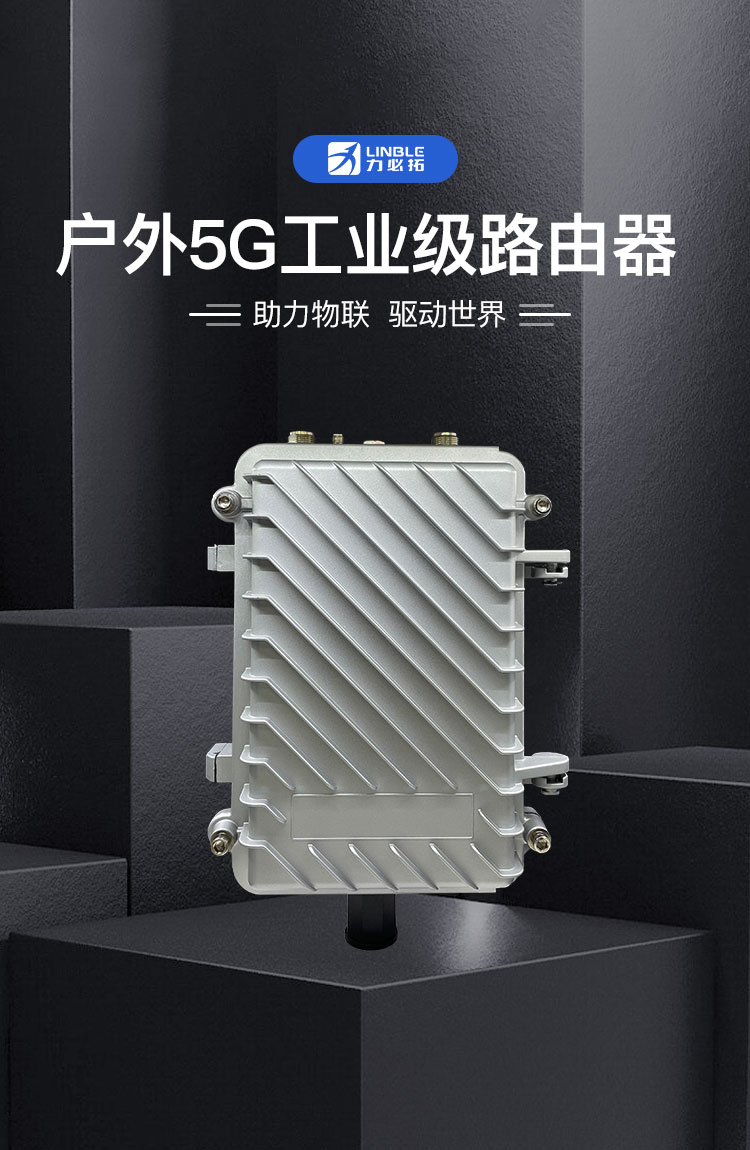

The 5G industrial router is an IOT gateway device that supports multiple Internet access (Ethernet/WIFI client/5G) modes and multiple local data access (WIFI 2.4G/5.8G/Ethernet/ (customizable RS232/RS485)) full-stack intelligent protocols. The device is loaded with Wan communication, VPN tunnel, WIFI LAN, RS232/485 transparent transmission and other functions, and provides customers with open source code for various device adaptations, realizes seamless connection of wireless LAN, Ethernet, intelligent hardware and wireless Wan, and provides users with high-speed, safe and reliable access services. Support WEB configuration mode, convenient and simple management, and support remote cloud control.

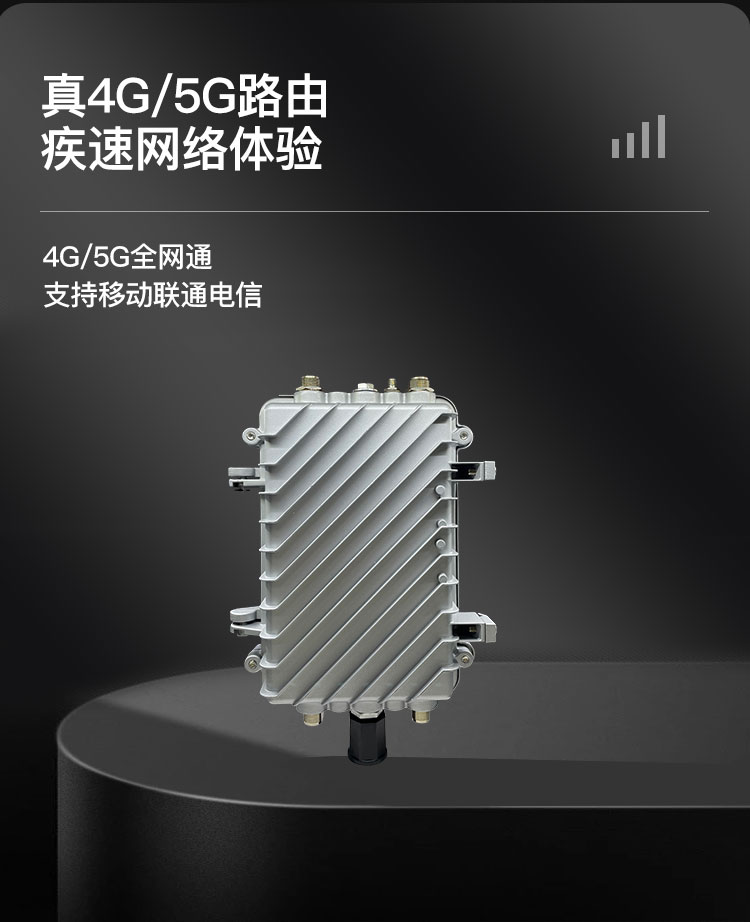

1, 5G, broadband, WIFI bridge access
2. Power design: POE power supply

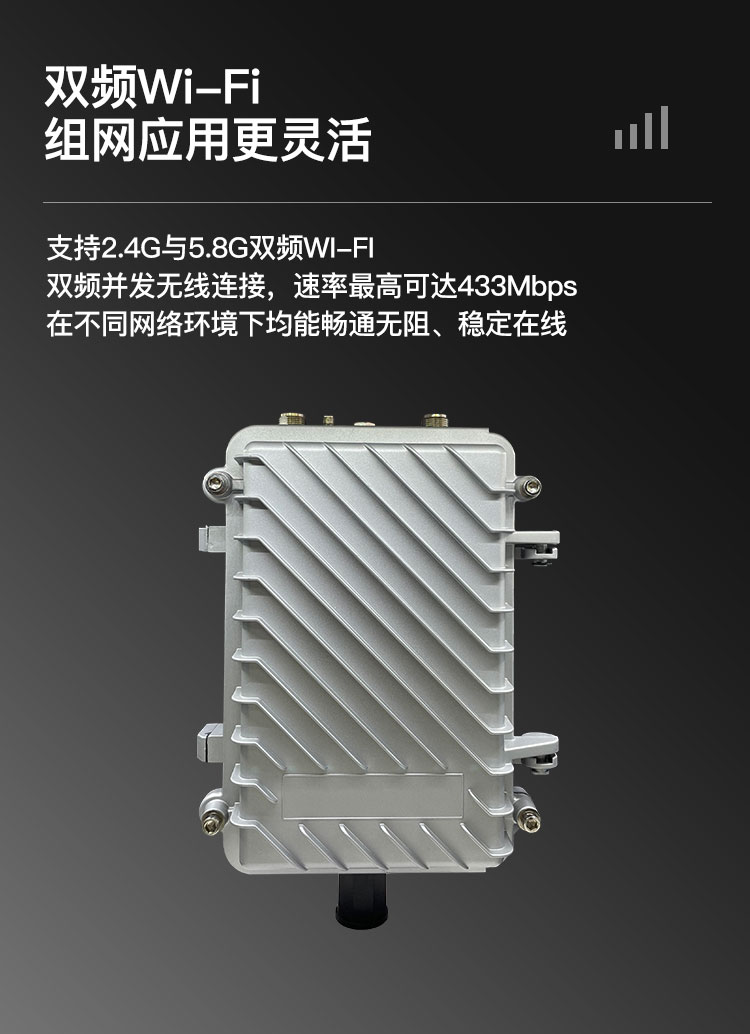

3.IEEE 802.11 AC Dual-band 2 T2R mode Maximum Rate 433Mbps IEEE 802.11 B/G/n 1 T1R mode Maximum Rate 150Mbps
4, serial DTU data transmission, AT command interaction, support LED screen display remote control
5. Site control, port mapping, DMZ host and other functions

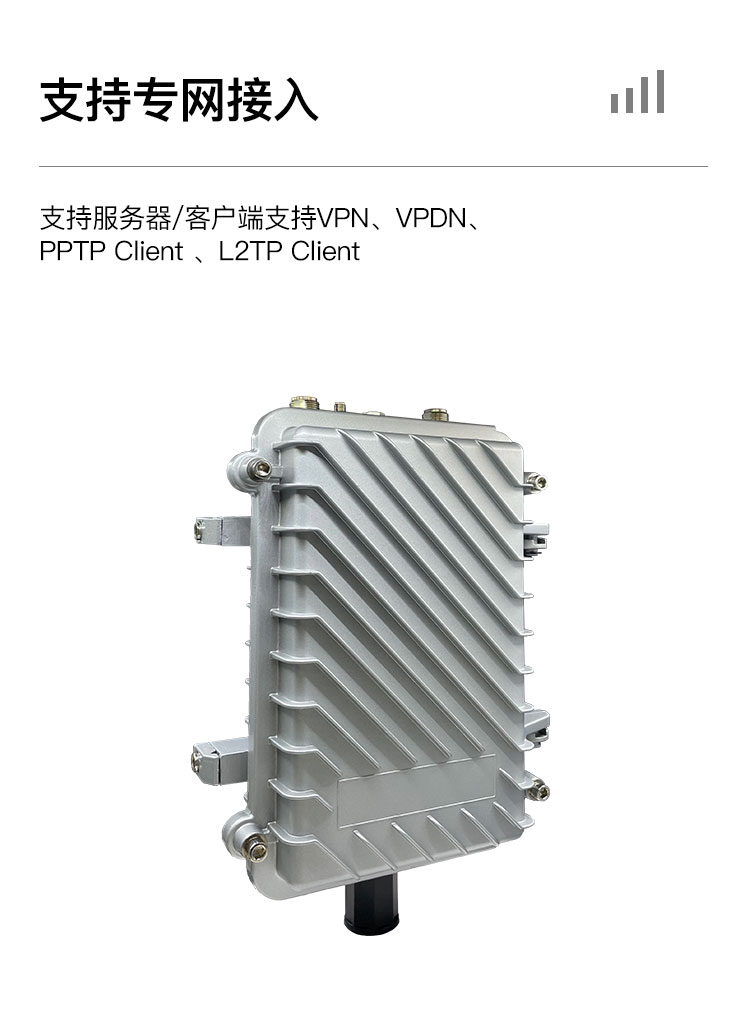

6. Support VPN, VPDN, PPTP Client and L2TP Client
7, automatic detection of network disconnection, automatic restart of dialing failure, timing restart and other functions
8. Wired connection, 5G network backup, automatic detection, and switching between wired and 5G networks
9, hardware and software watchdog anti-crash design, to ensure stable and reliable operation of equipment

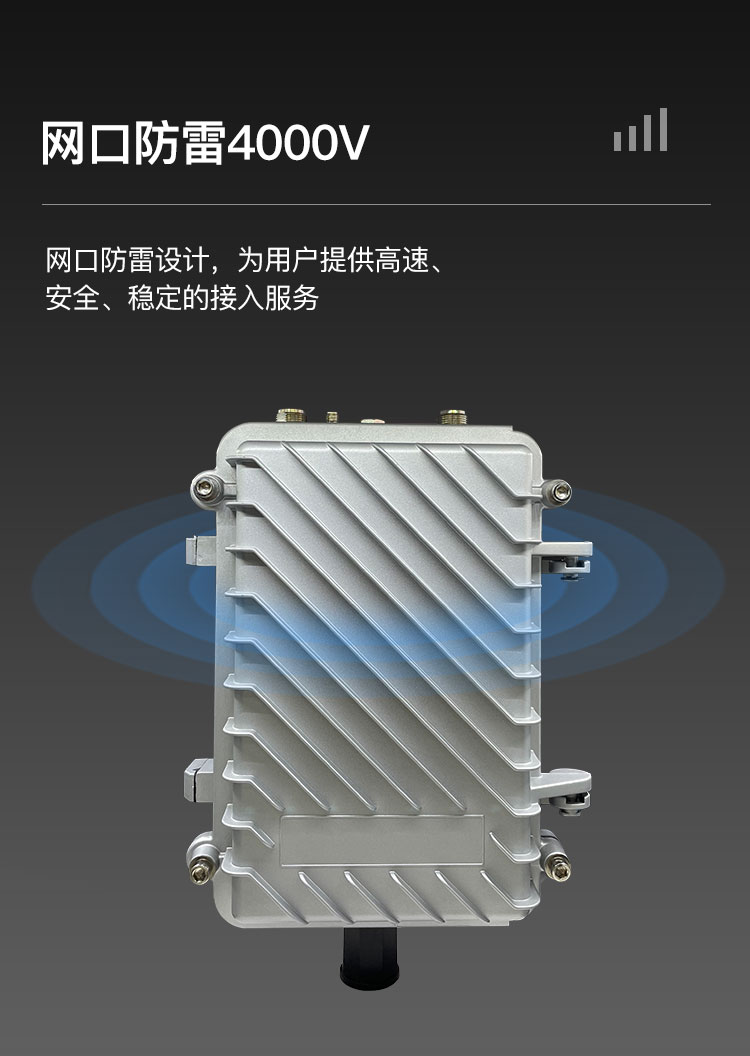

10. Network port lightning protection 4KV 11. Support NBIoT modules of China Telecom, China Mobile and China Unicom

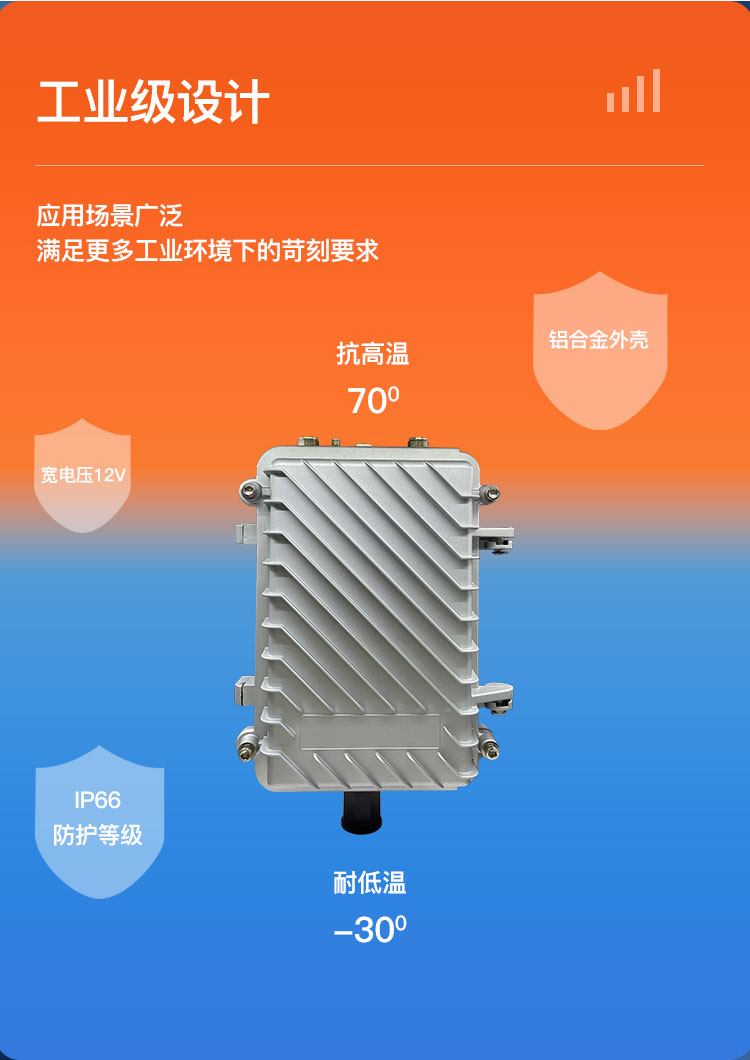

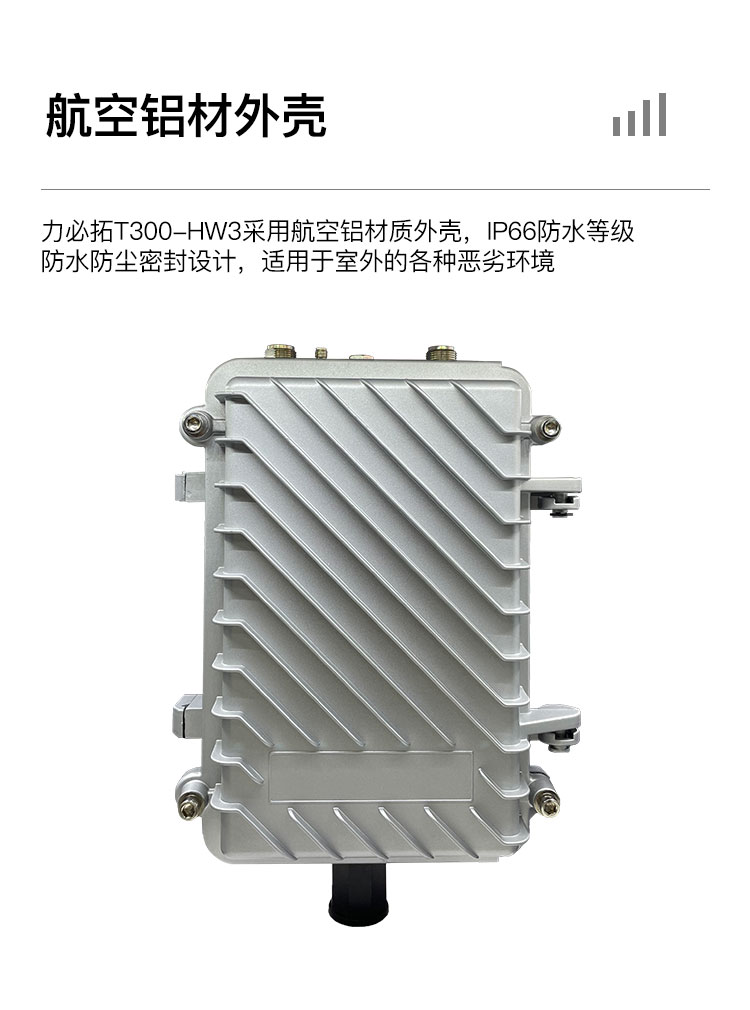

12, aviation aluminum shell design, shell dustproof and waterproof grade IP66
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: HW3-CN-5GA-W5-S1-RS485; Version HW3, China 5G domestic solution, single band WiFi5, single card, protocol RS485, no customization Note: Some versions do not allow customization of the above content. | |||||

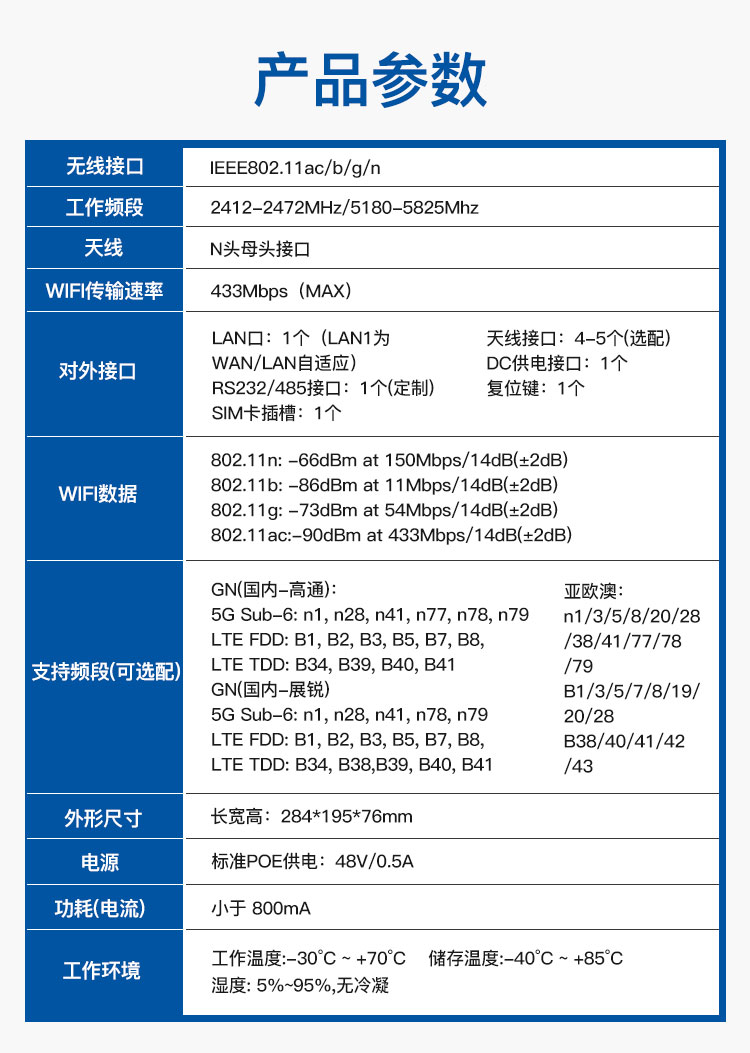

Hardware Parameters
Product size | 284*195*76mm (Length×Width×Height) |
Power supply | POE power supply: 48V/0.5A, DC power supply: 7-35V/1A |
GPS | Customizable GNSS positioning module, supporting RTK technology, and capable of using a variety of satellite systems (GPS, GLONASS, Beidou, WAAS, EGNOS, MSAS, GAGAN) as a mixed engine. |
External interface Protection grade | Reset key: 1 Indicator lights: 6 Antenna interface: 4-5 (optional) RS232/485 interface: 1 (3.5mm 6PIN connector) USB2.0: for connecting USB cameras without drivers, sharing files Ports: 1(1 LAN ~ 1 POE), 3KV lightning protection (optional), POE input (optional) Protection level: IP66 |

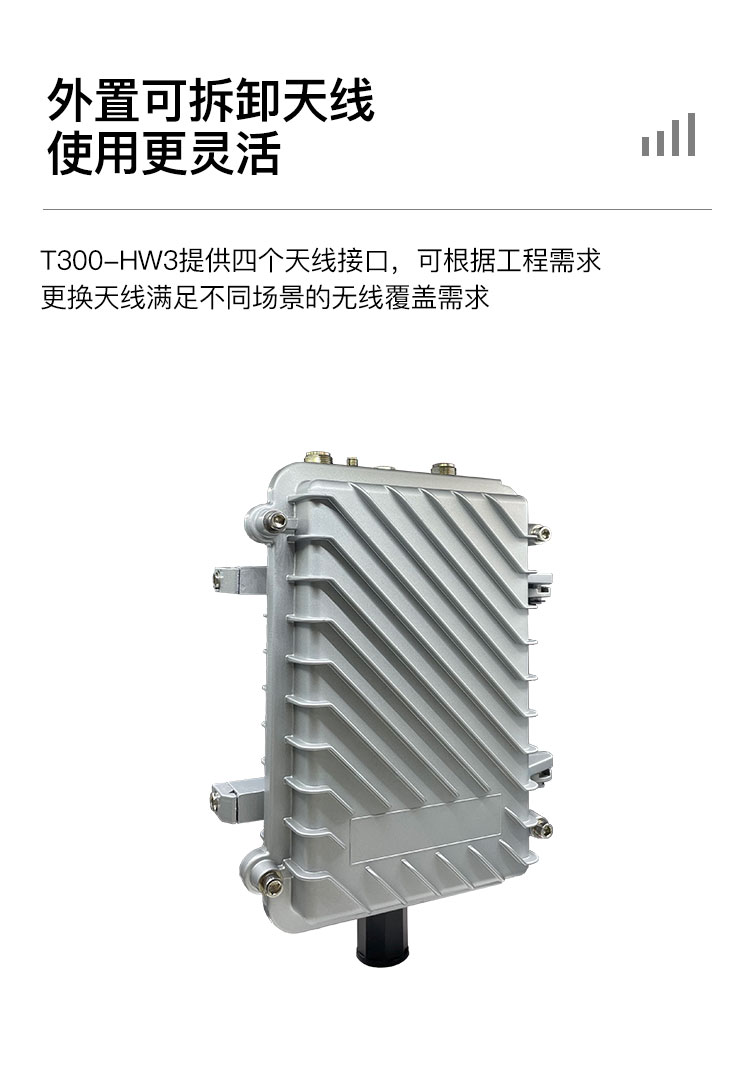

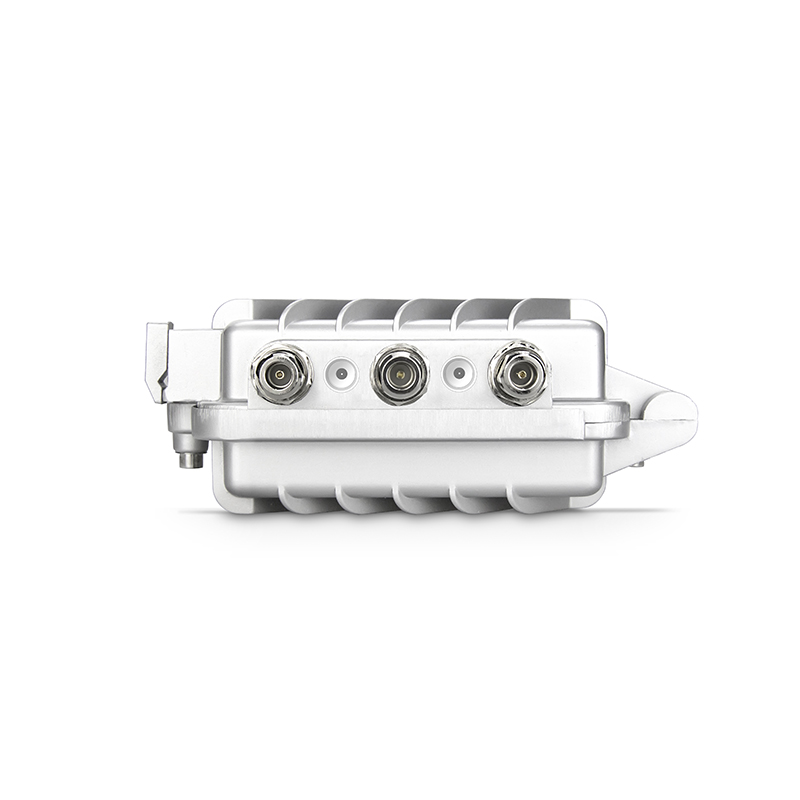

Antenna | N-headed female connector |
Storage memory | Storage :16MB, memory: 128MB |
Authentication | CE, FCC, CCC |
Power consumption (current) | 5G: less than 800mA |
Operating temperature Humidity | Operating temperature: -20 to +70 ° C Storage temperature: -40 to +80 ° C Humidity: 5 to 95% (non-condensing) |
Feature Data
Basic Features | Internet Protocol: 4G /5G dial-up DHCP/Static /PPPoE dial-up /WiFi relay Number of supported users: Wired: 253, wireless: 60 WiFi Protocol: IEEE802.11b/g/n Network functions: NAT, DNAT, DMZ, port forwarding Port protocols: MODBUS, MODBUS slave, MQTT gateway | |
VPN | OpenVPN Client、 IPSecVPN Client、PPTP VPN Client、L2TP VPN Client | |
Operating frequency band | 2412-2472MHz、5180-5825Mhz | |
WiFi transmission Rate/Data | Transmission Rate: 1800 Mbps (MAX) Wi-Fi Data: 2.4G Speed: 573 Mbps (Max) 2.4G Power: 21 dB (-2 dBm+) 5.8G Speed: 1201 Mbps (Max) 5.8G Power: 21 dB (-2 dBm+) | |
Firmware customization | Operating System: Linux operating system based on OpenWrt Supported languages: BusyBOS sheel,Lua,C,C++ Development tools: Provide SDK packages with built-in environments and contact us for custom development based on requirements documentation | |
WLAN Security Consultative | OpenSystem, WPA-PSK, WPA2-PSK, WPAPSK/WPA2 PSK, WPA1 / WPA2 | |
System Services | Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management | |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 | |
Device Management | WEB UI | HTTP/HTTPS, status, configuration, local firmware updates, troubleshooting, Syslog |
FOTA upgrades | Cloud platform server update | |
SSH/TELNET | SSH(v1,v2), telnet | |
TR-069 | OpenACS, EasyCwm p, ACSLite, tGem, Libre ACS, Genie ACs, Free ACS, LibCWMP, Friendly tech(customizable) | |
SNMP Network Management | SNMP(v1, v2, v3)(customizable) | |
Remote Interface Protocol | API management based on HTTP/HTTPS (customizable) | |
MODBUS | MODBUS TCP Status/Control (customizable) | |
Product packaging size/weight
Product weight (g) | 552g |
Product dimensions (mm) | 284*195*76mm |
Packaging size (cm) | 385*220*64cm |
Product packaging weight (kg) | 1kg |
Outer box dimensions (cm) | 71.3*44.3*26.8cm |
Container weight estimate (kg) | 22kg |
Optional frequency bands
4G band | CN：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 EU：FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 AU:FDD-LTE B1/3/5/7/8/20/28 TDD-LTE B38/40/41 NA：FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41 SA：FDD-LTE B2/4/5/7/8/28 TDD-LTE B40 J：FDD-LTE B1/3/8/18/19/26 TDD-LTE 41 GL：FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |
5G band (Optional) | CN：5G NR NSA:N41/78/79 5G NR SA:N1/8/28/41/78/79 LTE-FDD B1/3/5/8 LTE-TDD：B34/38/39/40/41 EA：5G SA&NSA:N1/3/5/7/8/20/28/38/40/41/71/77/78/79 LTE-FDD：B1/3/5/7/8/18/19/20/28/32 LTE-TDD：B34/38/39/40/41/42 GL5GNR SA：n1/2/3/5/7/8/12/20/25/28/38/40/41/48/66/71/77/78/79 5G NR NSA：n38/41/77/78/79 LTE-FDD： B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 LTE-TDD：B34/38/39/40/41/42/43/48 |

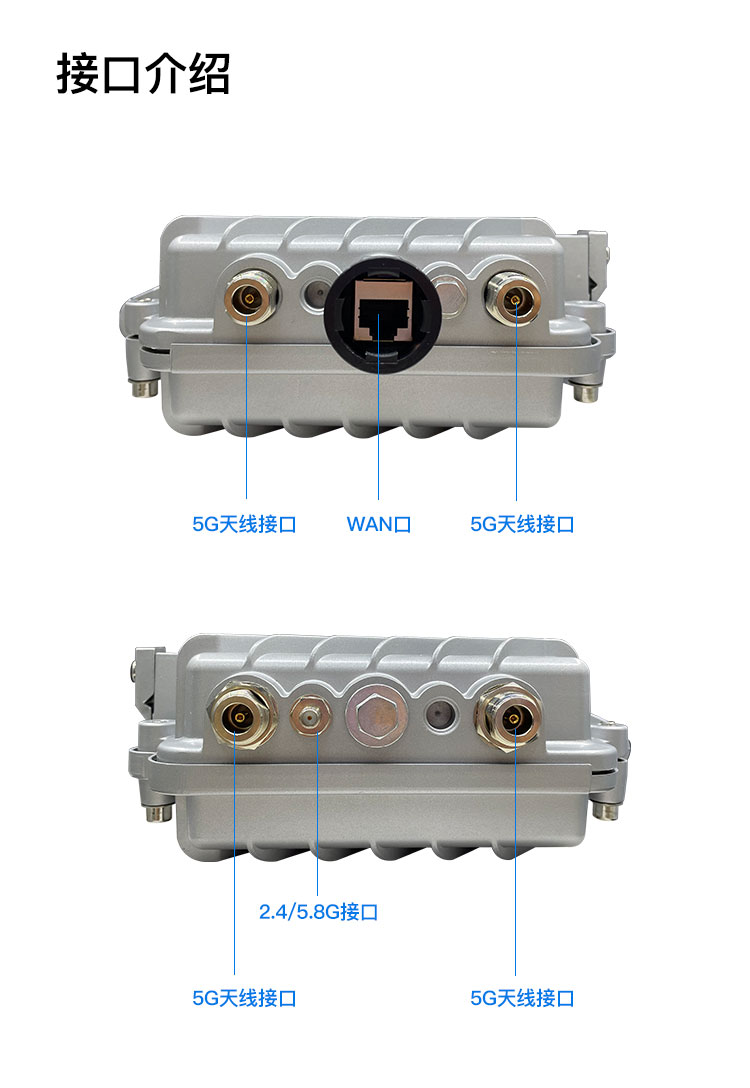

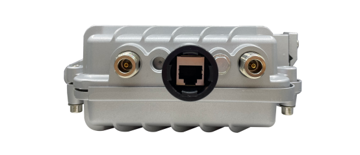

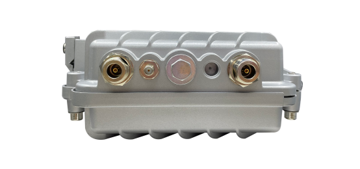

Interface

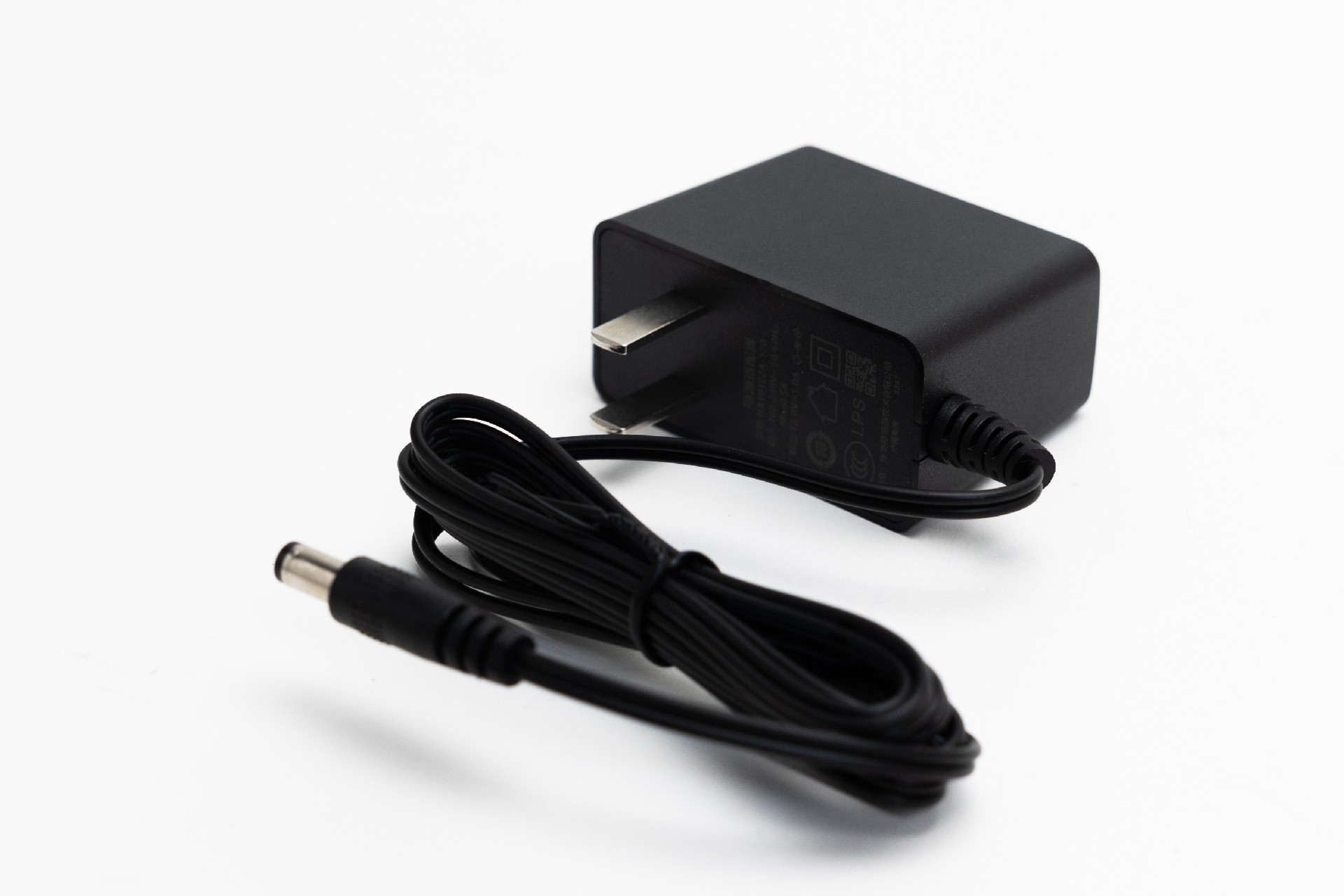

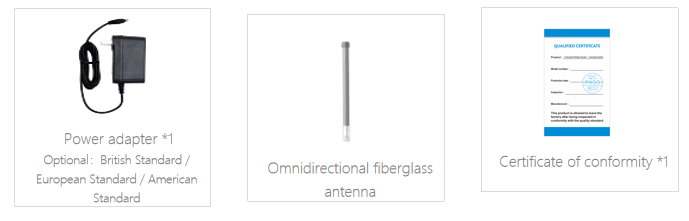

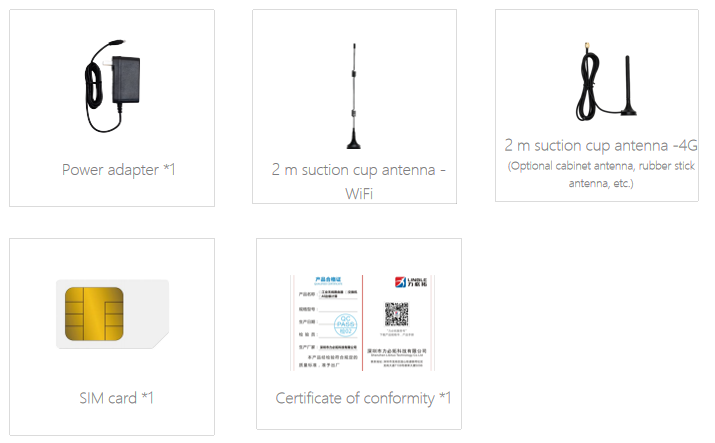

Standard accessories
