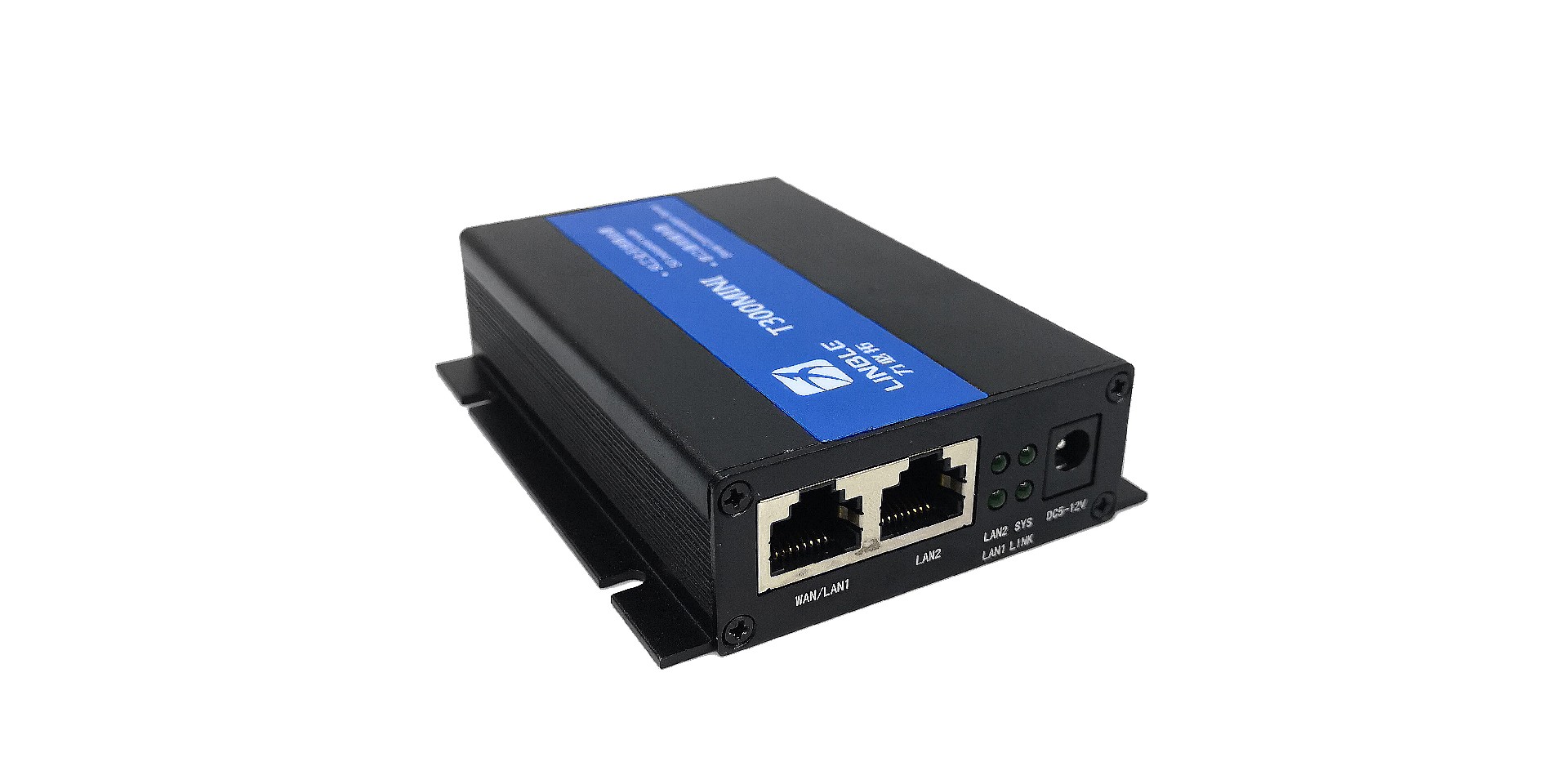

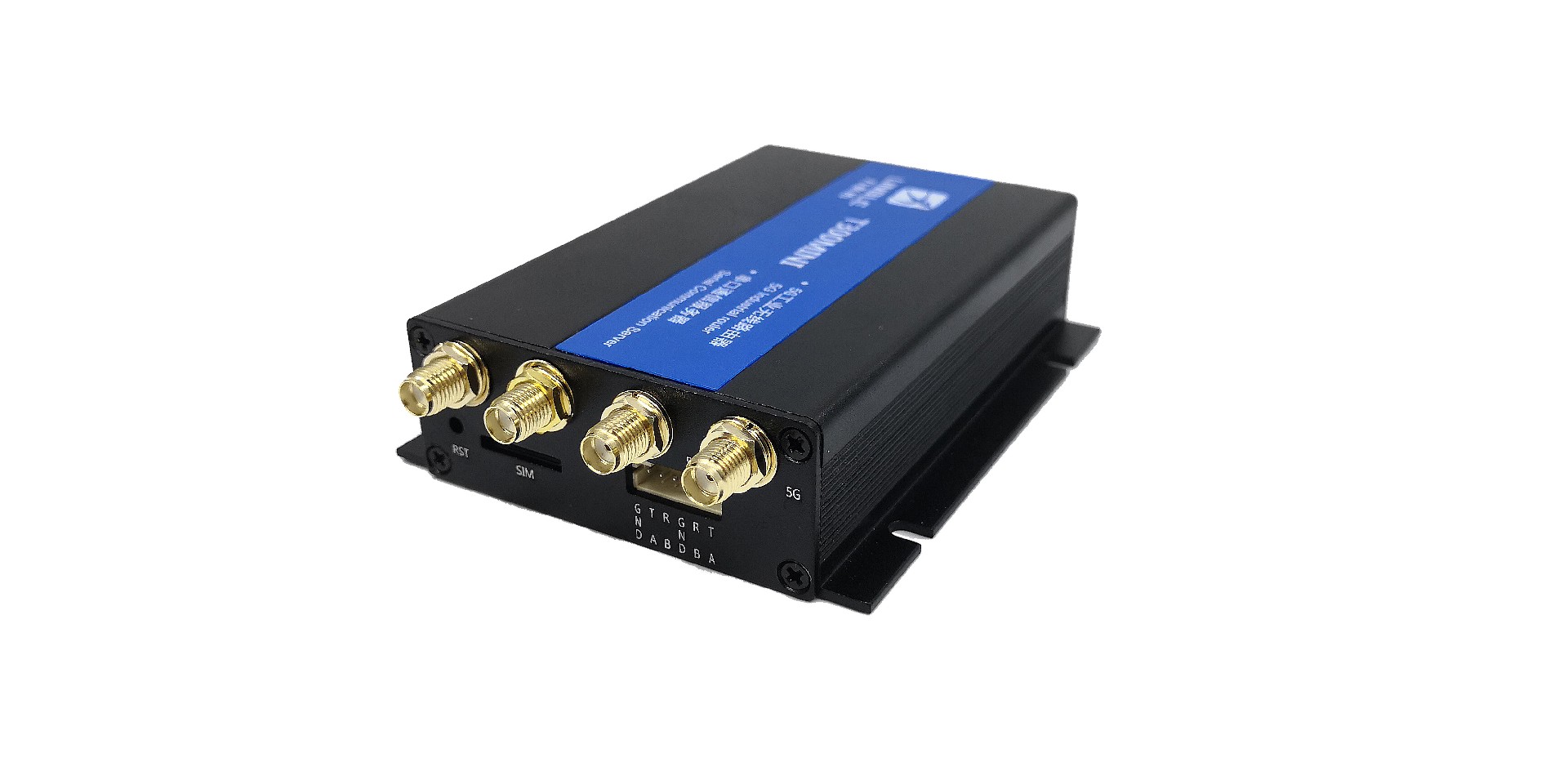

5G industrial router for remote monitoring / solar / vending


Product overview


5G industrial router, with industry-level material selection, design and technology, ensures robust communication under extreme conditions and strong interference conditions. It is an Internet of Things gateway device supporting multiple Internet access (Ethernet/4G/5G) and multiple local data access (5G/1000M Ethernet) full-stack intelligent protocols. The equipment is loaded  with Wan communication, VPN tunnel and other functions to realize the seamless connection of Ethernet and intelligent hardware, providing professional line communication for intelligent manufacturing, warehousing logistics, transportation, electricity and other industries.

The 5G industrial wireless router can also be used as a special vehicle- mounted device to provide a vehicle-mounted fixing piece. At the same time, the device supports dust-proof design, vehicle-mounted anti-interference design and good anti-interference performance.

Support WEB configuration mode, convenient and simple management,and support remote cloud control.


Product Characte


1. Adopt metal shell with protection grade of IP30;

2. Support (WCDMA/CDMA/TD-SCDMA), 4G (FDD-LTE/TDD-LTE), 5G (SA/NSA);

3, UIM/SIM card ESD protection: 1.8V/3V standard push-type user card interface,built-in 15KV ESD protection;

4. Standard RJ45 (Ethernet) interface built-in lightning protection 3000V (non-standardized configuration);

5, industrial power supply: wide voltage power supply design, power supply range of DC6-36V/3A optional, built-in power reverse protection;

6. Software and hardware watchdog anti-crash design, after the router is disconnected, it will automatically power off and restart to ensure stable and reliable operation of the equipment;

7, automatic detection of network disconnection, automatic restart of dialingfailure, timing restart and other functions;

8. Serial port transparent transmission function. The command control mode can be entered through the serial port to control the router and ancillary equipment;

9. Support multiple DDNS dynamic domain name services;

10. Port mapping, DMZ host and other functions;

11. Support VPN (PPTP Client, L2TP Client);



Countries

4G/5G network solutions

Wireless network

Number of slots

Serial port Protocol

Custom content

CN= China Version

EU= European version

NA= North American version

GL= Global Edition

SA= South American version

JP= Japanese version

AU= Australian version

A= Domestic

Q= Qualcomm

V=4G private network

R=Redcap

H= hisilicon

W0= No WiFi

W4=WiFi4

W5=WiFi5

W6=WiFi6

S1= Single card

S2= Dual cards

RS232

RS485

TTL

DO

POE

GPS

ESIM

Example: MINI1-CN-5GA-S1-RS485&232; Version MINI1, China 5G domestic solution, single card, protocol RS232, no customization

Note: Some versions do not allow customization of the above content.




Hardware Parameters



Product size

 97*78.2*25. 5mm(L×W×H)

Power supply

DC power supply: 6 - 36V / 3A

GPS

Customizable GNSS positioning module, supporting RTK technology, and featuring a hybrid engine compatible with multiple satellite systems (GPS, GLONASS, Beidou, WAAS, EGNOS, MSAS, GAGAN).

External interface

Protection grade

Reset key 1

Indicator lights: 4

Antenna interface: 2-4 (optional)

SIM card slot: 1

DC power supply interface: 1 (2.1mm round power connector), reverse protection

RS232 & 485 interface: 1 (2.0mm 6PIN connector)

LAN port: 2 (LAN1 is WAN/LAN adaptive)

Protection level: IP30

Indicator light

 LINK 、SYS 、WAN/LAN0~LAN4

Antenna

 SMA external rotating inner hole

Storage memory

 Storage :8MB, memory: 64MB

Power consumption

4G: less than 400 mA

Authentication

CE, FCC, CCC

Operating temperature

Humidity

Operating temperature: -20 to +70 ° C

Storage temperature: -40 to +80 ° C

Humidity: 5 to 95% (non-condensing)



Feature Data



Basic functions

4G Internet Protocol: 4G Dial-up Internet Access, DHCP/Static IP/PPPoE

Supported number of users: Wired: 253

VPN Protocol: PPTP Client, L2TP Client (Only the dedicated network version supports it)

Port Protocol: NAT, DNAT, DMZ, Port Forwarding

System Services



Virtual server, port triggering, serial port service, firewall, MAC filtering, access control, port blocking, area settings, restore factory settings, NTP server settings, backup system information, software upgrade/remote management

Operating System and

Browser Requirements


System: Windows XP/VISTA, Linux 2.6, Windows 7 and above, MAC OS: 10.3.7 and above

Browser: IE: 6.0 and above, Safari: 1.2.4 and above, Firefox: 2.0.0.8 and above



Product packaging size/weight



Product weight (g)

145g

Product dimensions (mm)

97*78.2*25.5mm

Packaging size (cm)

25*16*7cm

Product packaging weight (kg)

0.5kg

Outer box dimensions (cm)

71.3*44.3*26.8cm

Container weight estimate (kg)

22kg



Optional frequency bands



4G band

 CN：FDD-LTE  B1/3/5/8

TDD-LTE B38/39/40/41

 EU：FDD-LTE B1/3/5/7/8/20

TDD-LTE B38/39/40/41

 NA：FDD-LTE B2/3/4/5/7/8/12/ 13/17/25/26/66 TDD-LTE B41

 SA：FDD-LTE B2/4/5/7/8/28

TDD-LTE B40

 J：FDD-LTE B1/3/8/18/19/26

TDD-LTE 41

 GL：FDD-LTE  B1/2/3/4/5/7/8/17/20/28

TDD-LTE B38/39/40/41

5G band

(Optional)

 CN：5G NR NSA:N41/78/79

5G NR SA:N1/8/28/41/78/79

LTE-FDD B1/3/5/8

LTE-TDD：B34/38/39/40/41

 EA：5G SA&NSA:N1/N3/5/7/8/20/28/38/40/41/71/77/78/79

LTE-FDD：B1/3/5/7/8/18/19/20/28/32

LTE-TDD：B34/38/39/40/41/42

 GL：

5GNR SA：n1/2/3/5/7/8/12/20/25/28/38/40/41/48/66/71/77/78/79

5G NR NSA：n38/41/77/78/79

LTE-FDD：B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71

LTE-TDD：B34/38/39/40/41/42/43/48



Housing positioning holes

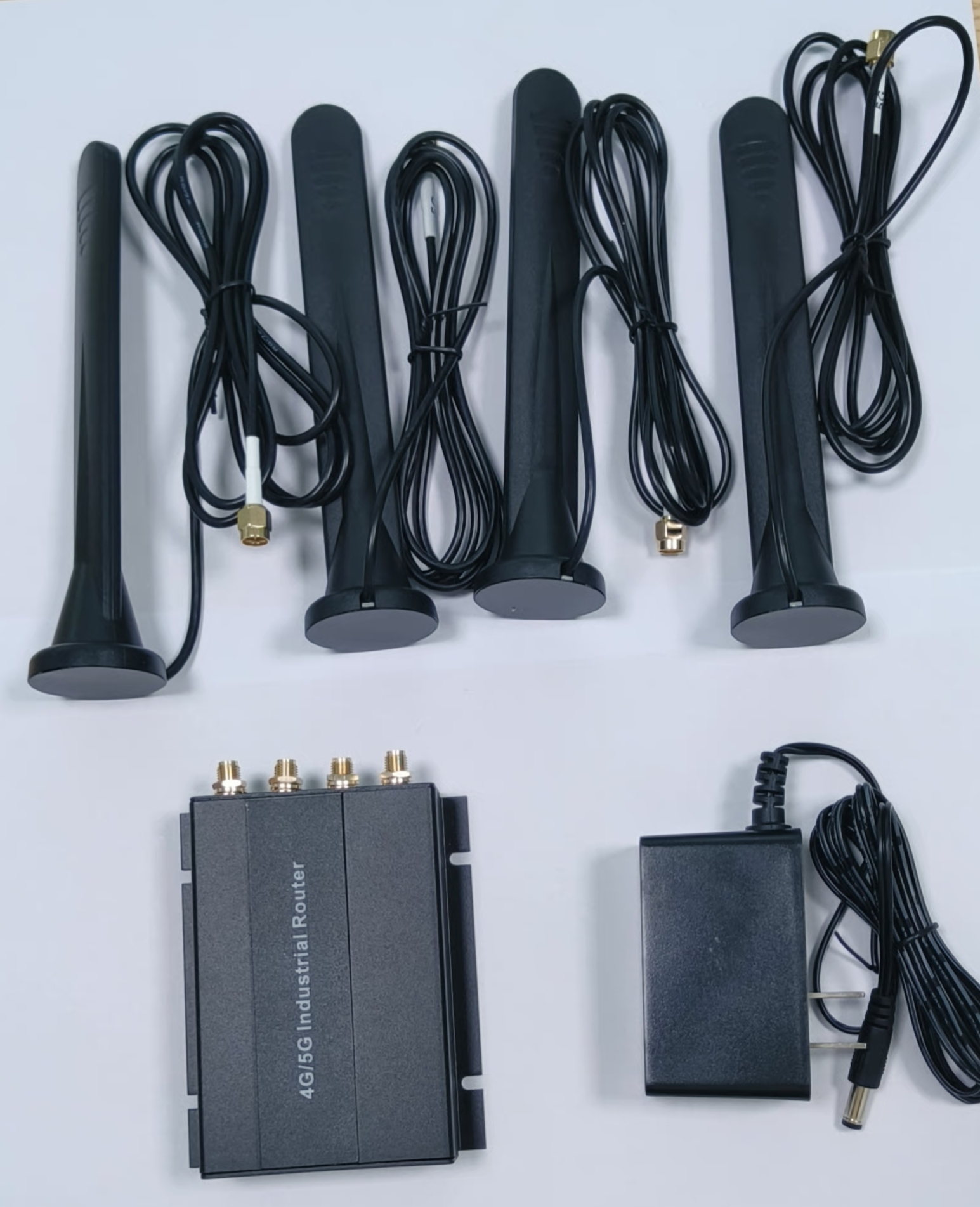

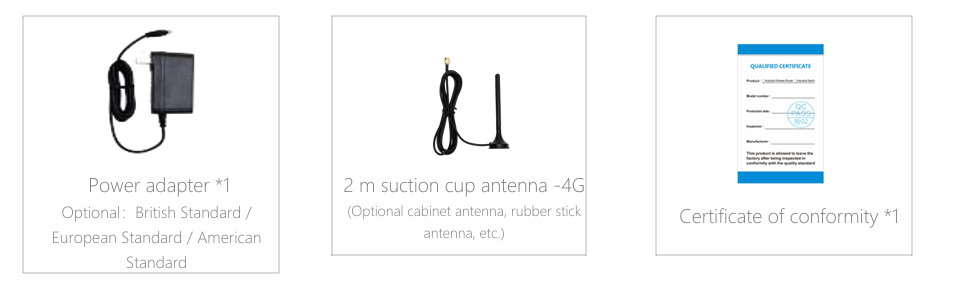

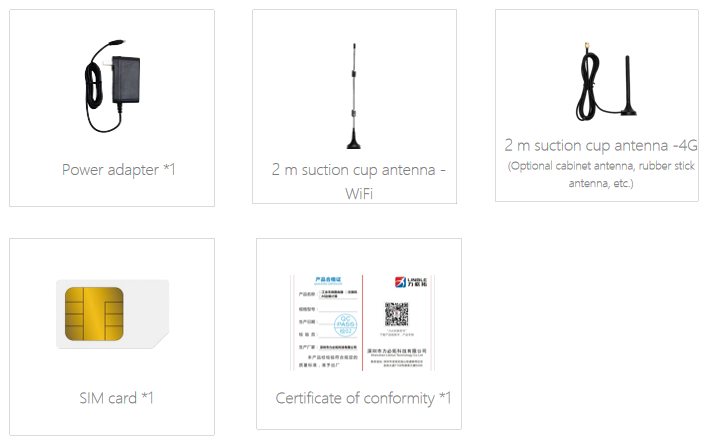

Standard accessories
