Product overview

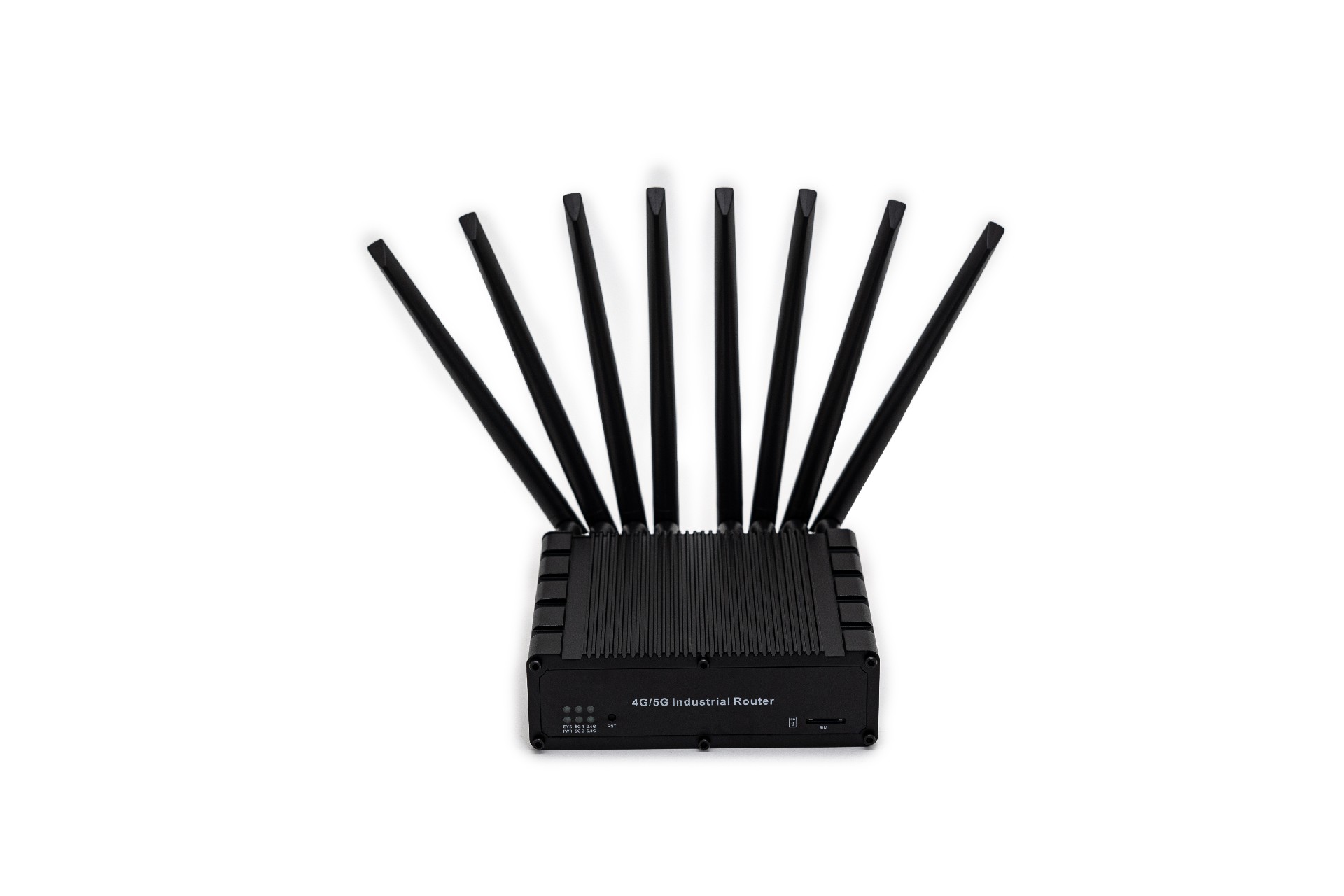

The T300-5G industrial CPE router is an IOT gateway device that supports multiple Internet access modes (Ethernet/WIFI client/4G/5G) and multiple local data (WIFI2.4G/5.8G/Ethernet/RS232/RS485) fullstack intelligent protocols. The equipment is loaded with Wan communication, VPN tunnel, WIFI LAN, RS232/485 transparent transmission and other functions. It can realize the seamless connection of wireless LAN, Ethernet, intelligent hardware and wireless Wan, and provide users with highspeed, safe and reliable access services. 5G industrial router can also be used as vehicle-mounted special equipment. The equipment adopts metal shell, provides vehicle-mounted fixing piece, and is designed with IP30 protection grade. Support WEB configuration mode, convenient and simple management, and support remote cloud control.
Product characte
1. Adopt metal shell with protection grade of IP30;
2. Support (WCDMA/CDMA/TD-SCDMA), 4G (FDD-LTE/TDD-LTE), 5G (SA/NSA);
3, UIM/SIM card ESD protection: 1.8V/3V standard push-type user card interface, built-in 15KV ESD protection; Serial port ESD protection: RS232 built-in 15 KV ESD protection, IEC61000-4-2 (Contact) ± 30KV, IEC61000-2-4 (Air) ± 30KV;
4. Standard RJ45 (Ethernet) interface built-in lightning protection 3000V (nonstandardized configuration);
5. Industrial wireless dual-frequency high-power CPE: industrial wireless module is adopted, with strong anti-interference and stable transmission;
6. Software and hardware watchdog anti-crash design, after the router is disconnected, it will automatically power off and restart. Ensure stable and reliable operation of the equipment;
7, automatic detection of network disconnection, automatic restart of dialing failure, timing restart and other functions;
8. Serial port transparent transmission function. The command control mode can be entered through the serial port to control the router and ancillary equipment;
9. Support multiple DDNS dynamic domain name services;
10. Port mapping, DMZ host and other functions;
11. Support VPN (PPTP Client, L2TP Client);
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: 1800-CN-5GA-W6-S1-RS485&232; Version 1800, China 5G domestic solution, single band WiFi6, single card, protocol RS485&232, no customization Note: Some versions do not allow customization of the above content. | |||||
Hardware Parameters
Product size | 149*126*46mm (Length×Width×Height) (excluding the fixed ear and antenna) |
Power supply | DC power supply: 7-35V/3A, reverse polarity protection, surge protection |
GPS | Customizable GNSS positioning module, supporting RTK technology, and capable of using a variety of satellite systems (GPS, GLONASS, Beidou, WAAS, EGNOS, MSAS, GAGAN) as a mixed engine. |

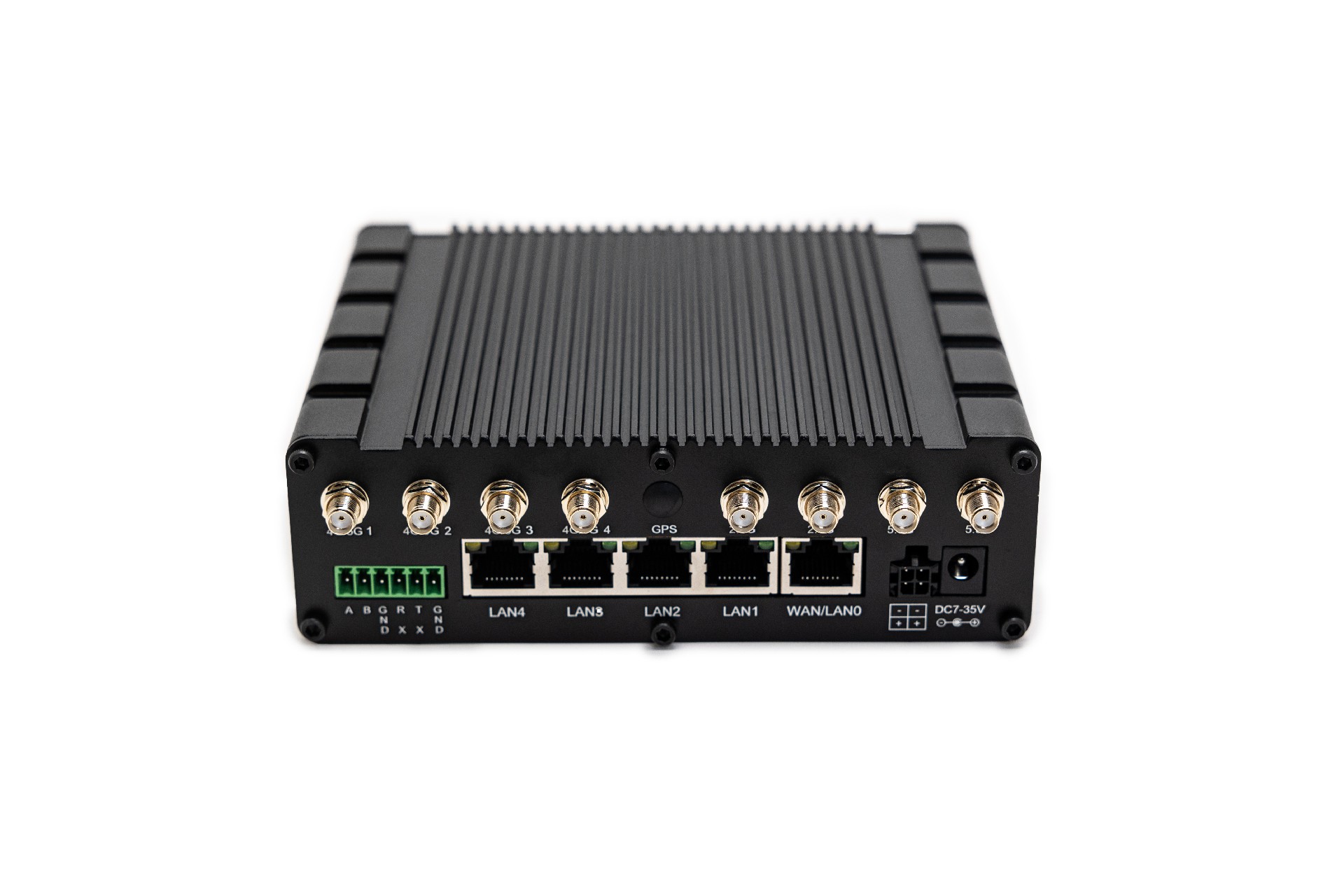

External interface Protection grade | Reset key: 1 Indicator lights: 6 Antenna interface: 2-13 (optional) SIM card slot: 1 Power: 4-pin 2.5mm industrial DC power socket, 2.1mm x 5.5mm center pin DC jack RS232 & RS485 interface: 1 (3.5mm 6-pin EDGK socket, supports standard RS485 and RS232 serial protocols) LAN ports: 5 (LAN1 is WAN/LAN adaptive), 3kV lightning protection (customizable), POE input (customizable) Protection rating: IP30 |
Indicator light | LINK, SYS, WAN/LAN1 to LAN2 |
Antenna | SMA external rotating inner hole |
Storage memory | Storage :8MB, memory: 64MB |
Authentication | CE, FCC, CCC |
Power consumption (current) | 4G: less than 400 mA 5G: less than 800mA |
Operating temperature Humidity | Operating temperature: -20 to +70 ° C Storage temperature: -40 to +80 ° C Humidity: 5 to 95% (non-condensing) |
Feature Data
Basic Features | Internet Protocol: 4G /5G dial-up DHCP/Static /PPPoE dial-up /WiFi relay Number of supported users: Wired: 253, wireless: 128 WiFi Protocol: IEEE802.11b/g/n Network functions: NAT, DNAT, DMZ, port forwarding Port protocols: MODBUS, MODBUS slave, MQTT gateway | |
VPN | OpenVPN Client、 IPSecVPN Client、PPTP VPN Client、L2TP VPN Client | |
Operating frequency band | 2412-2472MHz、5180-5825Mhz | |
WiFi transmission Rate/Data | Transmission Rate: 1800 Mbps (MAX) Wi-Fi Data: 2.4G Speed: 573 Mbps (Max) 2.4G Power: 21 dB (-2 dBm+) 5.8G Speed: 1201 Mbps (Max) 5.8G Power: 21 dB (-2 dBm+) | |
Firmware customization | Operating System: Linux operating system based on OpenWrt Supported languages: BusyBOS sheel,Lua,C,C++ Development tools: Provide SDK packages with built-in environments and contact us for custom development based on requirements documentation | |
WLAN Security Consultative | OpenSystem, WPA-PSK, WPA2-PSK, WPAPSK/WPA2 PSK, WPA1 / WPA2 | |
System Services | Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management | |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 | |
Device Management | WEB UI | HTTP/HTTPS, status, configuration, local firmware updates, troubleshooting, Syslog |
FOTA upgrades | Cloud platform server update | |
SSH/TELNET | SSH(v1,v2), telnet | |
TR-069 | OpenACS, EasyCwm p, ACSLite, tGem, Libre ACS, Genie ACs, Free ACS, LibCWMP, Friendly tech(customizable) | |
SNMP Network Management | SNMP(v1, v2, v3)(customizable) | |
Remote Interface Protocol | API management based on HTTP/HTTPS (customizable) | |
MODBUS | MODBUS TCP Status/Control (customizable) | |
Product packaging size/weight
Product weight (g) | 1100g |
Product dimensions (mm) | 149*126*46mm |
Packaging size (cm) | 385*220*64cm |
Product packaging weight (kg) | 1kg |
Outer box dimensions (cm) | 71.3*44.3*26.8cm |
Container weight estimate (kg) | 22kg |
Optional frequency bands
4G band | CN：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 EU：FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 AU:FDD-LTE B1/3/5/7/8/20/28 TDD-LTE B38/40/41 NA：FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41 SA：FDD-LTE B2/4/5/7/8/28 TDD-LTE B40 J：FDD-LTE B1/3/8/18/19/26 TDD-LTE 41 GL：FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |
5G band (Optional) | CN：5G NR NSA:N41/78/79 5G NR SA:N1/8/28/41/78/79 LTE-FDD B1/3/5/8 LTE-TDD：B34/38/39/40/41 EA：5G SA&NSA:N1/3/5/7/8/20/28/38/40/41/71/77/78/79 LTE-FDD：B1/3/5/7/8/18/19/20/28/32 LTE-TDD：B34/38/39/40/41/42 GL5GNR SA：n1/2/3/5/7/8/12/20/25/28/38/40/41/48/66/71/77/78/79 5G NR NSA：n38/41/77/78/79 LTE-FDD： B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 LTE-TDD：B34/38/39/40/41/42/43/48 |

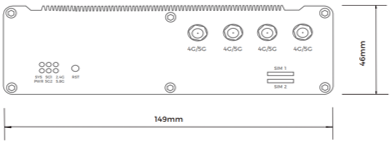

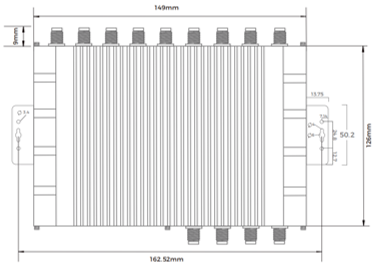

Housing positioning holes

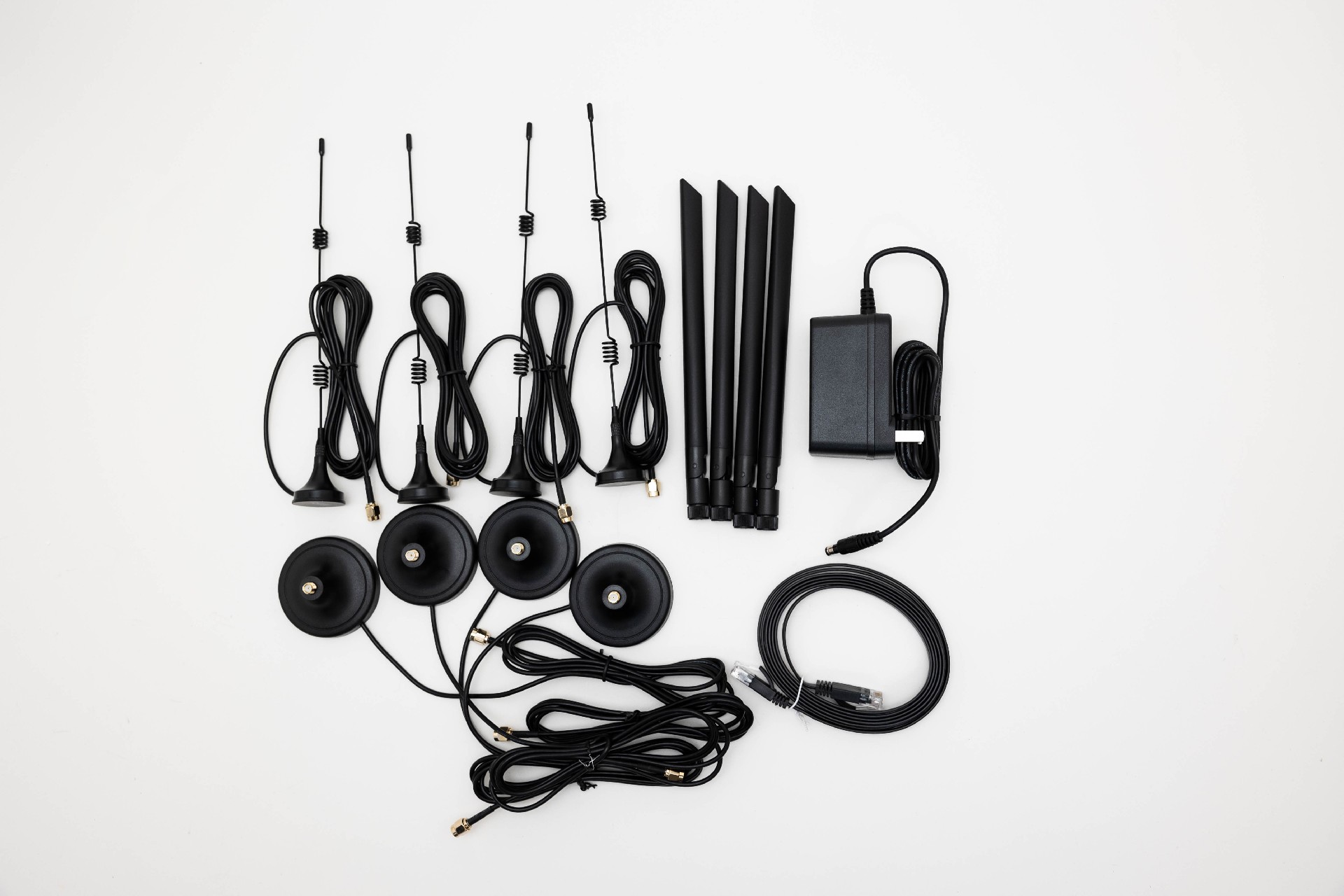

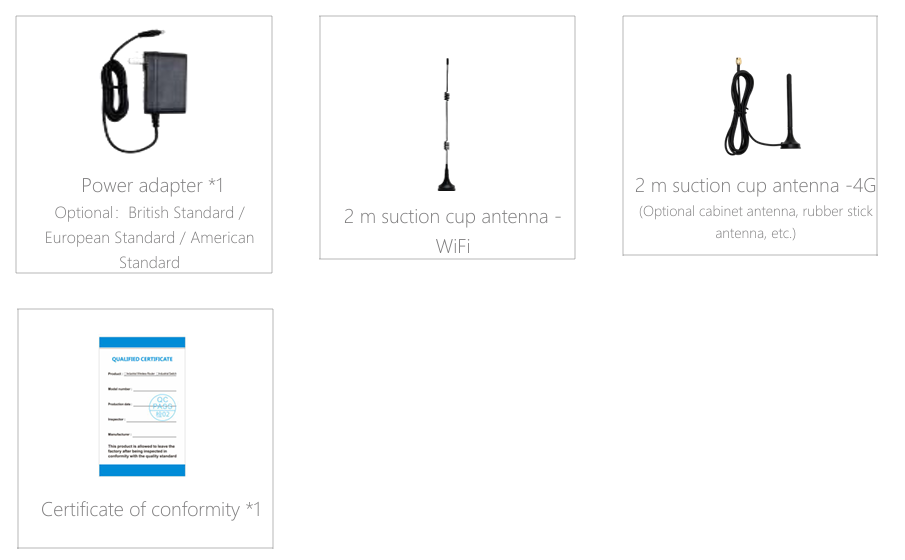

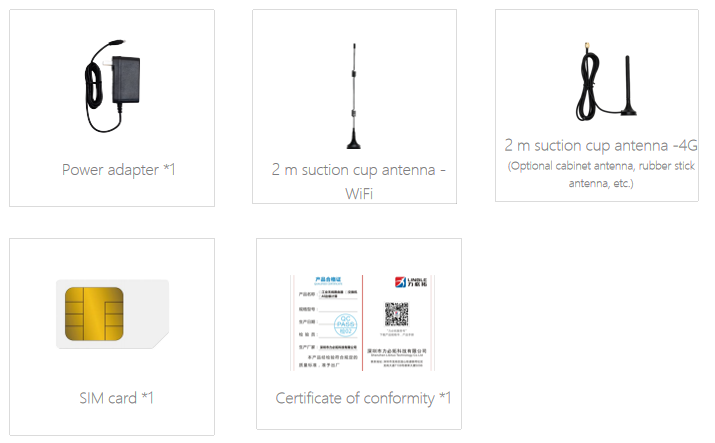

Standard accessories
