CPU

MT7981B+MT7976DA+GPY211

Flash

SPI NOR 16MB

DDR3

256M

2.4G Frequency

2.4GHz – 2.484GHz

2.4G Protocol

802.11 b / g / n/ac /ax

5G Frequency

5.150GHz～5.825GHz

5G Protocol

802.11 a / n / ac /ax

Dual Band Antenna

4*4dBi

Data Rate

2.4G: 574Mbps; 5G: 2402Mbps

2.4G TX Power

802.11b

11M

22±2dBm

1M

22±2dBm

802.11g

54M

19±2dBm

6M

21±2dBm

802.11n HT20

MCS7

18±2dBm

MCS0

20±2dBm

802.11n HT40

MCS7

18±2dBm

MCS0

20±2dBm

802.11ax HT20

MCS11

16±2dBm

MCS0

20±2dBm

802.11ax HT40

MCS11

16±2dBm

MCS0

20±2dBm

5G TX Power

802.11a

54M

19±2dBm

6M

21±2dBm

802.11n HT20

MCS7

18±2dBm

MCS0

20±2dBm

802.11n HT40

MCS7

18±2dBm

MCS0

20±2dBm

802.11ac HT20

MCS7

17±2dBm

MCS0

20±2dBm

802.11ac HT40

MCS7

17±2dBm

MCS0

20±2dBm

802.11ac HT80

MCS9

17±2dBm

MCS0

19±2dBm

802.11ax HT20

MCS11

16±2dBm

MCS0

20±2dBm

802.11ax HT40

MCS11

16±2dBm

MCS0

20±2dBm

802.11ax HT80

MCS11

16±2dBm

MCS0

19±2dBm

802.11ax HT160

MCS11

14±2dBm

MCS0

18±2dBm

2.4G Receiving Sensitivity

802.11b

11M

-87dBm

1M

-96dBm

802.11g

54M

-75dBm

6M

-93dBm

802.11n HT20

MCS7

-73dBm

MCS0

-92dBm

802.11n HT40

MCS7

-70dBm

MCS0

-89dBm

802.11ax HT20

MCS11

-64dBm

MCS0

-92dBm

802.11ax HT40

MCS11

-61dBm

MCS0

-89dBm

5G Receiving Sensitivity

802.11a

54M

-74dBm

6M

-92dBm

802.11n HT20

MCS7

-73dBm

MCS0

-90dBm

802.11n HT40

MCS7

-70dBm

MCS0

-87dBm

802.11ac HT20

MCS7

-67dBm

MCS0

-91dBm

802.11ac HT40

MCS7

-63dBm

MCS0

-88dBm

802.11ac HT80

MCS9

-60dBm

MCS0

-84dBm

802.11ax HT20

MCS11

-62dBm

MCS0

-91dBm

802.11ax HT40

MCS11

-59dBm

MCS0

-89dBm

802.11ax HT80

MCS11

-56dBm

MCS0

-86dBm

802.11ax HT160

MCS11

-53dBm

MCS0

-83dBm

2.4G EVM

802.11b:≤-10 dB；802.11g:≤-25 dB；802.11n:≤-28dB ; 802.11ax: ≤-35 dB

5G EVM

802.11a:≤-25 dB； 802.11n:≤-28 dB；802.11ac:≤-32 dB ; 802.11ax:≤-35 dB

ppm

±20ppm

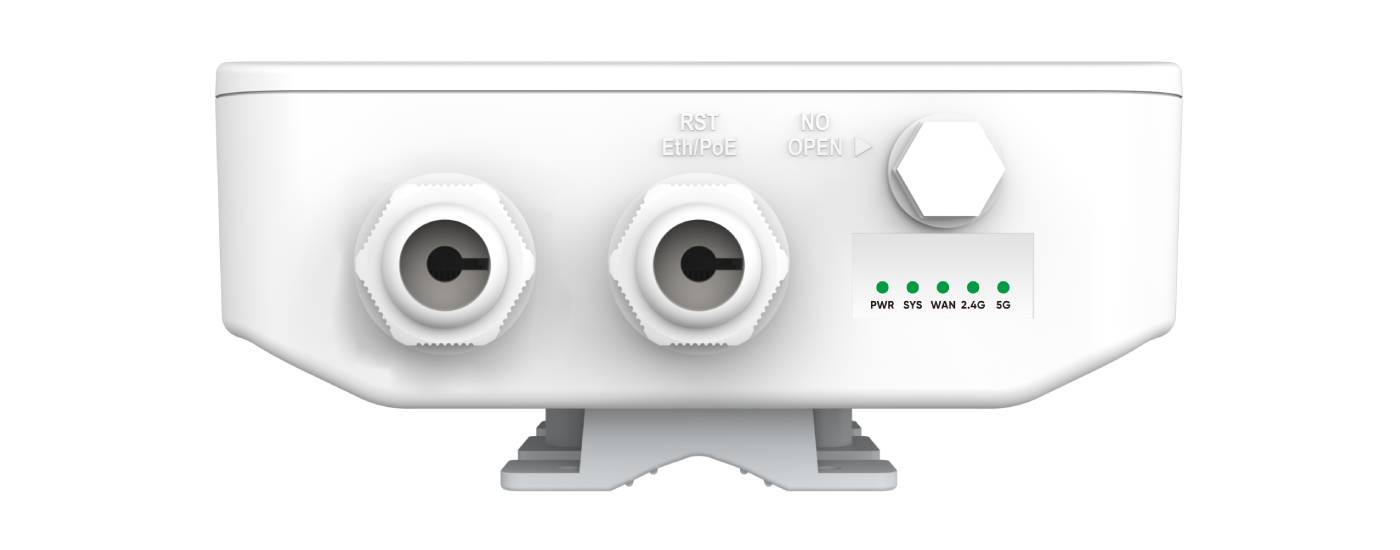

WAN

1*10/100/1000/2500Mbps WAN, support 48V PoE

LAN

1*10/100/1000Mbps LAN

Reset

Reset to factory settings by pressing 6-10 seconds

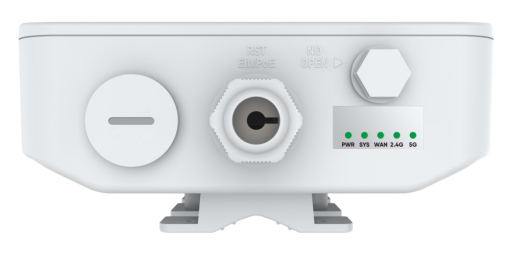

Indicators

PWR, SYS, WAN, 2.4G, 5.8G

Power

PoE 802.3at

Max Power Consumption

<18W

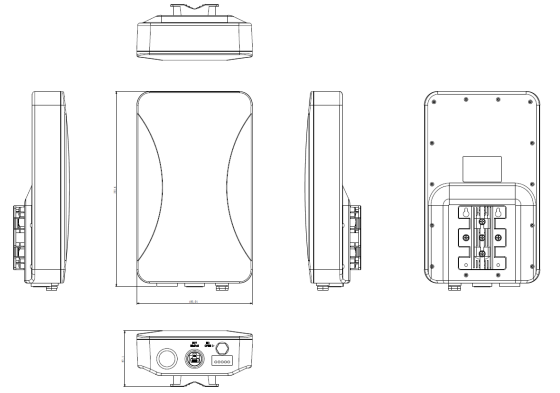

Dimension

304mm×181mm×88mm

Weight

1.6kg

Temperature

Working: -20°C to 55°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing)

ESD

Air:±8K, Touch:±6K

Electrical Surge

Common Mode: 4K, Differential Mode: 2K

Wireless Functions

Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4.

Support SSID hidden

Support seamless roaming

Support 5G Prior for a faster Ethernet.

Wireless Security: Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, WPA3

Support MAC filter

Support Wi-Fi time on/off to save energy

Support client isolation to improve the wireless stability

Support RF power adjustable, adjust the RF power based on environment.

Networking Function

VLAN settings

Cloud access support in gateway mode

Device Management

Back-up the configuration

Restore the configuration

Reset to factory default

Reboot the device: including time reboot or reboot immediately

Admin management password modify

Firmware upgrade

System log

Support firmware GUI web management, AC controller management, remote management and cloud management

Protocols

IPv4

Lan cable

1

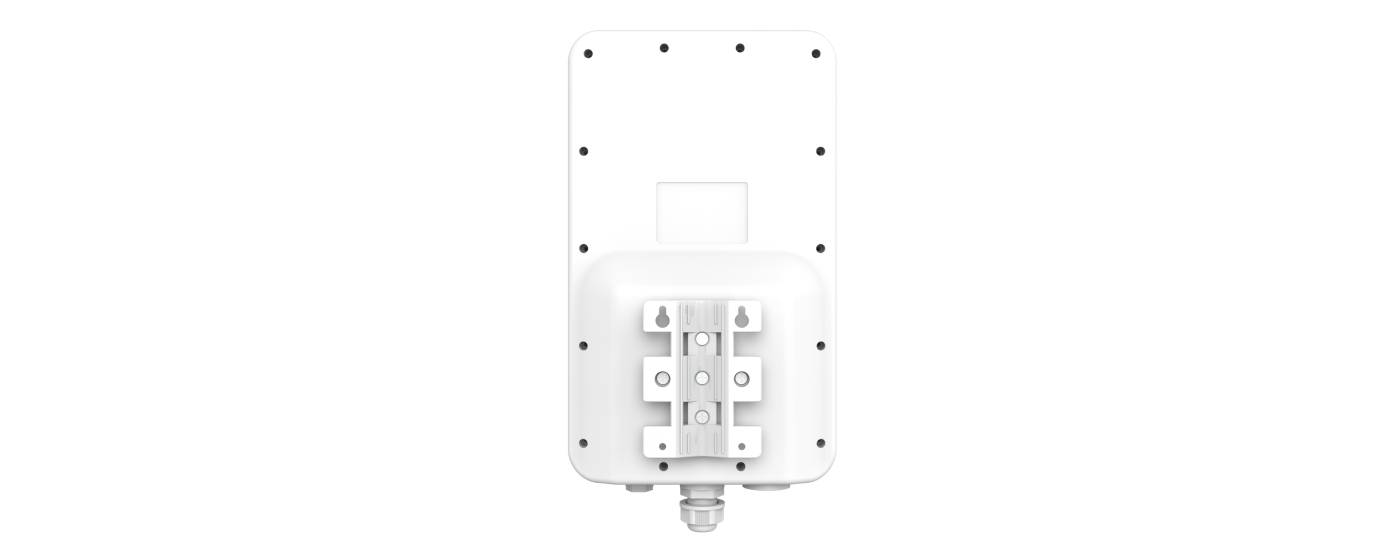

Mounting Accessories

1

Gift Box

1
