CPU

MT7981B + MT7976CN + RTL8211FS

Flash

16MB

DDR3L

256MB

2.4G frequency

2.4GHz ~ 2.484GHz

2.4G WIFI protocol

802.11 b / g / n / ax

5G frequency

5.150GHz～5.850GHz

5G WIFI protocol

802.11 a / n / ac / ax

Antenna

2 built-in dual-band onboard omnidirectional antennas, Antenna Gain: 1.7dBi

Max rate

2.4GHz provides up to 574Mbps access rate, 5GHz provides up to 2402Mbps access rate.

2.4GHz tx power

802.11b

11M

23±2dBm

1M

23±2dBm

802.11g

54M

20±2dBm

6M

22±2dBm

802.11n HT20

MCS7

18.5±2dBm

MCS0

20.5±2dBm

802.11n HT40

MCS7

18.5±2dBm

MCS0

20.5±2dBm

802.11ax HT20

MCS11

17±2dBm

MCS0

20.5±2dBm

802.11ax HT40

MCS11

17±2dBm

MCS0

20.5±2dBm

5GHz tx power

802.11a

54M

19±2dBm

6M

21.5±2dBm

802.11n HT20

MCS7

18±2dBm

MCS0

20±2dBm

802.11n HT40

MCS7

18±2dBm

MCS0

20±2dBm

802.11ac HT20

MCS8

17.5±2dBm

MCS0

20±2dBm

802.11ac HT40

MCS9

17.5±2dBm

MCS0

20±2dBm

802.11ac HT80

MCS9

17±2dBm

MCS0

19.5±2dBm

802.11ax HT20

MCS11

16.5±2dBm

MCS0

20±2dBm

802.11ax HT40

MCS11

16.5±2dBm

MCS0

20±2dBm

802.11ax HT80

MCS11

16±2dBm

MCS0

19.5±2dBm

802.11ax HT160

MCS11

14.5±2dBm

MCS0

18±2dBm

2.4GHz Rx sensitivity

802.11b

11M

-81dBm

1M

-90dBm

802.11g

54M

-70dBm

6M

-87dBm

802.11n HT20

MCS7

-69dBm

MCS0

-87dBm

802.11n HT40

MCS7

-66dBm

MCS0

-84dBm

802.11ax HT20

MCS11

-57dBm

MCS0

-87dBm

802.11ax HT40

MCS11

-54dBm

MCS0

-84dBm

5GHz Rx sensitivity

802.11a

54M

-70dBm

6M

-87dBm

802.11n HT20

MCS7

-69dBm

MCS0

-87dBm

802.11n HT40

MCS7

-66dBm

MCS0

-84dBm

802.11ac HT20

MCS8

-64dBm

MCS0

-87dBm

802.11ac HT40

MCS9

-59dBm

MCS0

-84dBm

802.11ac HT80

MCS9

-56dBm

MCS0

-80dBm

802.11ax HT20

MCS11

-57dBm

MCS0

-87dBm

802.11ax HT40

MCS11

-54dBm

MCS0

-84dBm

802.11ax HT80

MCS11

-51dBm

MCS0

-81dBm

802.11ax HT160

MCS11

-48dBm

MCS0

-78dBm

2.4GHz EVM

802.11b: ≤-10 dB；802.11g: ≤-25 dB；802.11n: ≤-28dB；802.11ax: ≤-35 dB

5GHz EVM

802.11a: ≤-25 dB ；802.11n: ≤-28 dB ；802.11ac: ≤-32 dB;  802.11ax: ≤-35 dB

ppm

±20ppm

WAN

1 x 10/100/1000Mbps Auto-Negotiation RJ45 WAN port, supporting 48V PoE power supply

LAN

1 x 10/100/1000Mbps Auto-Negotiation RJ45 LAN port

Button

Reset button (press and hold for 6-10 seconds to restore to factory default settings)

LED

Built-in hidden tri-color LED (Red, Green, Blue) on the middle frame.

(1) Solid red on power-up. After system startup and any Wi-Fi is enabled, the red light turns off and the green light turns solid.

(2) In AC management mode: When the AP loses connection with the AC, the red and green lights turn off, and the blue light turns solid.

(3) When the "Find AP" function is used, the red and green lights turn off, and the blue light flashes quickly (once per second).

Power supply

PoE 802.3af

Power consumption

<12W

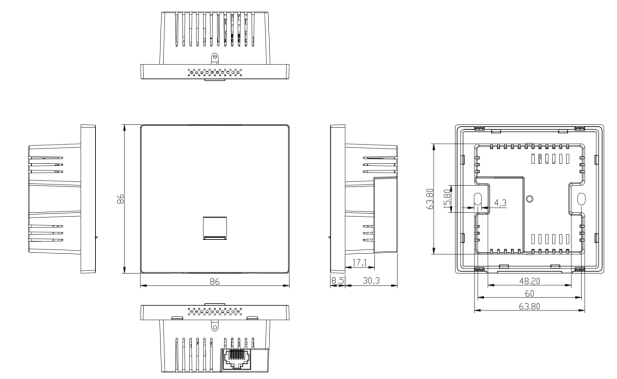

Size

86mm × 86mm × 38.8mm (external height is 8.5mm)

Weight

0.15kg

Environment

Operating temperature-10°C to 40°C；Storage temperature: -40°C to 70°C；humidity：5％～95％（No condensation）

ESD

Air:±8K, Touch:±6K

Electrical Surge

Common Mode: 2K, Differential Mode: 1K

Supported Modes

Gateway Mode: Connects to WAN via static IP, DHCP, or PPPoE.

AP Mode: Provides wireless coverage, connecting to an upstream router via Ethernet.

Wireless Features

SSID Broadcast

Number of SSIDs: 4 (2.4GHz) + 4 (5GHz)

SSID Hiding

Wireless Encryption: OPEN, WPA/WPA2PSK-TKIP/AES, WPA3-SAE

Wireless MAC Address Filtering: Supports whitelist

Band Steering (5G Preferred)

WiFi Scheduled Shutdown

User Isolation: Inter-WLAN isolation, AP internal isolation

TX Power Setting

Wireless Client Limit

QoS: WMM

Network Features

Connection Type: Static IP, DHCP from server/gateway.

DHCP Server: Built-in or external.

Cloud platform server support.

Firewall.

PPPoE dial-up support.

Device management

Configuration backup/restore.

Factory reset.

Reboot (scheduled/instant).

Firmware upgrade.

Time management & synchronization.

System logs.

Fat/Fit AP mode switch.

Mounting Accessories

1
